| Model | PowerPLANT-H225 |
| System General Specification | |

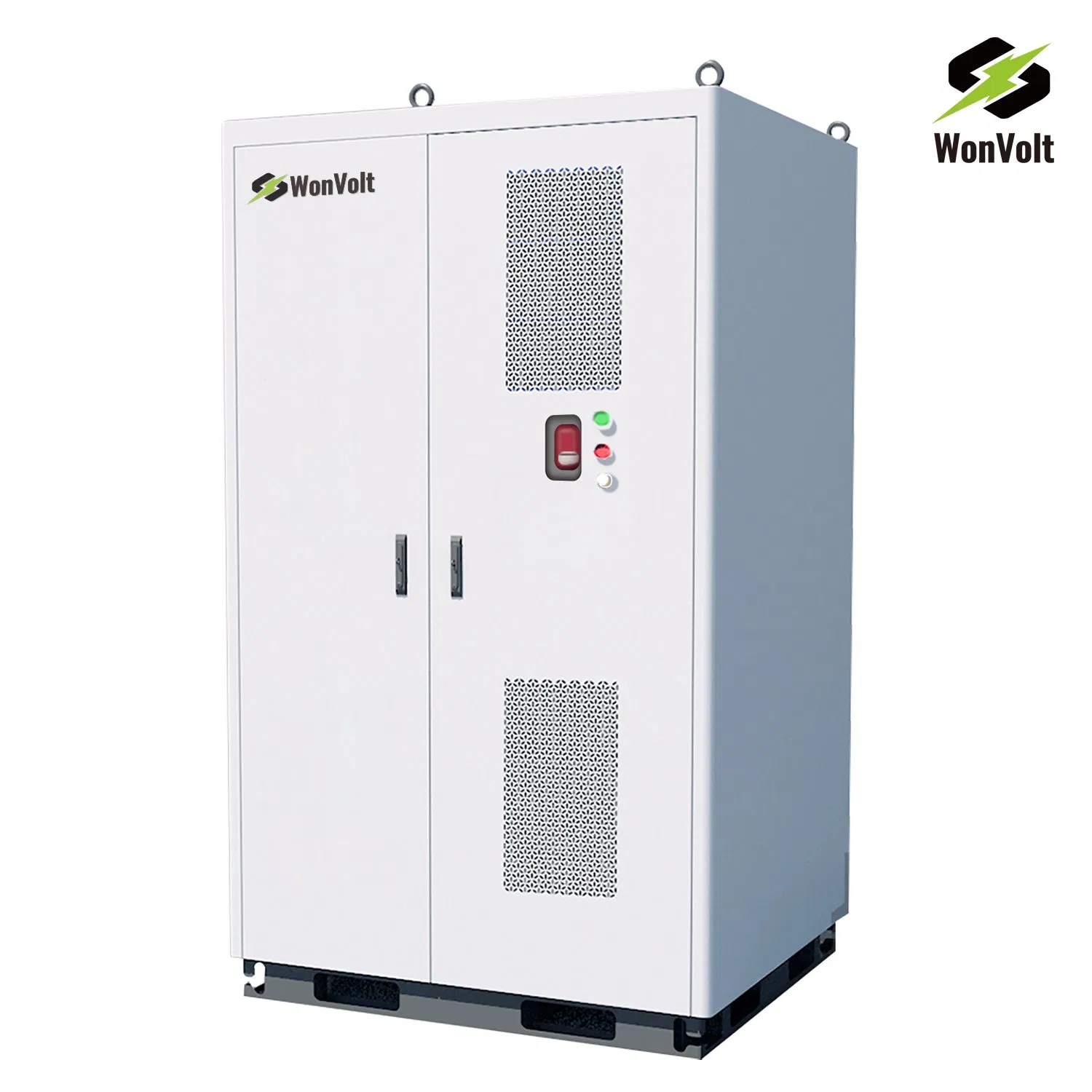

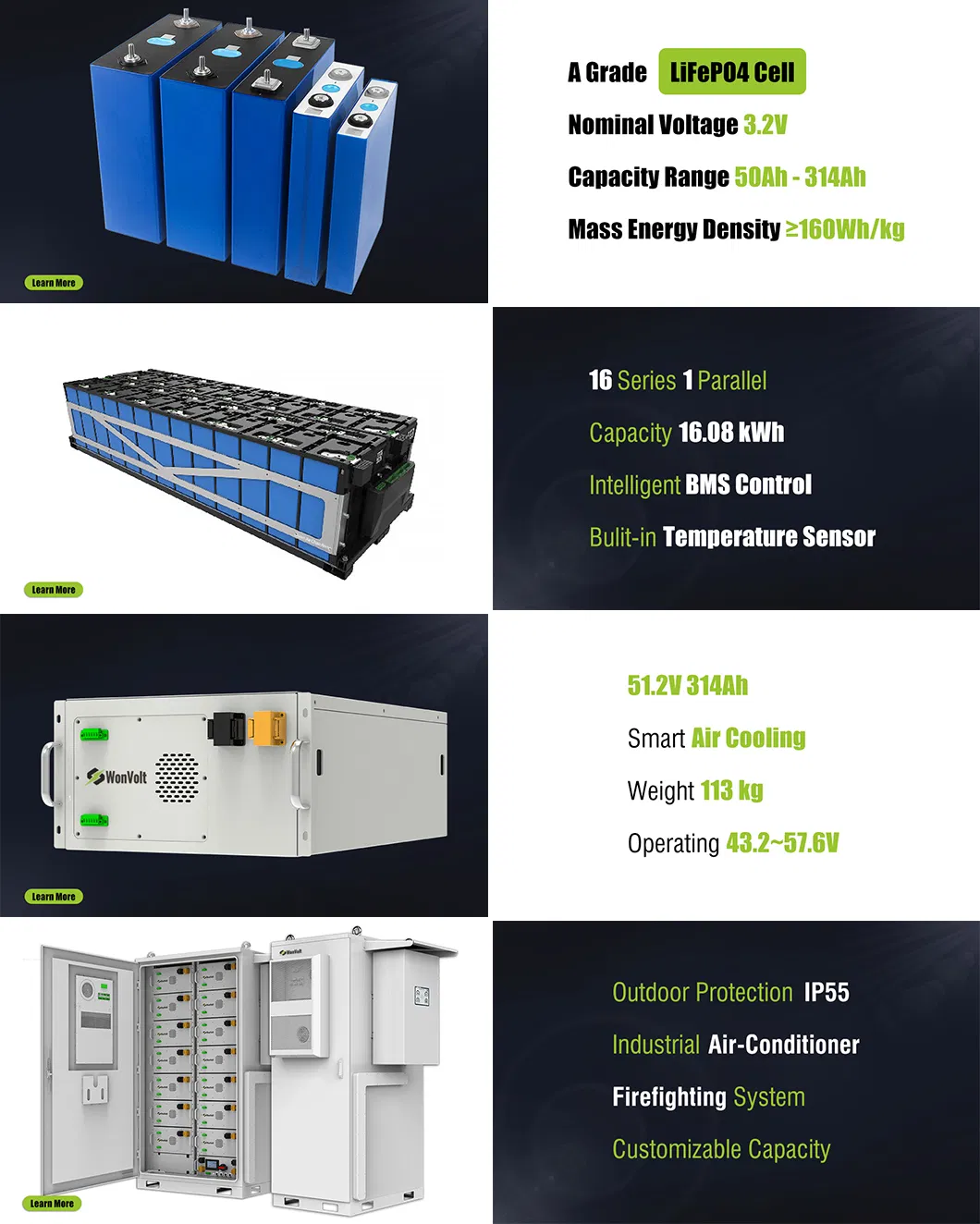

| Product | H225 ESS Cabinet |
| System Nominal Voltage | 716.8V |
| System Nominal Capacity | 314Ah |
| System Nominal Energy | 225kWh |
| Recommended Charge/Discharge | 100A |
| Max. Charge/Discharge | 140A |
| Protection Class | IP54 / IP55 |
| Cooling Method | Industrial Air-conditioner |
| Dimensions(W*D*H) | 1626x1245x2175mm |
| Battery Specification | |
| Battery Type | 51.2V 314Ah |
| Cell Brand | HIGEE / CATL / REPT / etc. |
| Design Life | 10 Years+ |
| Cycle Times | 10000 Times (0.5C - 25ºC - 90%DOD) |
| AC Side Specification | |
| Inverter | 75kW ~ 125kW |
| Supported Brands | Deye / Solis / Afore / ATESS / Growatt / Megarevo |
| Rated AC Voltage | 380VAC / 360VAC ~ 440VAC |
Customization Available: We design and customize solar systems from 5kw to 100MW. Liquid cooling BESS outdoor battery storage systems are available in all-in-one cabinets (215kwh, 230kwh, and larger), with or without PV panels. One-stop solution provided.
