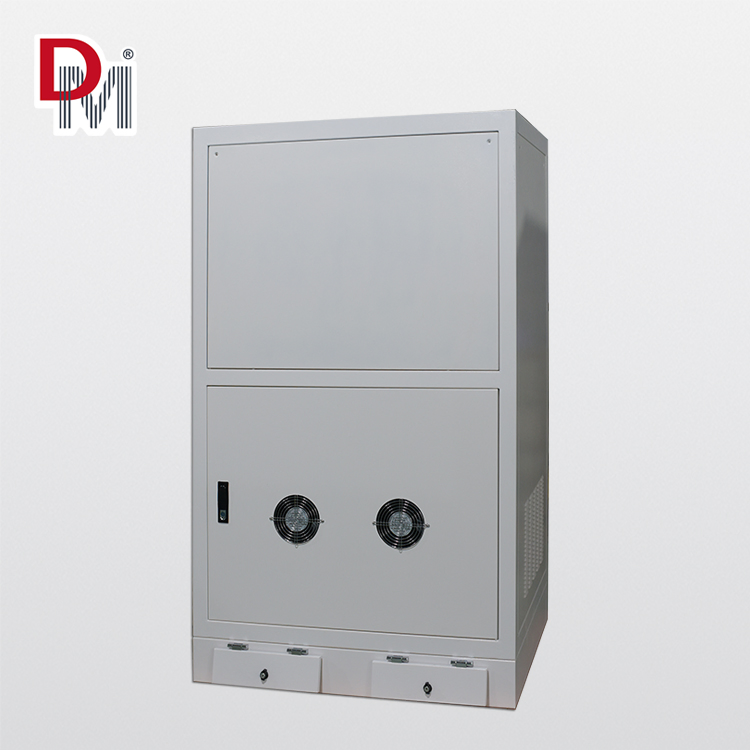

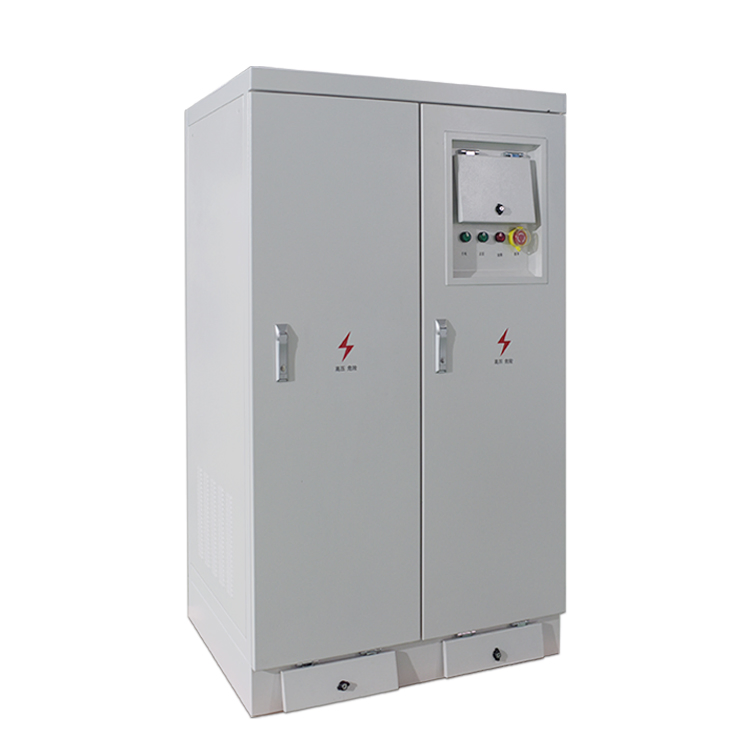

100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
1 / 5
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System
100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System

100kw 200kw 300kw Power Conversion System Inverter with Isolated Transform for Energy Storage Microgrid Ess Solar System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
DMPCS-100KSTL
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar, Wind Power
HS Code
8504403090

Product Description

Energy storage products and system solutions solve power supply problems in areas with no and weak electricity, achieving smart power supply and demand allocation. This system is designed for three-phase energy storage systems, realizing On-grid power generation, off-grid inversion, and city power reverse charging.
Power peaking and valley filling to meet diverse customer needs.
Smooth output power to improve grid acceptance proportion.
32-bit DSP (TI 2812) + ARM platform for enhanced reliability and touch operation.
Supports RS485, WiFi, GPRS, and Ethernet for remote monitoring via mobile/PC.
Three-phase four-bridge arm structure handling 100% unbalanced load.

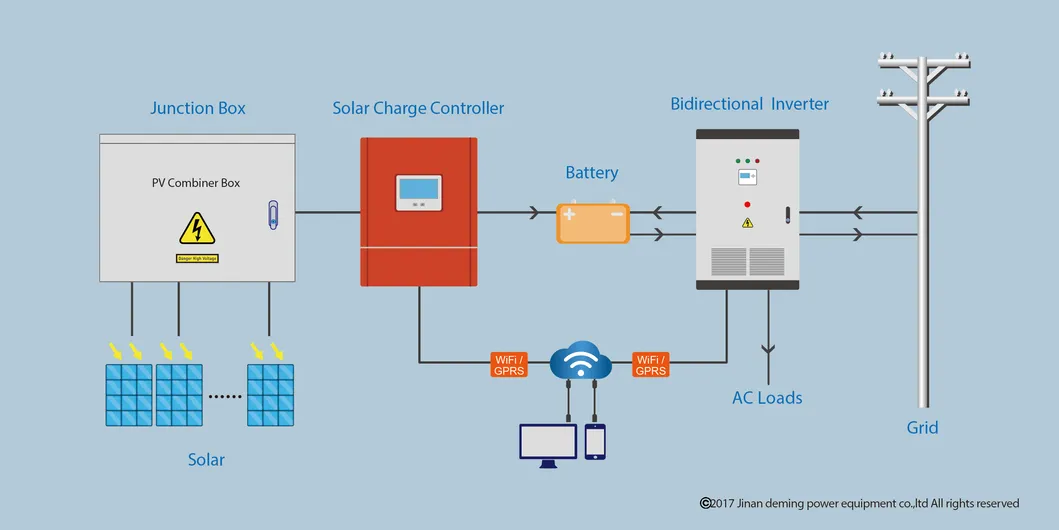

Hybrid Solar System
Off-grid and On-grid Hybrid Solar Power System

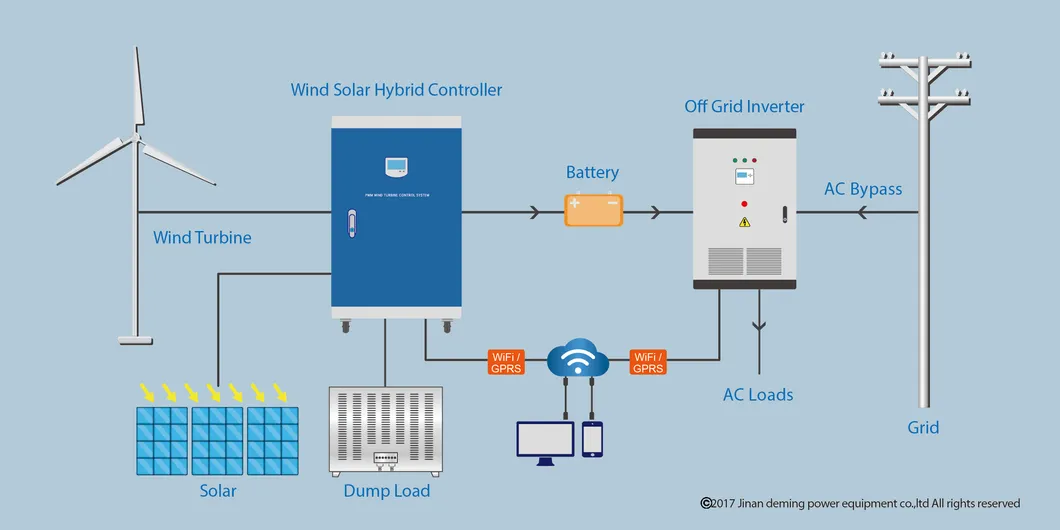

Wind Turbine Hybrid System
Wind Turbine Solar Hybrid Power System

Detailed Photos

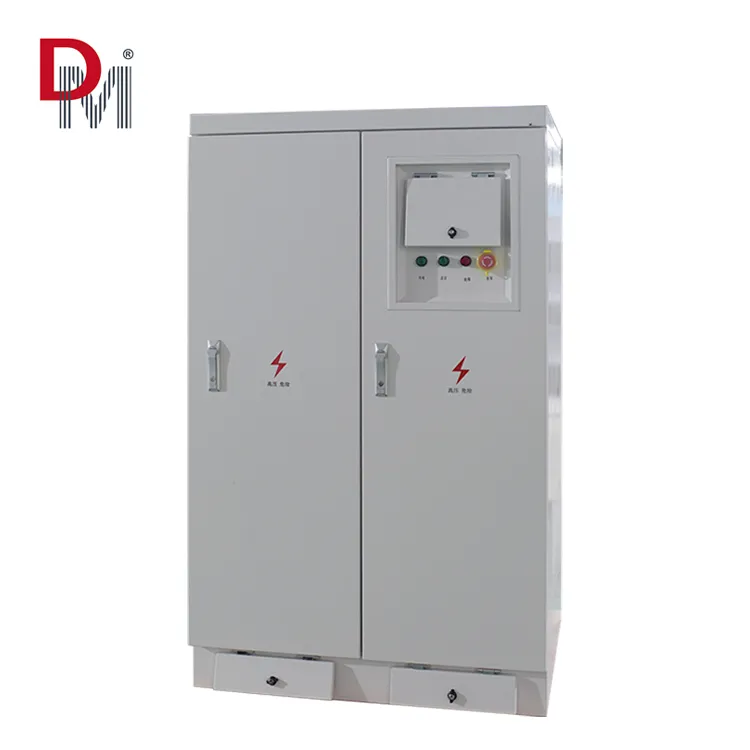

Detail 1
Detail 2
Detail 3

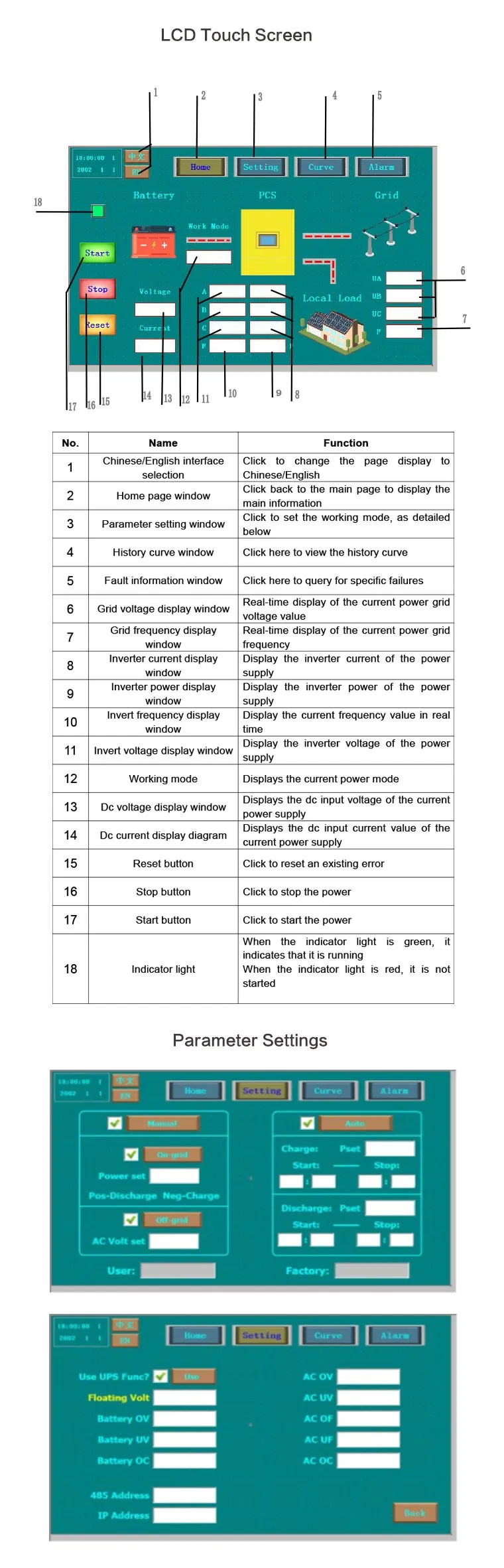

Structure

Technical Parameters (300KW-1000KW)

AC Side Parameters
Rated Output Power300KW500KW1000KW
Output Overload Capacity330KW550KW1100KW
DC Side Parameters
DC Voltage Range400-800Vdc400-800Vdc500-900Vdc
Rated Charging Current625A833A1667A
System Parameters
Max Efficiency95% (Includes isolation transformer)
Switching Time0ms (Seamless)
CommunicationRS485, WIFI, GPRS, Ethernet (Modbus)

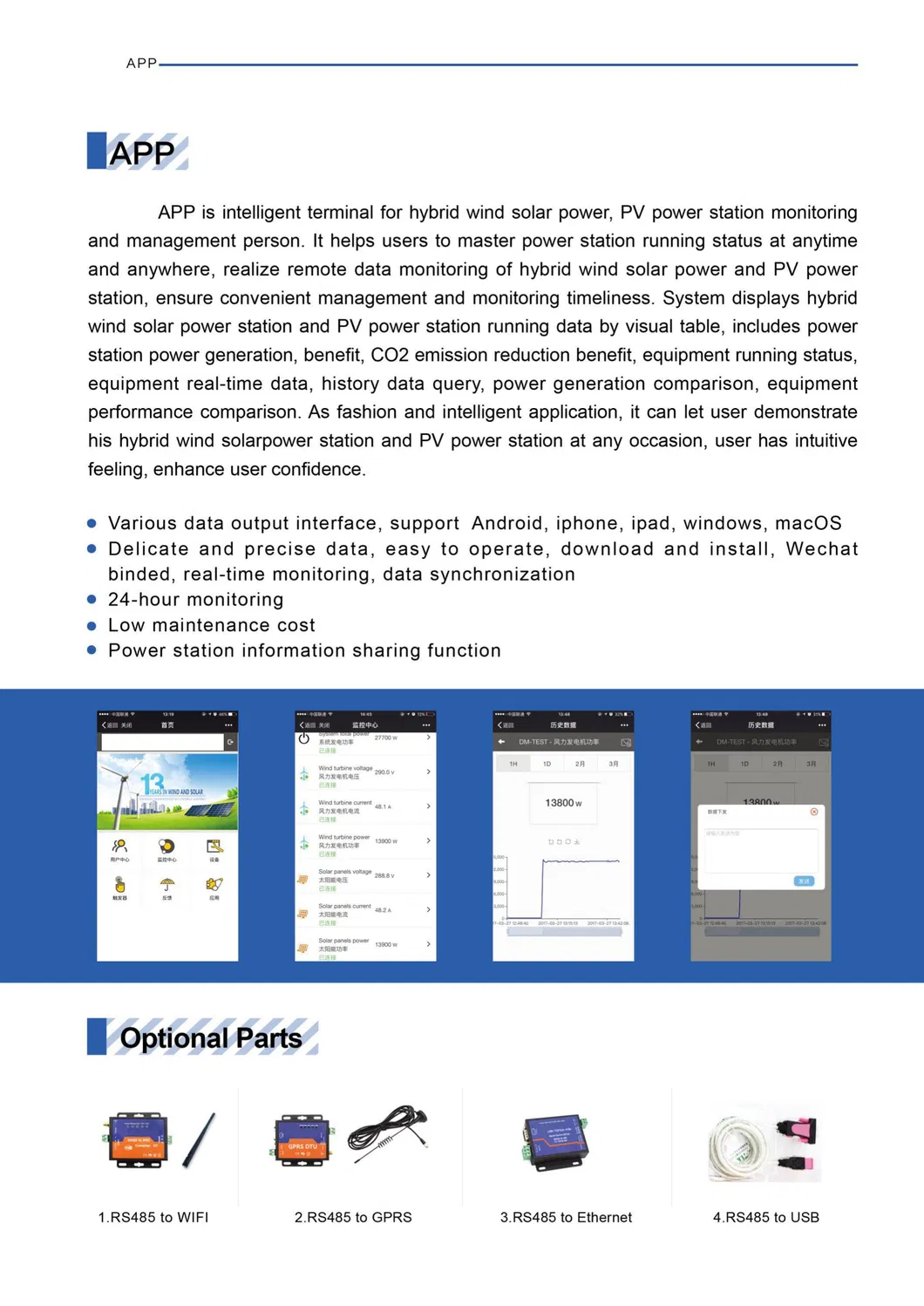

Performance Chart

Certifications & Cases

Certificates

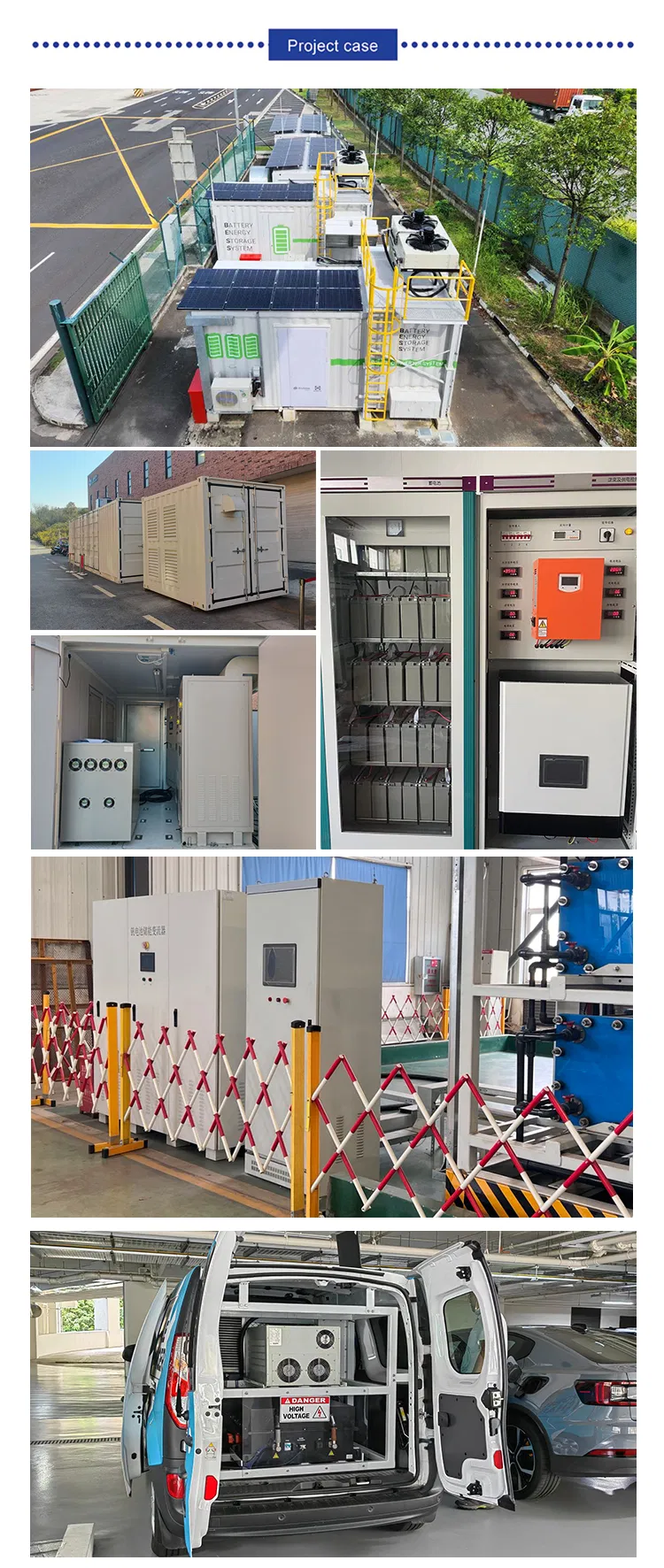

Project Case

Frequently Asked Questions

What is the switching time between on-grid and off-grid modes?
The system features a seamless 0ms switching time, ensuring uninterrupted power supply during grid failures.
Does the inverter support remote monitoring?
Yes, it supports RS485, WiFi, GPRS, and Ethernet communications, allowing users to monitor status via mobile phones or computers.
What types of batteries are compatible with this system?
It is compatible with lead-acid accumulators, lithium batteries, supercapacitors, and vanadium batteries.
Can it handle unbalanced loads?
Yes, the three-phase four-bridge arm structure allows it to carry a 100% unbalanced load effectively.
What is the maximum conversion efficiency?
The system achieves a maximum conversion efficiency of up to 95%-97% depending on the specific model and configuration.
