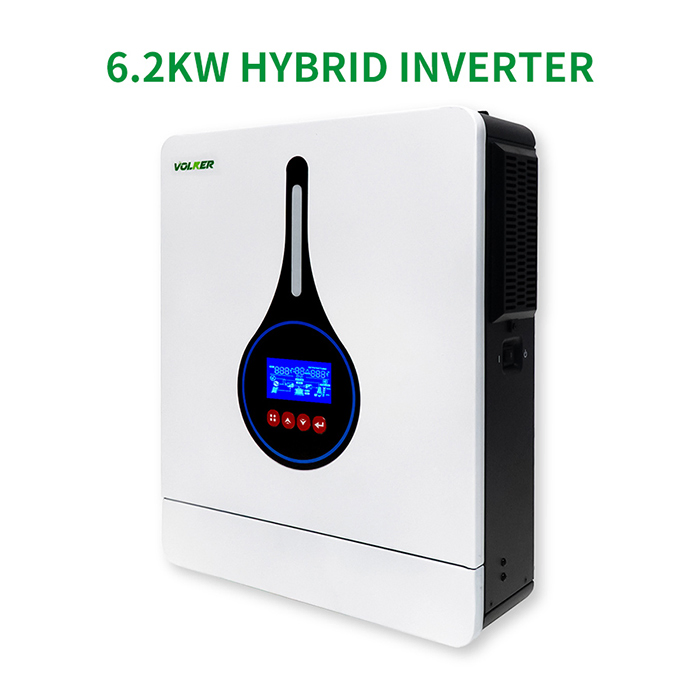

Product Overview
Model NO.VOL-USI-6200W-48V
Nature of SourceActive Inverter
PhaseSingle
Output Power6200W
CertificationCE, ROHS, ISO9001
Power SourceSolar Power
Max PV Input6000W
Efficiency98%
Key Features
Pure sine wave solar inverter with output power factor 1.0

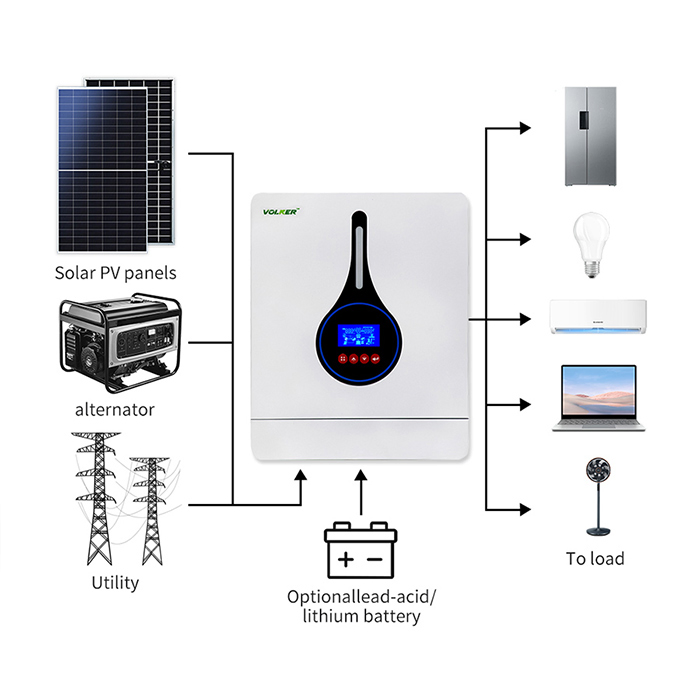

Inverter can run without battery for flexible operation
Built-in 120A MPPT solar charge controller
High PV input voltage range (60-500VDC)

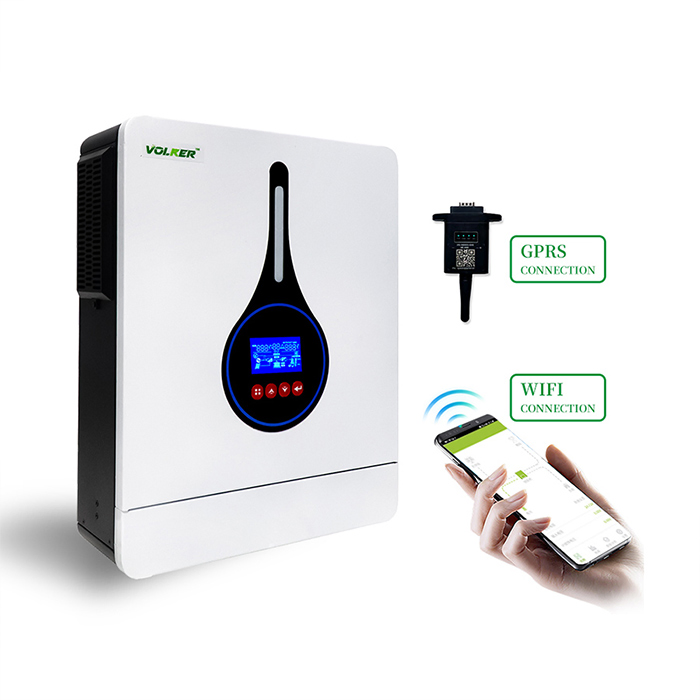

WiFi & GPRS available for IOS and Android monitoring
Dual output for smart load management
Technical Specifications
| Max PV Input Power |
4200W |
6000W |
| Rated Output Power |
3600W |
6200W |
| MPPT Voltage Range |
60-450VDC |
60-450VDC |
| Max Charging Current |
120A |
120A |
| Output Waveform |
Pure Sine Wave |

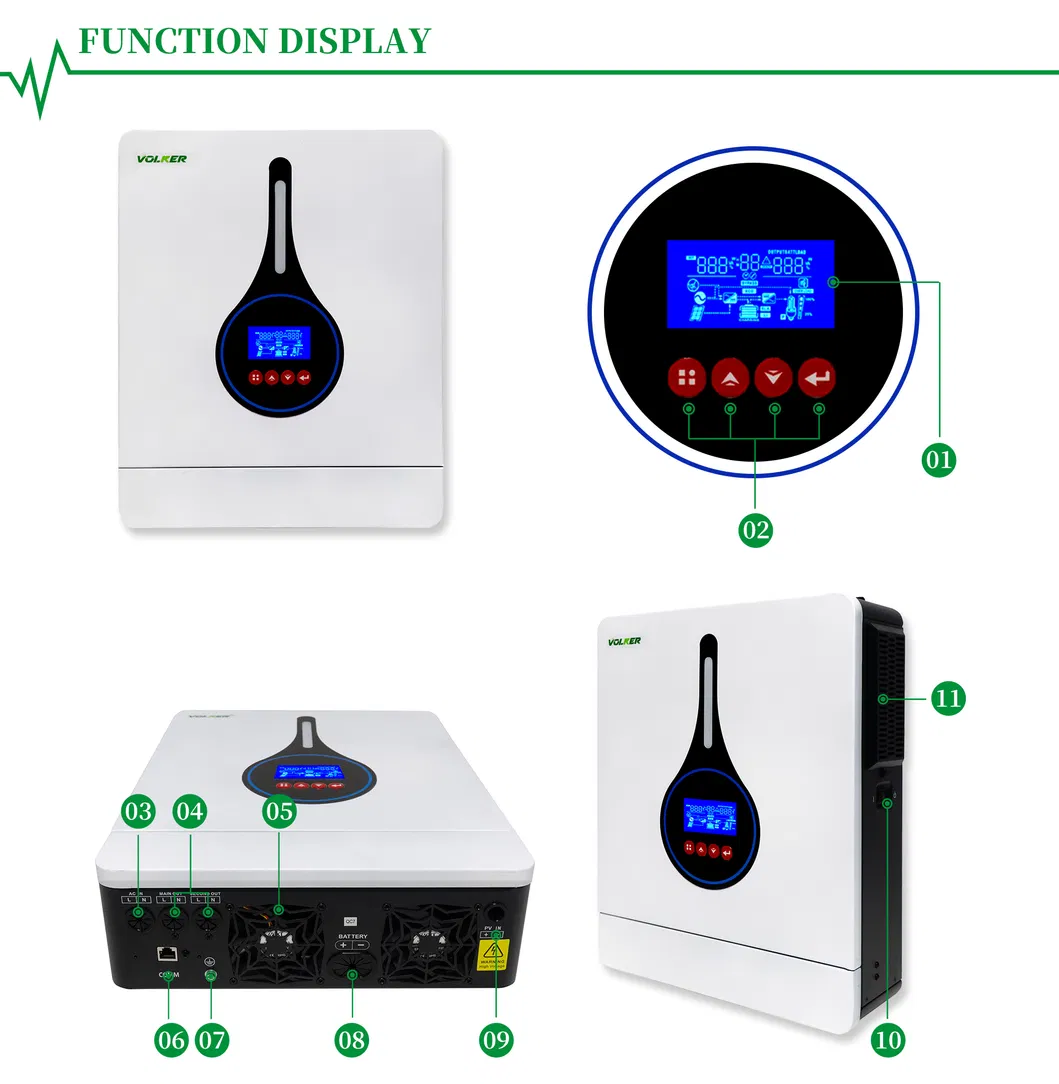

Product Interface & Layout

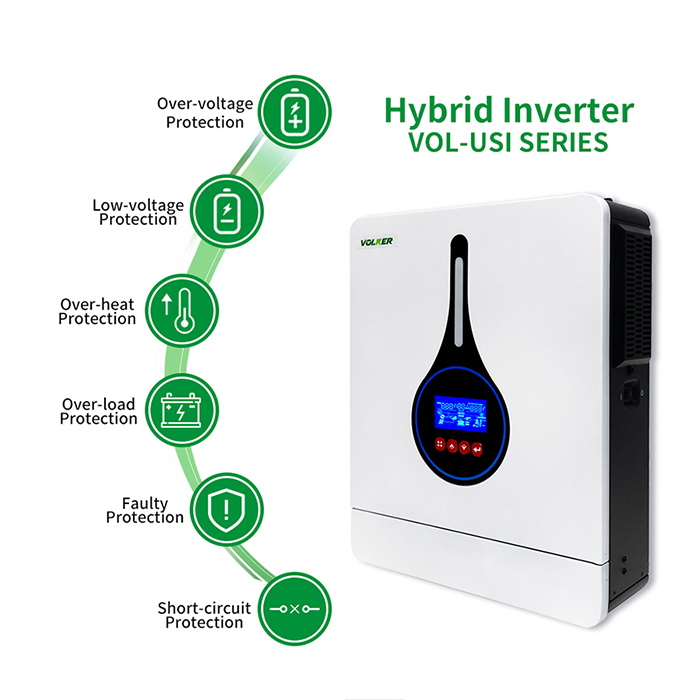

System Protection
Full digital voltage and current double closed loop control
Complete protections: Short circuit, Over voltage, Overload
Smart variable speed fan for efficient heat dissipation
Advanced MPPT technology with 98% efficiency
Frequently Asked Questions
Q1: Can this inverter work without a battery?
Yes, this inverter is designed to operate in both on-grid and off-grid modes and can function without a battery connected.
Q2: How do you ensure product quality?
All products undergo rigorous aging tests to ensure reliability. We use precision electronic instruments for testing before delivery.
Q3: Does it support remote monitoring?
Yes, WiFi and GPRS modules are available, supporting both iOS and Android platforms for real-time system monitoring.
Q4: What types of batteries are compatible?
The inverter includes a built-in lithium battery automatic activation feature and is compatible with both lead-acid and lithium batteries.
Q5: What safety protections are included?
The system offers 360° protection, including short circuit, over/under voltage, overload, and reverse polarity protection.
Q6: What is the warranty and support policy?
We provide a 24-month warranty and lifetime technical support for all our inverter products.
