High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
1 / 5
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi
High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi

High-Efficiency Deye Three Phase 10kw 15kw 20kw 25kw Hybrid Solar Inverter with WiFi

Customization: Available
Certification: ISO9001, RoHS, CE
Output Power: 5-25kw
Send Inquiry

Product Description

Basic Information
Model NO.
SUN-20K-SG01HP3-EU-AM2
Grid Type
Hybrid
Output Type
Triple
Nature of Wave
Square Wave Inverter
Type
DC/AC Inverters
Input Voltage
48V
Output Voltage
100-240V / 380-415V
Output Current
10-100A
Output Frequency
50/60Hz
Weight
31kg
IP Rating
IP65
Interface
RS485/RS232/Can
Product Description

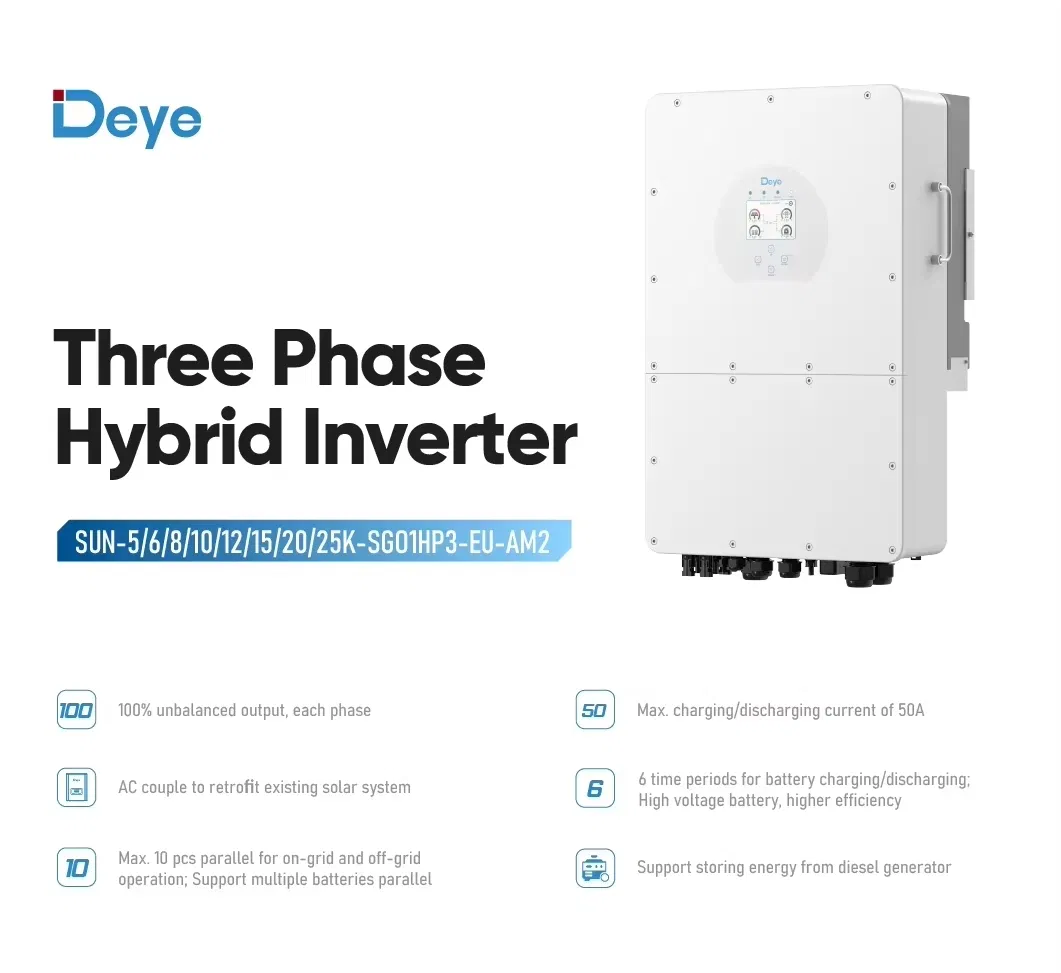

Hybrid Solar Inverter

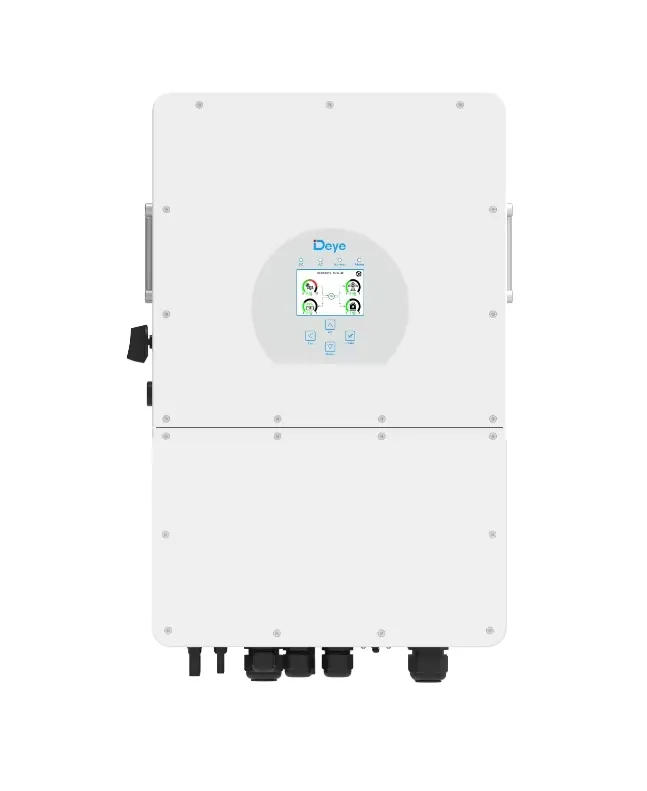

Deye Inverter Features
● 100% unbalanced output, each phase
● AC couple to retrofit existing solar system
● Max. 10 pcs parallel for on-grid and off-grid operation
● Support multiple batteries parallel
● Max. charging/discharging current of 50A
● High voltage battery, higher efficiency
● 6 time periods for battery charging/discharging
● Support storing energy from diesel generator
Technical Specifications
Model SUN-10K SUN-12K SUN-15K SUN-20K SUN-25K
Battery Input Data
Battery TypeLithium-ion
Voltage Range (V)160-700
Max. Charge (A)3737373750
PV String Input Data
Max. PV Power (W)2000024000300004000050000
Max. DC Voltage (V)1000
MPPT Range (V)150-850
AC Output Data
Rated Power (W)1000012000150002000025000
Max. Apparent Power1100013200165002200027500

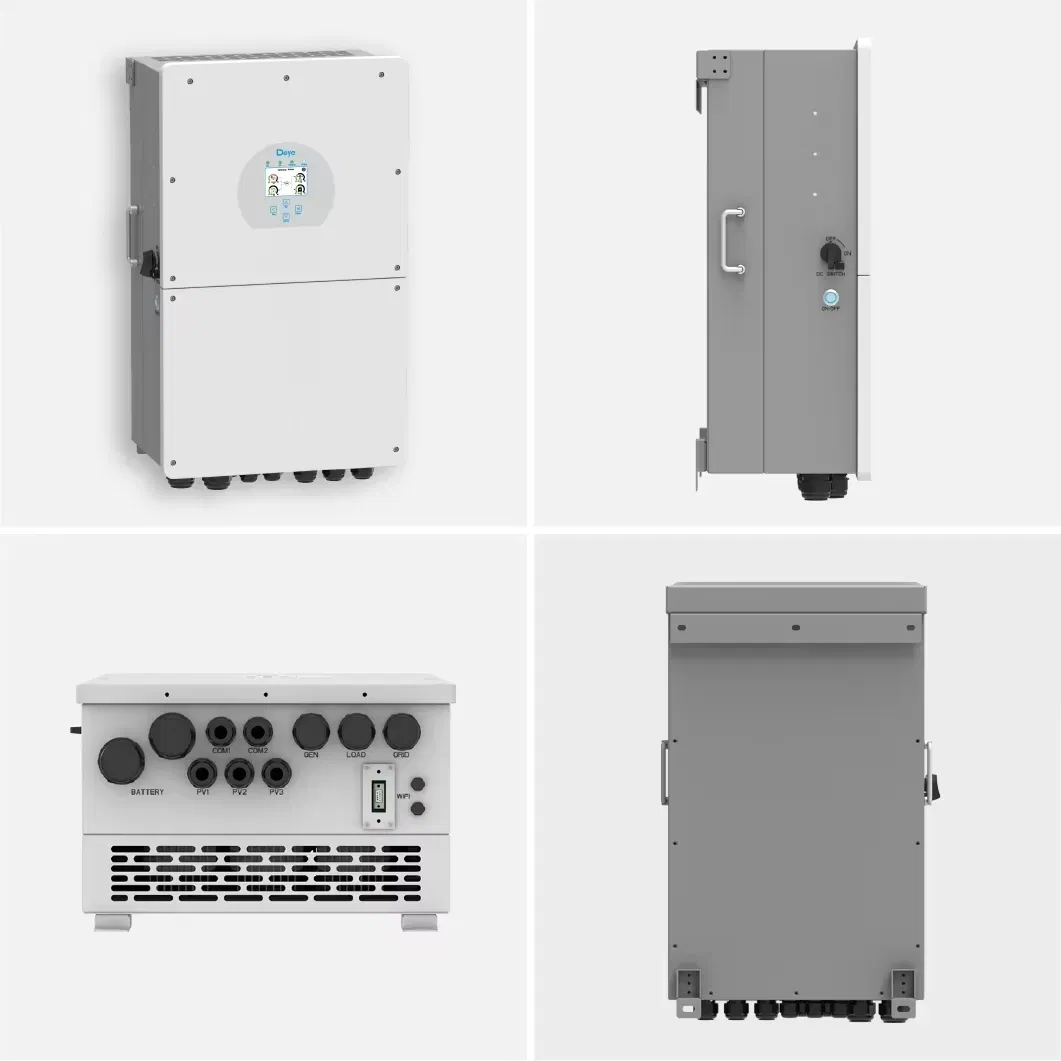

Data Chart
Packaging & Shipping
Package Size
50.00cm * 70.00cm * 30.00cm
Gross Weight
45.000kg

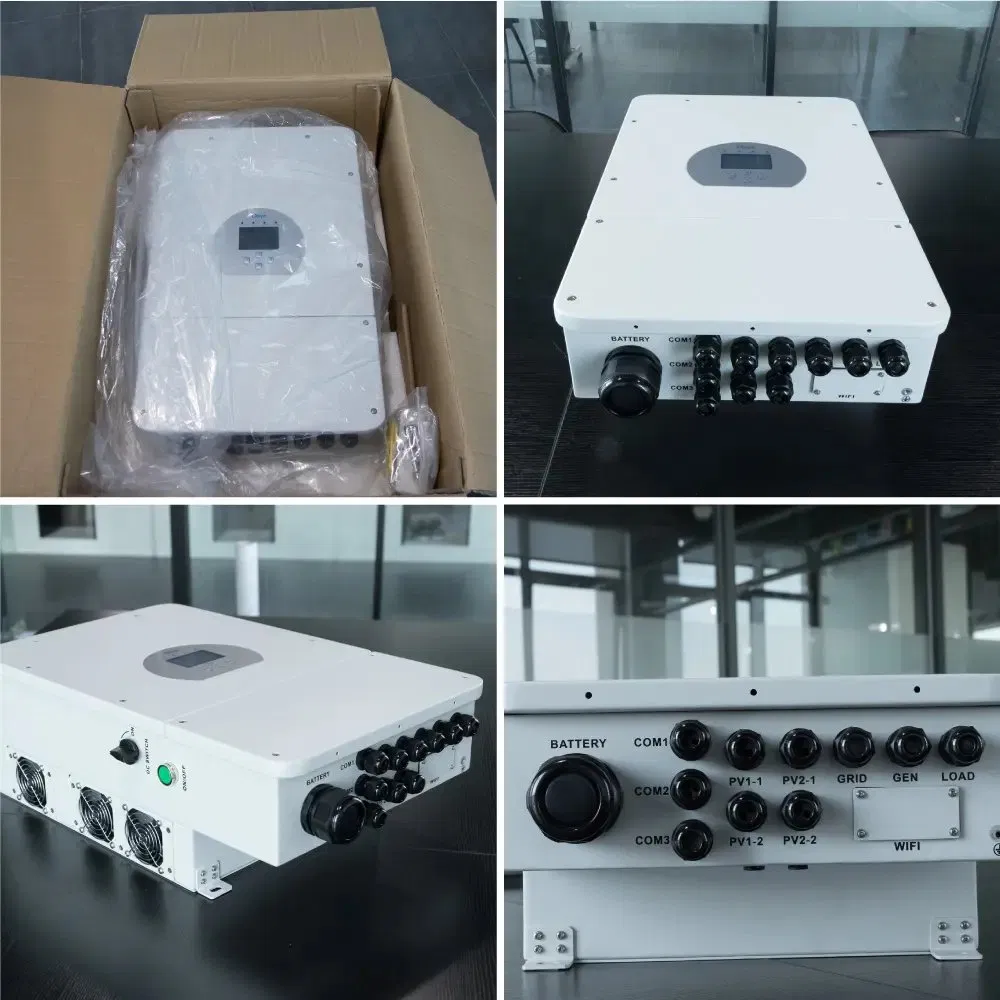

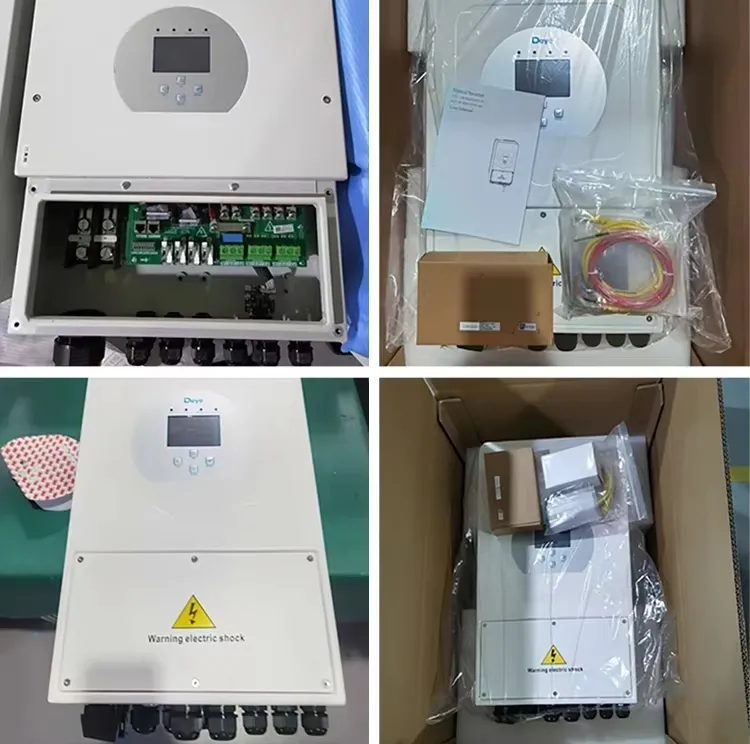

Packaging
Shipping
Frequently Asked Questions
What is the main advantage of this hybrid inverter?
It supports 100% unbalanced output for each phase and allows AC coupling to retrofit existing solar systems, making it highly flexible for both new and old installations.
How many units can be connected in parallel?
You can connect up to 10 units in parallel for both on-grid and off-grid operations, supporting large-capacity energy storage needs.
What types of batteries are compatible?
The system is designed for high-voltage Lithium-ion batteries with a voltage range of 160V to 700V, ensuring higher system efficiency.
Does it support emergency power from a generator?
Yes, the inverter supports storing energy from a diesel generator, providing an extra layer of reliability for off-grid applications.
What are the available monitoring modes?
The inverter supports various monitoring interfaces including GPRS, WIFI, Bluetooth, 4G, and LAN (optional) via RS485/RS232/CAN.
Is the inverter suitable for outdoor installation?
Yes, it has an IP65 ingress protection rating, making it resistant to dust and water, suitable for outdoor environments.
