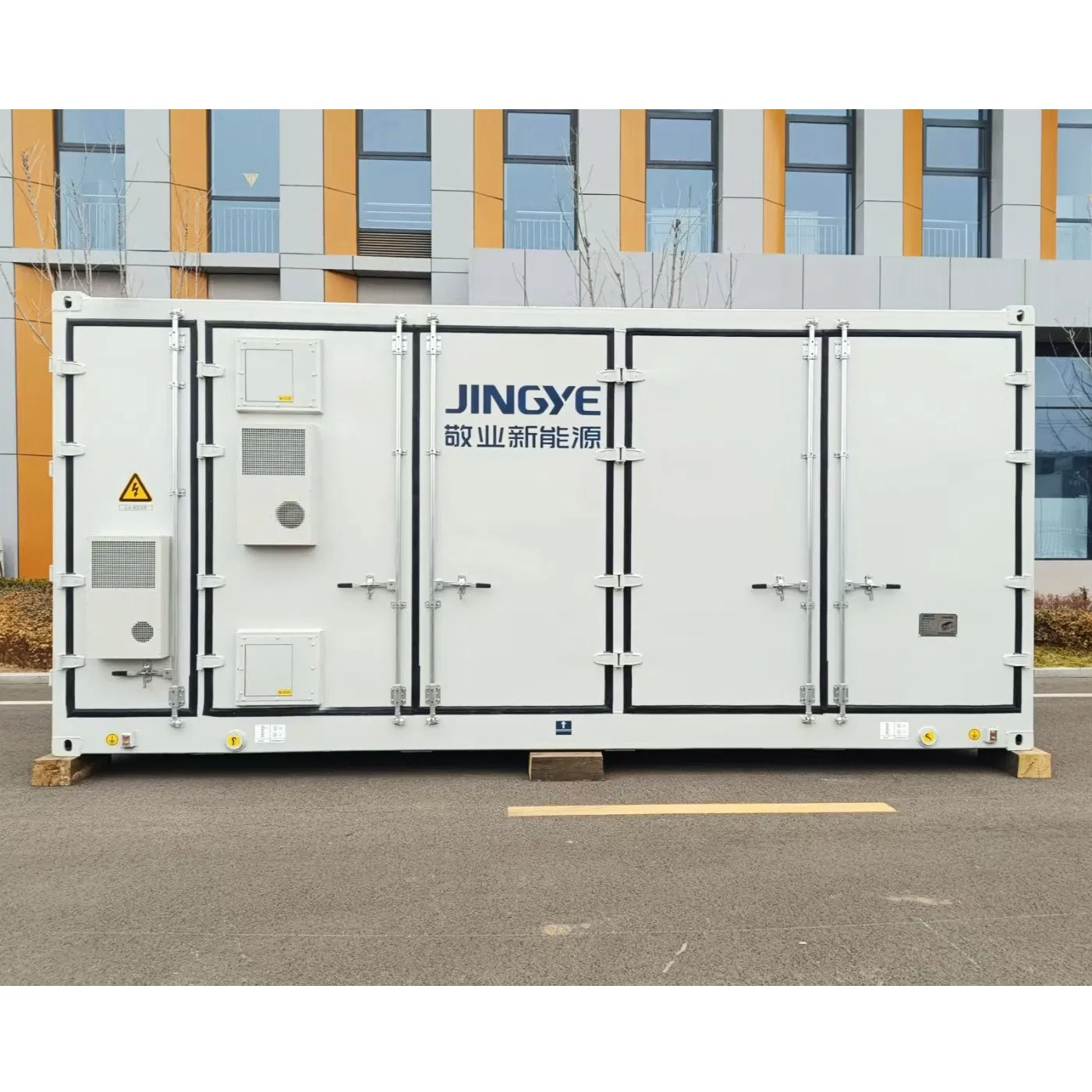

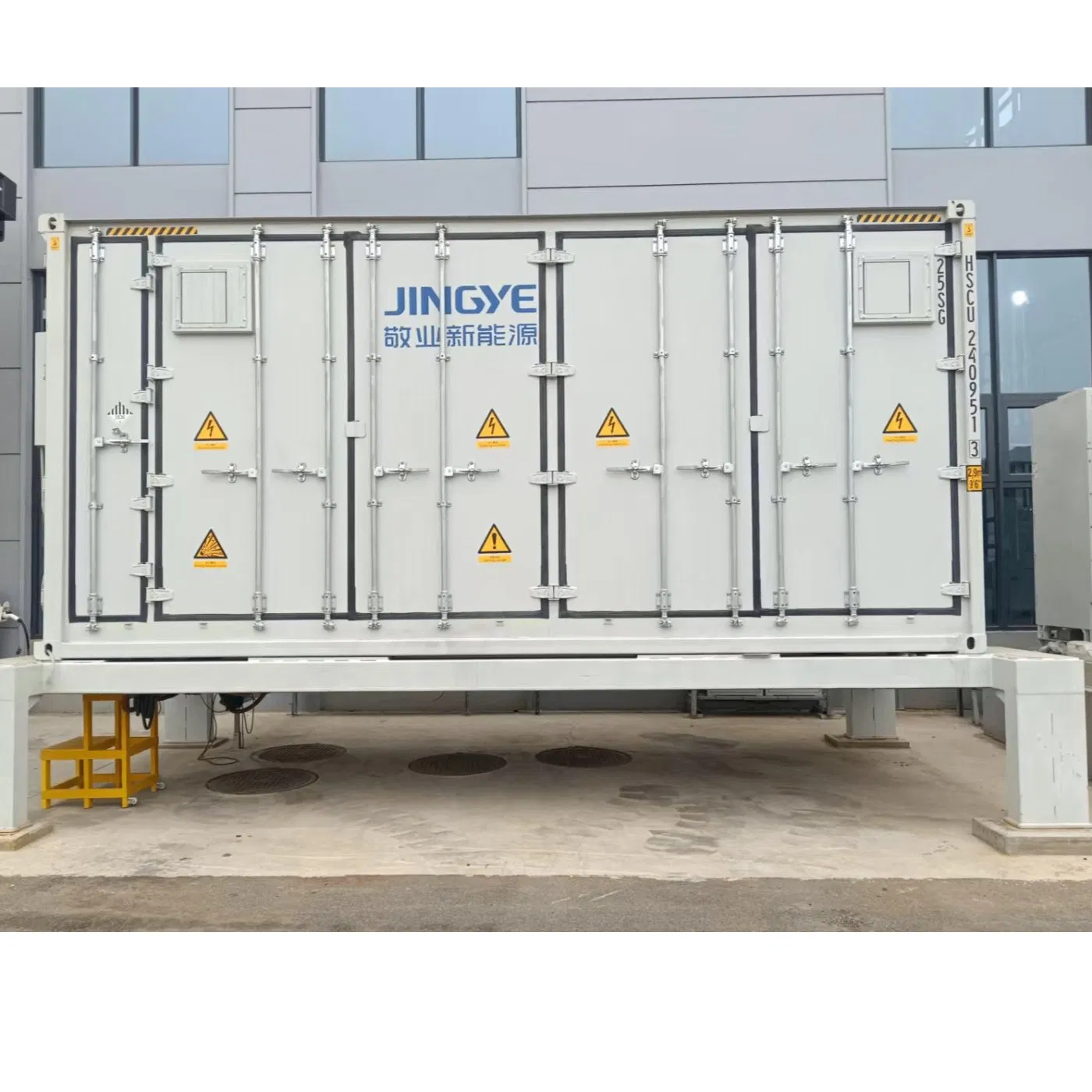

5.015MWh High-Capacity Energy Storage Container

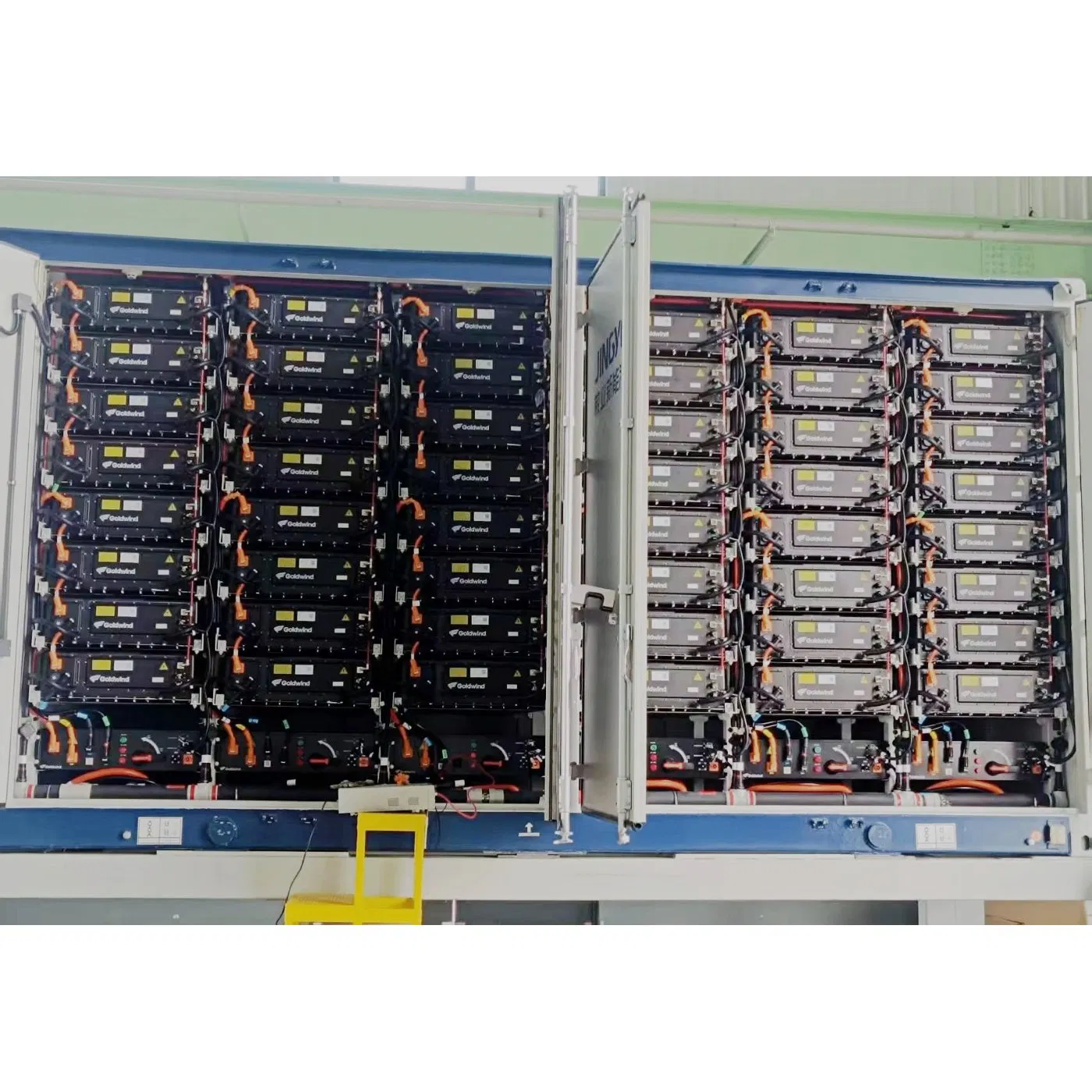

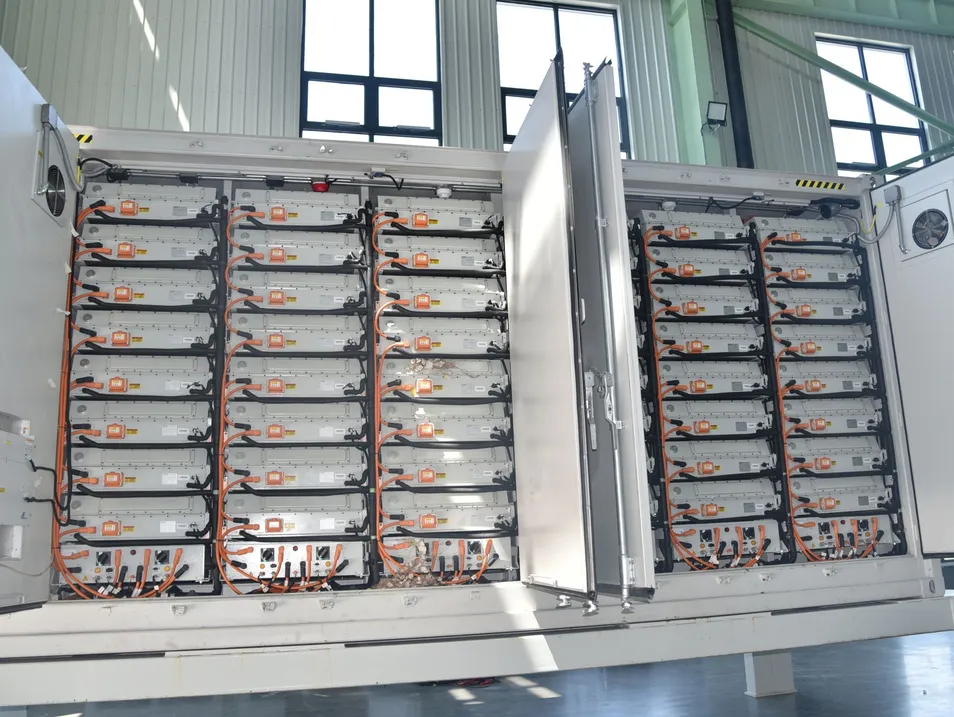

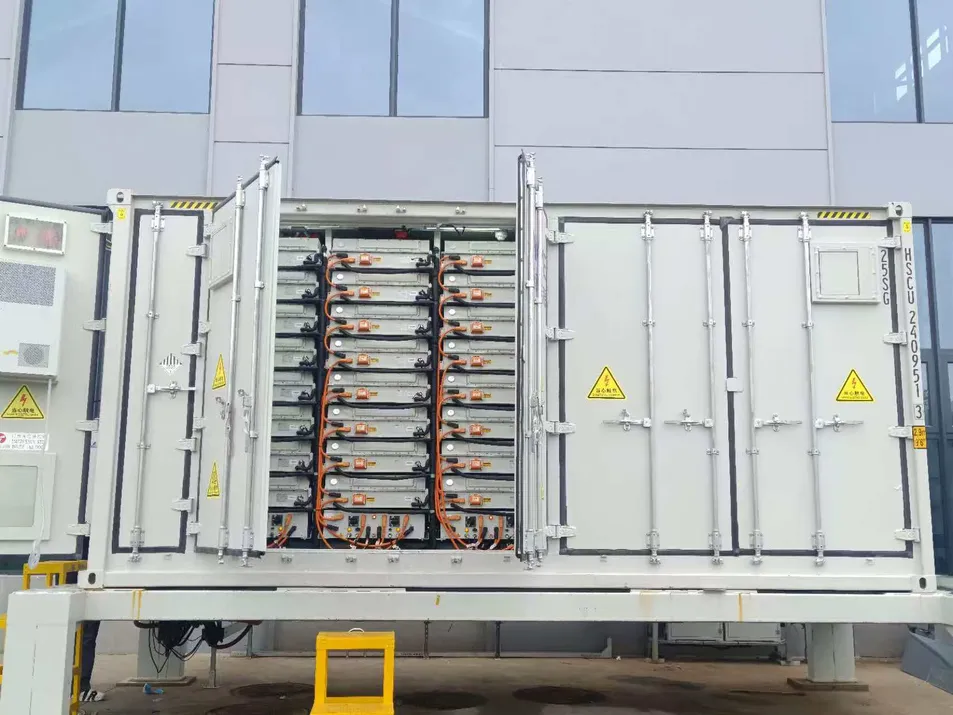

The 5015KWh Liquid Cooling energy storage system is based on domestic high-capacity 314Ah energy storage cells. It consists of battery cluster units, battery management systems (BMS), fire protection, thermal management, and environmental control systems. Integrated into a standard 20-foot container, it ensures maximum safety and efficiency for various site designs.
Key Features:
| No. | Item | Specification |
|---|---|---|
| 1 | Configuration | 12*(1P104S*4) |
| 2 | Rated Power | 5MWh |
| 3 | Rated Voltage | 1331.2VDC |
| 4 | Voltage Range | 1164.8V -1497.6VDC |
| 5 | Rated Charging/Discharge Power | ≤ 2.5MW |
| 6 | Altitude | ≤ 4000m |
| 7 | Dimensions | L6058 x W2438 x H2896mm |
| 8 | Weight | About 43t |
| 9 | Communication Protocol | Ethernet, CAN, ModbusRTU |

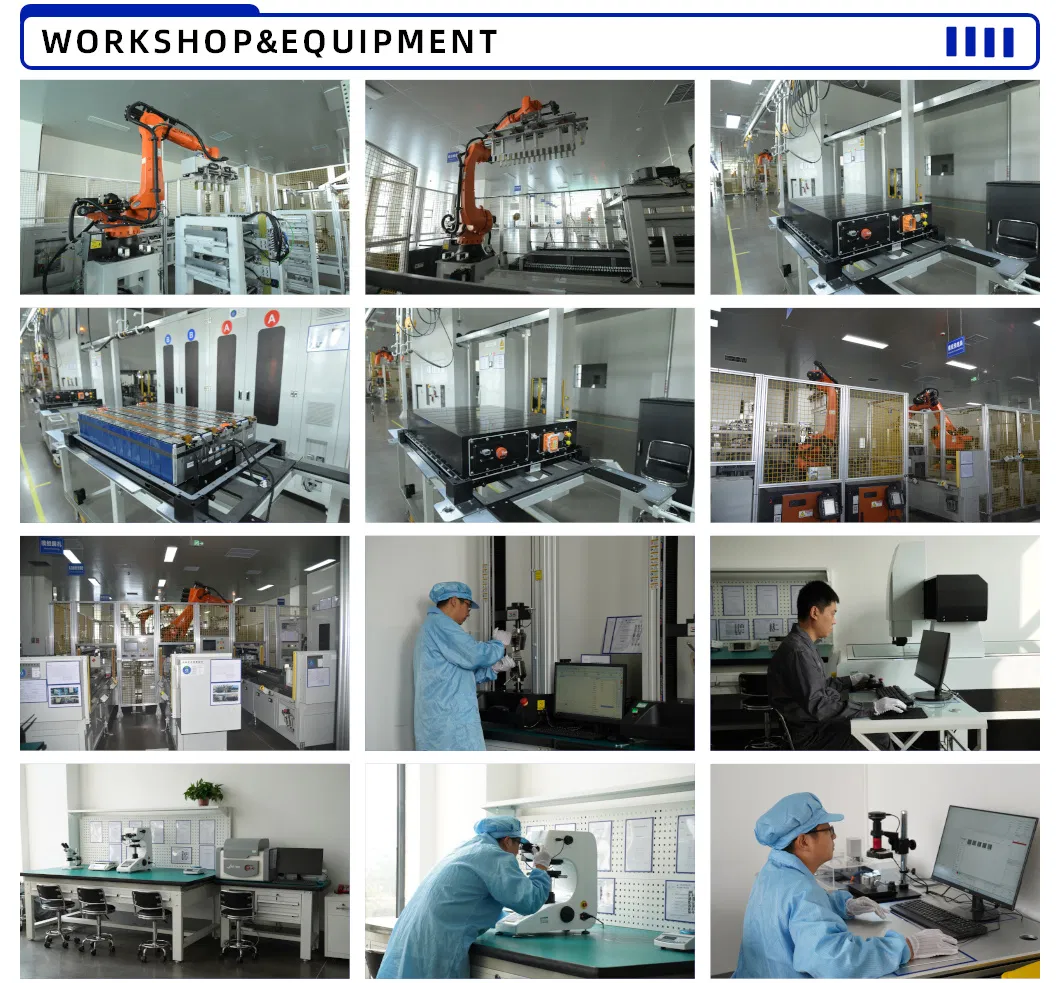

Equipped with advanced automated production lines, the annual capacity reaches 5 GWh for energy storage systems and 2.4 million pieces of CCS busbars. Products are widely utilized in smart grids, industrial and commercial energy storage, and green transportation.
