Basic Information
Model NO.
WLD-800V(20A~40A)7.5KA20LSIC
Frequency Characteristics
Power Frequency
Voltage Stabilization
± 1% Fs
Cooling Method
Air Cooling
Company Profile
With 30 years of experience, our enterprise has become a well-known voltage regulator manufacturer. We are widely praised in technology research and development, systematic design, manufacturing processes, and product quality. We are a designated supplier for internationally renowned brands such as HAIER, ZTE, HUAWEI, MITSUBISHI, HITACHI, and SIEMENS. We are committed to developing new energy products that are environmentally friendly, energy-efficient, and safe.
Product Description
The DC/DC converter is a power electronic device that utilizes capacitors and inductors for energy storage. Through controllable high-frequency switching technology (MOSFET, IGBT), it converts input DC voltage into different output levels, achieving boost, buck, or polarity conversion.
Using PWM modulation closed-loop feedback systems, the device stabilizes output voltage and achieves efficient filtering of electrical energy. It is widely applied in energy transmission and regulation fields.

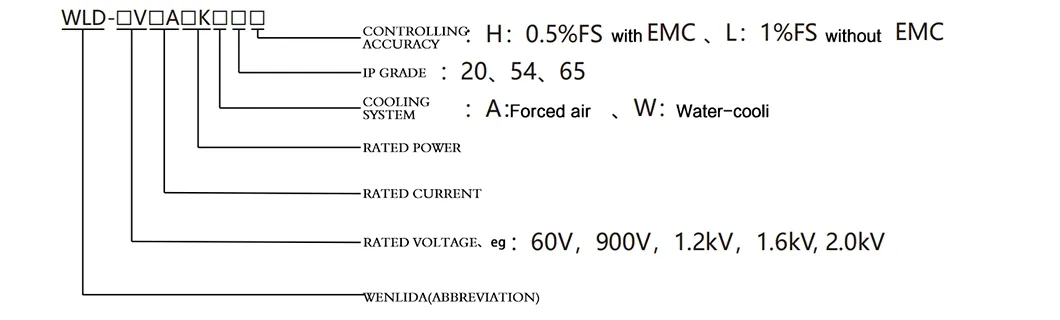

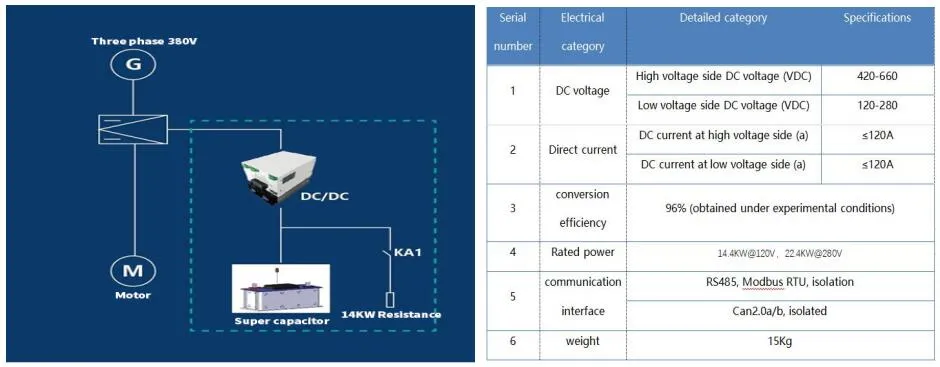

Demonstration & Technical Specification
| NO. |
TECHNICAL NAME |
TECHNICAL SPECIFICATION |
| 1 |
HV TERMINAL Voltage Range |
0~800 Vdc |
| 2 |
Efficiency |
≥ 98% (@ full-load) |
| 3 |
Rated Power (kW) |
6 kW |
12 kW |
15 kW |
| 4 |
Communication |
Modbus RTU (isolation) / CAN 2.0 A/B |
| 5 |
Protection |
Over-voltage, Under-voltage, Reverse connection, Over-current, Short-circuit, Over-temperature |
| 6 |
Cooling System |
Forced air with fan / Water-cooling optional |
Performance Curves
Main Applications
- Industrial Control: Robots and high-precision sensors.
- Automotive Electronics: Electric and hybrid vehicle energy management.
- Medical Equipment: Stable power for MRI and X-ray machines.
- Communication: Mobile base station power supply.
- Renewable Energy: Photovoltaics and fuel cell micro-grids.
- Energy Storage: Bi-directional DC/DC for battery utilization.
Certificates & History
Frequently Asked Questions
What is the maximum efficiency of this DC/DC converter?
The device achieves a high efficiency of ≥ 98% at full load operation.
What cooling methods are available?
The standard model uses forced air cooling with a fan, while water-cooling options are available for specific industrial needs.
Which communication protocols are supported?
It supports RS 485 (Modbus RTU) and CAN 2.0 A/B protocols with isolation for secure data transmission.
Does the system include safety protections?
Yes, it includes over-voltage, under-voltage, reverse connection, short-circuit, and over-temperature protections with auto-restore functions.
Can this be used for renewable energy systems?
Absolutely. It is designed for micro-grids, photovoltaics, fuel cells, and bi-directional energy storage systems.
