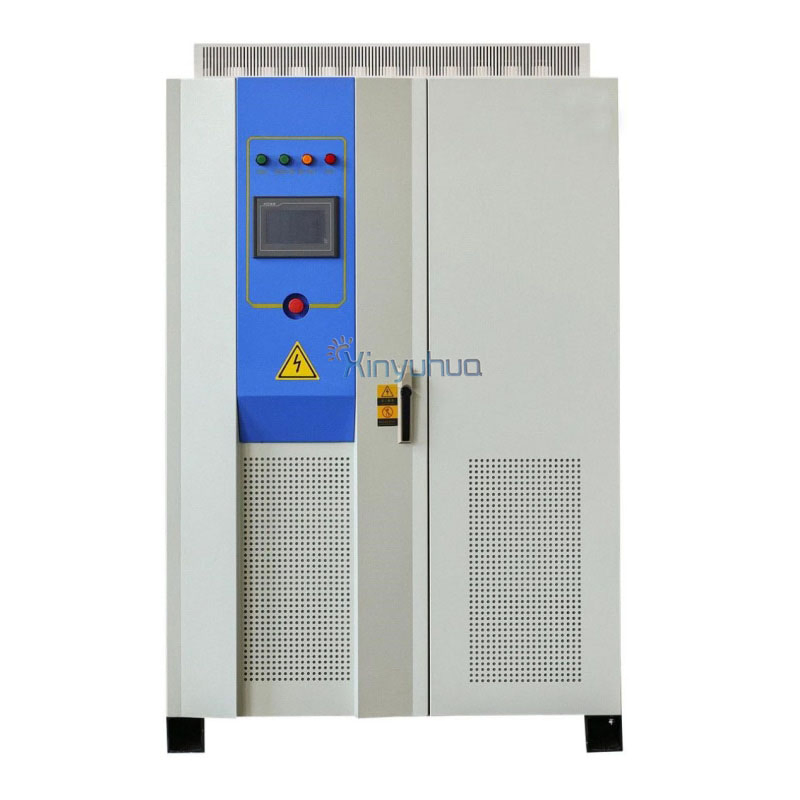

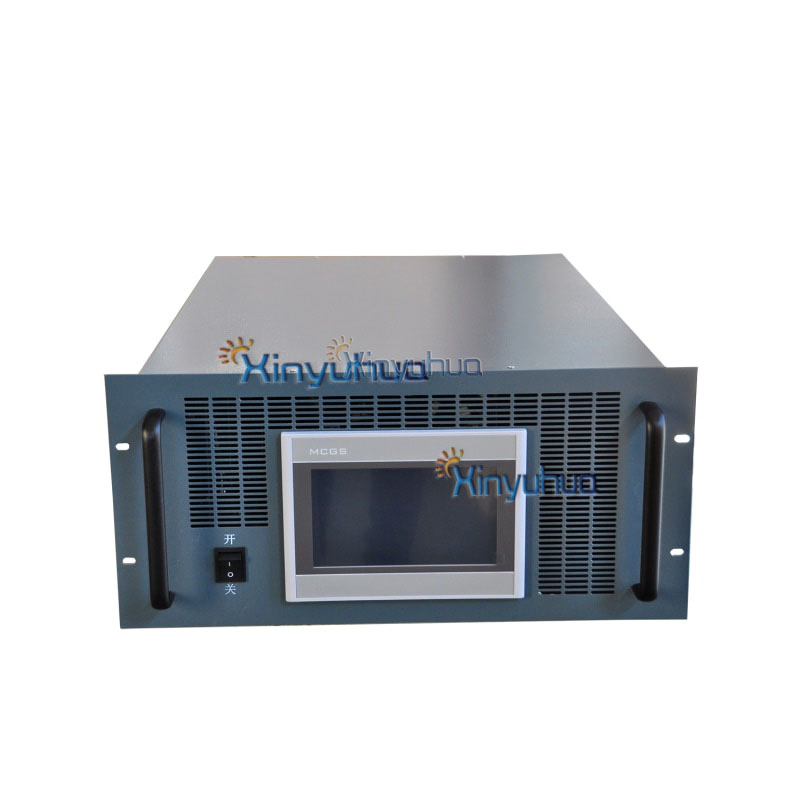

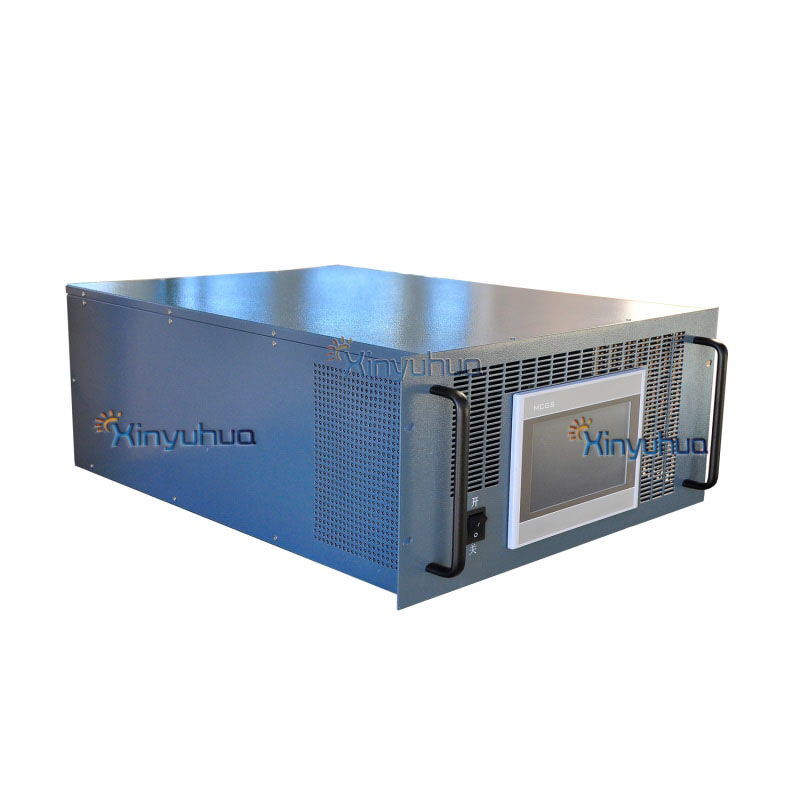

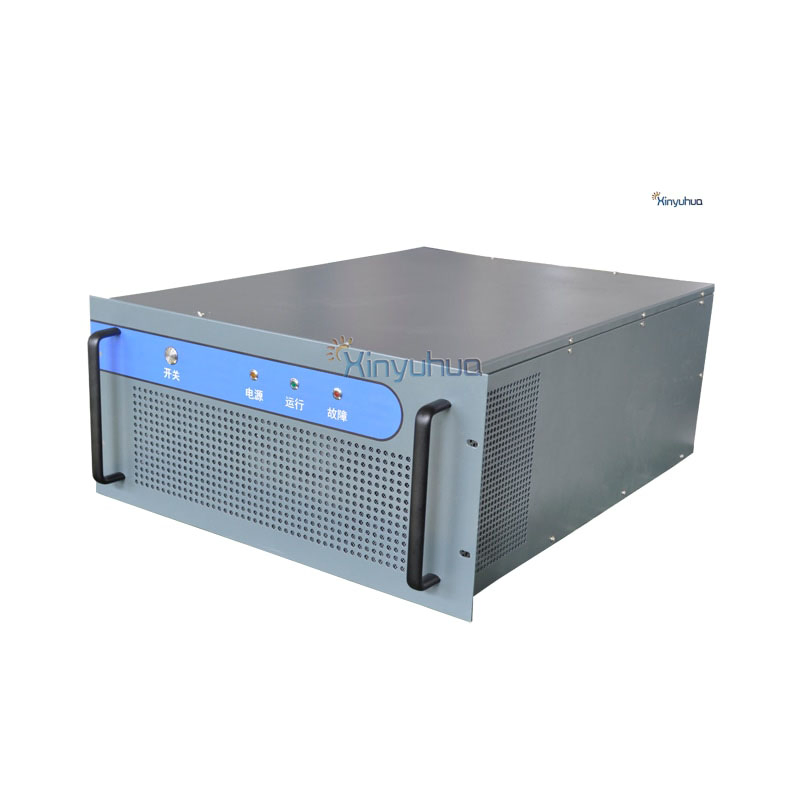

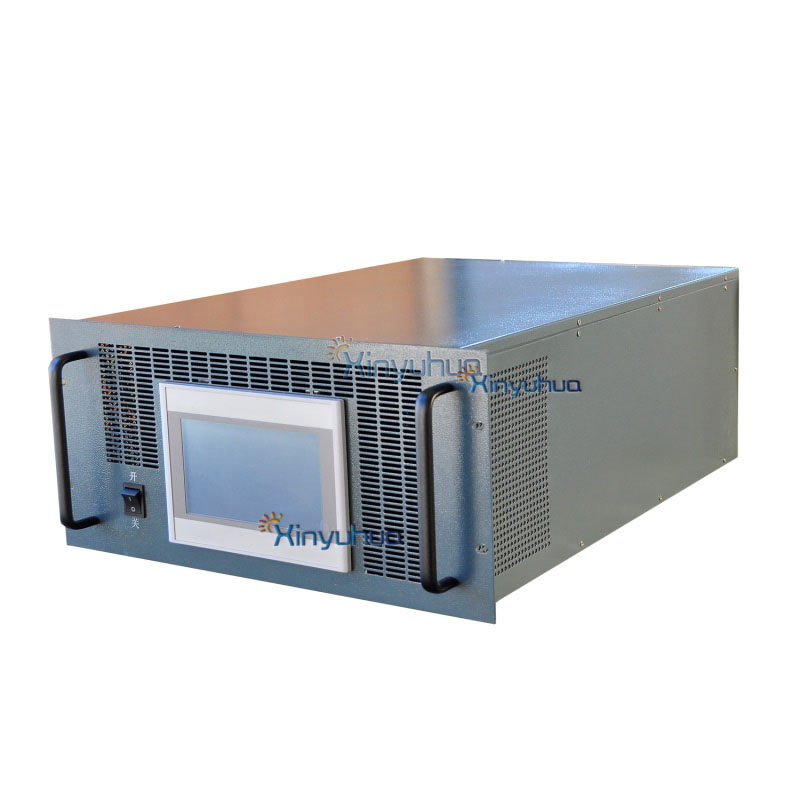

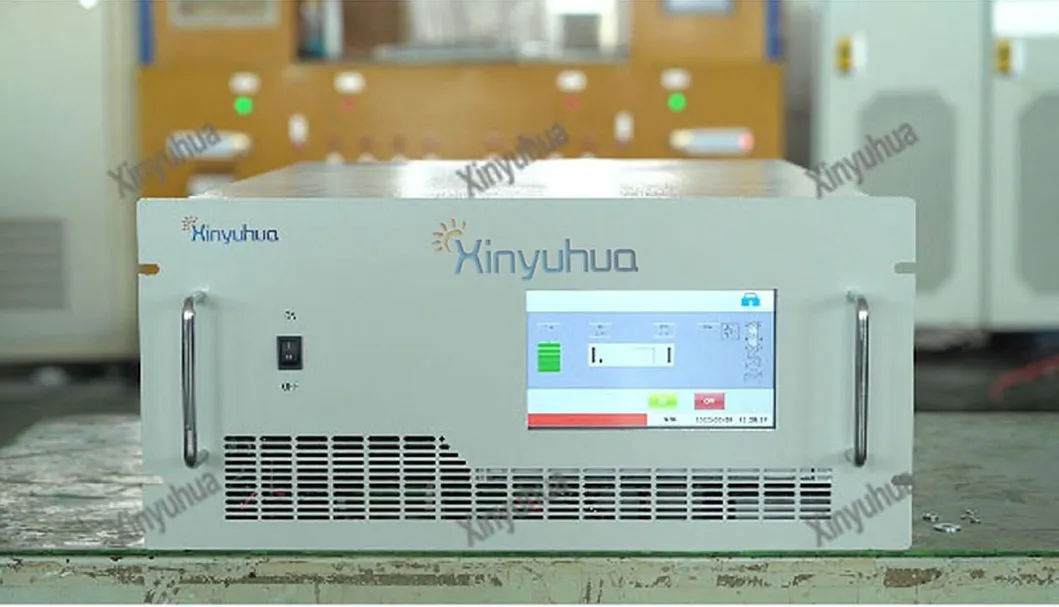

Bidirectional DC/DC converter is applied to new energy, which operates in cooperation with battery, DC bus, motor controller and motor to realize various operation conditions of new energy, energy recovery and prolong the service life of battery.
| Model | 10-50K DC-DC (BIDCDC-10-50KW) |
| Operation mode | Continuous work |
| Rated output power (KW) | 10-50 |
| High voltage side parameters | |
| DC voltage range | DC 50V-850V |
| Current range | 0--±160A |
| Voltage stabilizing accuracy | <0.1%F.S. |
| Low voltage side parameters | |
| DC voltage range | DC 0-800V |
| Current range | 0--±200A |
| System Info | |
| Protect Class | IP21 |
| Noise | 65dB |
| Host size (W*L*H) | 482.6mm*600mm*222.2mm |

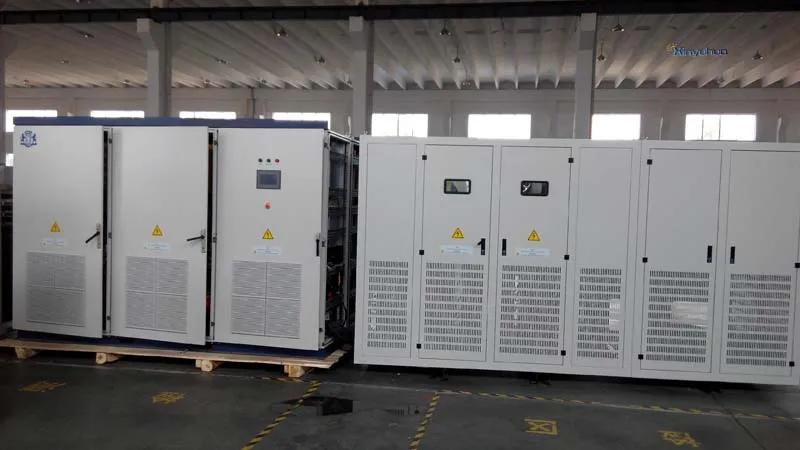

Controls battery's charging and discharging. Core equipment for grid-tied power systems with storage requirements. Can combine with string inverters for separated PV systems.

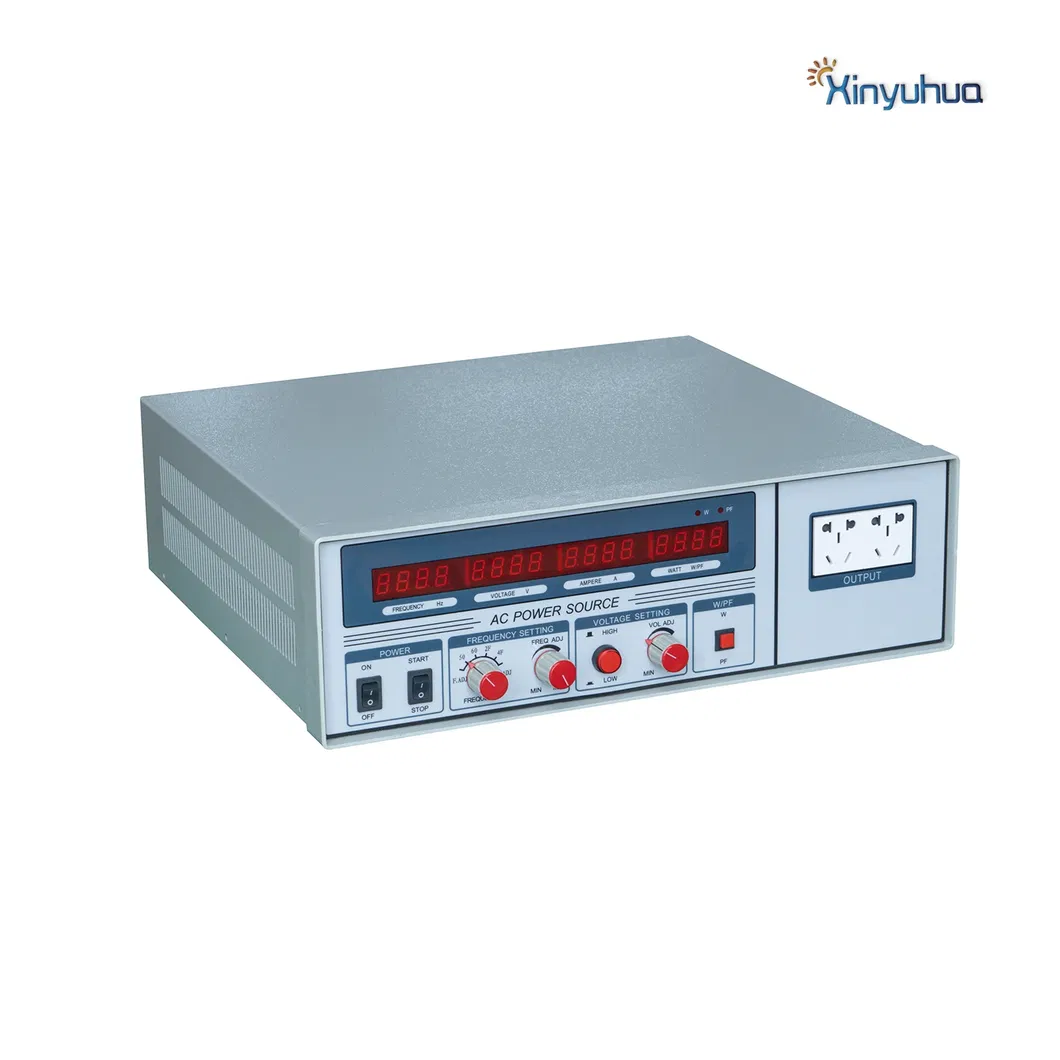

Supplies pure and stable sine wave power output with low harmonic distortion. Ideal for research, production testing, and supporting 400Hz military equipment.
