📋 Basic Specifications
Model NO.HYG5532
PhaseSingle
Output Power>1000W
CertificationSAA, CE, ISO9001
TypeDC/AC Inverters
Power SourceSolar Power, Wind Power
Wave StringSine Wave Inverter
Battery TypeLead-Acid Battery
Efficiency90%-93%
Battery Voltage48VDC
🚀 Technical Specifications
🔹 Pure sine wave output
🔹 Self-consumption and feed-in to the grid
🔹 Programmable supply priority for PV, Battery or Grid
🔹 User-adjustable battery charging current
🔹 Multiple operation modes: Grid-tie, Off-grid and Grid-tie with backup
🔹 Built-in timer for on/off operation
🔹 Communication: USB, RS232, Modbus and SNMP
🔹 Parallel operation up to 6 units

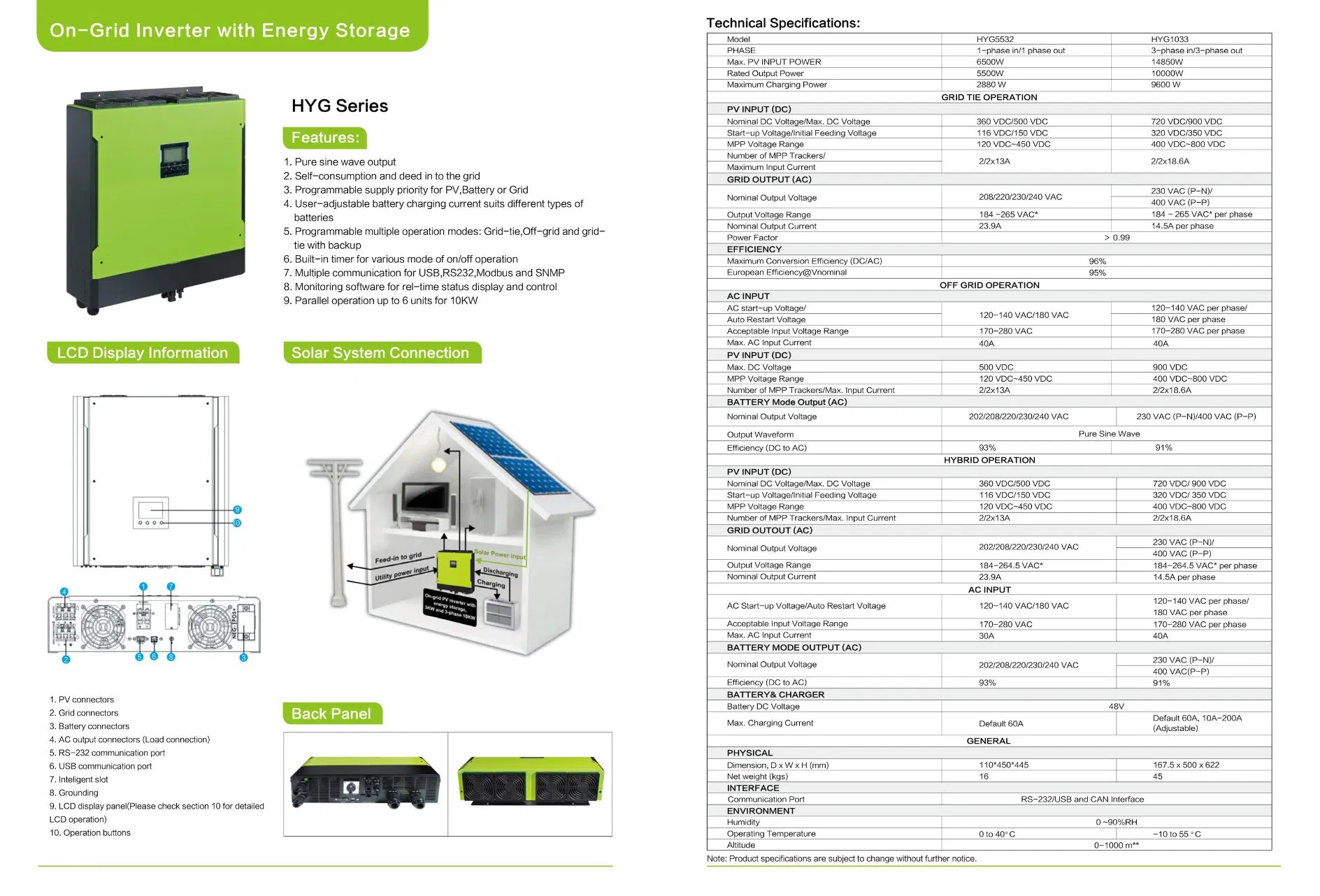

📊 Detailed Parameters
| Model |
HYG5532 |
HYG1033 |
| Max. PV Input Power |
6500W |
14850W |
| Rated Output Power |
5500W |
10000W |
| Nominal DC Voltage |
360 VDC |
720 VDC |
| MPP Voltage Range |
120 - 450 VDC |
400 - 800 VDC |
| Max. Efficiency |
96% |
96% |
| Battery Voltage |
48V |
48V |
❓ Frequently Asked Questions
1. Can you provide samples for testing?
Yes, we can provide samples or testing orders. Shipment typically takes around 5 working days.
2. Do you provide a complete solar system?
Yes, we can provide the entire solar system integration including panels, inverters, and accessories.
3. What is the warranty period for the products?
We offer a 3-year warranty for the full unit, 5 years for the compressor, and a standard 25-year warranty for solar panels.
4. How many hours does the Hybrid model operate?
It operates 24 hours a day. It prioritizes solar power during the day and automatically switches to grid power at night.
5. What are the shipping and payment options?
We support shipment by sea, air, or express. We can work with your forwarder or ours, with costs based on actual freight rates.
6. Is the output a pure sine wave?
Yes, the inverter provides a pure sine wave output, ensuring the safety and stability of sensitive electronic equipment.
