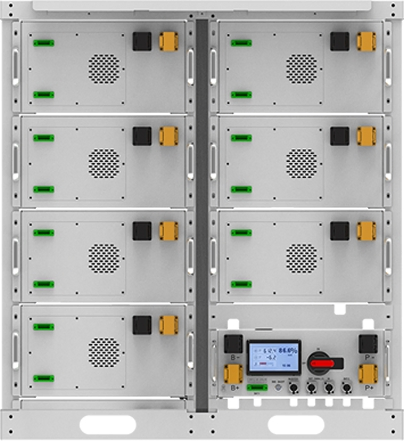

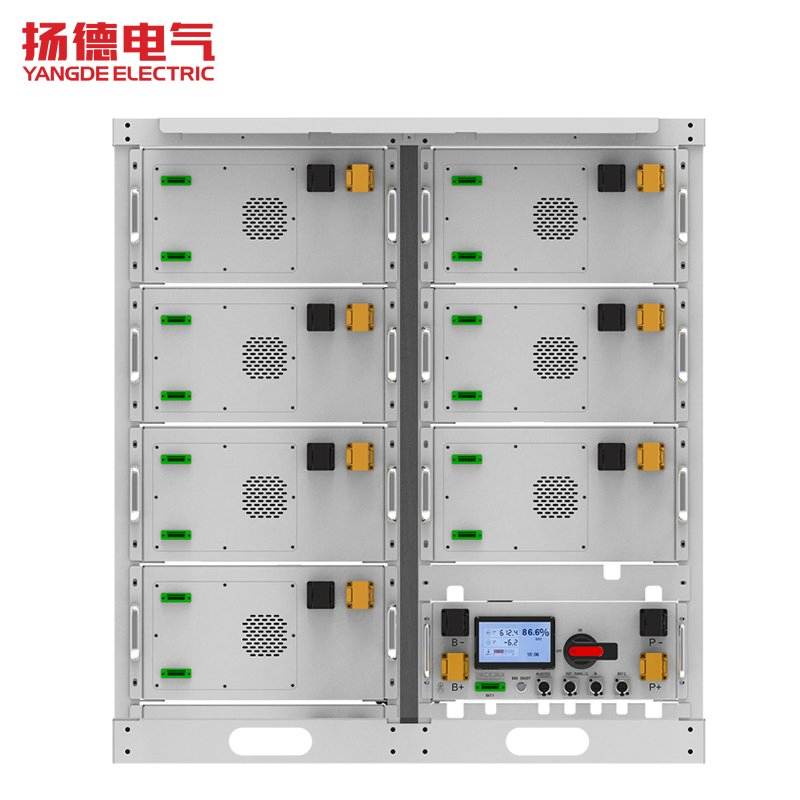

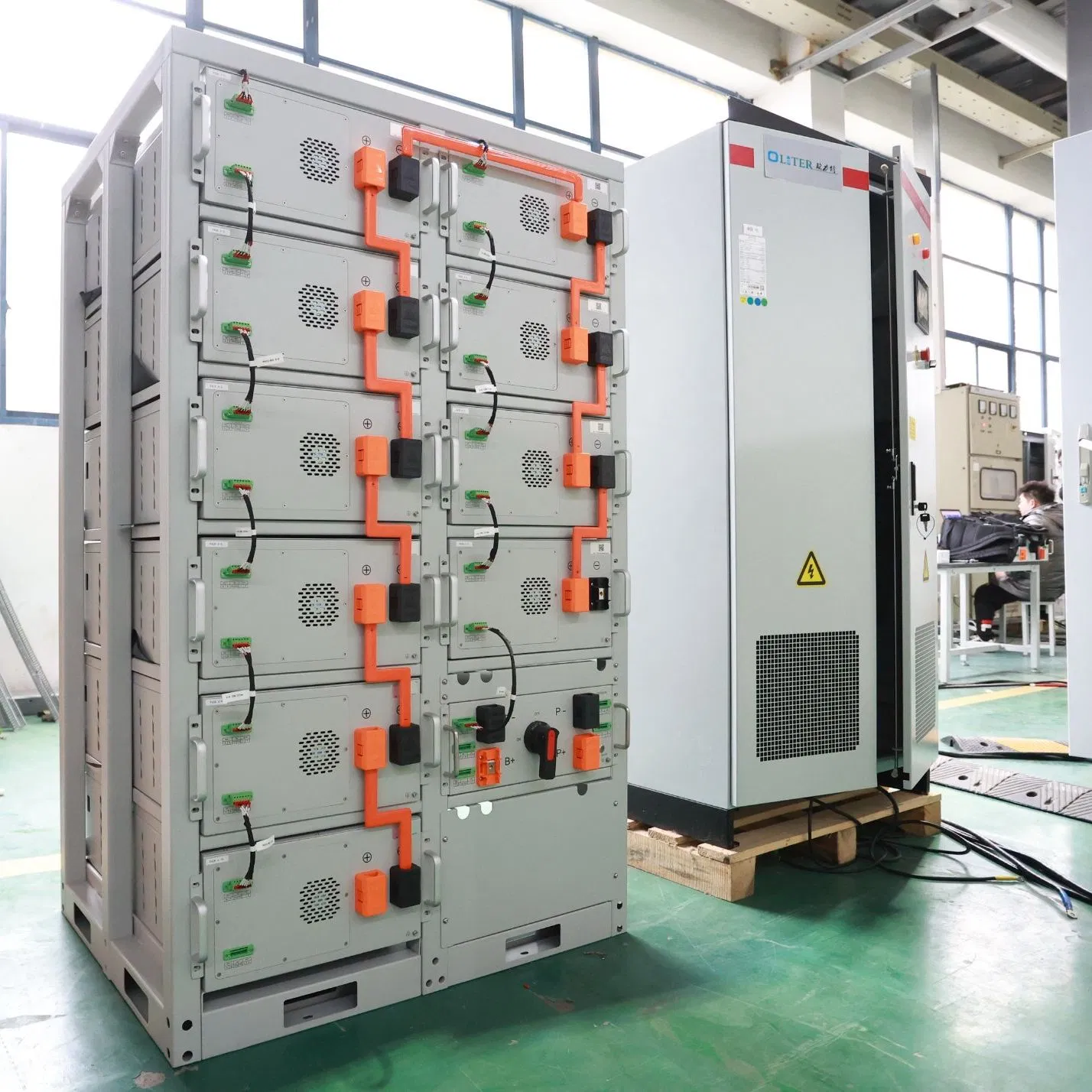

Model100KWH
Nominal Capacity100kwh
Cycle Life6000 Pieces
Battery TypeLithium (LFP)
Solar PanelMono Type
ApplicationHome/Industrial/Commercial
Grid TypeOff-Grid / On-Grid
Dimensions1090*780*1190mm
Package Weight912.000kg
Lead Time25 Days (1-10 Sets)

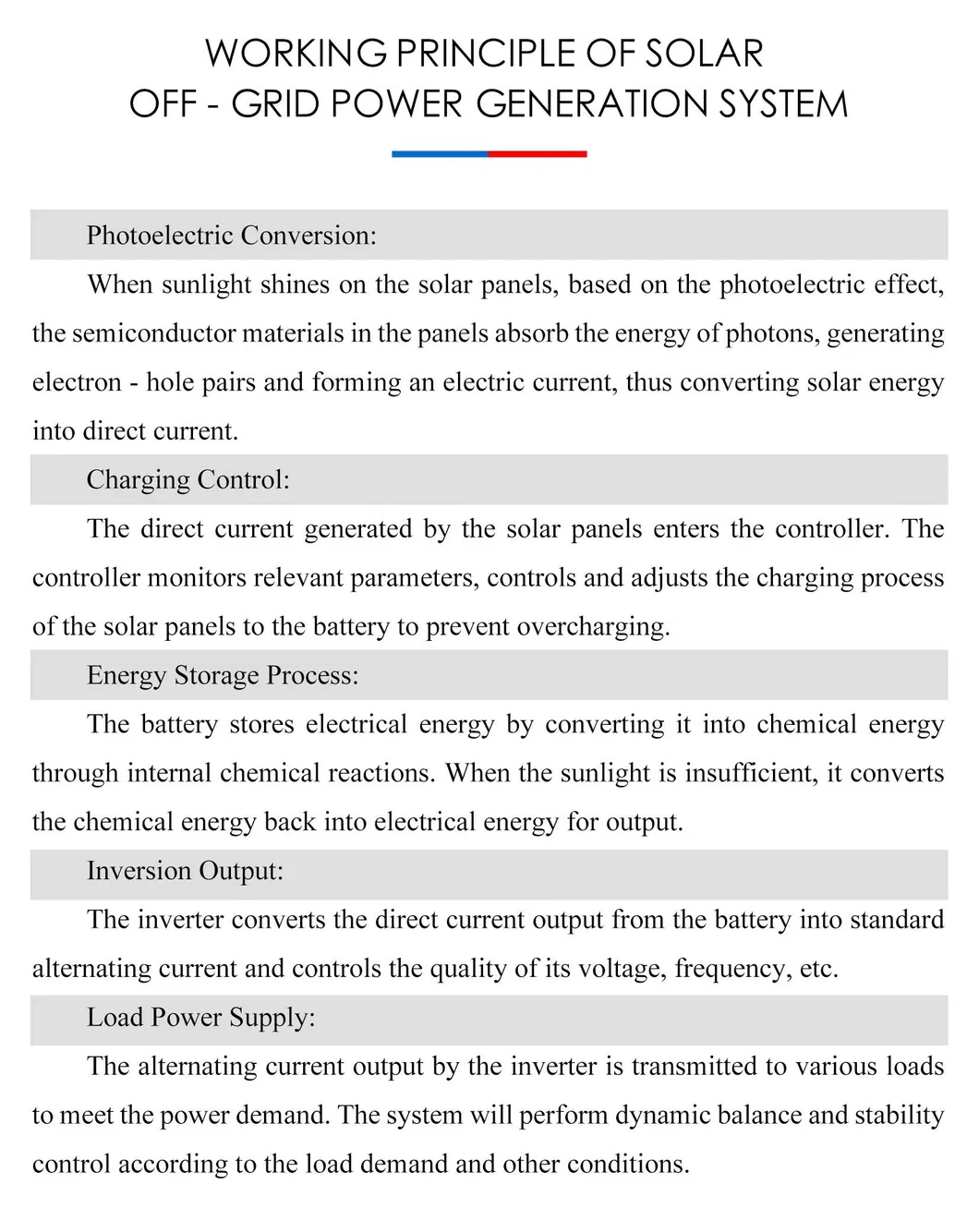

❶
Photoelectric Conversion: When sunlight irradiates solar panels, semiconductor materials absorb photon energy, generating electric current (DC).
❷
Charging Control: The DC power enters a controller which adjusts the charging process to the battery, preventing overcharging.
❸
Energy Storage: The battery stores electrical energy via chemical reactions, reversing the process when sunlight is insufficient.
❹
Inversion and Output: An inverter transforms DC power into standard AC, regulating voltage and frequency for load requirements.
❺
Load Power Supply: AC power is transmitted to electrical loads, with the system dynamically balancing supply based on real-time demand.
Frequently Asked Questions
Q1: What is the cycle life of the 100kWh lithium battery system?
A: The system features a long-lasting cycle life of over 6,000 times at 80% Depth of Discharge (DOD) under 0.5C charging/discharging conditions.
Q2: Can this system be used for both On-Grid and Off-Grid applications?
A: Yes, this system is designed to be versatile and supports both Off-Grid and On-Grid configurations for home, industrial, and commercial use.
Q3: What communication protocols does the BMS support?
A: The intelligent battery management system (BMS) supports RS485, RS232, and CAN protocols for seamless integration with inverters and monitoring systems.
Q4: What is the recommended working temperature?
A: The charging temperature range is 0ºC to 50ºC, while the discharge temperature range is -10ºC to 50ºC, ensuring stable performance in various climates.
Q5: How many units can be connected in series?
A: The system supports series functionality for up to 16 units, allowing for scalable energy storage capacity based on your requirements.
Q6: What certifications does the energy storage system hold?
A: The product is fully certified with CE, IEC, UL, UN38.3, and MSDS, meeting international safety and quality standards.
