Wvc-300 Grid-Connected Smart Micro Inverter for Monitoring System

Customization:	Available
Nature of Source Flow:	Active Inverter
Certification:	ISO9001, CE, Cec

Send Inquiry

Product Description

📊 Overview & Basic Info.

Model NO.

WVC-300

Output Power

300W

Grid Type

Grid Inverter

Output Type

Single

Circuit Topologies

Full-Bridge Type

Nature of Wave String

Sine Wave Inverter

Type

DC/AC Inverters

Power Source

Solar Power

Heat Dissipation Mode

Self-Cooling

Communication Mode

433MHz/WiFi

Waterproof Level

IP65

Warranty

5 Years

📝 Product Description

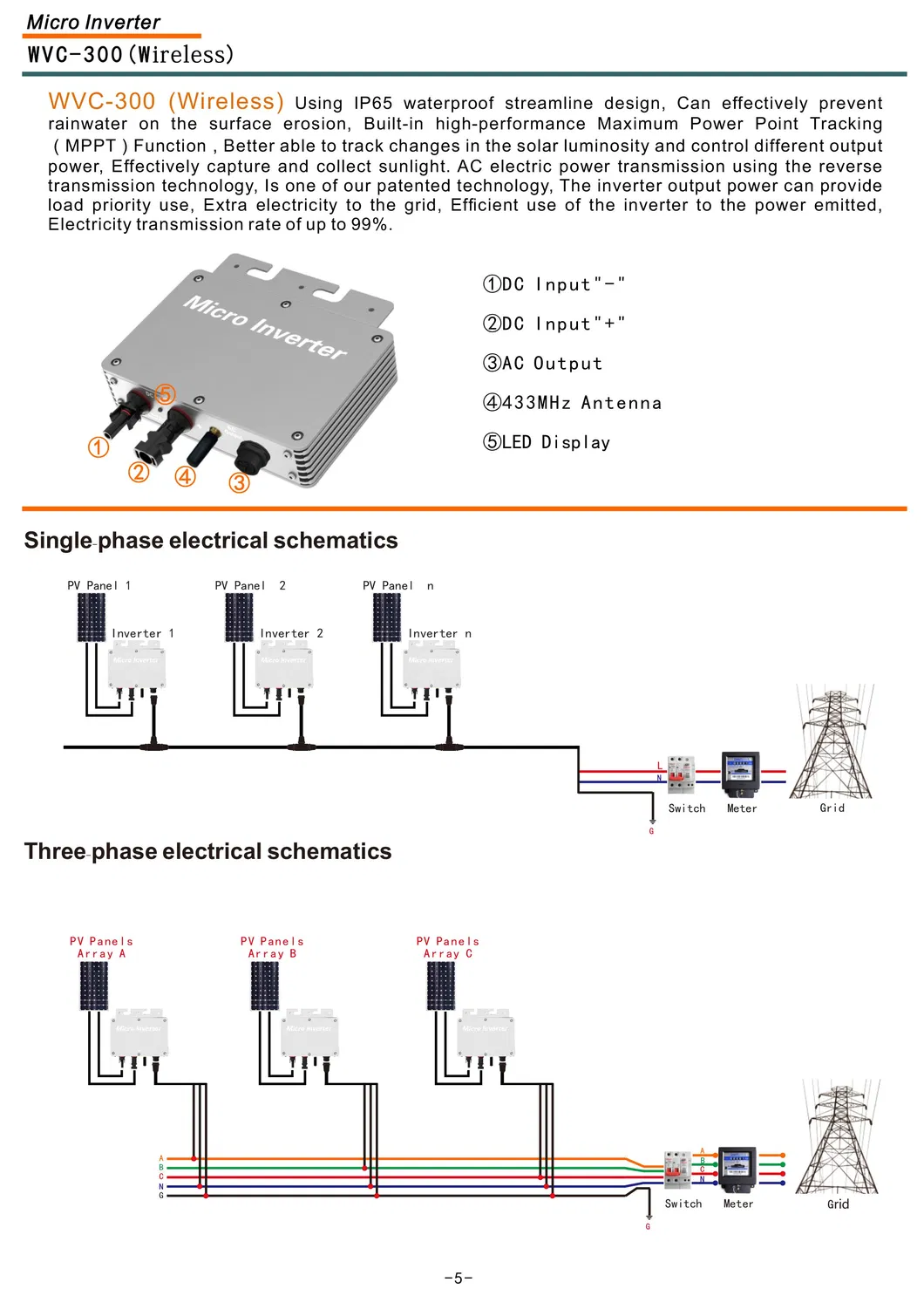

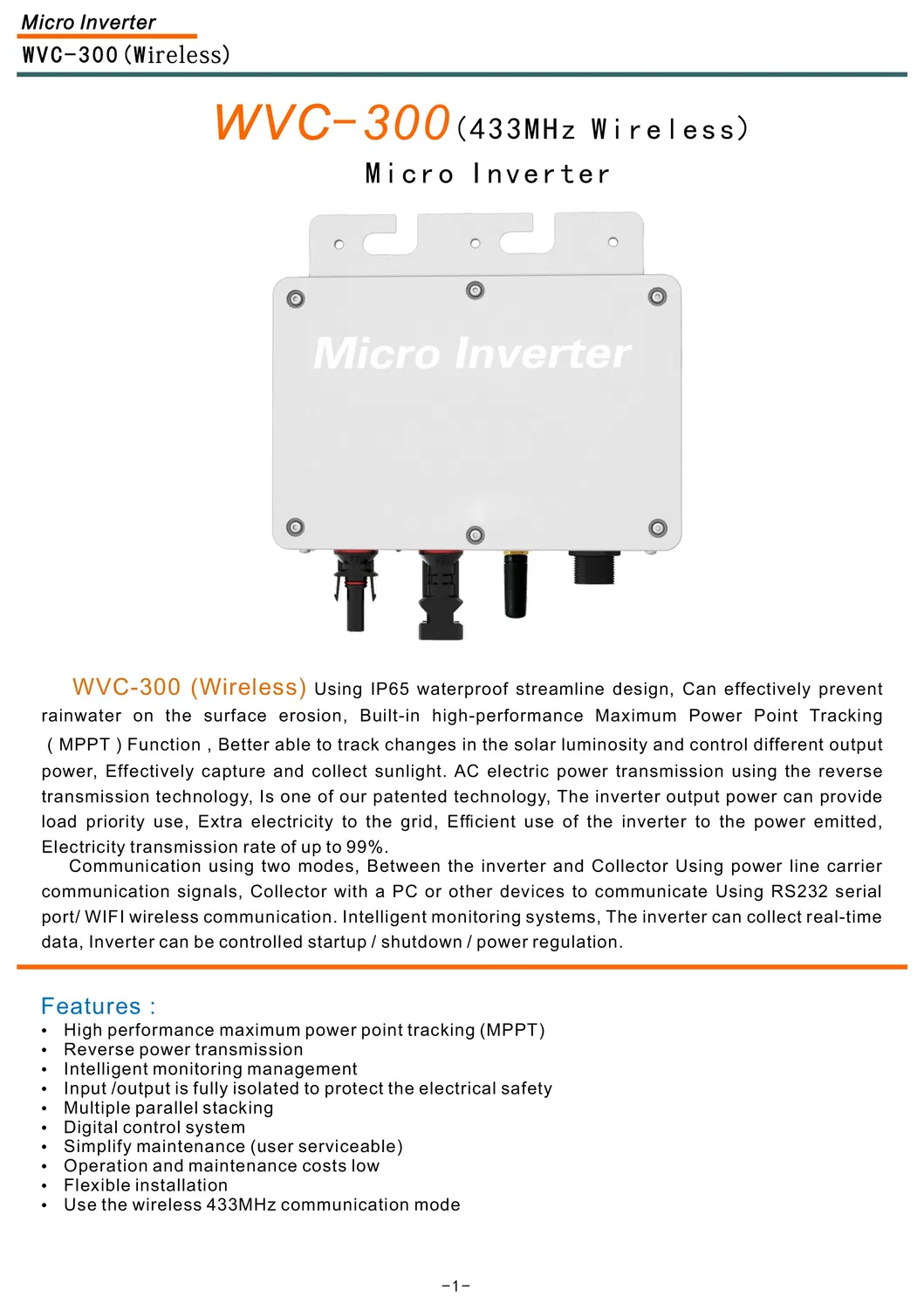

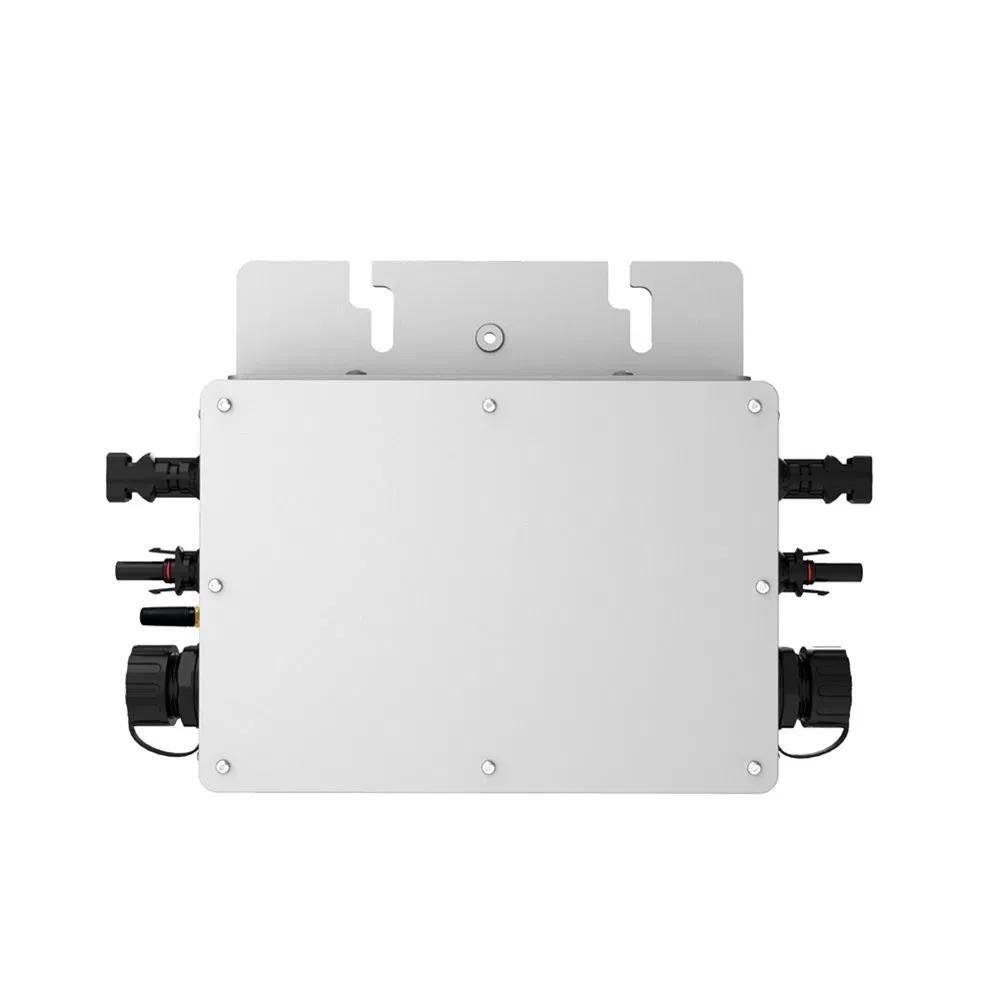

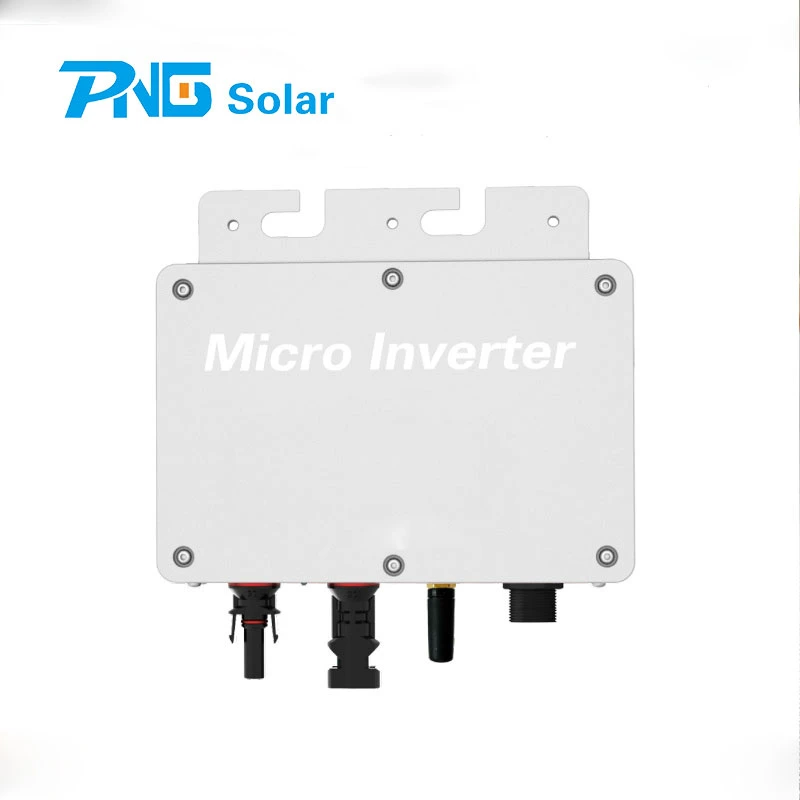

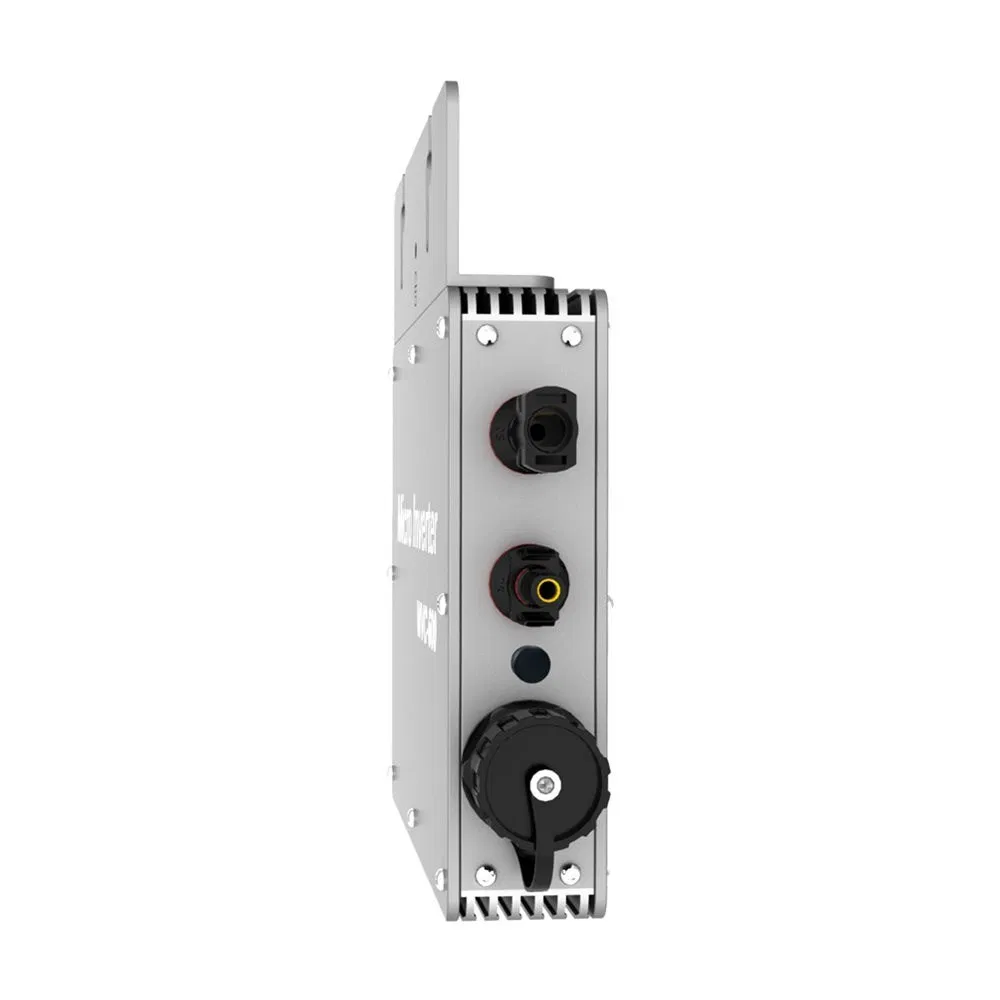

WVC-300 (Wireless) Grid-Connected Smart Micro Inverter

Using IP65 waterproof streamline design, can effectively prevent rainwater on the surface erosion. Built-in high-performance Maximum Power Point Tracking (MPPT) Function, better able to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight.

AC electric power transmission using the reverse transmission technology, which is one of our patented technologies. The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted. Electricity transmission rate is up to 99%.

Advantages:

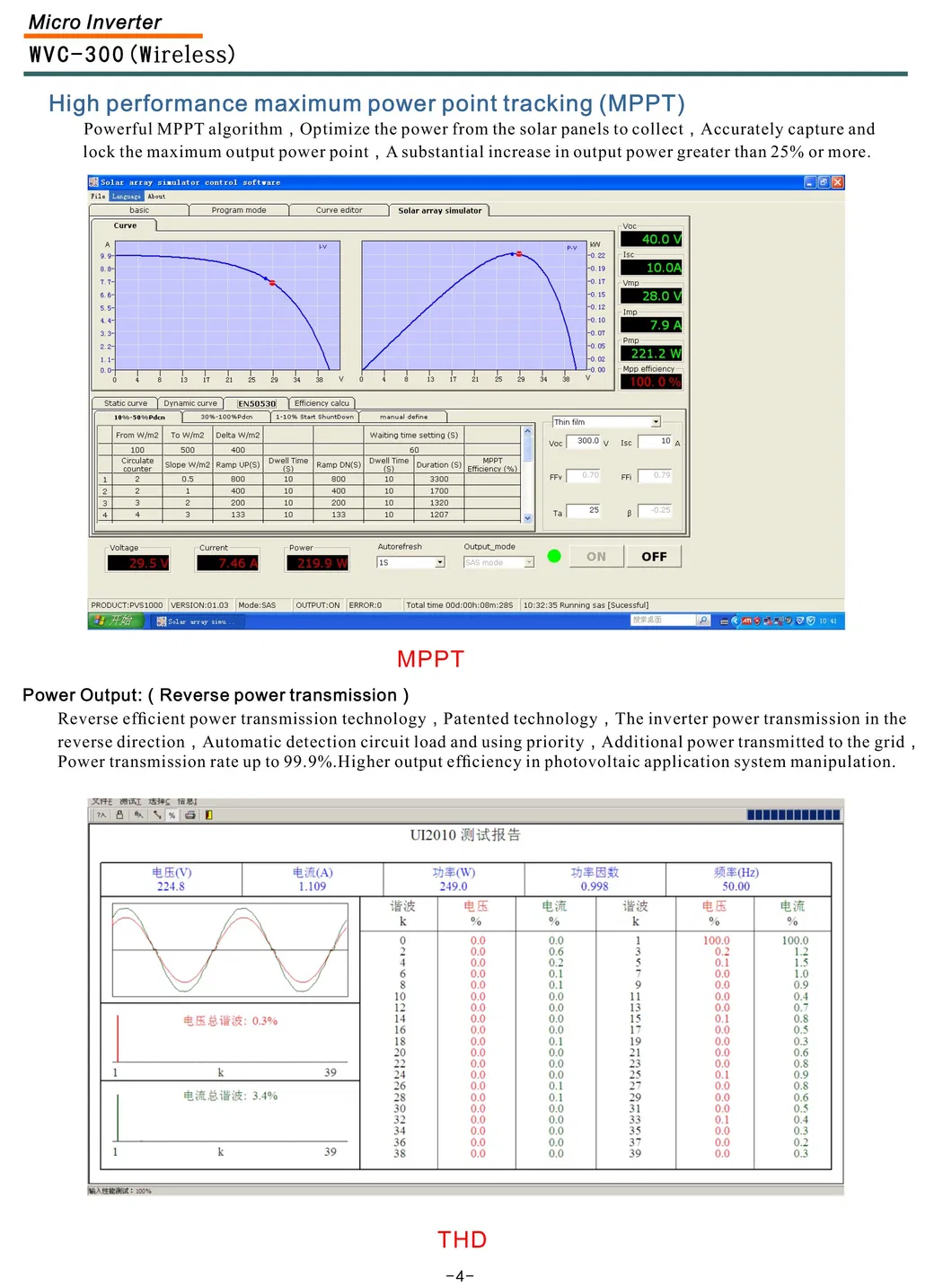

High performance maximum power point tracking (MPPT)
Reverse power transmission
Intelligent monitoring management
Input /output is fully isolated to protect the electrical safety
Multiple parallel stacking
Digital control system
Flexible installation and low maintenance costs
Wireless 433/462 MHz communication mode

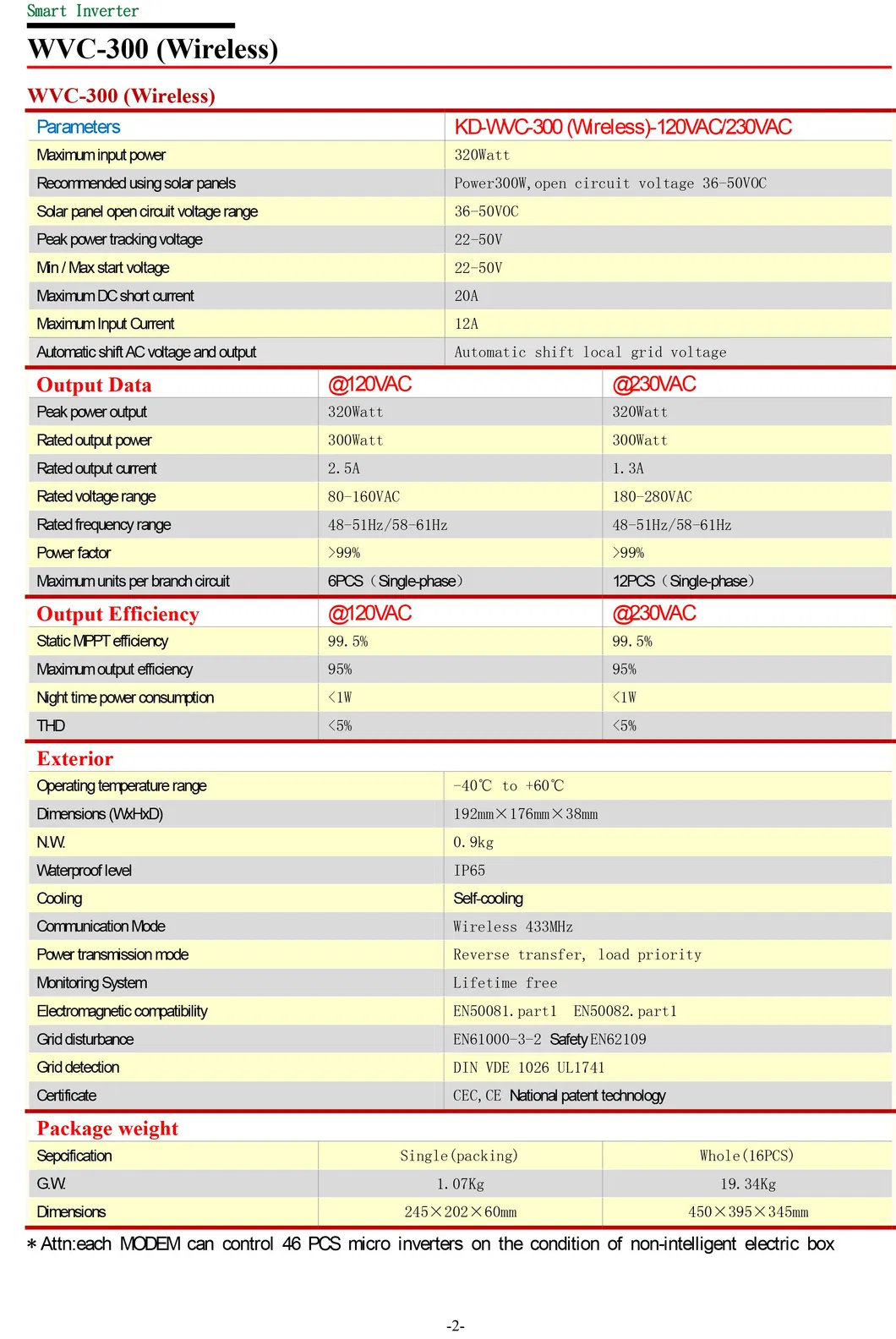

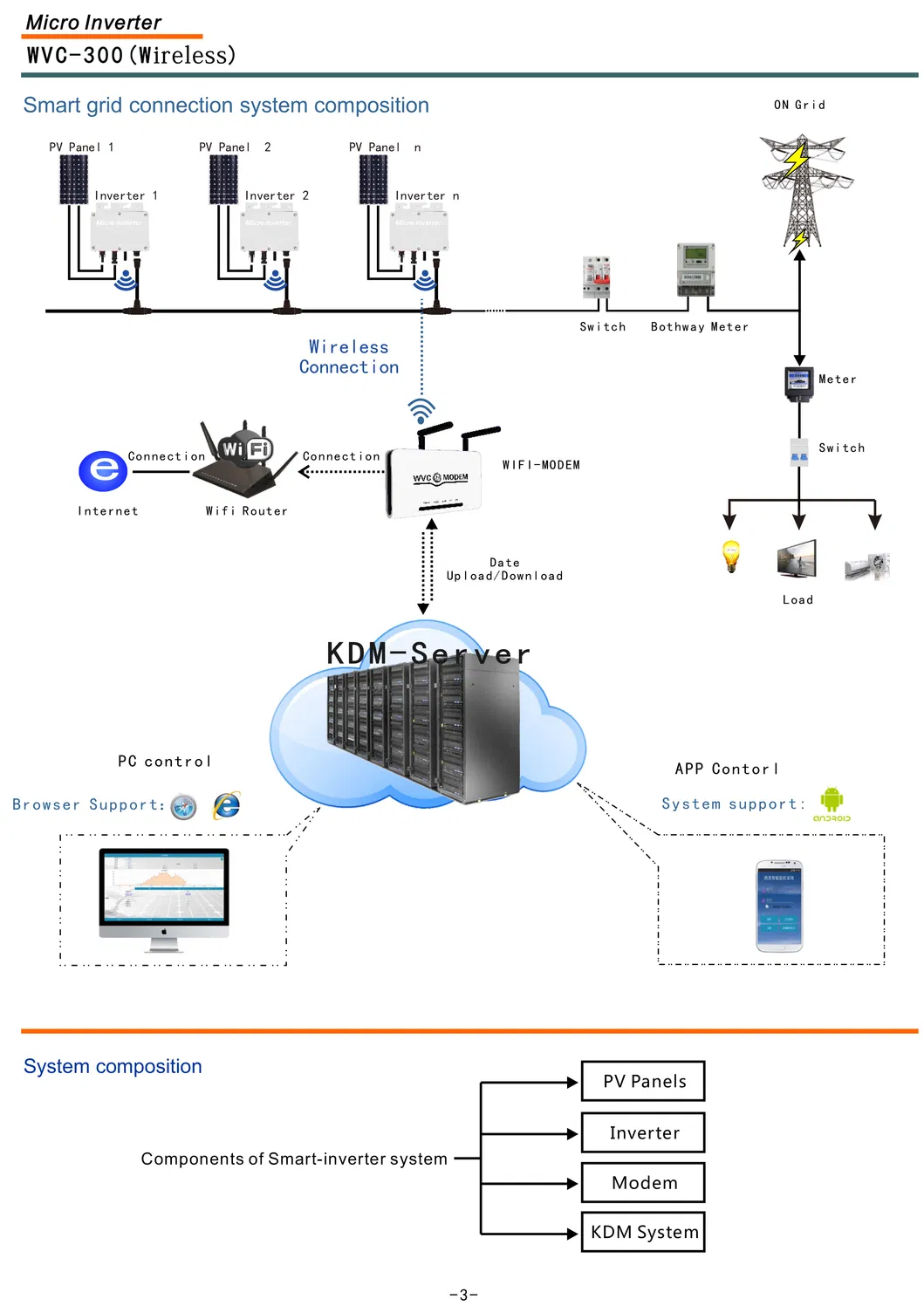

⚙️ Product Parameters

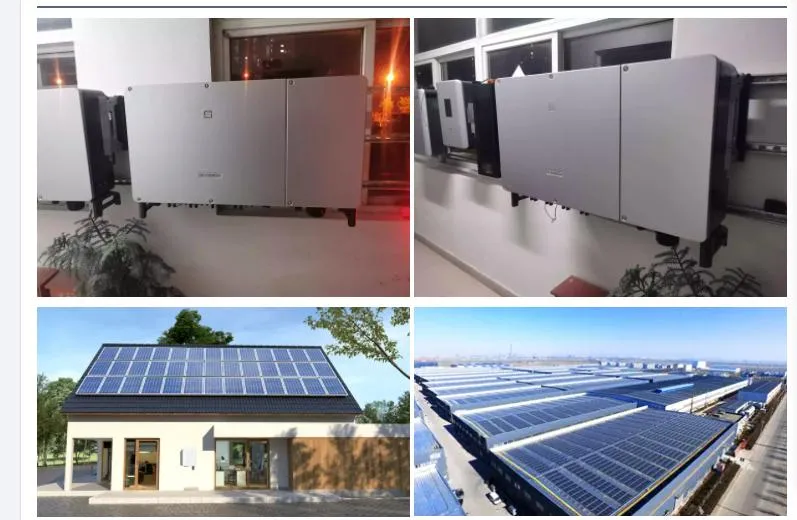

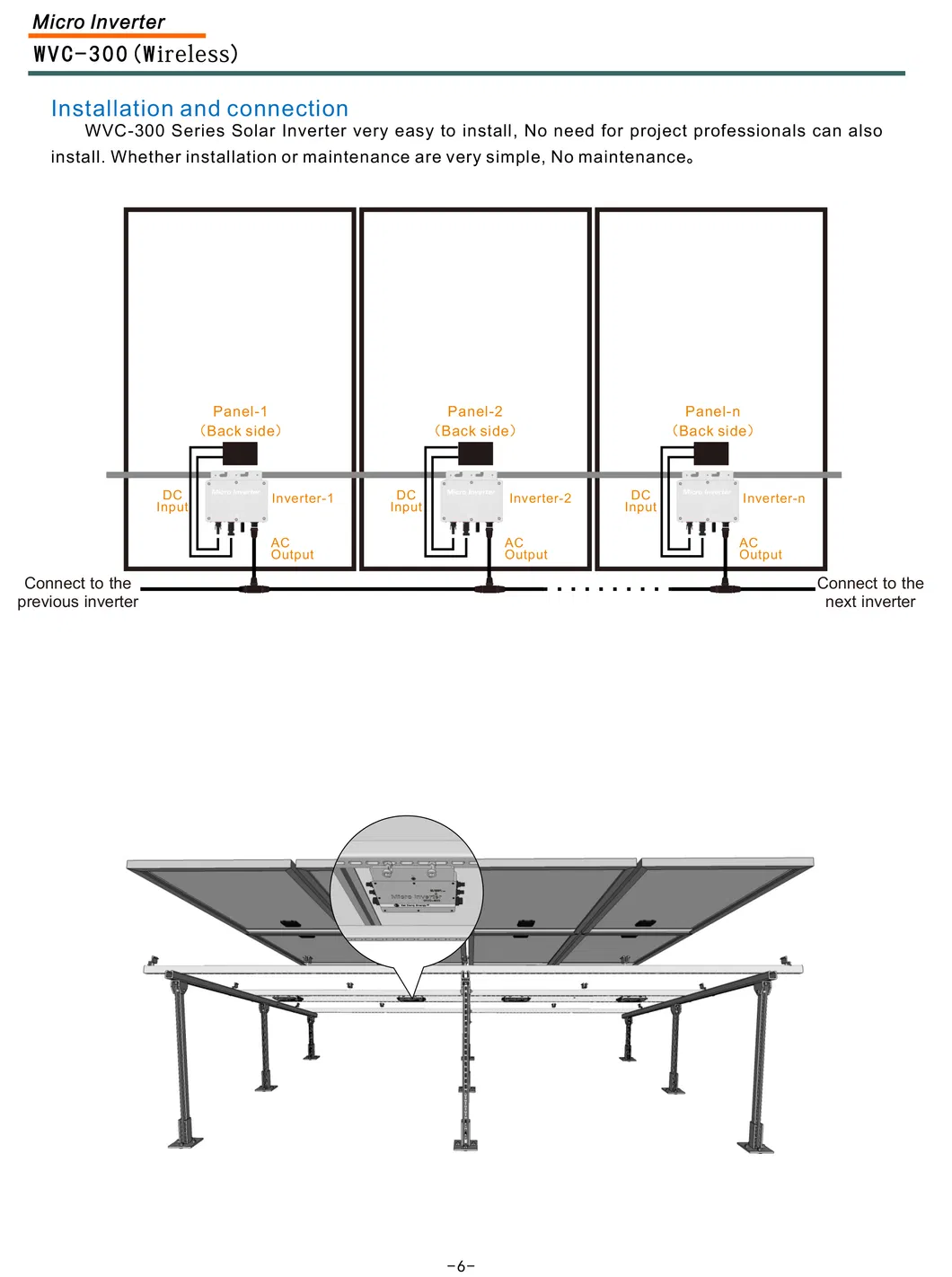

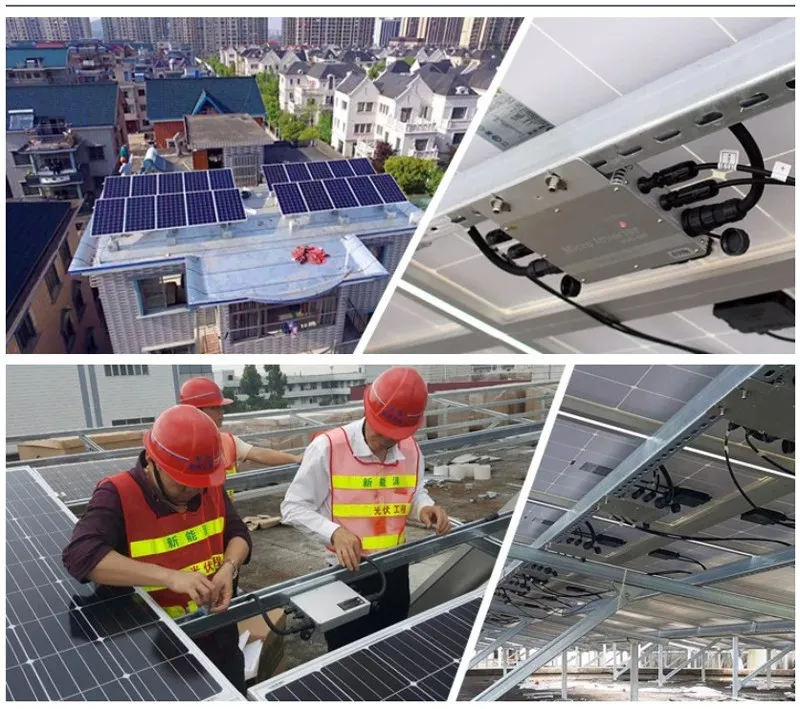

🛠️ Installation Instructions

📦 Packaging & Shipping

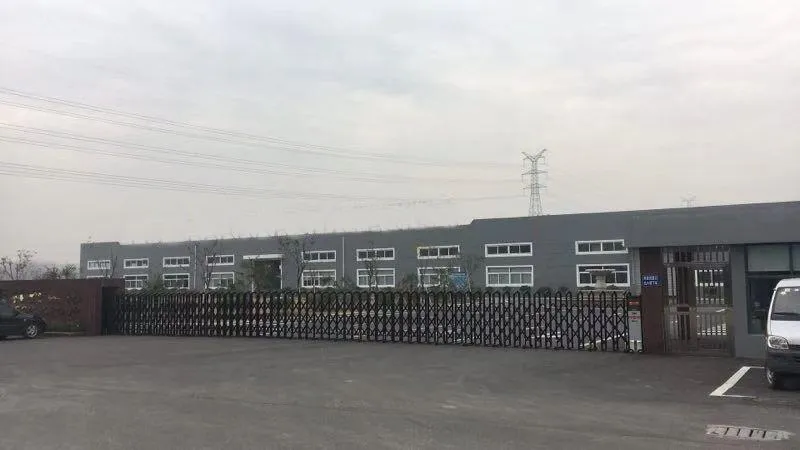

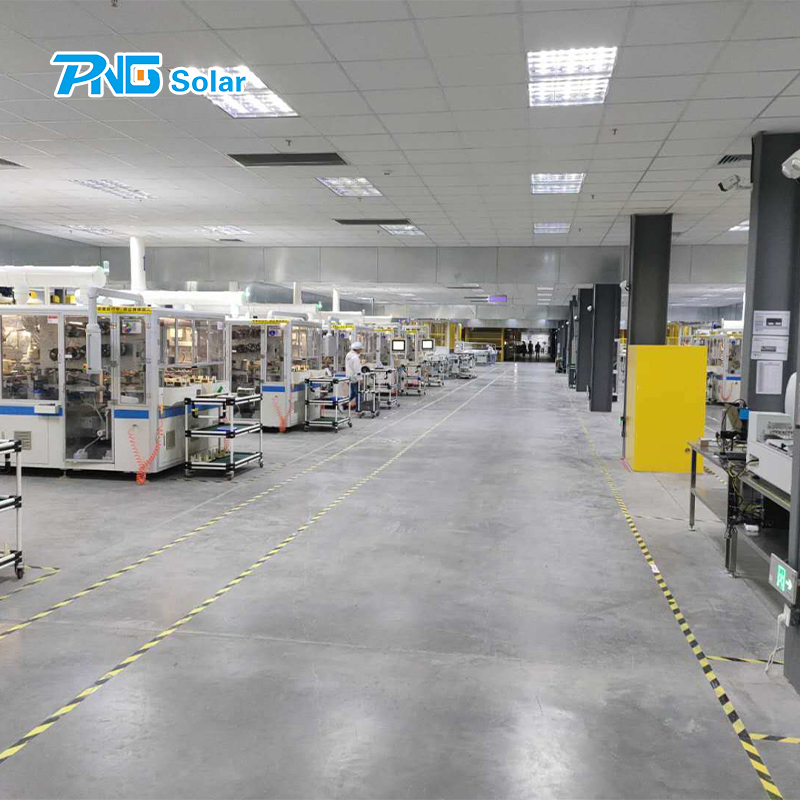

🏭 Factory & Certifications

❓ Frequently Asked Questions

What is the waterproof rating of the WVC-300?

The inverter features an IP65 waterproof streamline design, effectively preventing erosion from rainwater.

How does the MPPT function benefit the solar system?

The built-in high-performance MPPT tracks changes in solar luminosity to optimize output power and maximize sunlight collection.

What communication modes are supported for monitoring?

The system supports 433MHz/462MHz wireless communication and WiFi for real-time data collection and remote management.

Is it safe to stack multiple units?

Yes, the WVC-300 supports multiple parallel stacking and features fully isolated input/output for electrical safety.

What is the warranty period for this micro inverter?

The product comes with a 5-year warranty, ensuring long-term reliability and performance.

What is the maximum efficiency of power transmission?

Thanks to patented reverse transmission technology, the electricity transmission rate can reach up to 99%.
