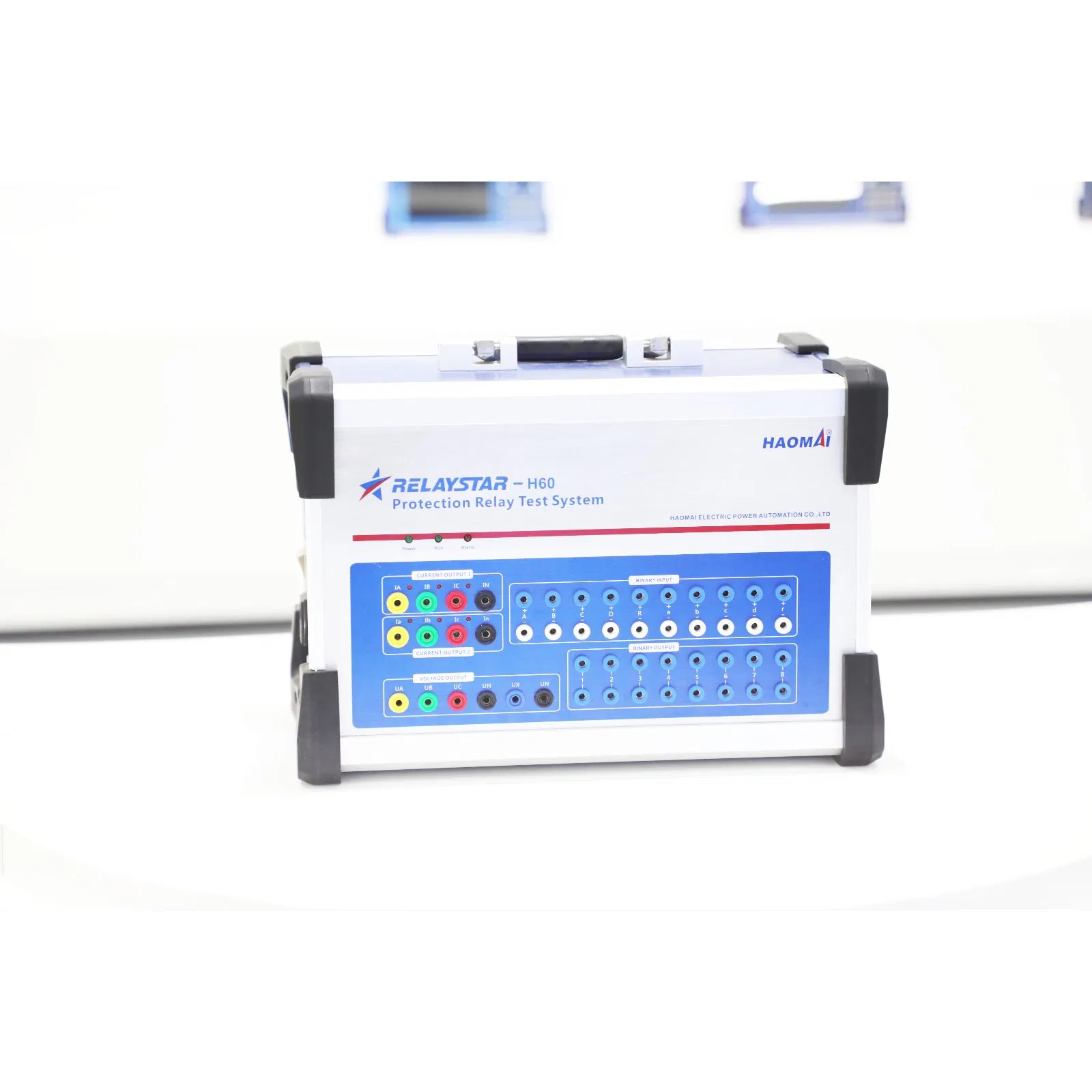

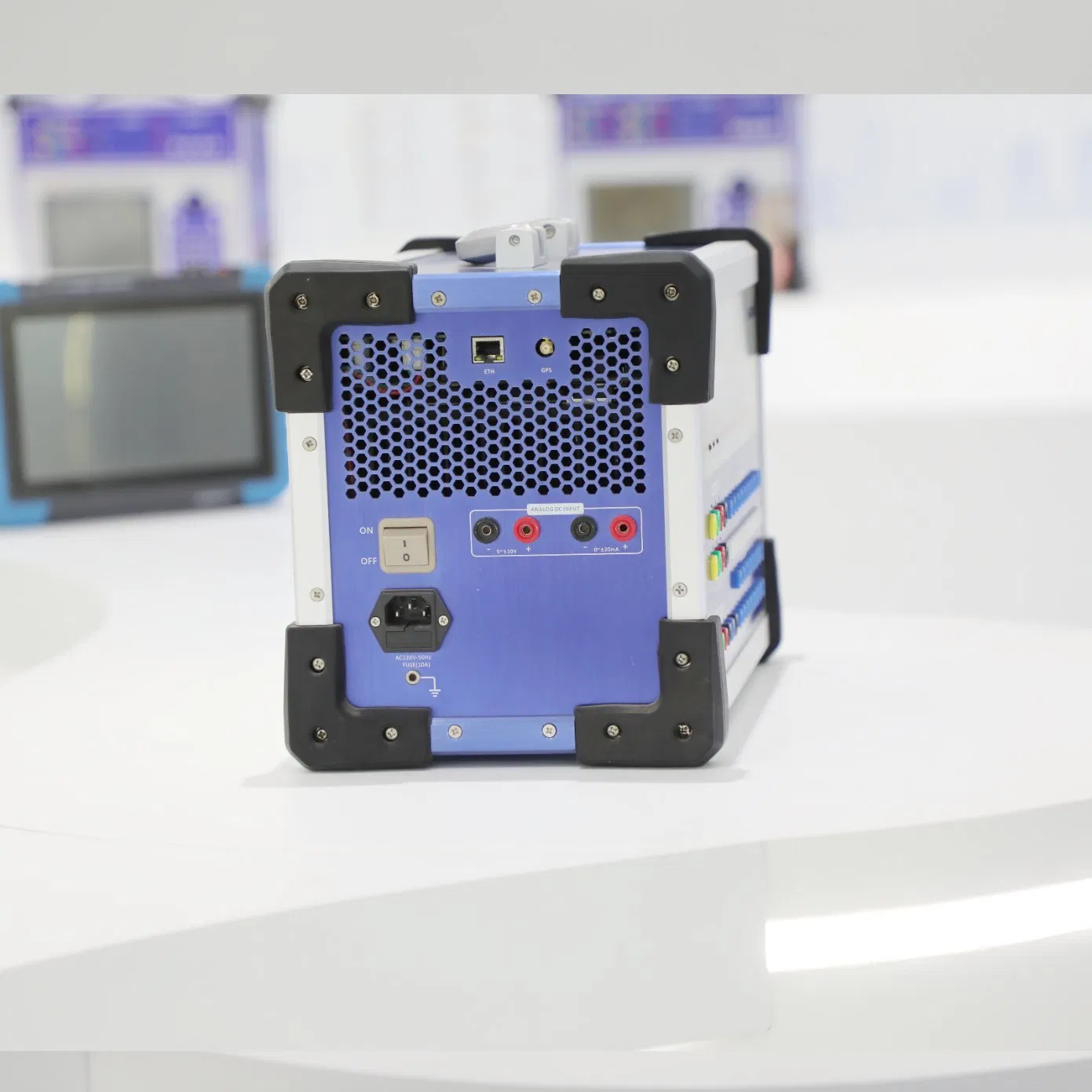

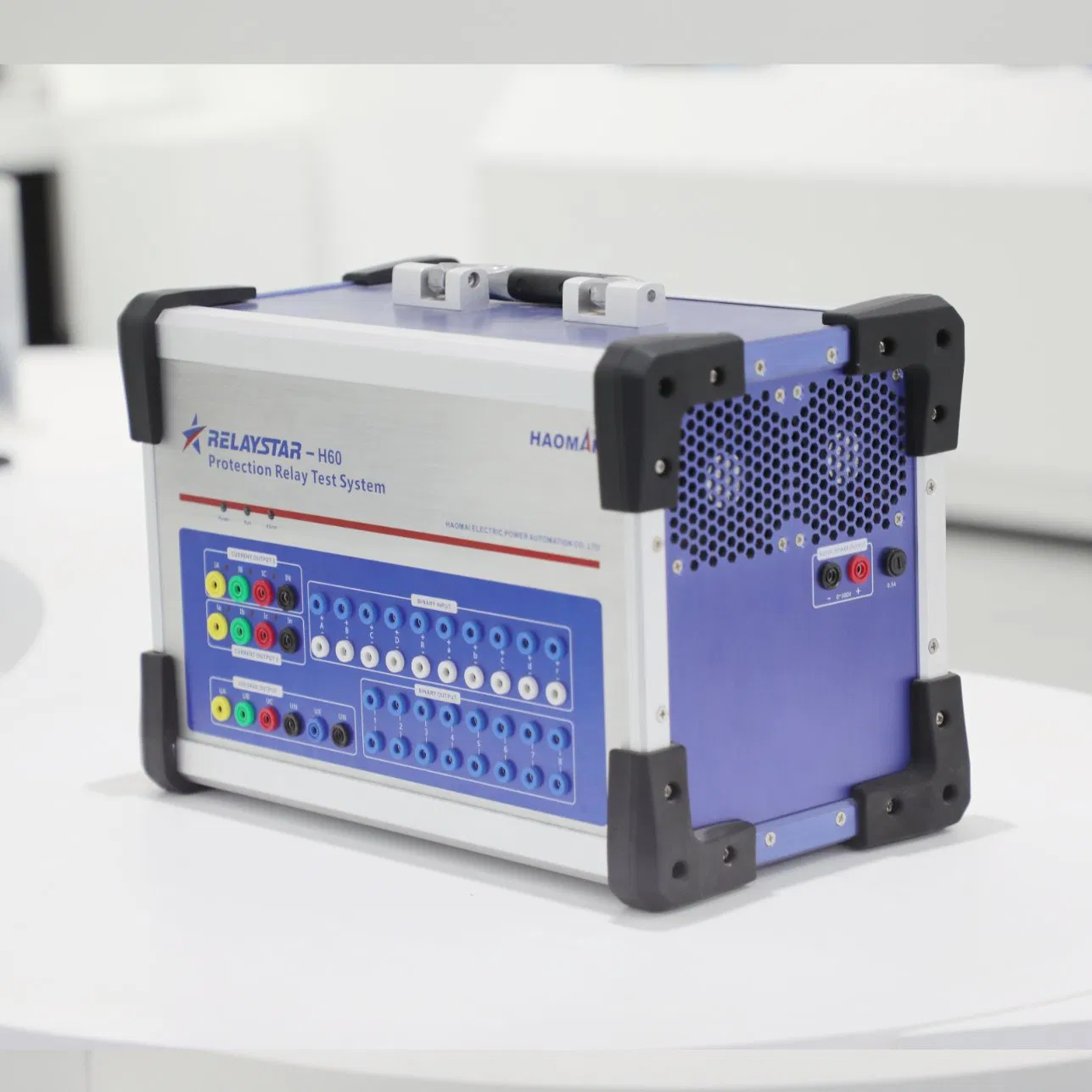

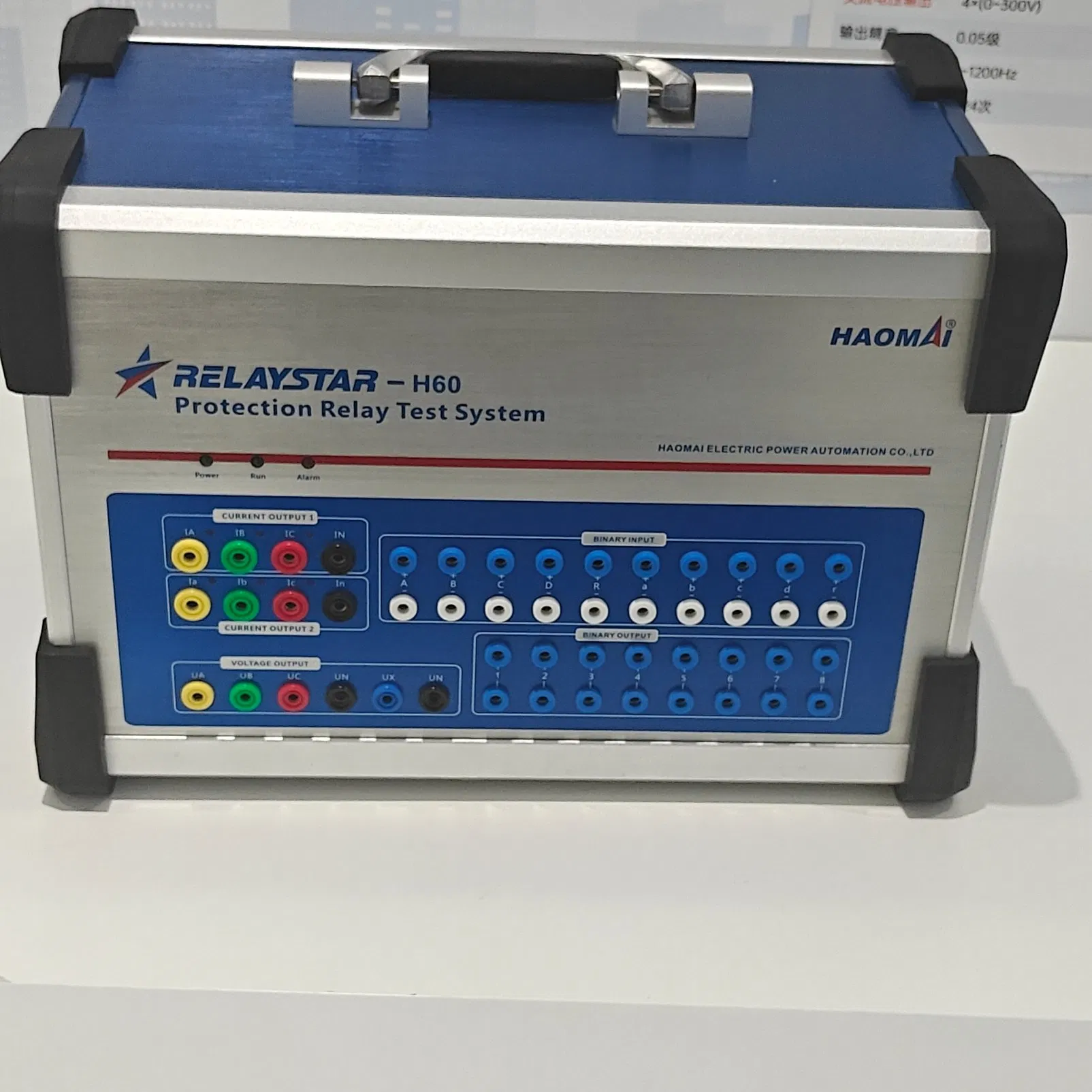

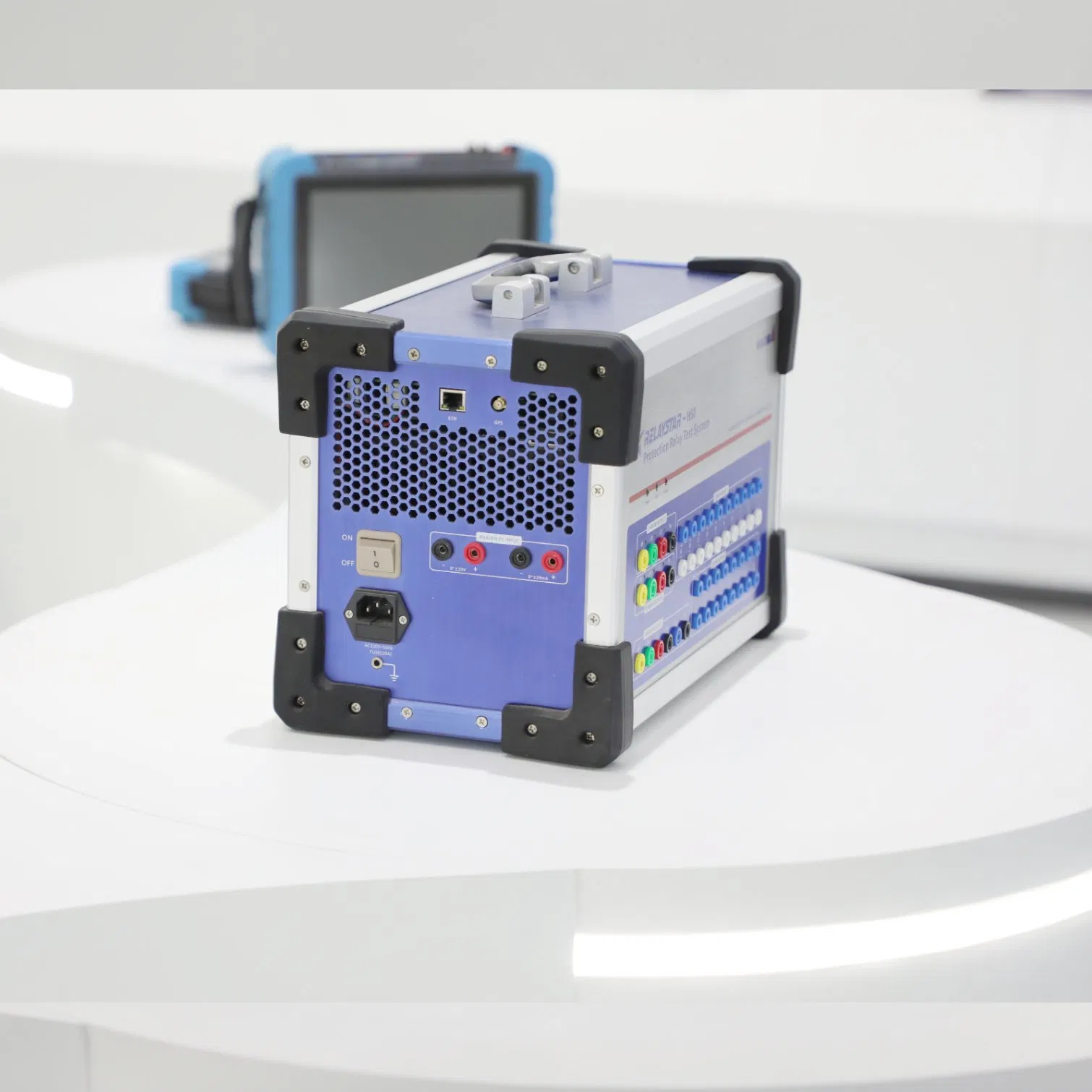

Model: RELAYSTAR-H60

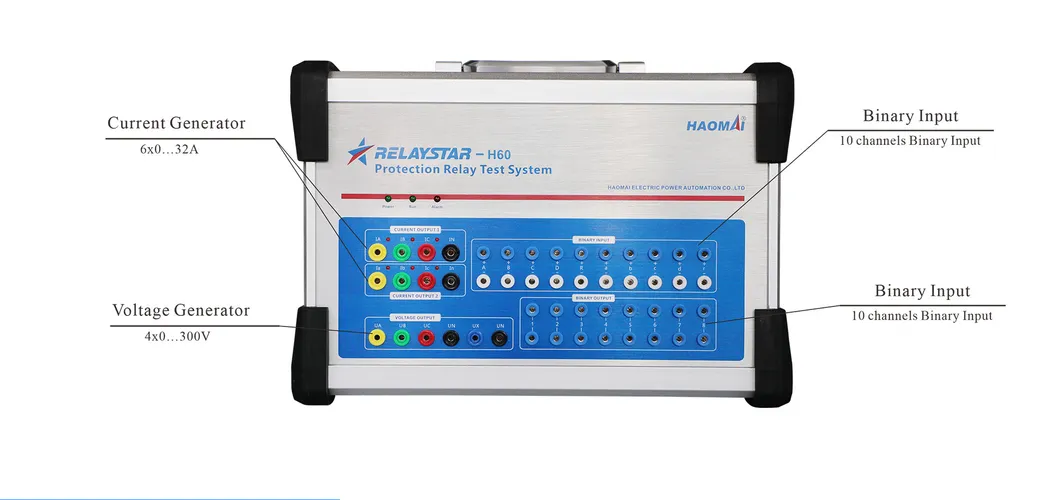

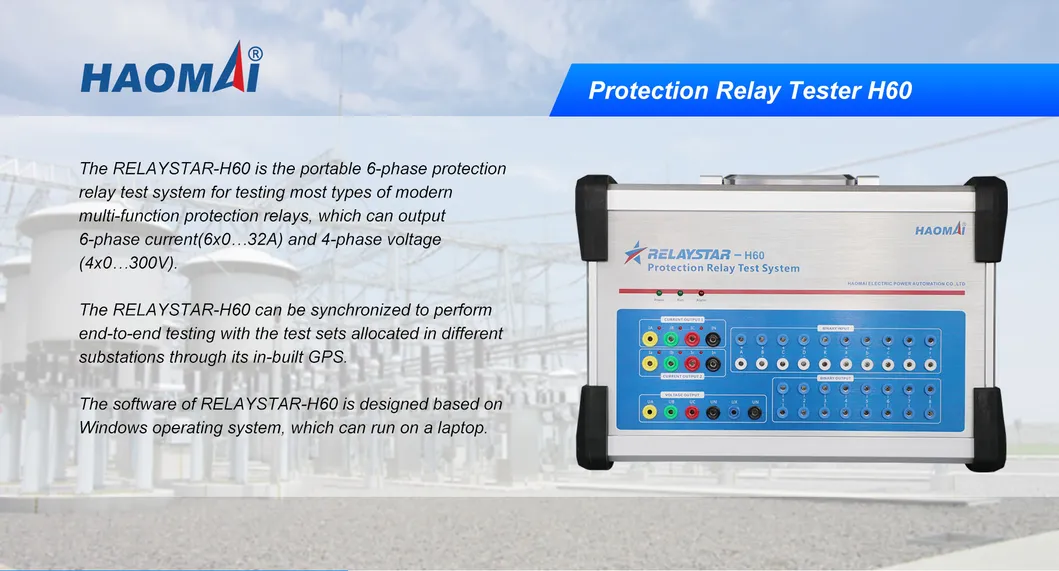

The RELAYSTAR-H60 is a portable 6-phase protection relay test system designed for testing modern multi-function protection relays. It features 6-phase current (6x0…32A) and 4-phase voltage (4x0…300V) outputs.
| Current Generator | ||
|---|---|---|
| Setting Range | 6-phase AC(L-N) | 6x0…32A |
| 3-phase AC(L-N) | 3x0…64A | |
| 1-phase AC(LL-LN) | 1x0…192A | |
| DC(L-N) | 6x0…±15A | |
| Accuracy | AC: ±2.5mA(≤0.5A), ≤0.05% (0.5~32A); DC: ≤0.1% | |
| Voltage Generator | ||
|---|---|---|
| Setting Range | 4-phase AC(L-N) | 4x0…300V |
| 1-phase AC(L-L) | 1x0…600V | |
| DC(L-N) | 4x0…±300V | |
| Accuracy | AC: ±5mV(≤5V), ≤0.05% (5~300V); DC: ≤0.1% | |

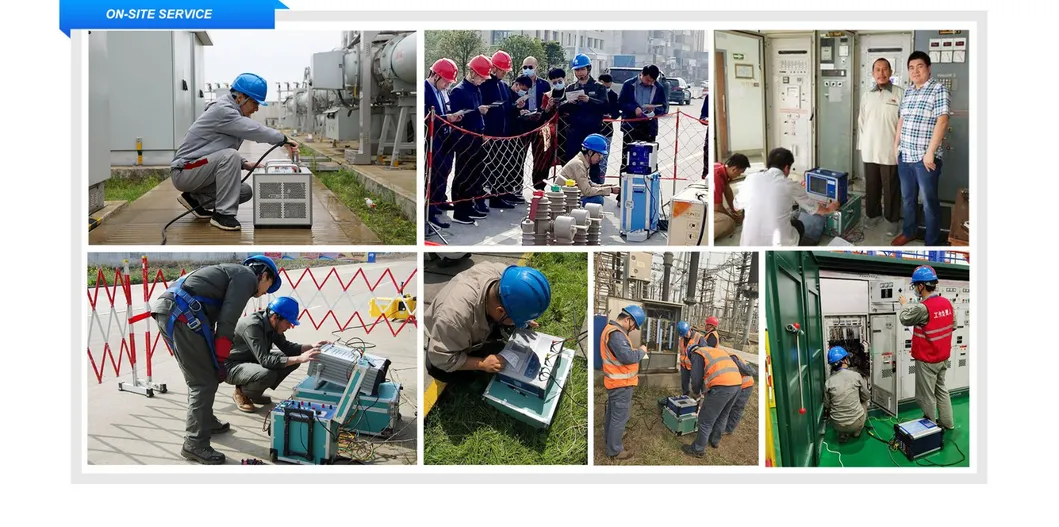

Specializing in developing and manufacturing electrical power test and measurement instruments, our solutions are widely used in power grids, petrochemicals, metallurgy, and research institutes. The product range focuses on Protection Relay Test Systems, CT/PT Analyzers, Battery Load Testers, and Circuit Breaker Analyzers.
The facility follows ISO 9001:2015 and ISO 14001:2015 quality criteria. Equipped with professional production equipment such as Agilent high-precision meters and EMH standard meters, we ensure high performance and reliability for global markets.
