Factory Wholesale Solar PV Module System for Residential Commercial Use Energy Storage System off Grid Hybrid

1 / 5

Factory Wholesale Solar PV Module System for Residential Commercial Use Energy Storage System off Grid Hybrid

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.:SR-5/10/15/20/30KW-HY

Cycle Life:6000+

Nominal Capacity:Customize

Solar Panel:Monocrystalline 400-700W

Battery Type:Gel / LiFePO4 Lithium Battery

Load Power (W):2.5kw - 30kw

Controller:MPPT Intelligent Controller

Inverter Type:Hybrid Storage Solar Inverter

Mounting Type:Ground/Roof Mounting

Origin:Anhui, China

Product Description

Model. No.		SR-5KW-HY	SR-10KW-HY	SR-15KW-3HY	SR-20KW-3HY	SR-30KW-3HY
System Parameter	AC Rated Power	5KW	10KW	15KW	20KW	30KW
	Grid Voltage	220/230VAC		380/400VAC
	Rated grid frequency	50/60HZ
	Max. Output (KVA)	5.5	11	16.5	22	33
Solar Panel	Quantity	12PCS	21PCS	30PCS	42PCS	56PCS
	Model	SR72P-580N
	Power in total	6.96KW	12.18KW	17.4KW	24.36KW	32.48KW
Lithium Battery	Model	SR48200	SR48280	SR48100	SR48200	SR48280
	Nominal Capacity	200AH	280AH	100AH	200AH	280AH
	Battery Bank Capacity	10.24KWH	14.336KWH	30.72KWH	40.96KWH	57.344KWH

Detailed Specifications

N-Type Topcon Solar Panel

Model: SR72P-580N
Maximum Power (Pmax): 580W
Module Efficiency: 22.44%
Open Circuit Voltage: 51.57V
Short Circuit Current: 14.33A

All in One Hybrid Inverter

Supports PV, battery, DG, grid, and load connections
Easily expandable system capacity
Dynamic power distribution for load demand
MPPT Intelligent control

Solar Battery Packs

Rack mounted, Deep Cycle long lifespan
GEL/LiFePO4 Lithium Ion Battery Options
More than 6000 cycles, up to 90% DOD
High discharge performance

Accessories & Technical Support

Project Cases & Shipping

Company Profile

An emerging brand in the photovoltaic industry with customers located on all continents. We provide the highest quality products and the most professional services. We provide different design solutions for large, medium and small customers. We continue to develop and improve technology to bring a better experience to our users.

Frequently Asked Questions

What is the cycle life of the lithium battery?

The LiFePO4 lithium batteries offer a cycle life of over 6000 times with up to 90% Depth of Discharge (DOD).

What types of solar panels are used in the system?

The system utilizes high-efficiency N-Type Topcon Monocrystalline solar panels, such as the 580W SR72P-580N model.

Can the hybrid inverter support multiple power sources?

Yes, the hybrid inverter supports PV (solar), battery, diesel generator (DG), grid, and load connections simultaneously.

Is the system suitable for both residential and commercial use?

Absolutely. With power options ranging from 5KW up to 30KW, the system is designed for both residential and commercial energy storage applications.

What kind of mounting options are available?

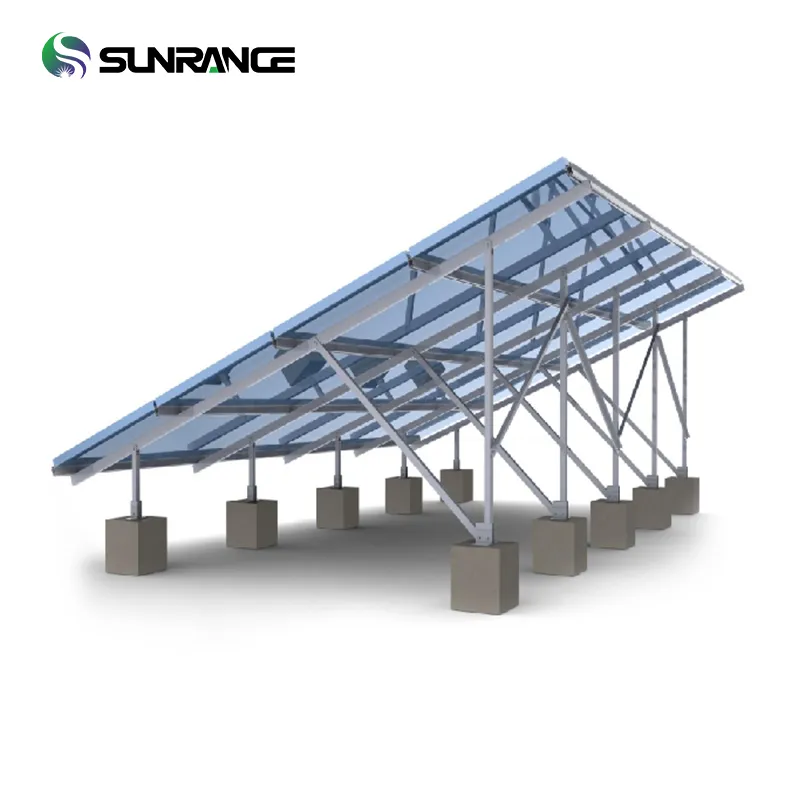

We provide complete mounting systems suitable for both ground installations and various roof types (including asphalt shingles).

Is technical support included?

Yes, we provide complete technical support for system design and installation to ensure optimal performance.
