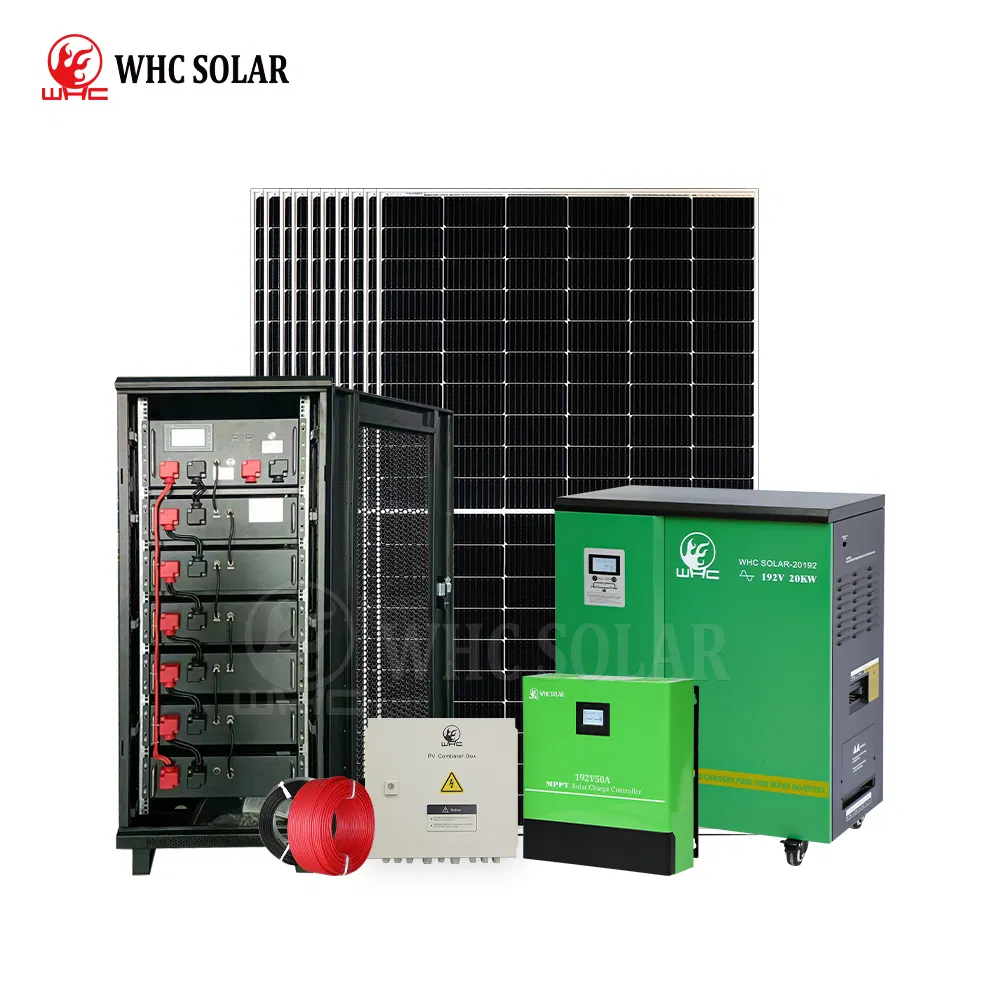

WHC Solar Power System also known as off-grid solar system is the most cost-effective type for solar system. It is a complete solar setup that comes with highly efficient solar panels, off-grid solar inverter, Grade A+ lithium iron phosphate battery and other standard solar accessories. This system will not only provide you continuous electricity but will also reduce your heavy electricity bills.

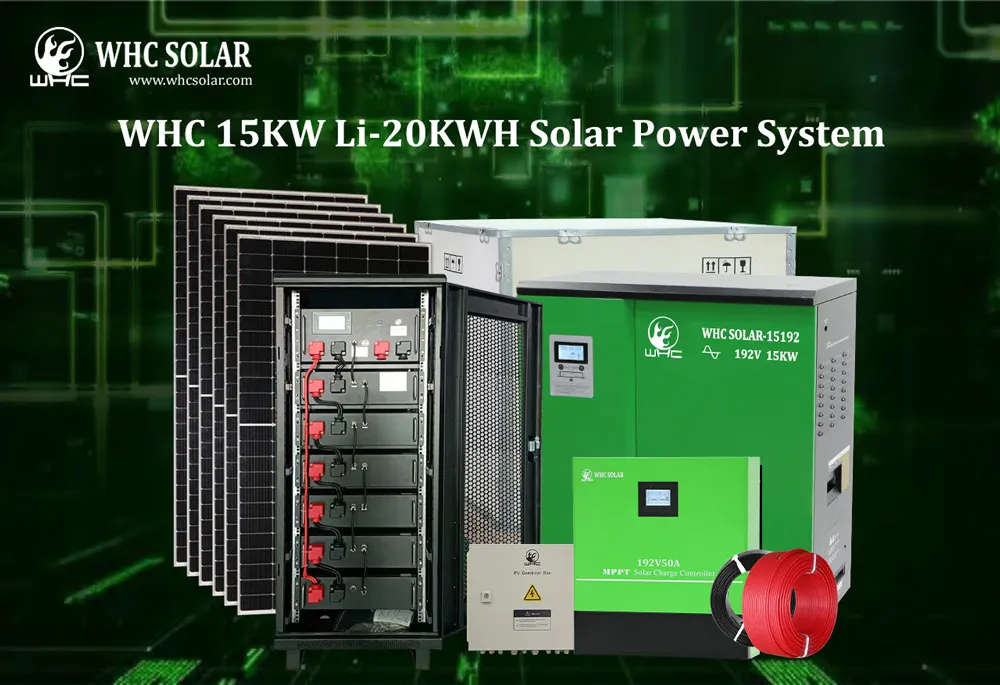

| WHC15KW-Li-20KWH System Configuration | ||
| Item | Description | Quantity |
|---|---|---|
| Solar Lithium Battery | 192V100AH LiFePO4 Lithium Battery | 1 Pieces |
| Solar Panel | 450W Solar Mono Panel | 18 Pieces |
| Solar Controller | 192V 50A MPPT Controller | 1 Pieces |
| Solar Inverter | 192V 15KW Solar Inverter | 1 Pieces |
| PV Combiner Box | Six Input + Two Output | 1 Pieces |

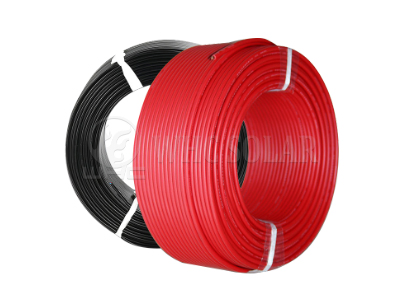

| PV Cable | Single-core 6mm2 PV cable 100m | 2 Pieces |

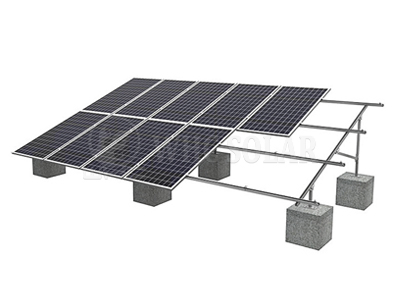

| Mounting Support | Hot Galvanizing Ground Mounting Support | 1 Set |

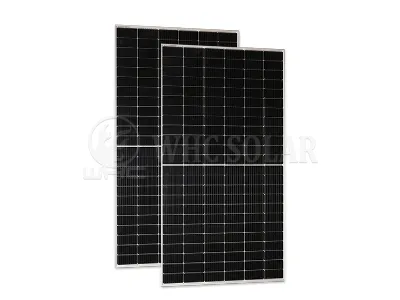

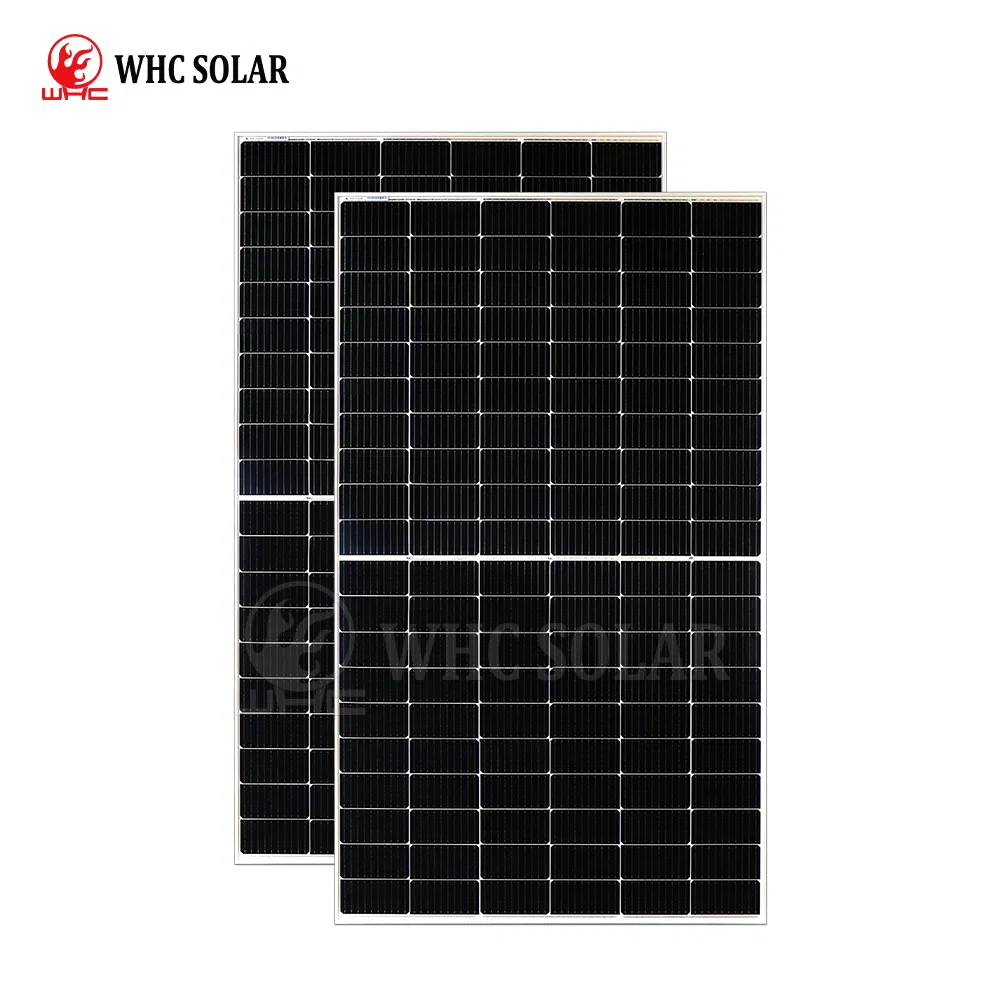

1. Model: WHC-450M-120
2. Max Power Voltage: 34.67V
3. Max Power Current: 12.98A
4. Open Circuit Voltage: 41.25V
5. Dimensions: 1909*1134*35mm

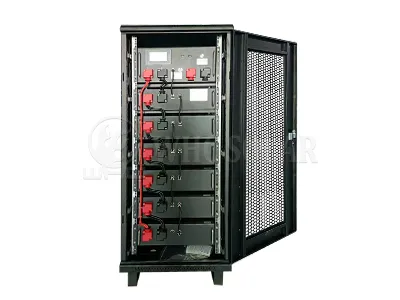

1. WHC192V100AH
2. Type: LiFePO4 Lithium Battery
3. Nominal Voltage: 204.8V
4. Capacity: 20480WH
5. Lifespan: 10 Years

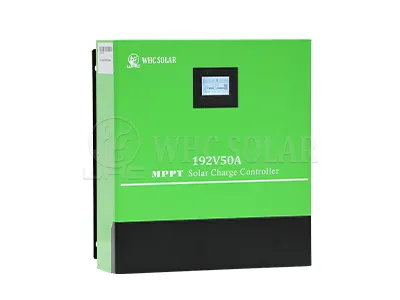

1. MPPT/WHC19250F
2. Type: Heatsink Cooling
3. Max. Charging Current: 50A
4. MPPT Efficiency: 99%

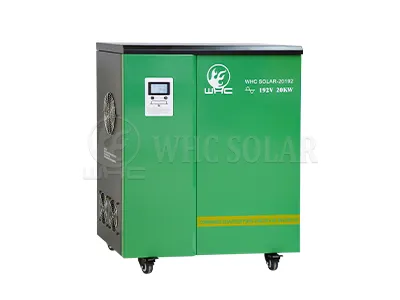

1. WHC192V 15KW Inverter
2. Type: Low Frequency IGBT Pure Sine Wave
3. AC Output Voltage: 220V 50/60HZ
