New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
1 / 5
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty
New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty

New Technology Three Phase Low Voltage Hybrid Inverter IP65 5 Years Warranty

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HFP43224
Phase
Three
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Battery Voltage
40~60V
Size
51*63*29cm
Inverter Efficiency
97.9%
Protection Degree
IP-65
MPPT Efficiency
99.9%
Production Capacity
100000PCS/Year
Product Features
Three Phase Hybrid Low Voltage Solar Inverter
Power saving function
High PV input voltage
Intelligent speed control fans
LCD screen and LED indicator lights
Support lead-acid and lithium battery connections
Product Visuals
Inverter Image 1
Inverter Image 2

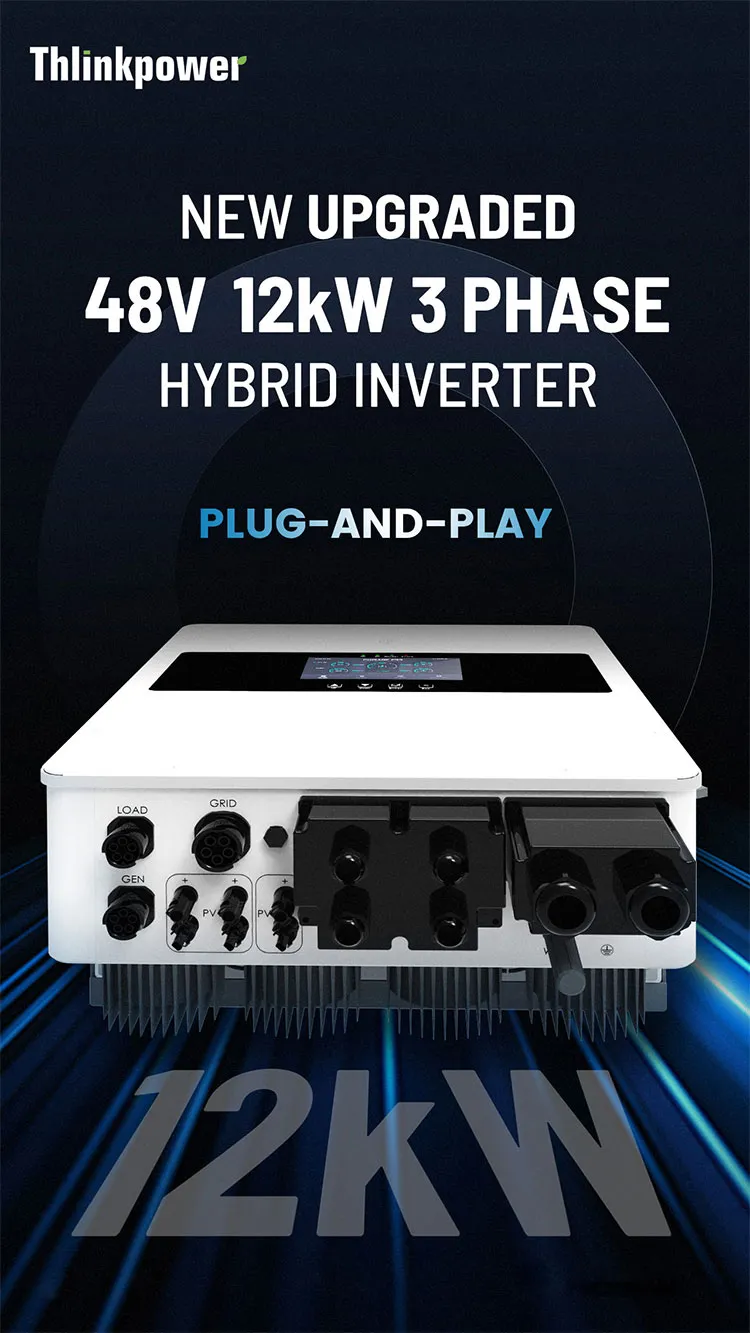

Inverter Details
Technical Specifications
Model TP-Mars-5G1 TP-Mars-8G1 TP-Mars-10G1 TP-Mars-12G1 TP-Mars-14G1
Max DC Power (W) 7500 12000 15000 18000 20000
Max DC Voltage (V) 650 (160-800)
MPPT Voltage Range (V) 200-700
Battery Type Li-ion / Lead-acid
Rated Power (W) 5000 8000 10000 12000 14000
Weight (kg) 38 42 44 44 45
Detailed Performance
Diagram 1

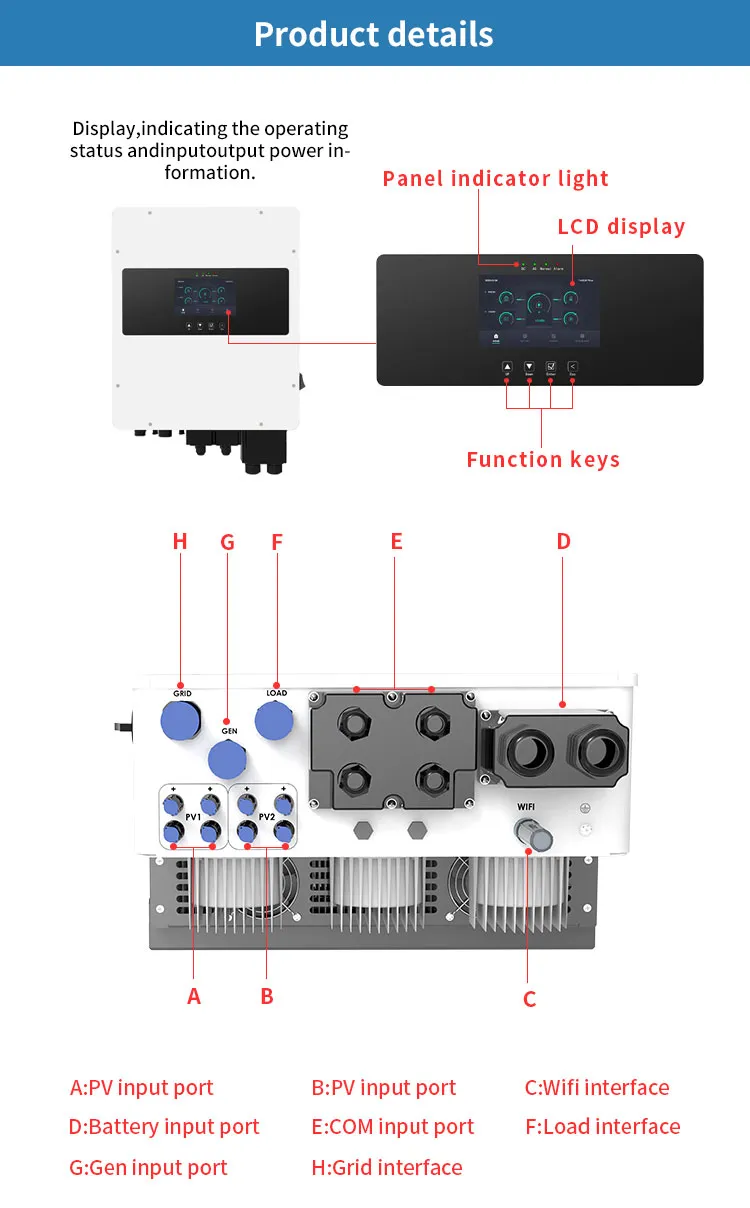

Diagram 2

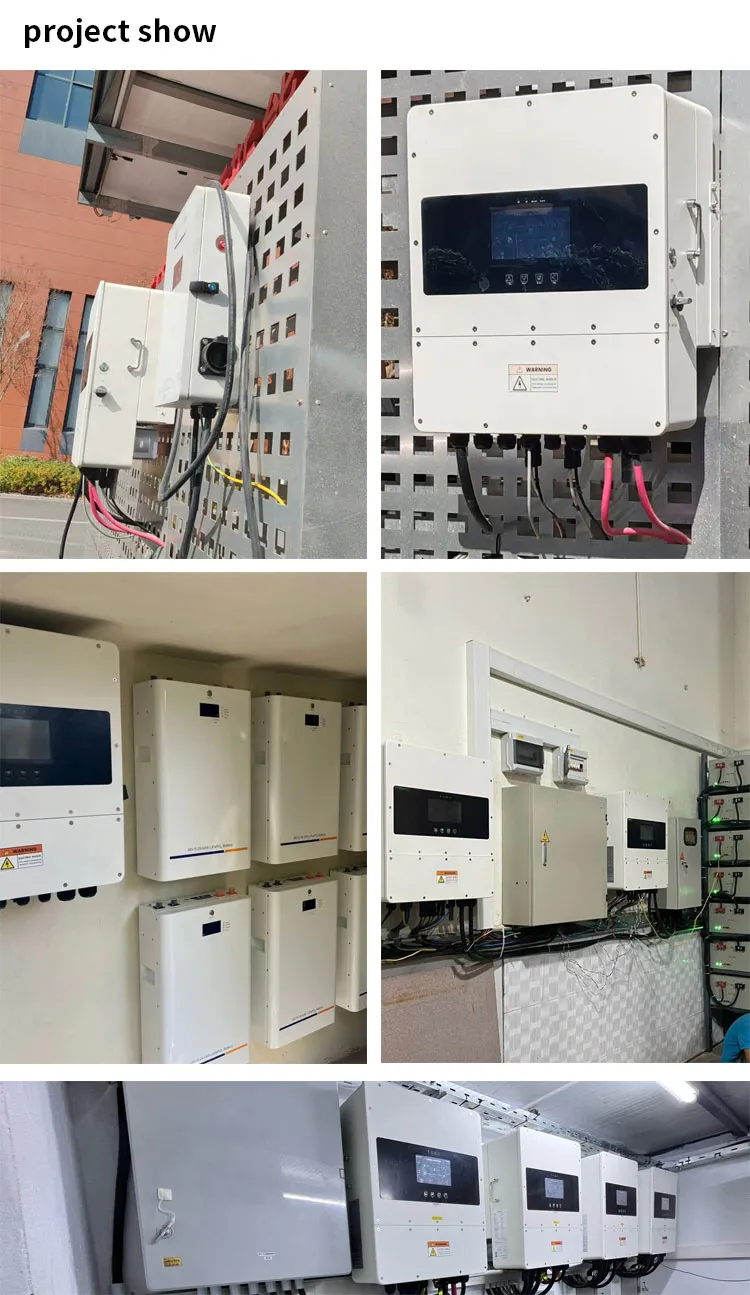

Diagram 3
Full Specs 1
Full Specs 2
FAQ
What is the maximum efficiency of this hybrid inverter?
The inverter features a high inverter efficiency of 97.9% and an MPPT efficiency of 99.9% for optimal energy conversion.
Is the inverter suitable for outdoor installation?
Yes, it has an IP-65 protection degree, making it resistant to dust and water, suitable for various environmental conditions.
What types of batteries are compatible with this system?
This hybrid inverter supports both lead-acid and lithium battery connections with a voltage range of 40V to 60V.
How does the cooling system work?
It utilizes a smart cooling system with intelligent speed control fans to maintain optimal operating temperatures efficiently.
Can I monitor the system status easily?
Yes, the unit is equipped with a clear LCD screen and LED indicator lights for real-time monitoring of performance and status.
What is the input voltage range for the MPPT?
The MPPT voltage range is between 200V and 700V, allowing for flexible solar panel configurations.
