Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
1 / 5
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V

Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Battery Voltage
48V DC
Protection
IP65
Max. PV Voltage
800V
Communication
WiFi / RS485
P

Product Description

Deye Three Phase Hybrid Inverter: SUN-8/10/12K-SG04LP3-EU | 8-12KW | Three Phase | 2 MPPT | Low Voltage Battery

Deye Hybrid Inverter

SUN-8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

Key Features:
* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Max. charging/discharging current of 240A
* Frequency droop control, Max.16pcs parallel
* Support storing energy from diesel generator
Inverter Block Diagram
Smart Monitoring System
T

Technical Parameters

Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 190A 210A 240A
Max. DC Input Power (W) 10400W 13000W 15600W
Rated AC Output Power (W) 8000W 10000W 12000W
Max. Efficiency 97.60%
D

Product Details & Packing

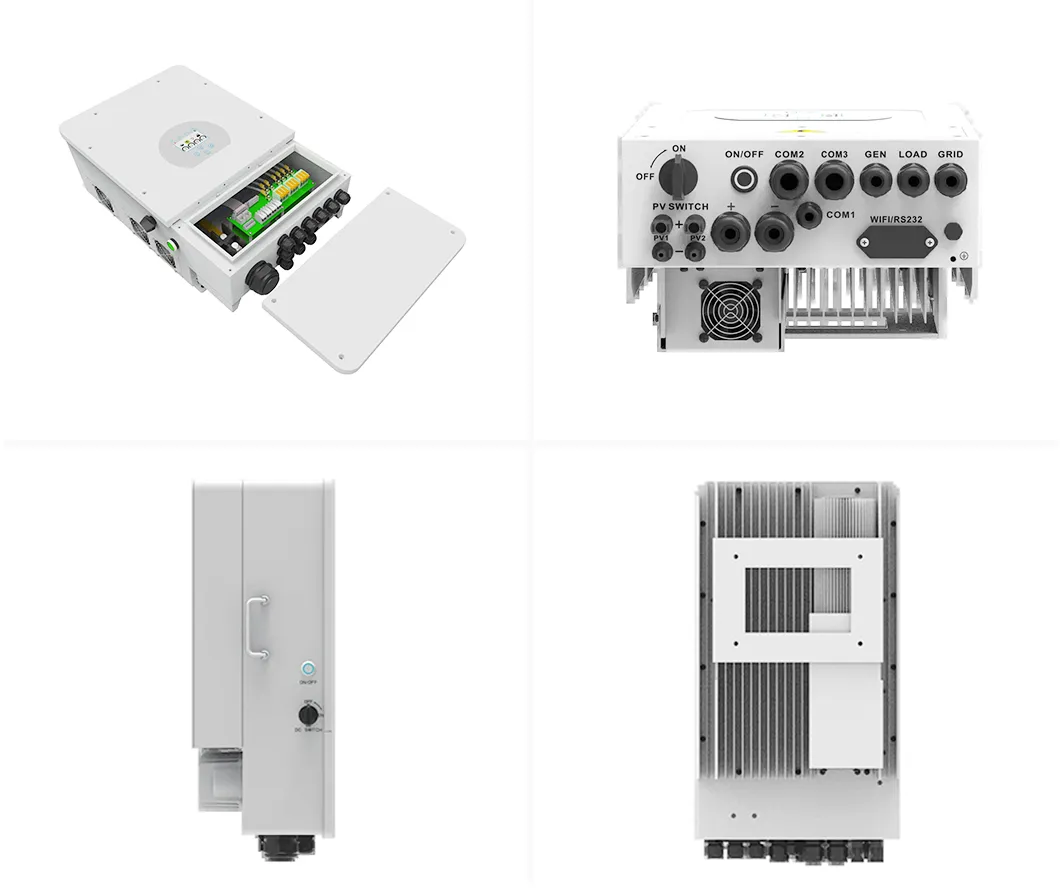

Details

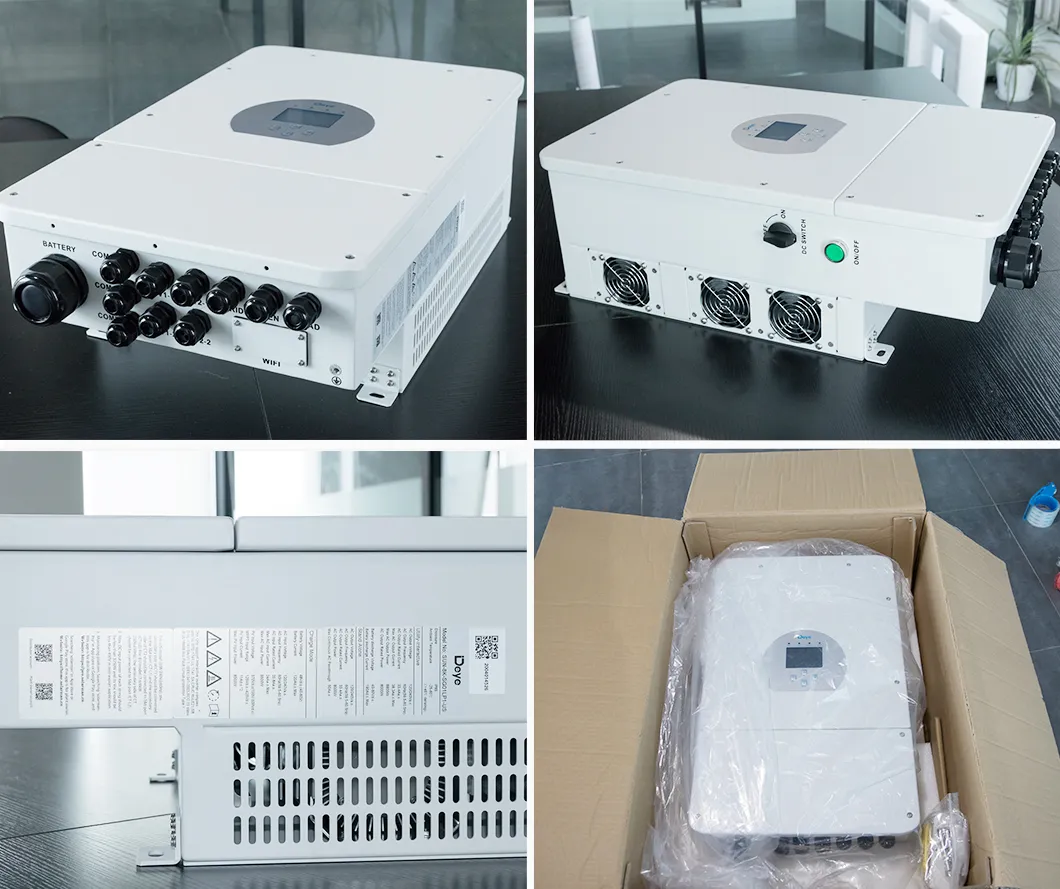

Packing
F

Factory & Cases

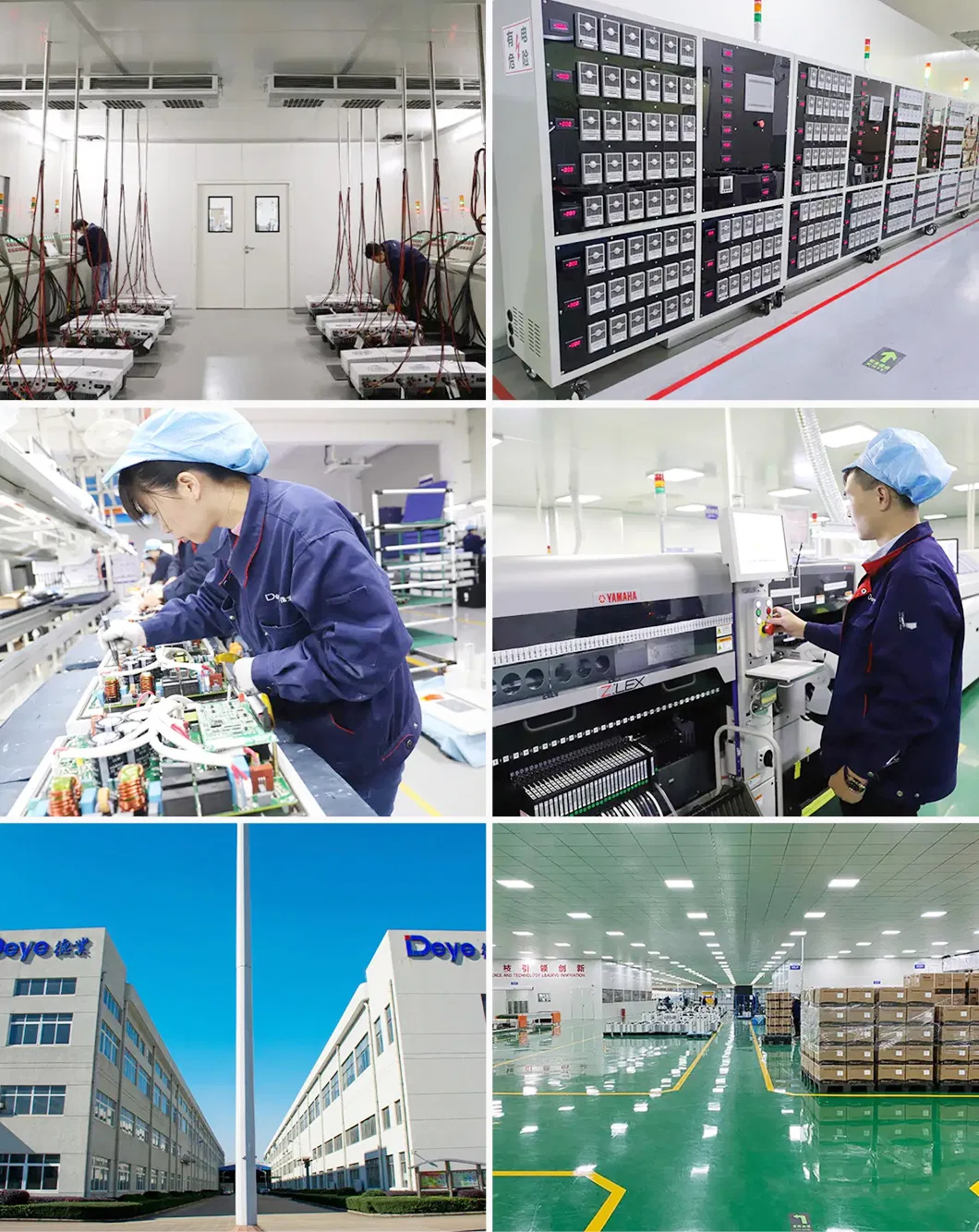

Factory

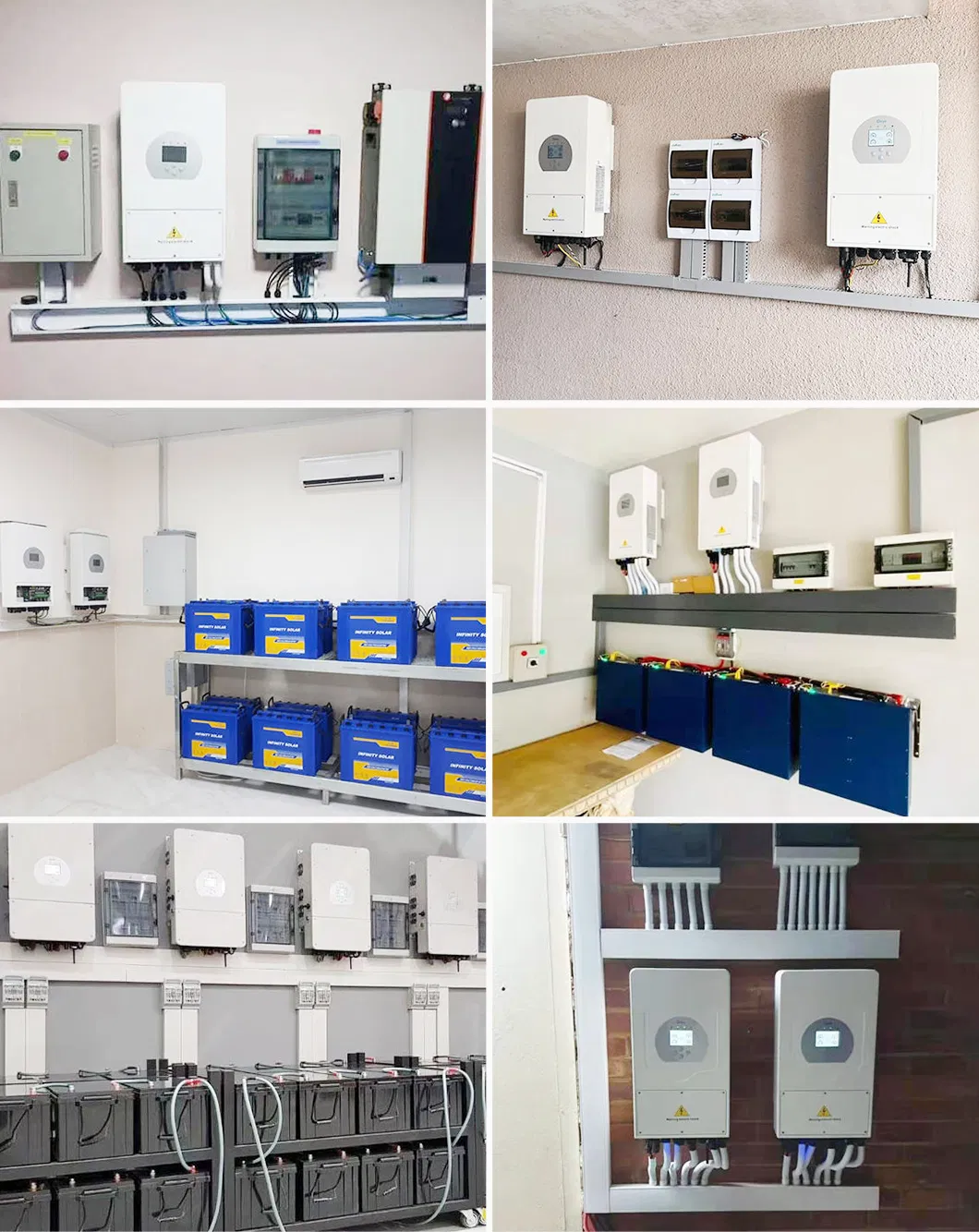

Project Cases
?

Frequently Asked Questions

What is the battery voltage range for this hybrid inverter?
The inverter is designed for a low voltage battery system, typically ranging from 40V to 60V (48V nominal).
Does the system support parallel connection?
Yes, it supports frequency droop control and allows up to 16 pieces to be connected in parallel for higher power requirements.
Can it work with diesel generators?
Yes, the inverter supports storing energy from diesel generators, providing extra flexibility for off-grid applications.
Is the inverter suitable for outdoor installation?
Yes, it features an IP65 protection degree, making it highly resistant to dust and water for outdoor environments.
What is the maximum charging current?
Depending on the model, the maximum charging and discharging current can reach up to 240A.
Does it support unbalanced three-phase output?
Yes, it supports three-phase unbalanced output, which extends its use in various complex application scenarios.
