Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
1 / 5
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V
Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V

Three Phase Hybrid Inverter Deye SUN-5/6/8/10/12K Inverter With Low Battery Voltage 48V

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Nature of Source Flow:Active Inverter
Phase:Three
Output Power:>1000W
Certification:SAA, CE, ROHS, ISO9001
Type:DC/AC Inverters
Power Source:Solar Power
Battery Voltage:48V DC
Application:Solar Power System Home
Protection:IP65
Max. PV Voltage:800V
P

Product Description

Three Phase Hybrid Inverter | SUN-8/10/12K-SG04LP3-EU | 8-12KW | 2 MPPT | Low Voltage Battery

SUN-8/10/12K-SG04LP3-EU is a brand new three-phase hybrid inverter with low battery voltage 48V, ensuring the system is safe and reliable. With a compact design and high-power density, this series supports a 1.3 DC/AC ratio, saving device investment. It supports three-phase unbalanced output, extending the application scenarios.

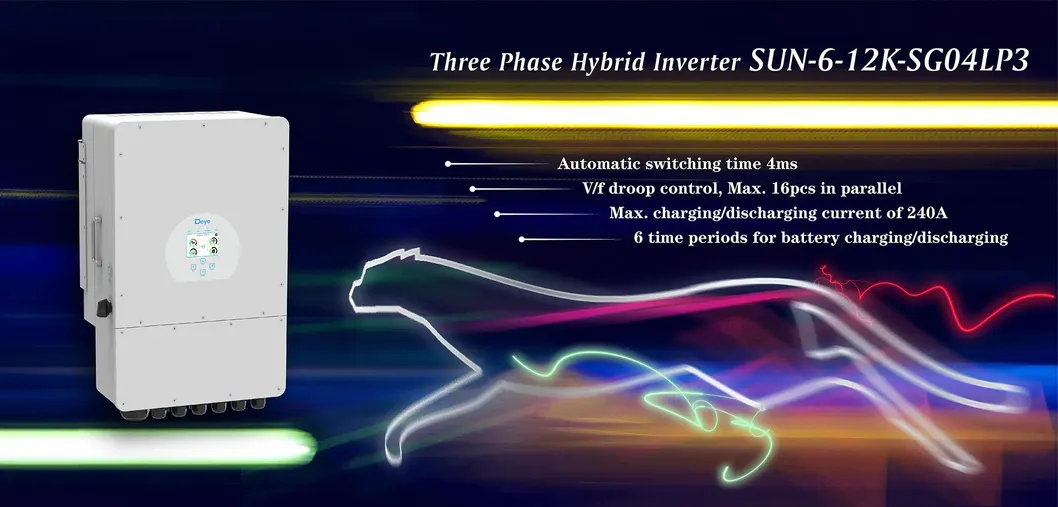

Hybrid Inverter

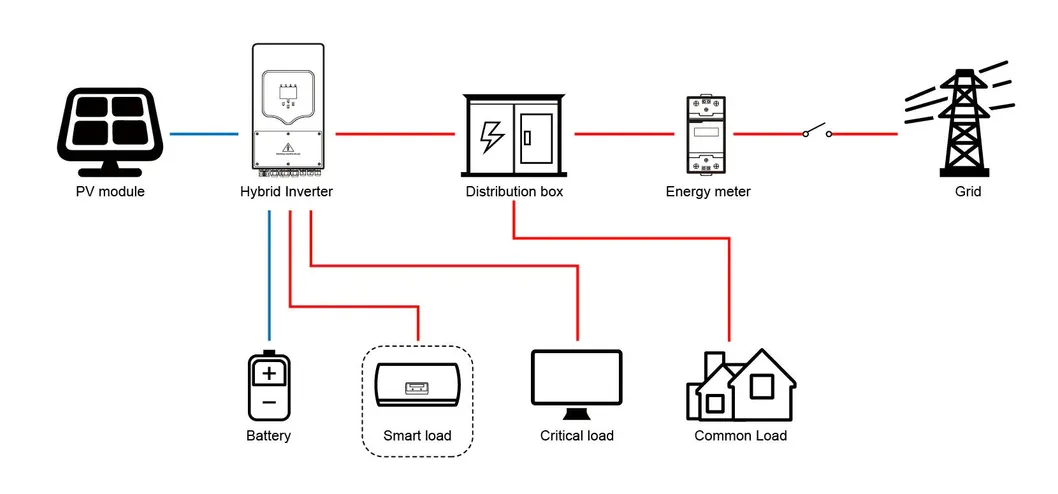

Inverter Block Diagram
S

Technical Parameters

Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Max. DC Input Power (W) 10400W 13000W 15600W
Battery Voltage Range (V) 40~60V
Max. Charging Current (A) 190A 210A 240A
Rated AC Output (W) 8000W 10000W 12000W
Max. Efficiency 97.60%
* 48V low voltage battery, transformer isolation design
* 6 time periods for battery charging/discharging
* Frequency droop control, Max. 16pcs parallel
* Supports three phase unbalanced output
D

Smart Monitoring & Quality

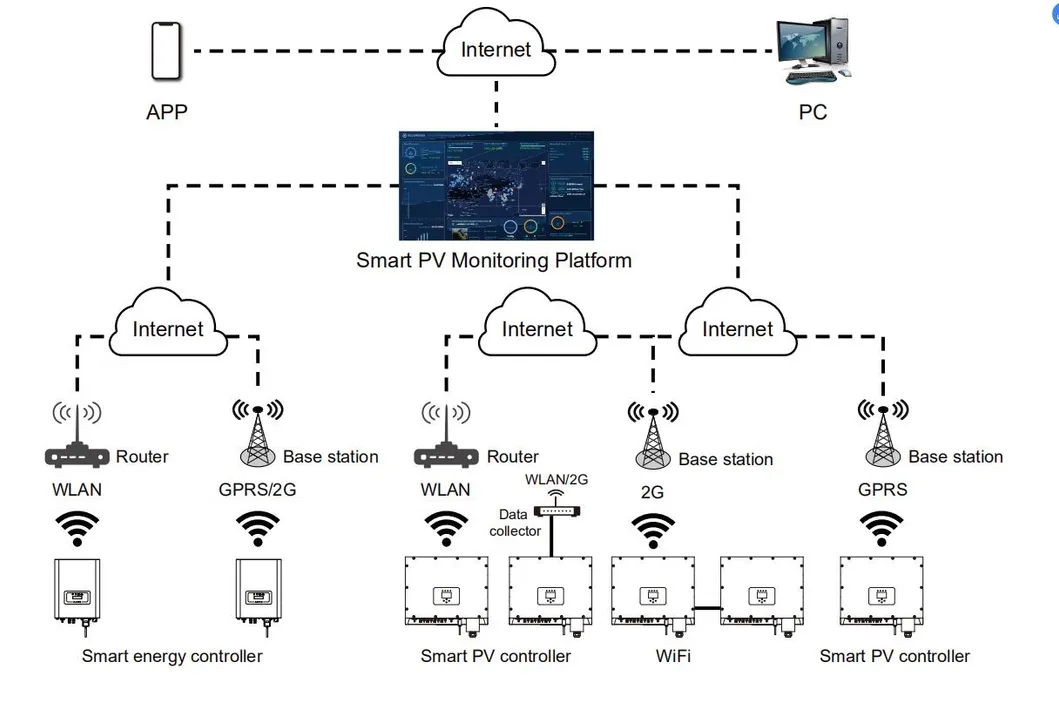

Smart Monitoring

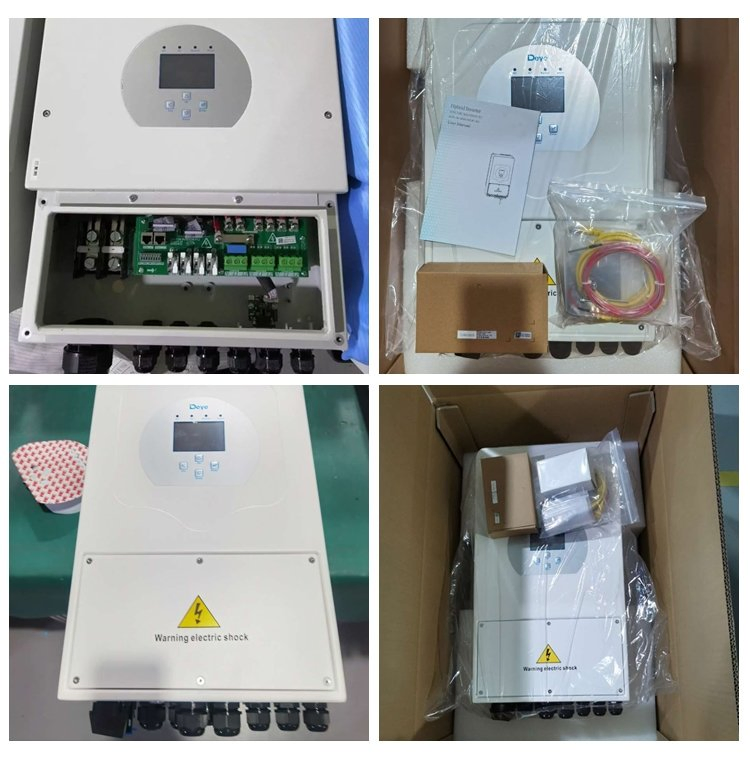

Product Details

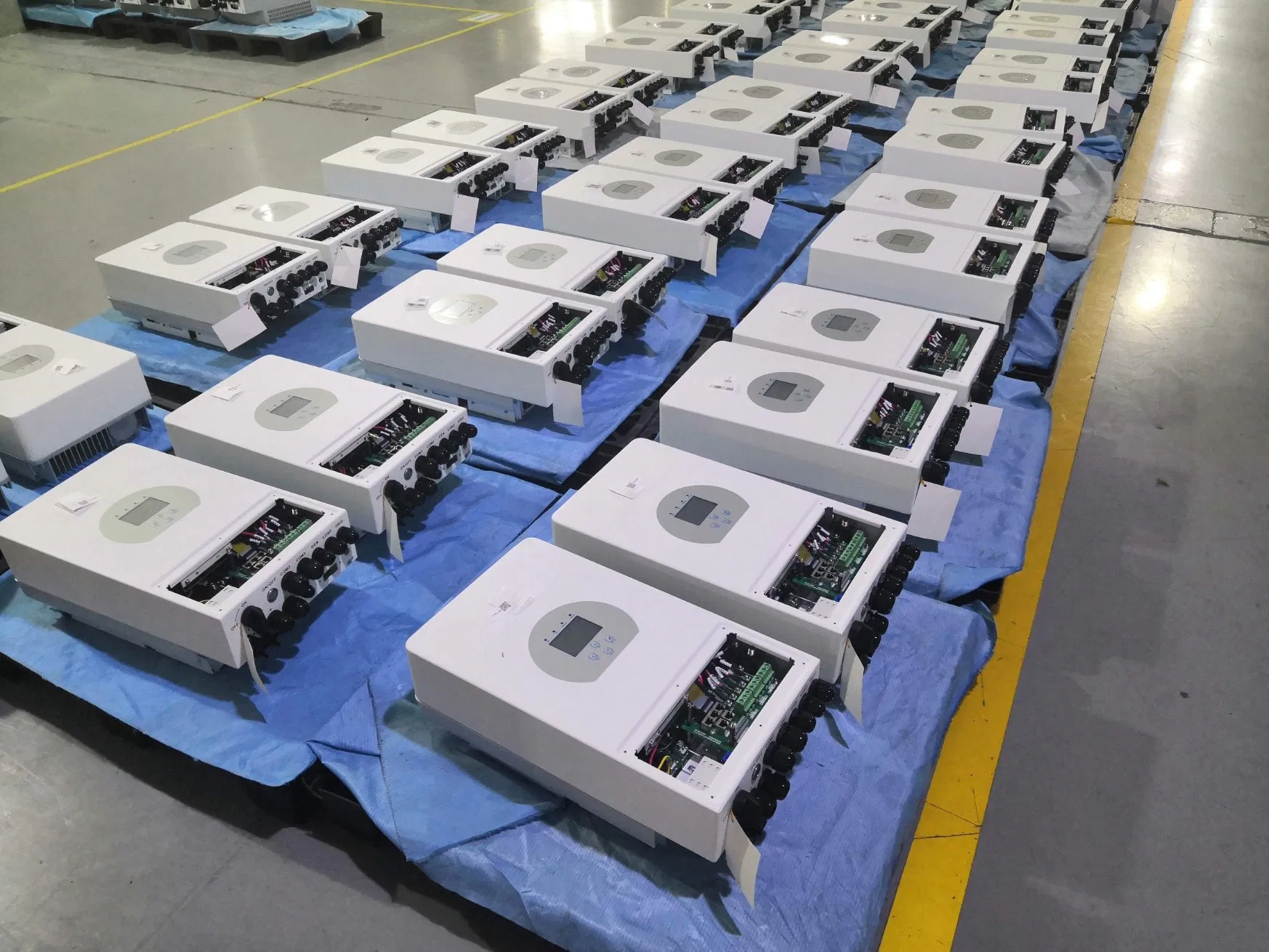

Factory
Project Cases
L

Packaging & Logistics

Packing
Package Size:42.00cm * 67.00cm * 24.00cm
Gross Weight:40.000kg
?

Frequently Asked Questions

1. What is the battery voltage for this hybrid inverter? This series uses a 48V low voltage battery, which ensures a safe and reliable system operation with transformer isolation design.
2. Does it support parallel connection? Yes, it supports frequency droop control and can have up to 16 units connected in parallel to increase system capacity.
3. Can it work with diesel generators? Yes, it includes a unique feature that supports storing energy from diesel generators, making it highly versatile for off-grid scenarios.
4. What is the protection rating of this inverter? The inverter is rated IP65, providing excellent protection against dust and water, suitable for various installation environments.
5. Does it support unbalanced three-phase output? Yes, it supports three-phase unbalanced output, which extends its application to more complex household or industrial load scenarios.
6. How many MPPT trackers are included? This series is equipped with 2 MPPT trackers to maximize energy harvest from solar panels.
