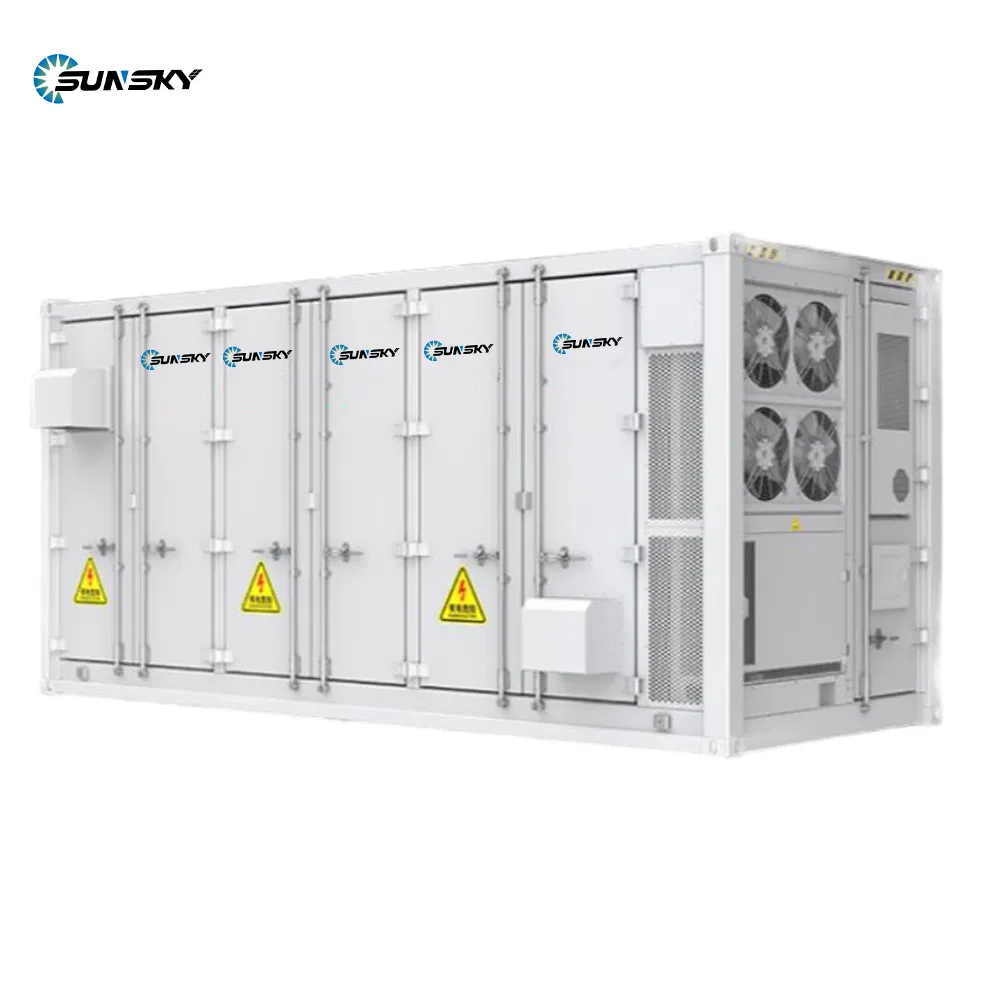

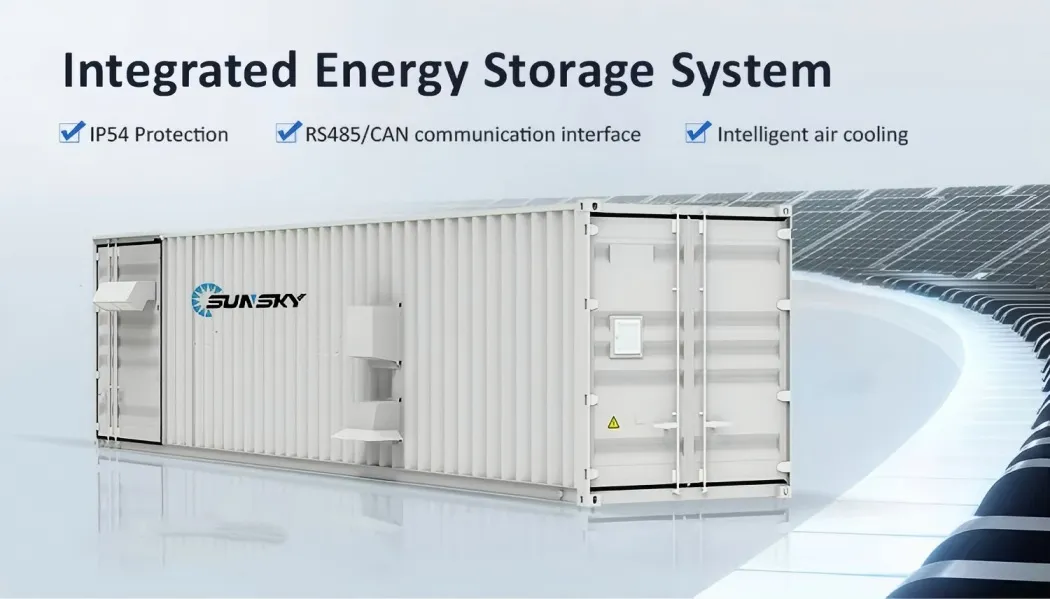

| Specifications | SUN20FT-0.5MW/1MWh | SUN40FT-1MW/2MWh |
|---|---|---|
| Cell Type | 3.2V/280Ah/LFP | |
| Cell Life Cycle | >8,000 Cycles @ 25°C | |
| Number of Cluster | 5 | 10 |
| Total Rated Energy | 1003.52kWh | 2007.04kWh |
| Rated AC Power | 500kW | 1000kW |
| Dimensions (L*W*H) | 6058*2591*2438mm | 12116*2438*2896mm |
| Operating Temperature | -20~65°C | |
| Fire Extinguisher | HFC bottle group | |
A: It allows captured solar energy to be stored directly with minimal losses, ensuring a greater portion of power is used on-site or dispatched to the grid efficiently.

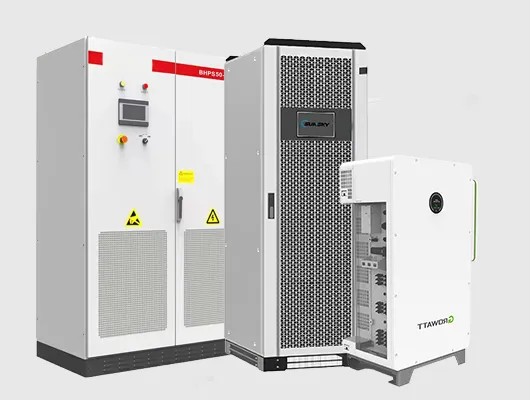

A: The PCS is a high-power, bidirectional inverter that converts DC from solar and batteries to AC. it streamlines infrastructure by replacing separate solar and battery inverters.
A: Key advantages include higher system efficiency, simplified layout with fewer components, reduced BOS costs, and seamless integration for on/off-grid projects.
A: It avoids multiple DC-AC-DC conversion steps. Solar energy directly charges batteries in DC form, reducing energy losses and maximizing ROI.
A: It is a system architecture where solar panels and batteries share the same DC bus before conversion to AC by a single centralized inverter.

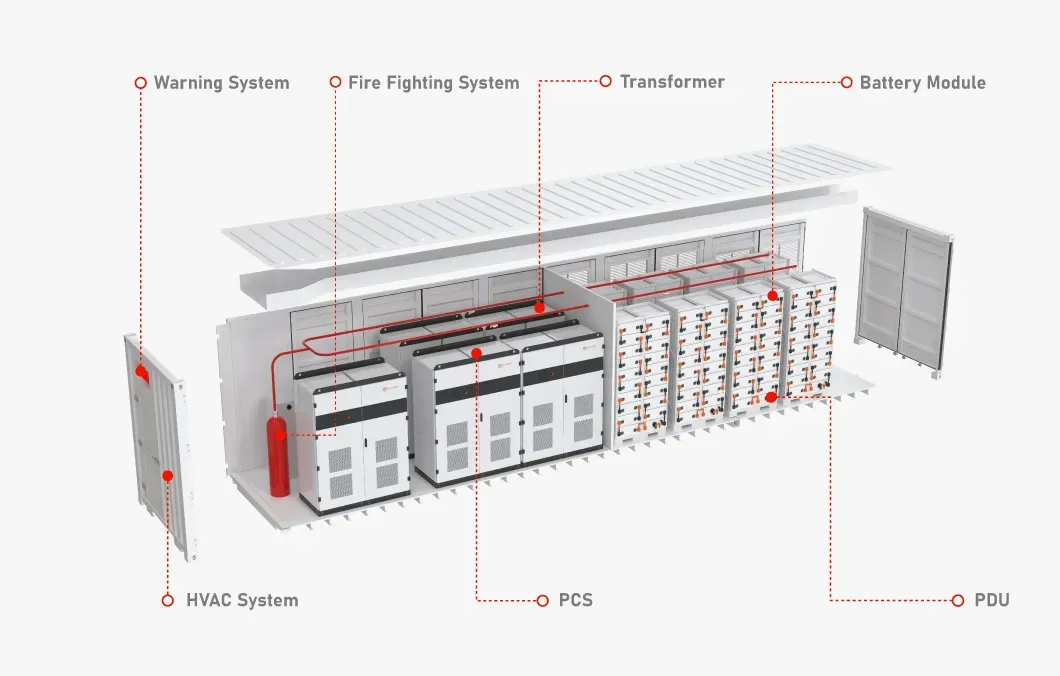

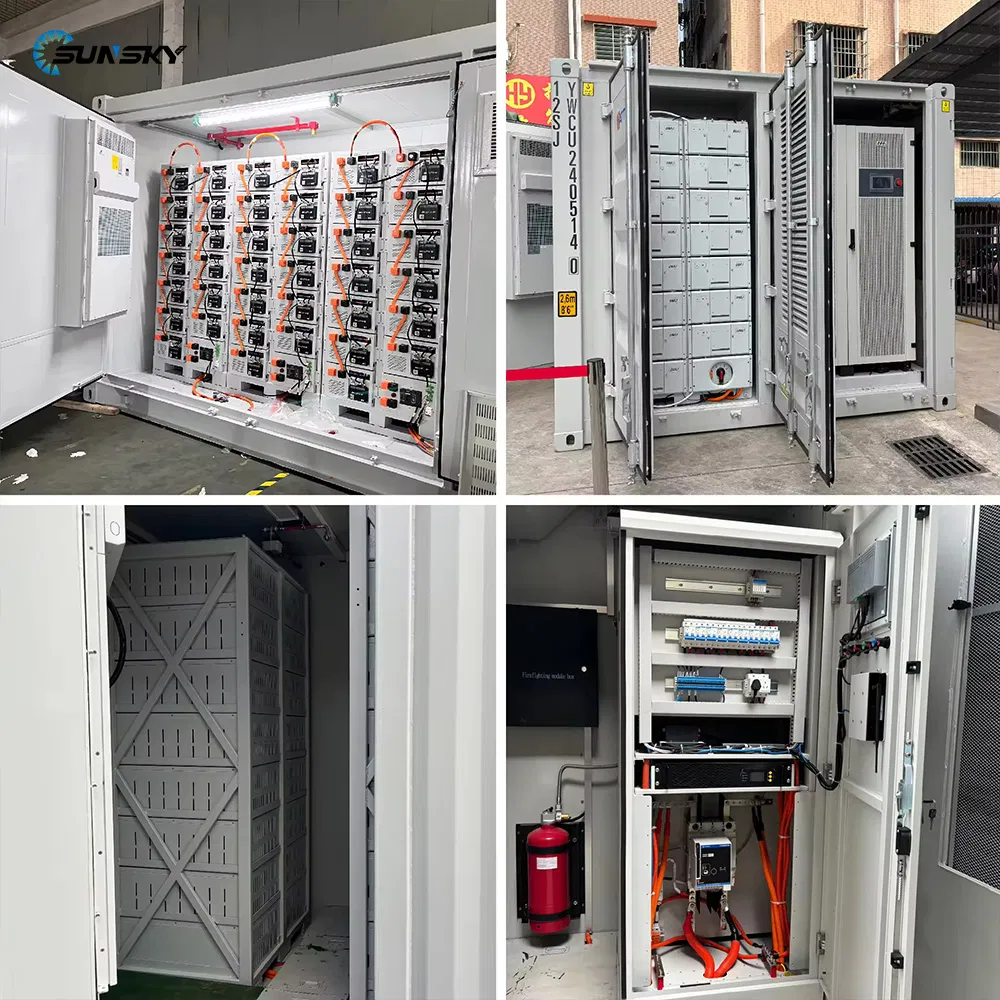

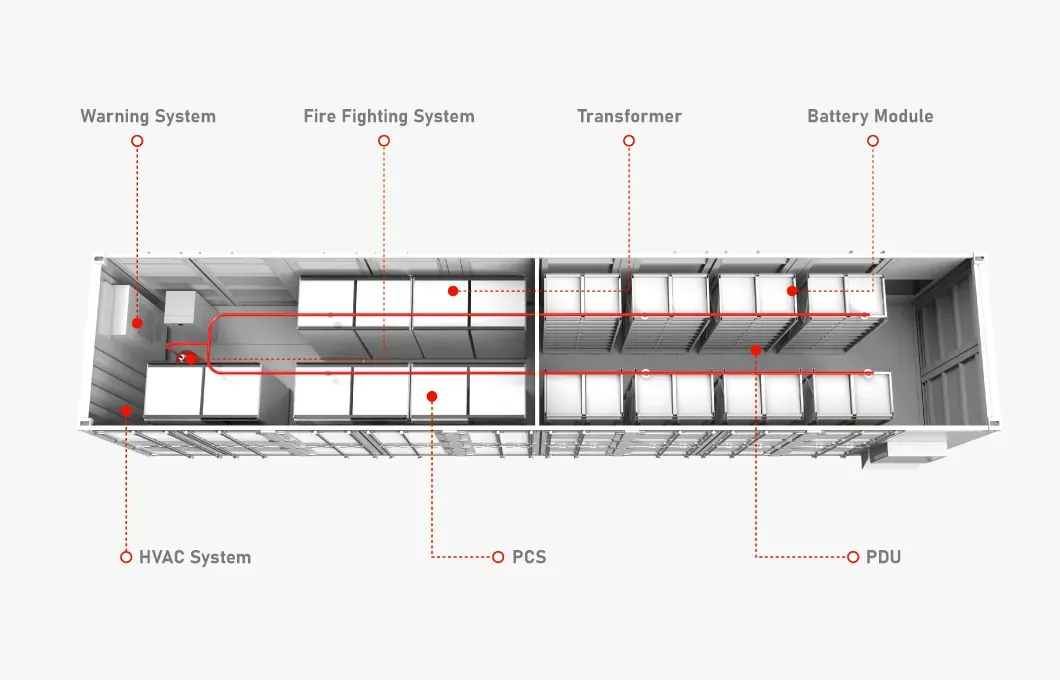

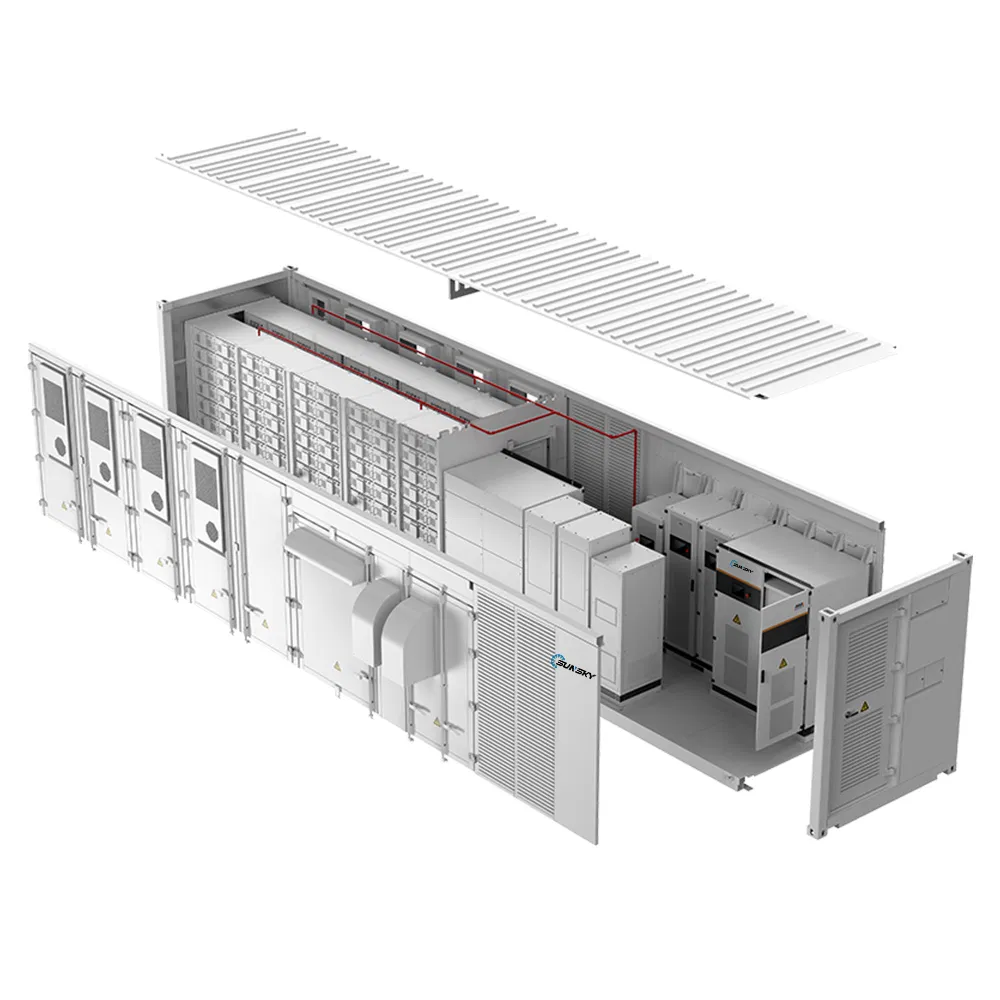

A: The systems include separated compartments for electrical and battery units, HVAC thermal management, and HFC fire suppression systems.
