June Power
June Power
| Module | RackArk-HV 51.2V314AH(0.5C) |
| Capacity(kWh) | 16.0768 |
| Nominal Voltage(Vdd) | 51.2 |
| Nominal Capacity(AH) | 314 |
| Voltage Range(Vdd) | 44.8~56.8 |
| Depth of Discharge | 90% |
| Design Life | 15+ years (25°C) |
| Cycle Life | >6000 (25°C) |
| Communication | CANBUS/Modbus RTU/TCP/IP |
| Weight(kg) | 110kg±3kg |
| Operation Temperature | 0~50°C |
| Product Certificate | UN38.3 |
Cathode material is made from LiFePO4 with safety performance and long cycle life. The module has less self-discharge, up to 6 months without charging, no memory effect, and excellent performance of shallow charge and discharge.
Features protection including over-discharge, over-charge, over-current, and temperature extremes. Automatically manages charge/discharge state and balances current/voltage of each cell.
Realize remote monitoring and control, allowing users to grasp equipment status anywhere, optimize strategies, and extend battery service life for industrial power needs.
The 3.2V 314Ah lithium battery offers stable voltage and minimal fluctuation. Connecting these cells in series creates basic modules for 51.2V, 153.6V, and 166.4V configurations.

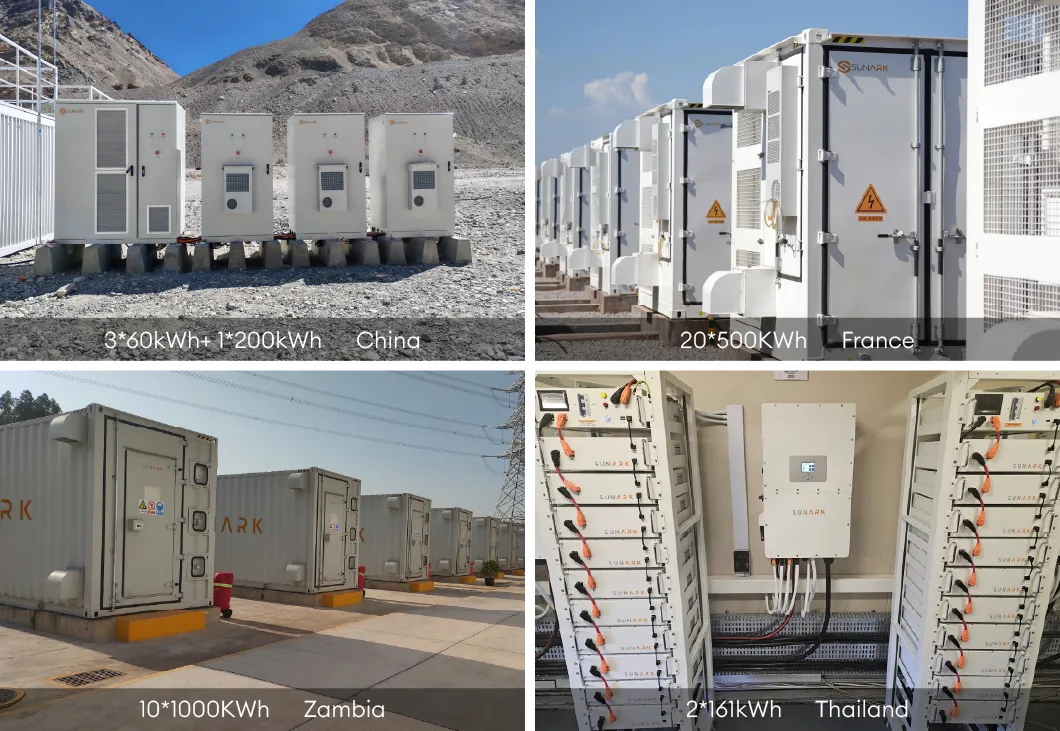

Automated production lines operate 24 hours a day, specializing in systems from 100KW to 10MWh with ISO, CE, and UL certifications.
