Sorotec 3kw 3.2kw 5.5kw on/off Grid Pure Sine Wave Solar Power Inverters with Energy Storage System

1 / 5

Sorotec 3kw 3.2kw 5.5kw on/off Grid Pure Sine Wave Solar Power Inverters with Energy Storage System

Customization:	Available
After-sales Service:	Technical Support,Video Tutorial,Replace Parts
Warranty:	2 Years

Send Inquiry

Product Description

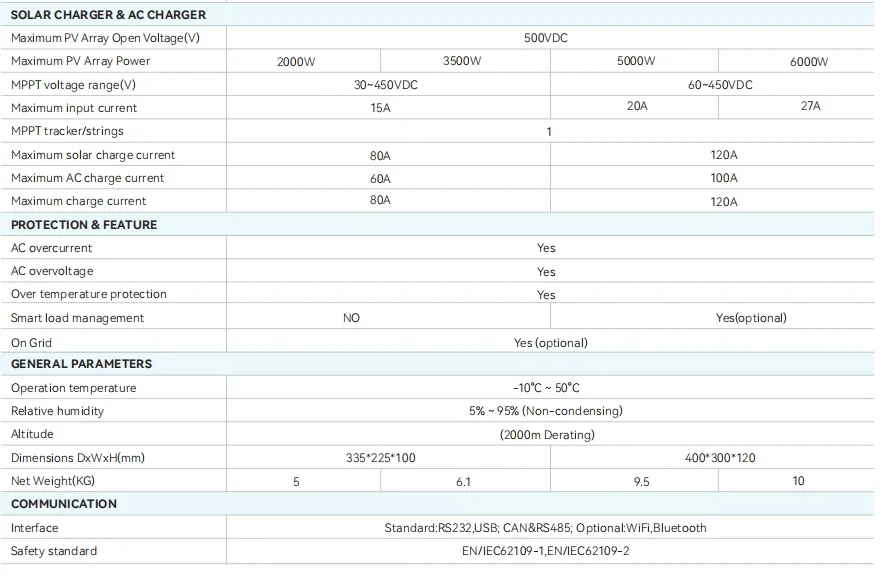

📊 Basic Specifications

Model:REVO VM II PRO / REVO II

Phase:Single Phase

Output Power:3KW - 5.5KW

Output Voltage:220/230/240VAC

Efficiency:Up to 93.5%

Solar Charge Current:90A

PV Input Range:120-450VDC

Wave Form:Pure Sine Wave

📝 Product Description

REVO-II Series Touch Display Screen 3-5.5KW On/Off Grid Hybrid Energy Storage Solar Inverter

Key Features:

🔹 Touch screen display
🔹 PV and utility power take load simultaneously
🔹 Output power factor PF=1.0
🔹 On & Off Grid with energy storage
🔹 Energy generated and fault records
🔹 Parallel operation up to 9 units
🔹 Independent CPU control
🔹 External Wi-Fi monitoring optional

The REVO VM II PRO is engineered as an affordable yet highly reliable hybrid solar inverter, designed to deliver strong performance in regions where power stability is a daily challenge. It supports Lithium and Lead-acid batteries, ensuring compatibility with a wide range of household and commercial loads.

📦 Packaging & Shipping

Package Size:70.00cm * 40.00cm * 51.00cm

Gross Weight:10.000kg

🏆 Why Choose Us

✓ Source Factory Strength: Own production base with standardized lines for continuous batch delivery.

✓ Product Reliability: Key components meet long-term operation standards in high-load environments.

✓ Overseas Experience: Deep understanding of grid environments in USA, Europe, Africa, and Middle East.

✓ Strict Quality Control: Full-process control from raw materials to finished products.

✓ Flexible Customization: Mature OEM/ODM experience for appearance and parameter adjustments.

❓ FAQ

1. How to choose a suitable inverter? If your load is resistive (bulbs), you can use modified wave. For inductive or capacitive loads (fans, AC, fridge, coffee machines), we strictly recommend Pure Sine Wave inverters to protect equipment life.

2. How do I determine the required inverter size? Resistive loads match the load power. Capacitive loads require 2-5 times the power, and inductive loads require 4-7 times the rated power to handle startup surges.

3. What is the optimal battery cable length? Cables should be as short as possible (ideally under 0.5M). Long distances cause voltage drops, which may trigger low-voltage alarms on the inverter.

4. How do I calculate battery working hours? Use the formula: Working hours = (Battery Capacity * Battery Voltage * 0.8) / Load Power. Note that older batteries may have higher loss.

5. Can it operate without a battery? This series supports On/Off grid hybrid modes. PV and utility power can take the load at the same time depending on settings.

6. Is parallel operation supported? Yes, parallel operation is supported on 4kW-10kW models for up to 6 to 9 units depending on specific configurations.
