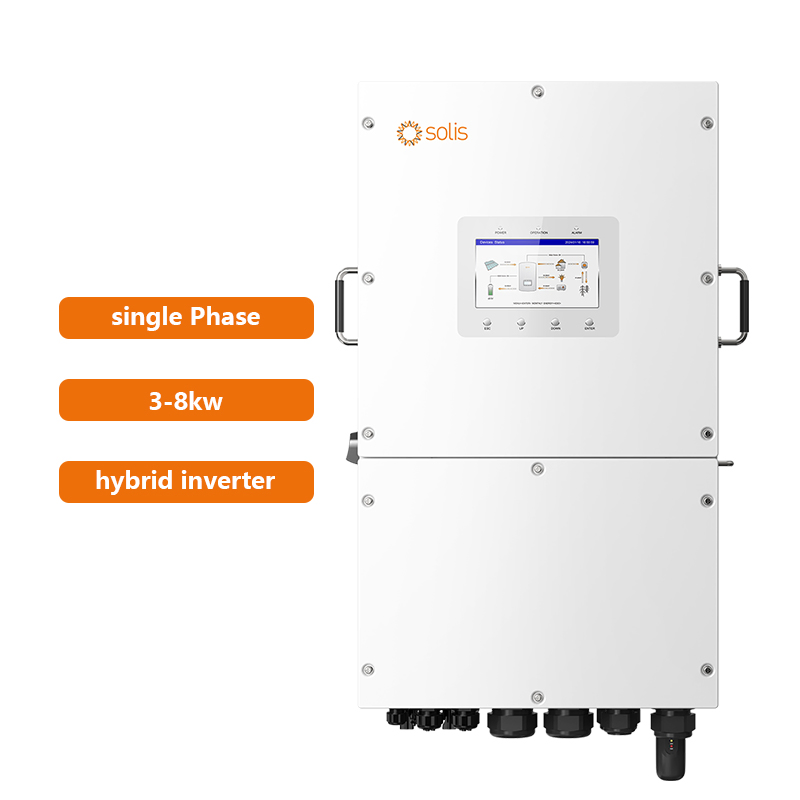

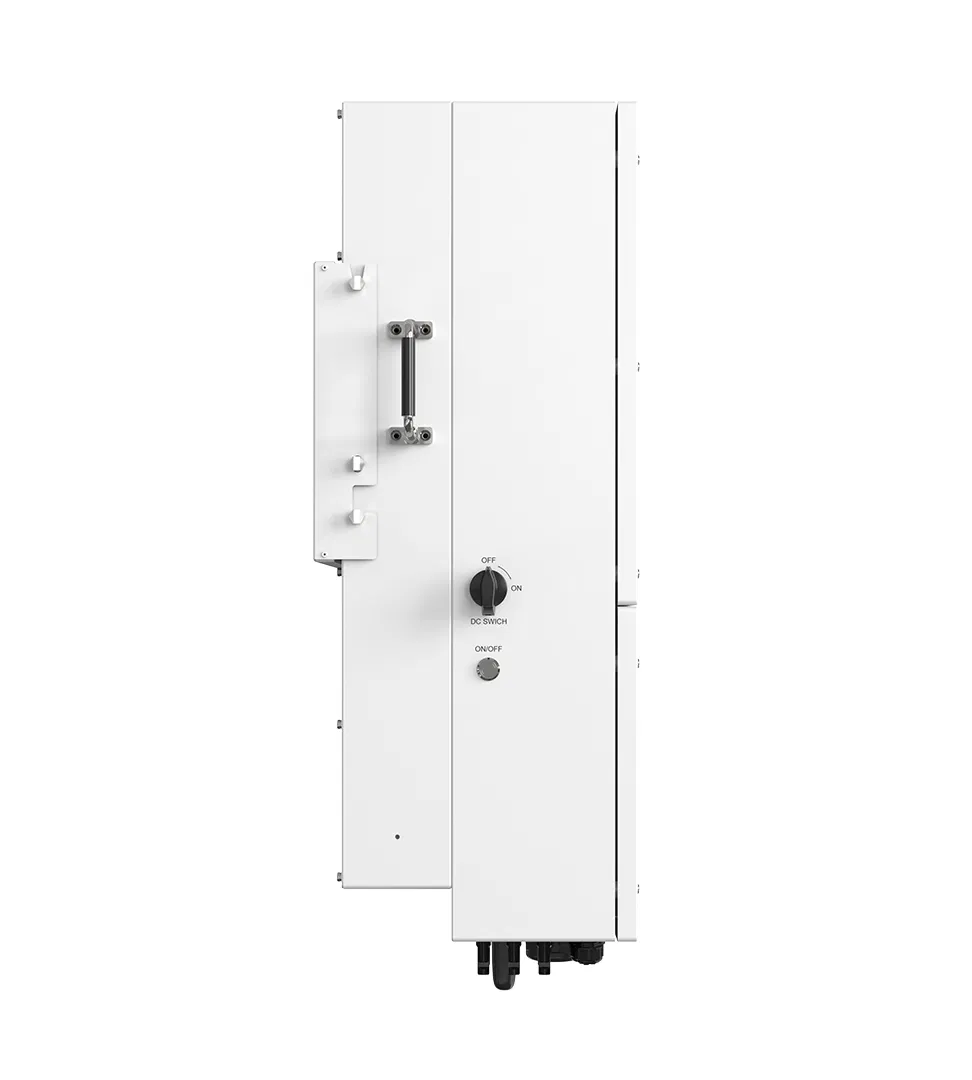

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
1 / 5
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter
Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Solis Hybrid Solar Inverter S6-Eh1p (3-8) K-L-Plus 3kw 3.6kw 5kw 6kw 8kw Single Phase Low Voltage Energy Storage Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
S6-EH1P(3-8)K-L-PLUS
Source Flow
Active Inverter
Phase
Single Phase
Output Power
3-8kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Power Source
Solar Power
Input Voltage
500V
Output Voltage
220V/230V
Protection
IP66
Battery Type
Lead Acid / Lithium
🚀 Product Description
💡
S6-EH1P(3-8)K-L-PLUS Series: Single Phase Low Voltage Energy Storage Hybrid Inverter.
Solis Hybrid Inverter Overview

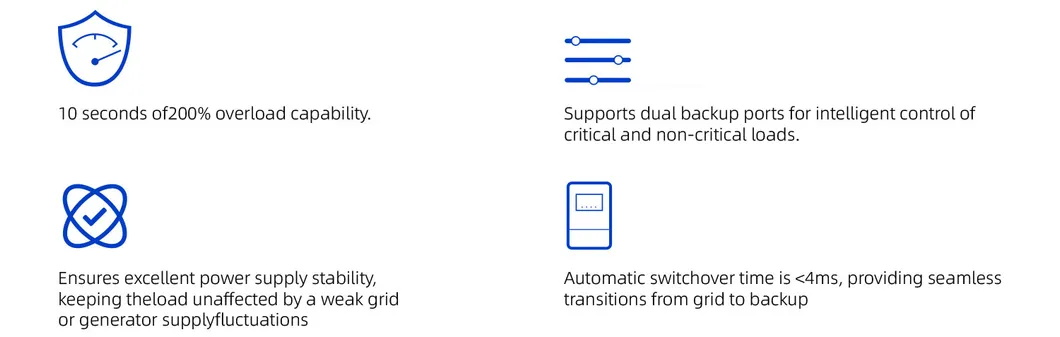

Product Details
📊 Technical Parameters
S6-EH1P(3-8)K-L-PLUS SERIES
Models 3K 3.6K 5K 6K 8K
Max. PV Array 6 kW 7.2 kW 10 kW 12 kW 16 kW
Max. Input Voltage 500 V
Battery Type Li-ion / Lead-acid
Rated Grid Voltage 220 V / 230 V
Max. Efficiency 97.5%
Protection Class IP66
⚙️ Basic System Architecture

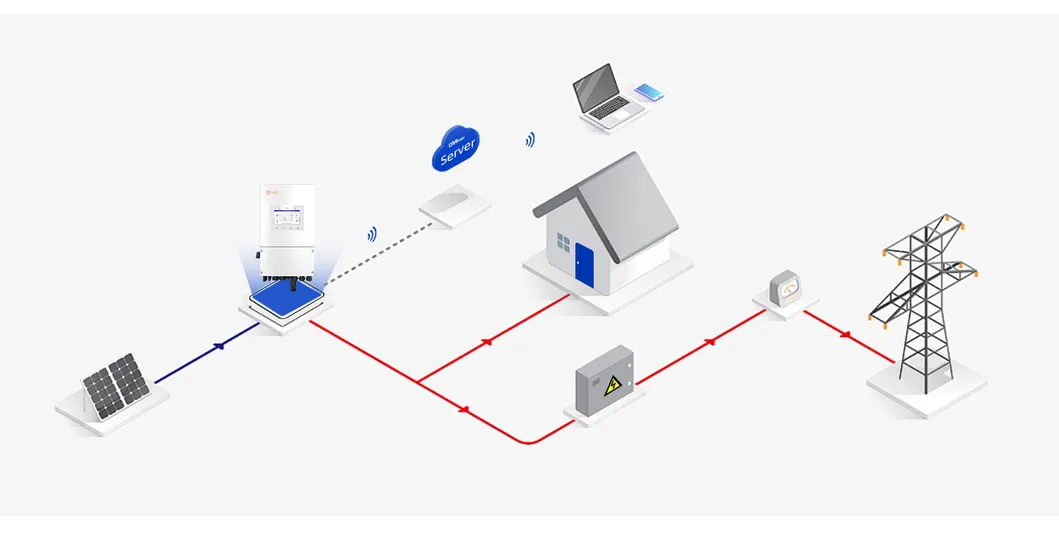

System Architecture Diagram
📦 Packaging & Project Case
Packaging

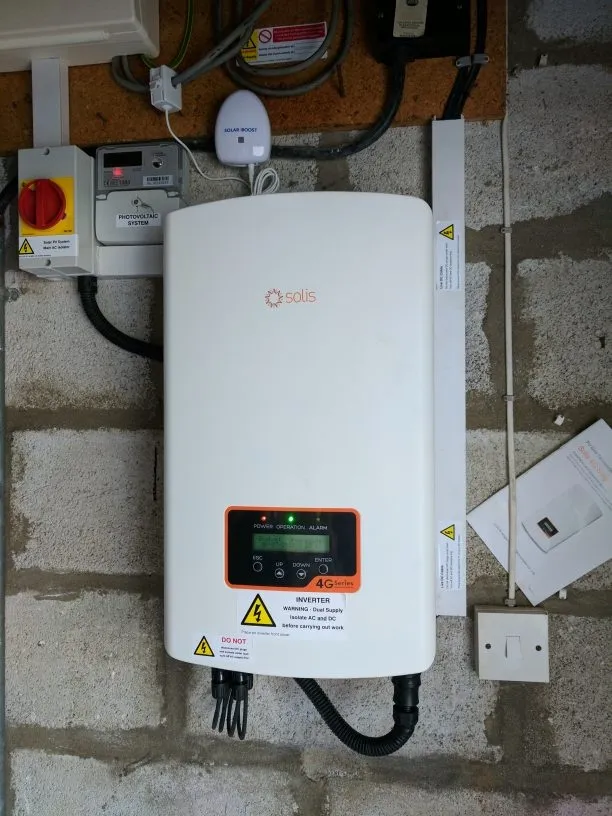

Project Case 1

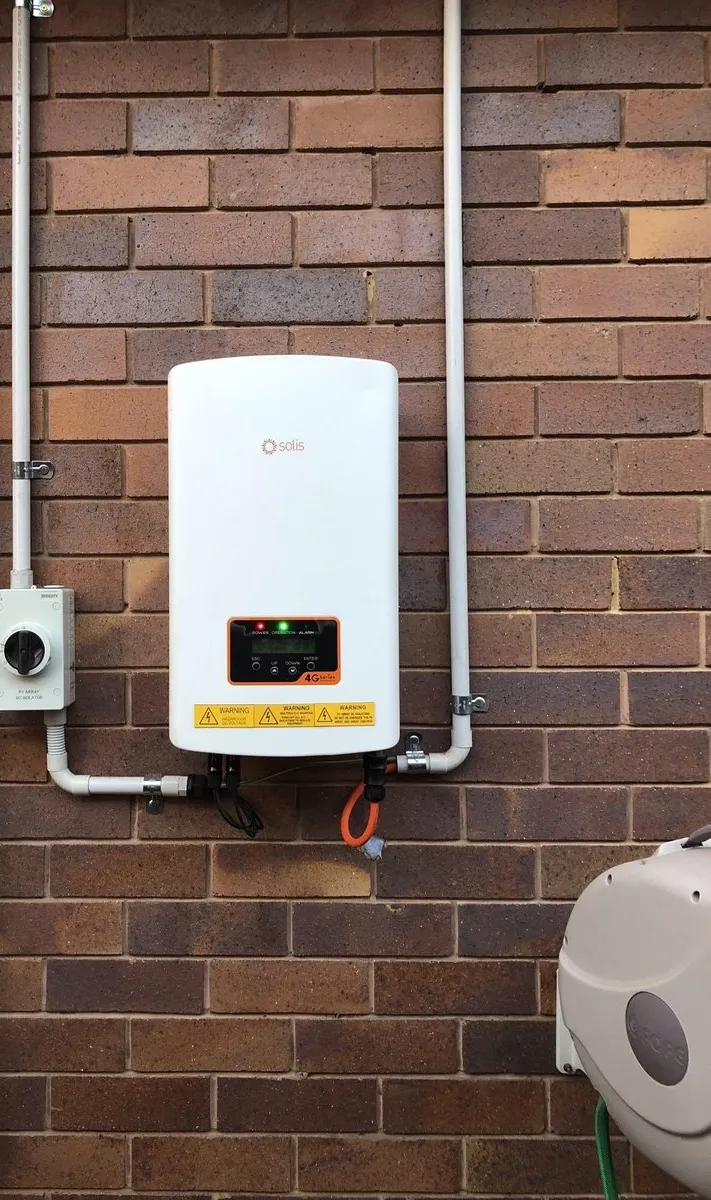

Project Case 2

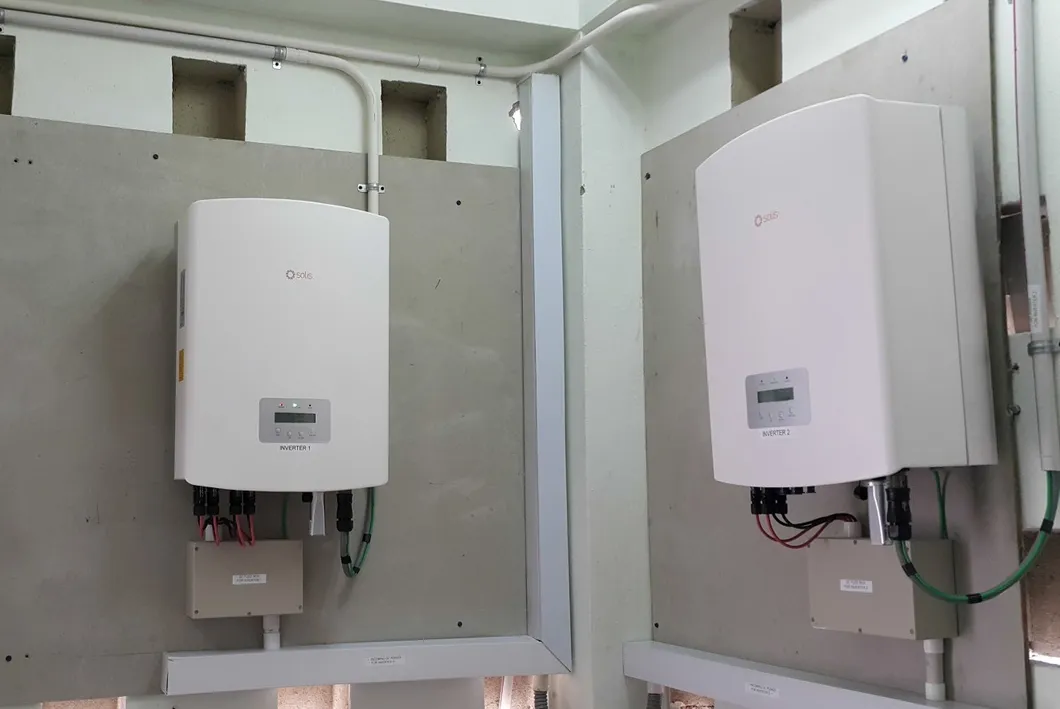

Install 1

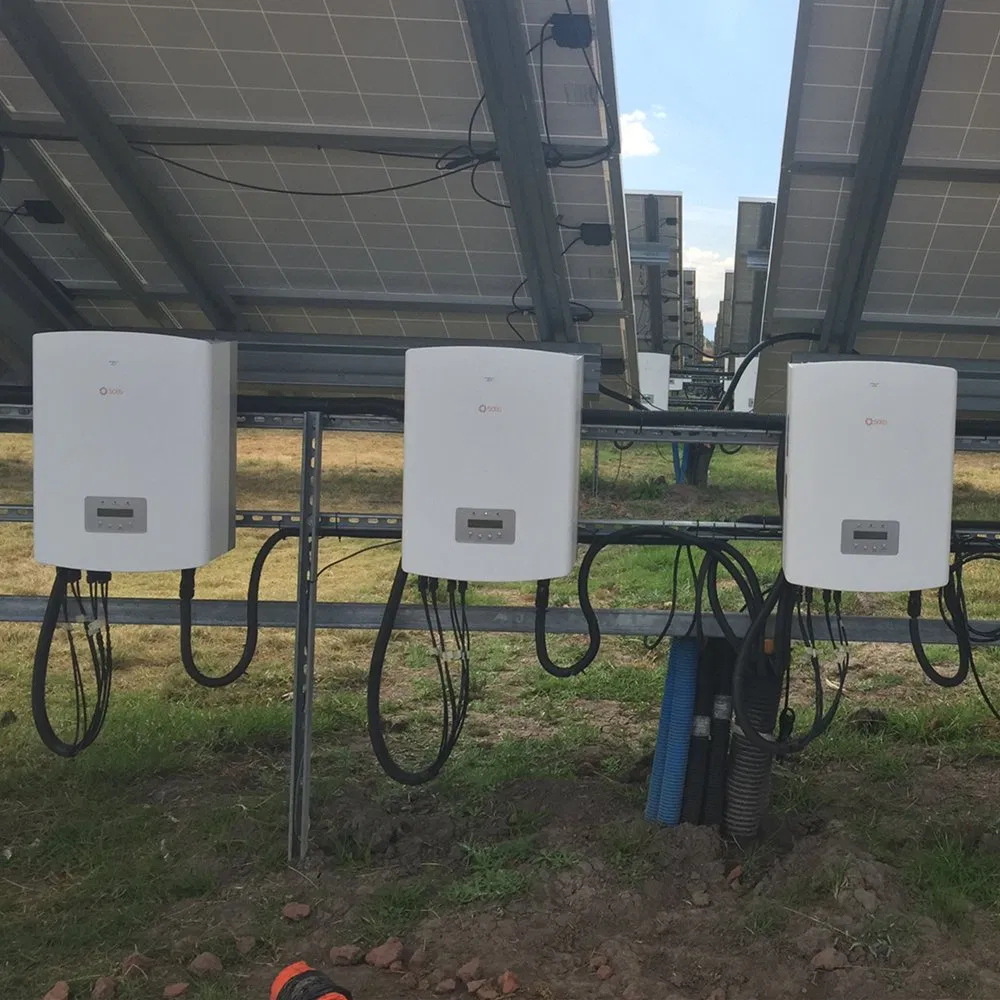

Install 2

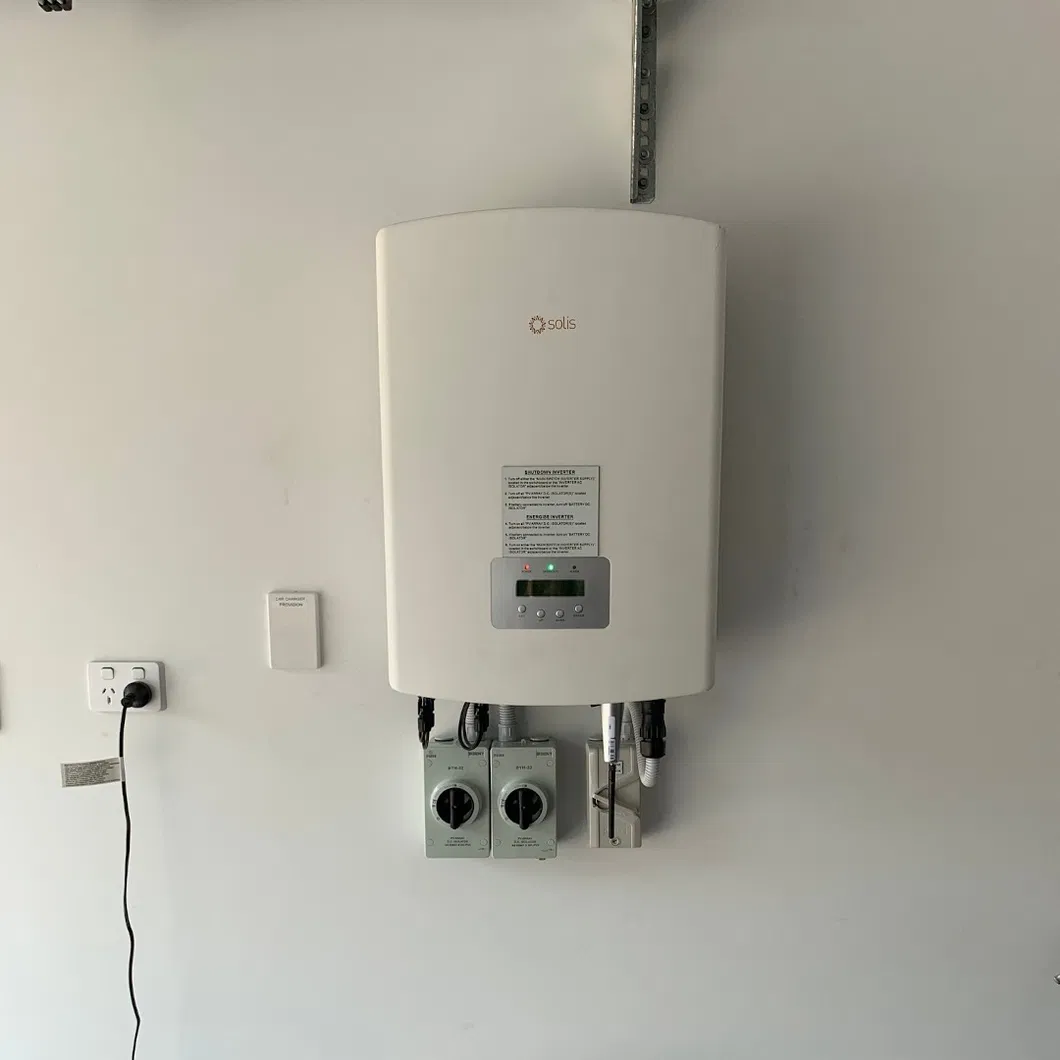

Install 3
❓ Frequently Asked Questions
1. What battery types are compatible with this inverter?
The S6-EH1P series is compatible with both Lithium-ion and Lead-acid batteries with a voltage range of 40-60V.
2. Can this inverter be installed outdoors?
Yes, it features an IP66 ingress protection rating, making it highly resistant to dust and water, suitable for outdoor installation.
3. What is the maximum efficiency of the S6-EH1P series?
The maximum efficiency of the inverter reaches up to 97.5%, with an EU efficiency rating of 96.5%.
4. How fast does the inverter switch to back-up power?
The back-up switch time is less than 4ms, ensuring an uninterrupted power supply for critical loads.
5. What communications methods are supported?
It supports RS485 and CAN as standard, with optional modules available for Wi-Fi, GPRS, and LAN connectivity.
6. Does it support parallel operation for higher capacity?
The architecture allows for flexible system configuration, and it supports intelligent redundant fan-cooling for higher power models like the 8kW version.
