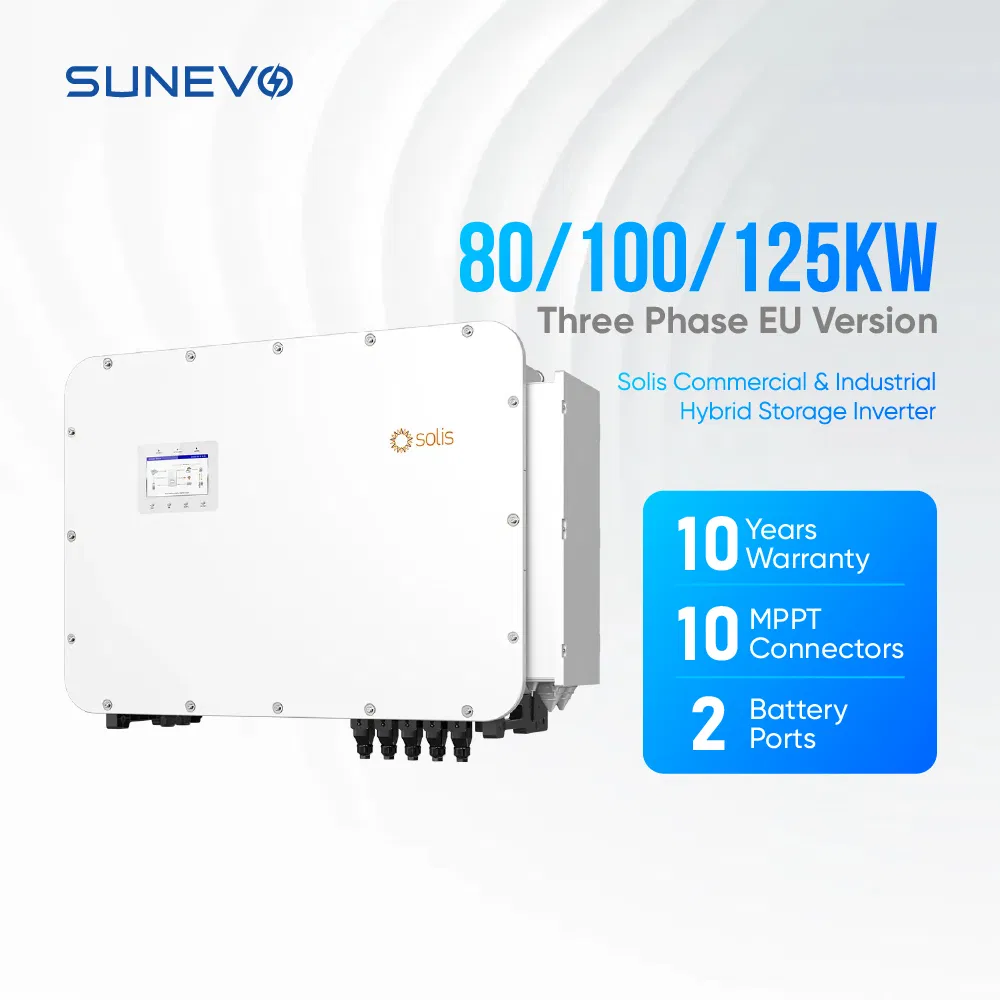

Overview
Model NO.
S6-EH3P(80-125)K10-NV-YD-H
Nature of Source
Active Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC
Battery Type
Li-ion (300-950 V)
Product Description

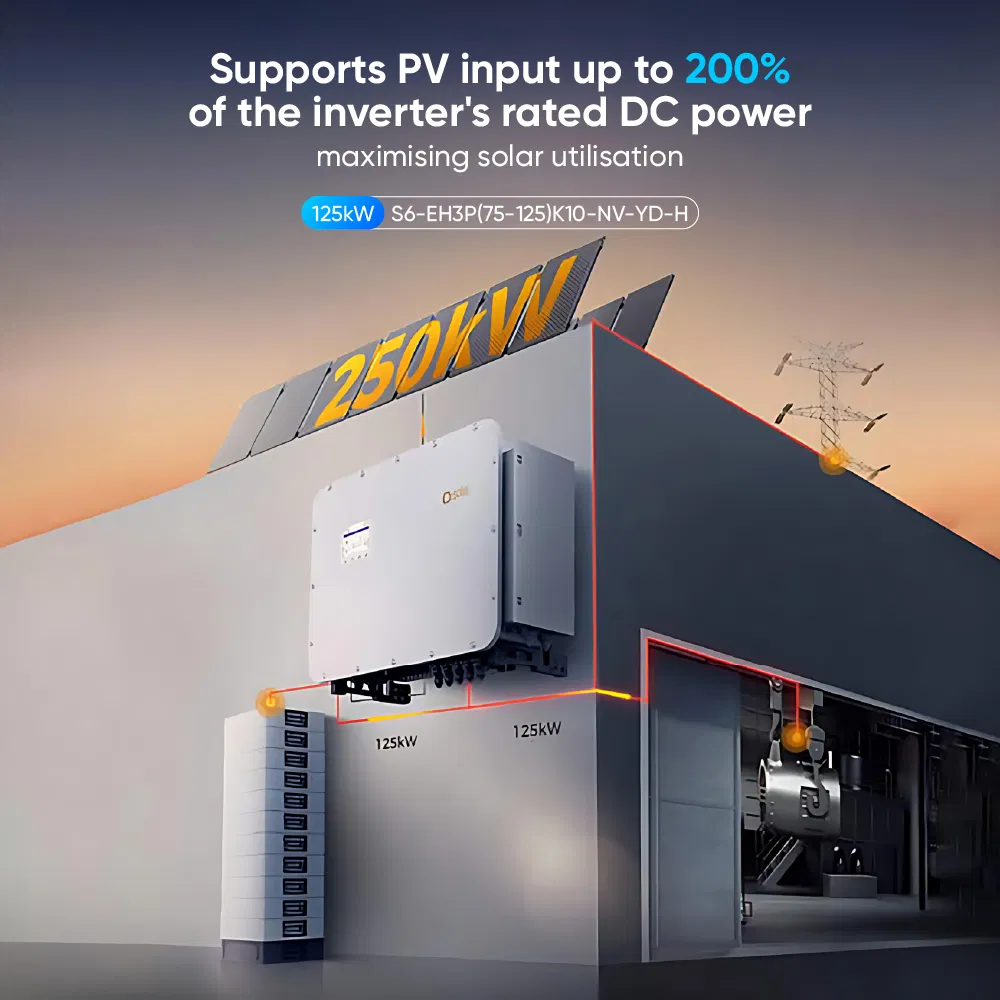

| Max. PV array size |
160 kW |
200 kW |
250 kW |
| Max. input voltage |
1000 V |
| MPPT voltage range |
150 - 950 V |
| Battery voltage range |
300 - 950 V |
| Rated grid voltage |
3/N/PE, 220 V / 380 V, 230 V / 400 V |

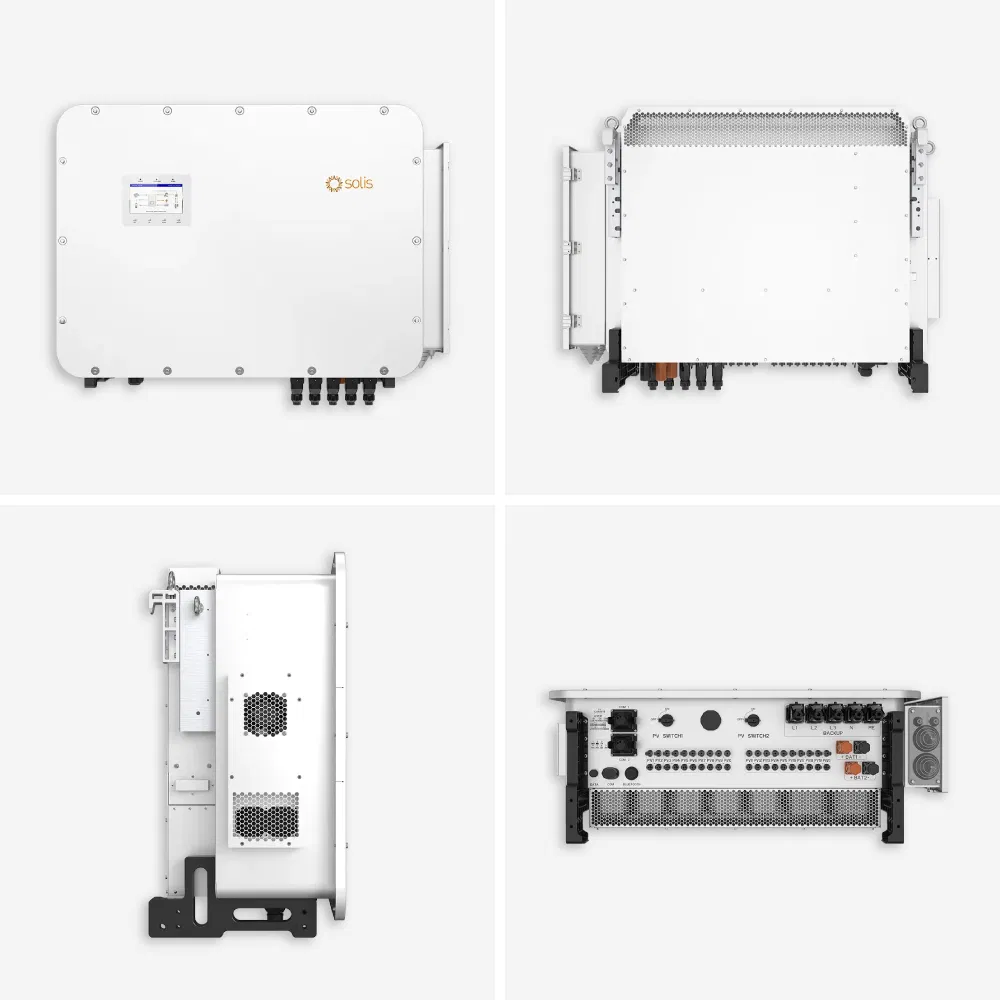

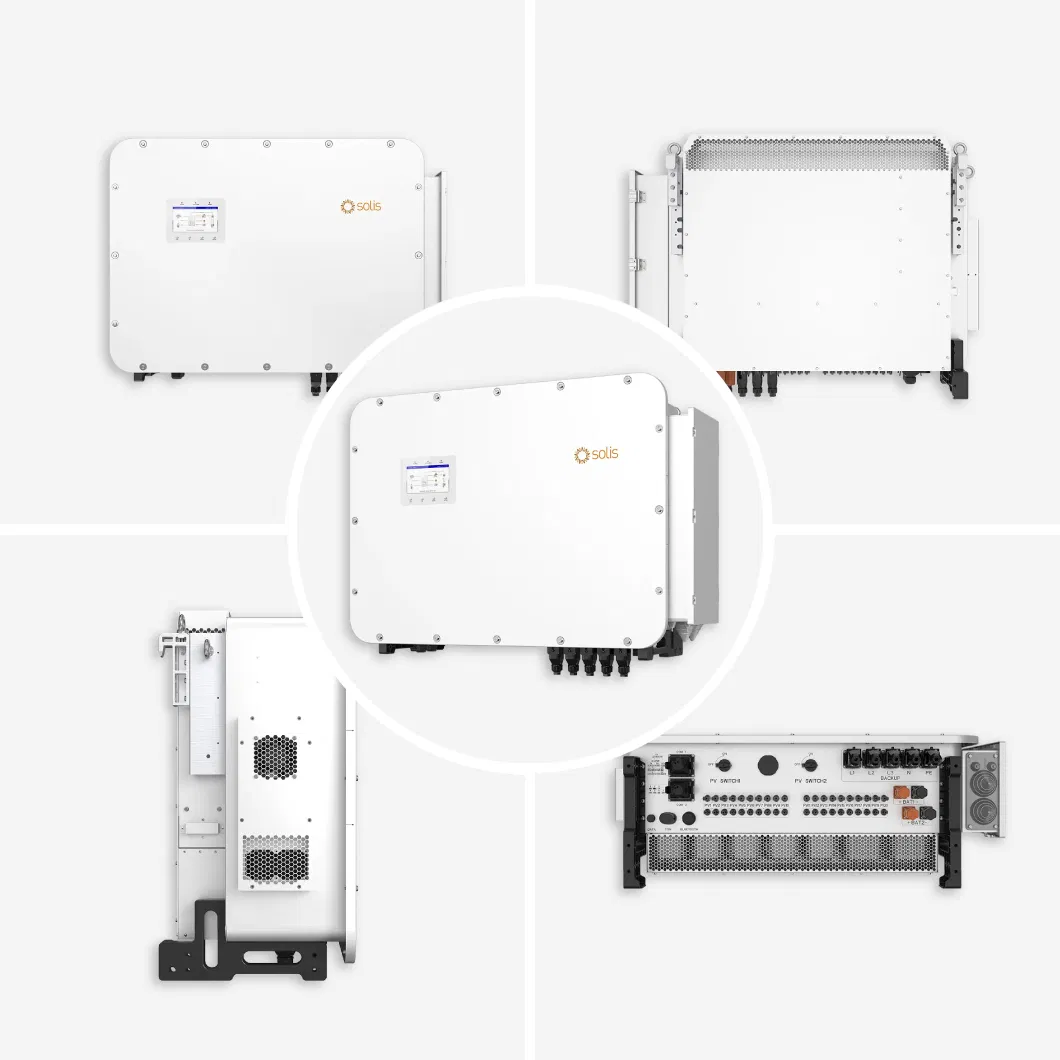

Product Detail

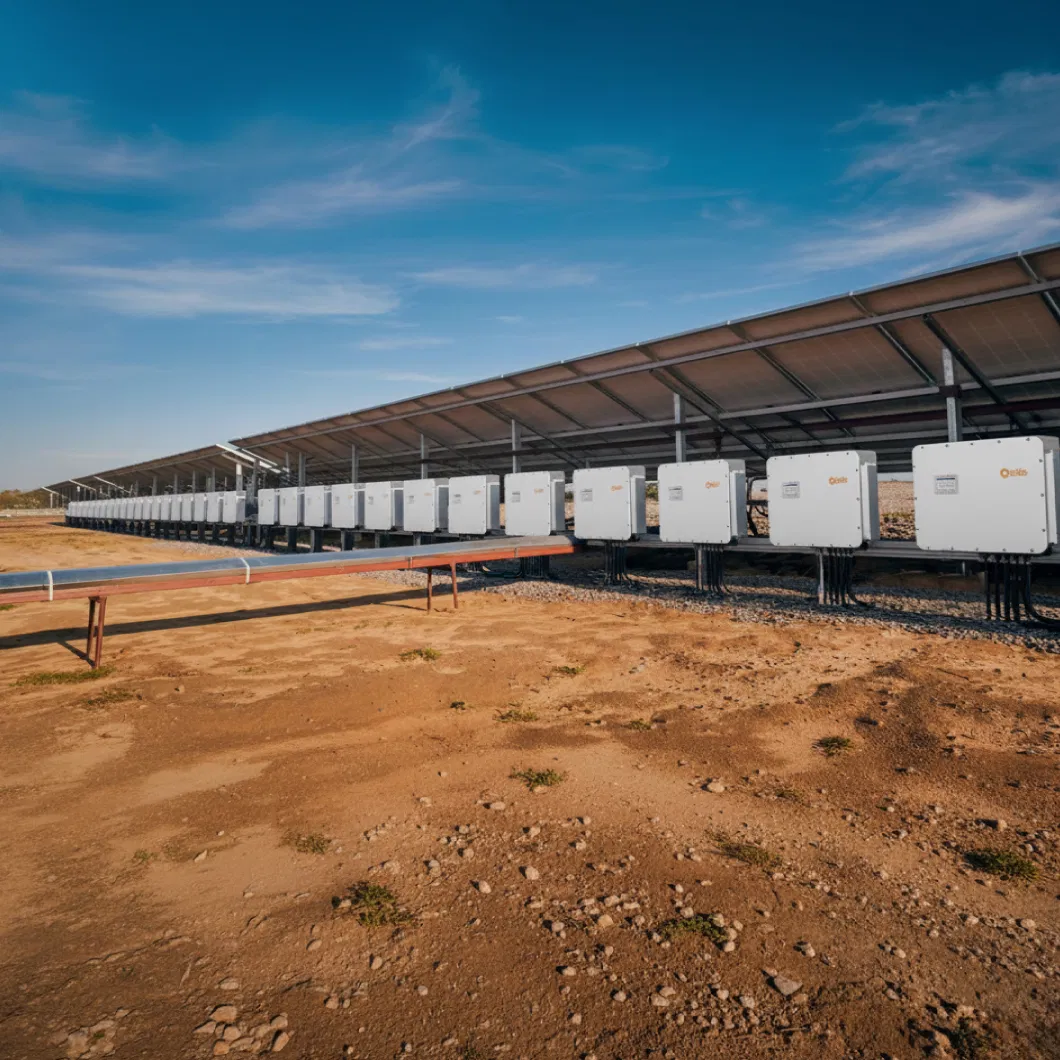

Application

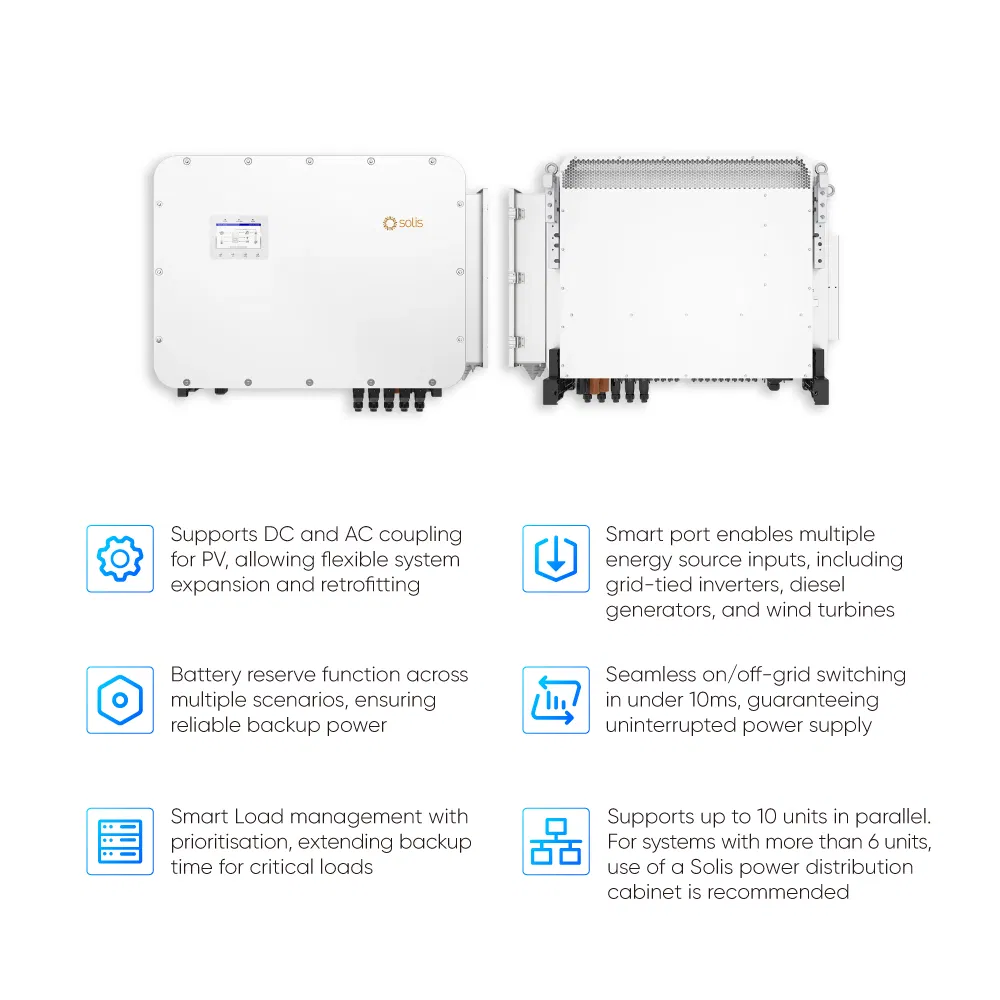

Products Features

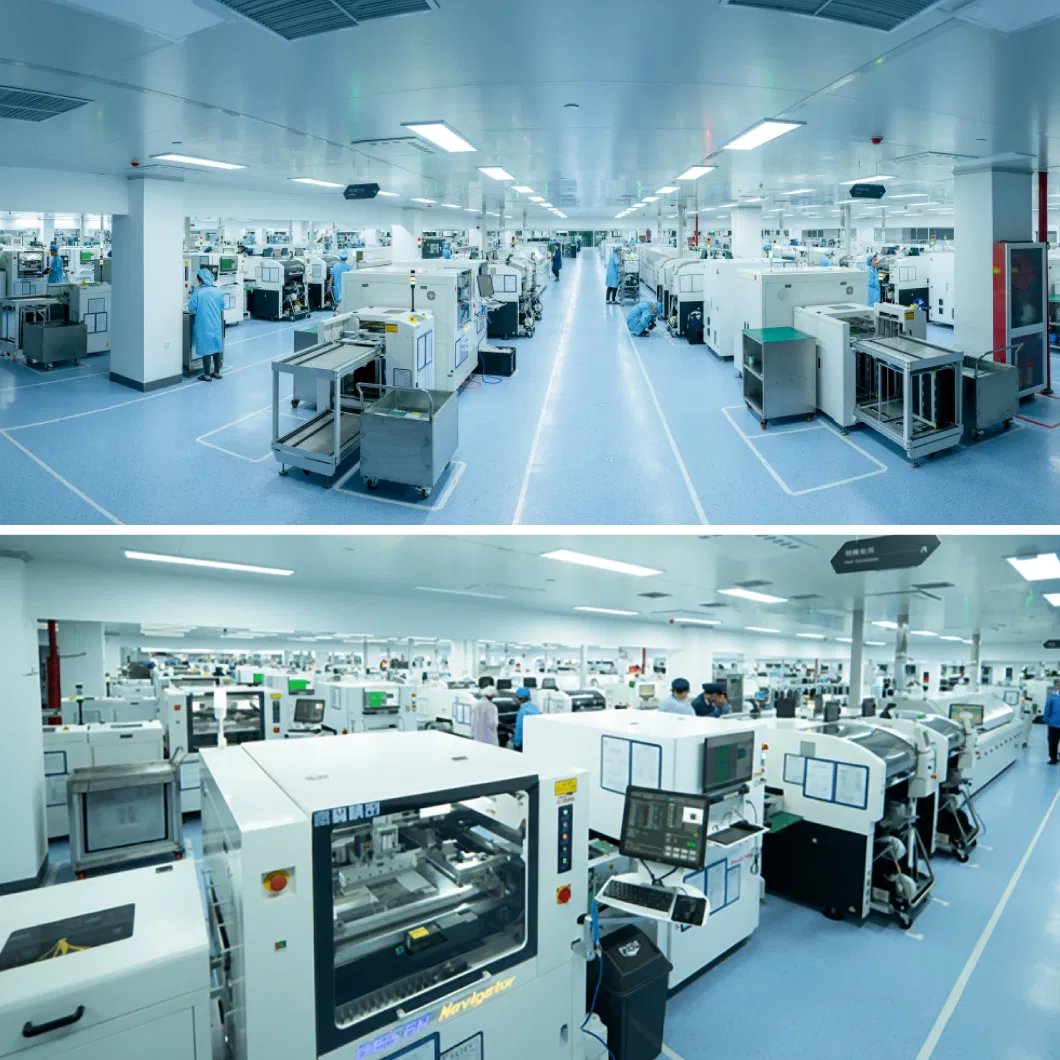

Our Factory & Certifications
About Us
Frequently Asked Questions
What is the maximum efficiency of this series?
The maximum efficiency of the S6 hybrid inverter series reaches up to 97.6%, with an EU efficiency of 97.2%.
What battery types are compatible with these inverters?
These inverters are designed for High Voltage Li-ion batteries with a voltage range of 300 V to 950 V.
Can this inverter handle phase imbalance?
Yes, it supports up to 100% allowable phase imbalance for both grid and back-up outputs.
What is the protection rating for outdoor installation?
The inverter is rated IP66, providing high-level protection against dust and powerful water jets, making it suitable for various environments.
How fast does the back-up power switch?
The back-up switch time is less than 10 ms, ensuring a seamless transition for critical loads during power outages.
How many MPPTs does the 125kW model have?
This series features 10 MPPTs with a maximum of 20 input strings, allowing for complex rooftop orientations and maximum energy harvest.
