📋 Basic Information
Nature of Source Flow
Passive inverter
Certification
SAA, CE, ROHS, ISO9001
Circuit Topologies
Full-Bridge Type
Recommended Max. PV
160kw/ 200kw/ 240kw

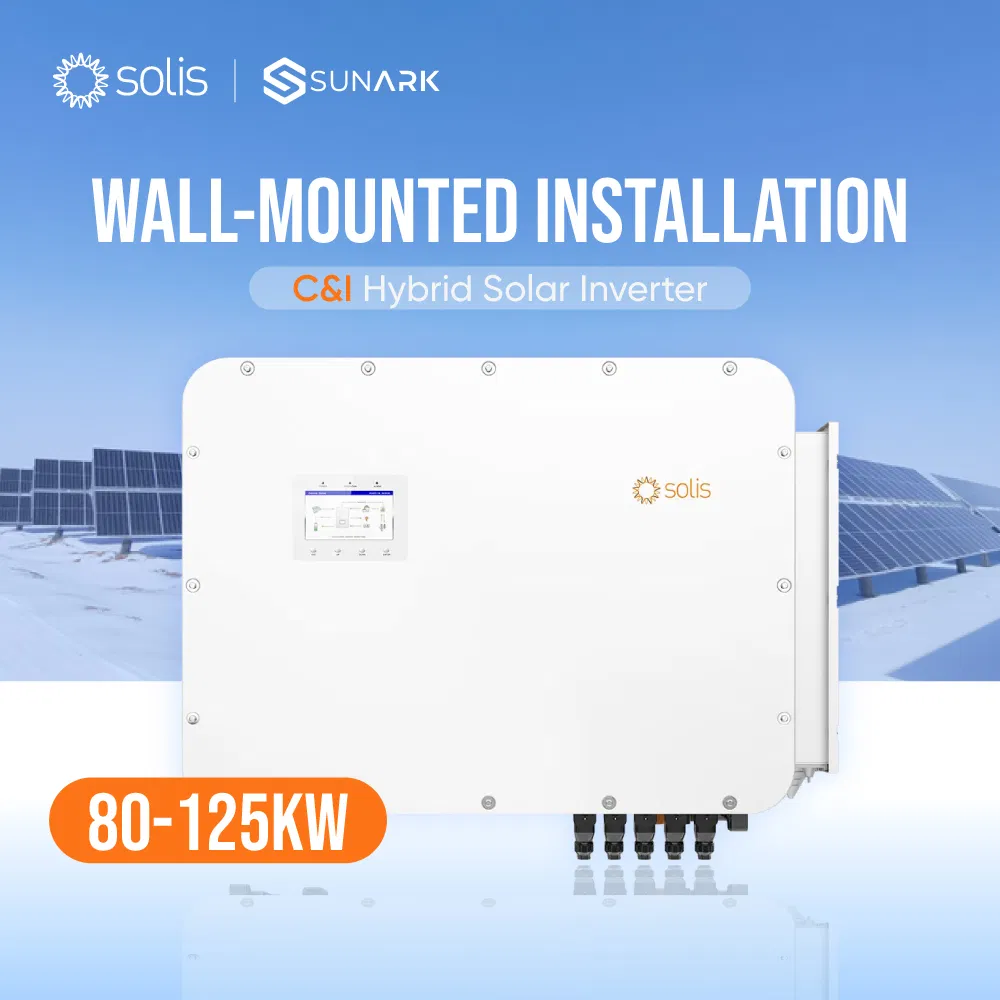

🚀 Product Description
|
| Recommended max. PV array | 160 kW | 200 kW | 240 kW |
| Max. input voltage | 1000 V |
| MPPT voltage range | 150 - 950 V |
|
| Battery voltage range | 300 - 950 V |
| Max. charge/discharge current | 200 A / 100 A + 100 A |
|
| Rated output power | 80 kW | 100 kW | 125 kW |
| Efficiency (Max) | 97.6% |

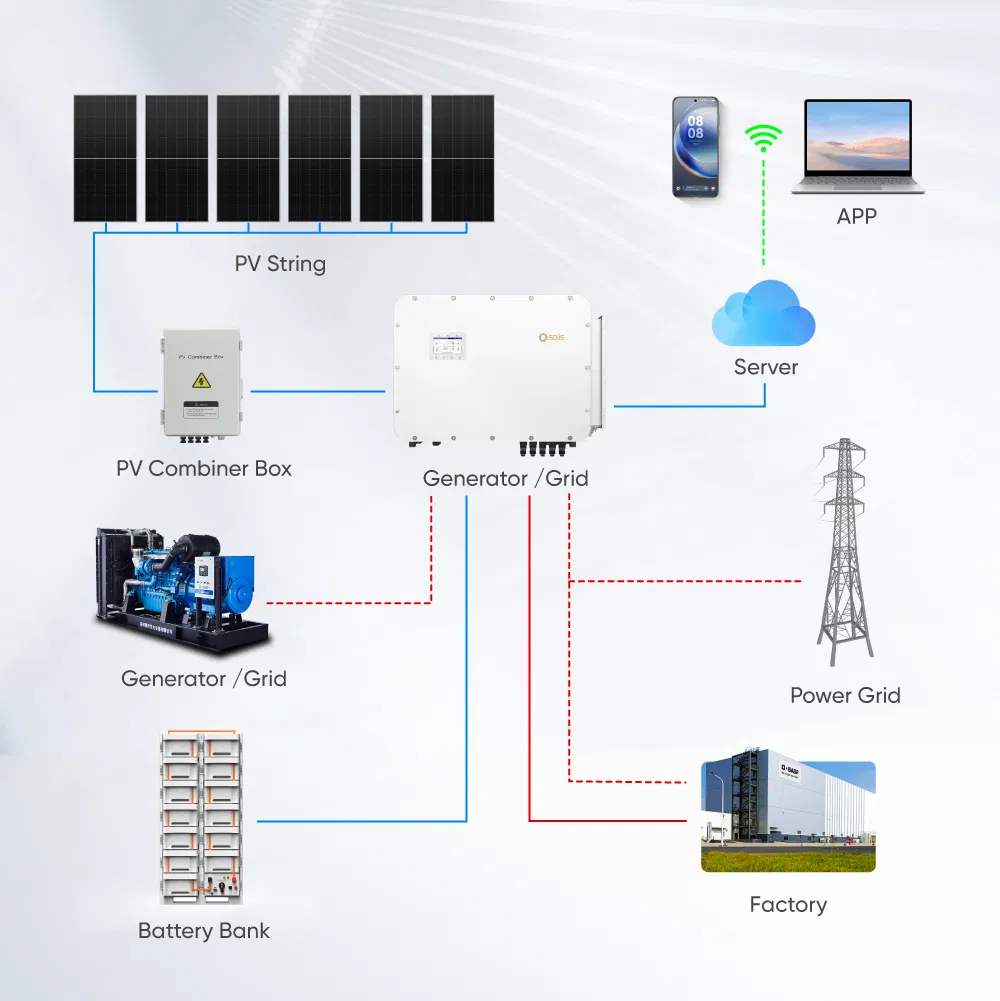

💡 Application Scenarios

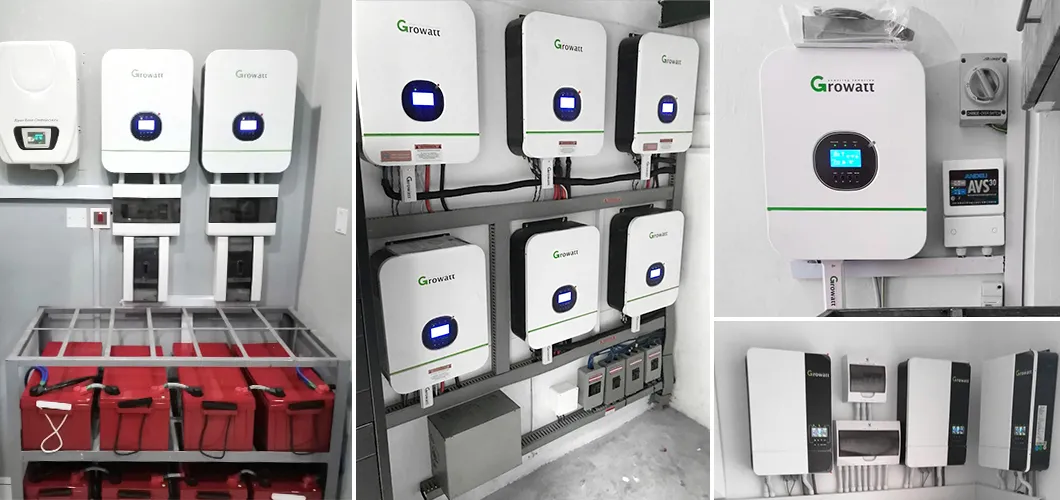

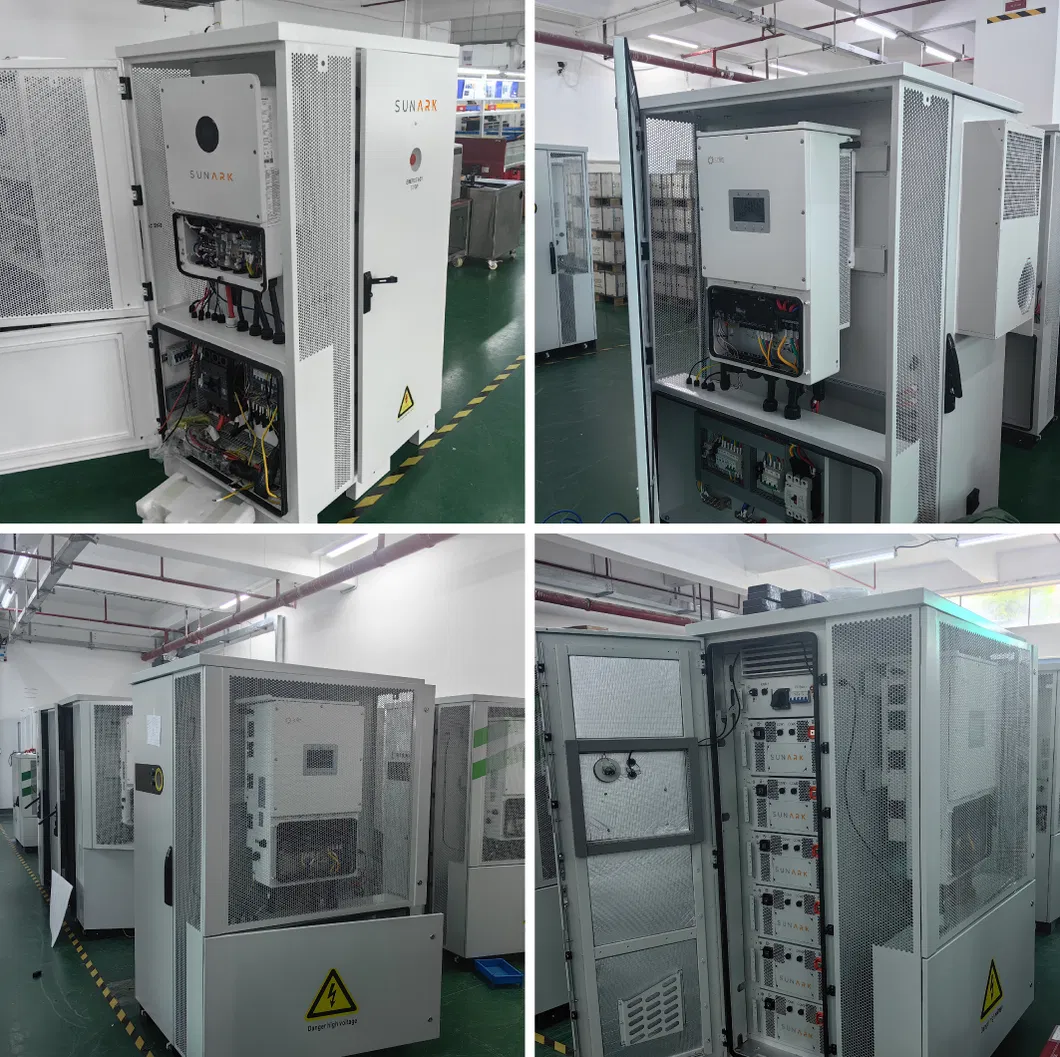

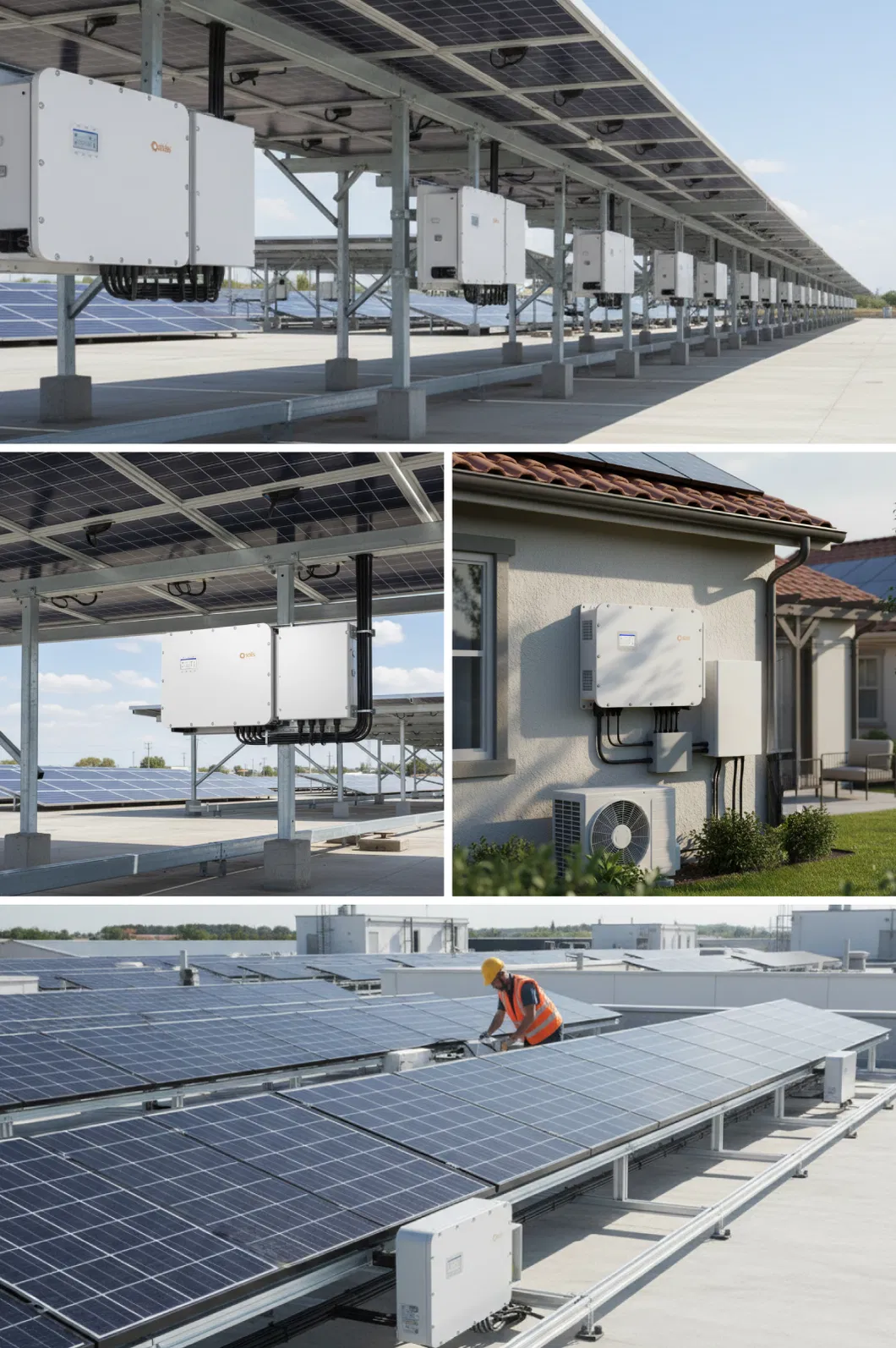

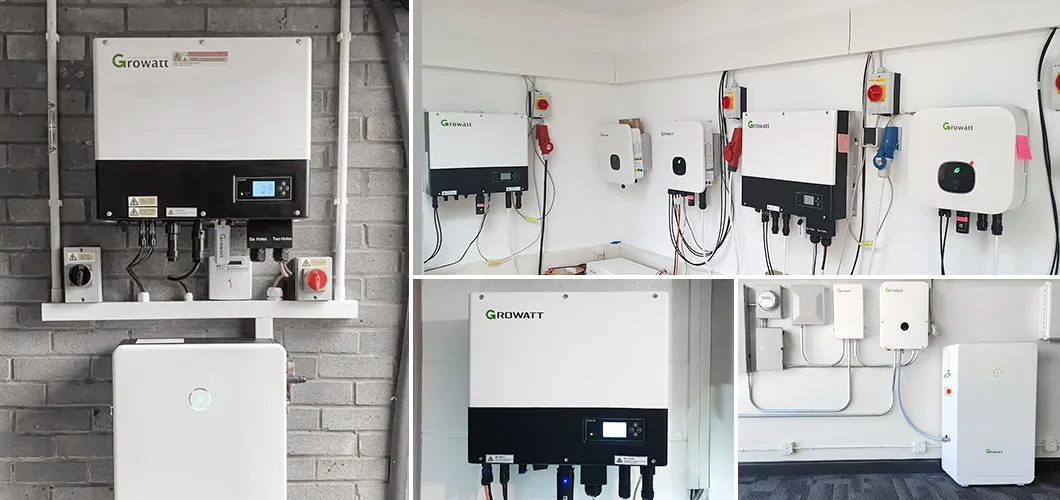

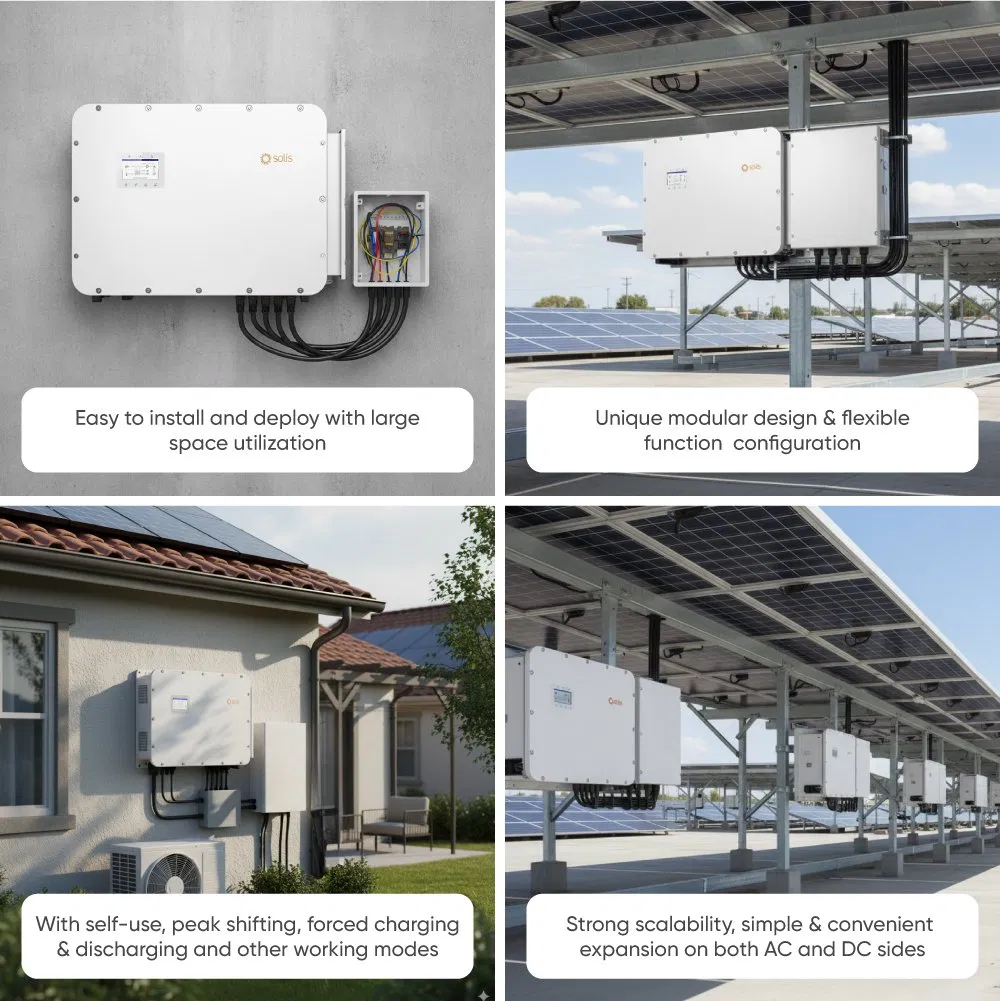

🏗️ Project Case
🏢 About the Solutions
The technology provider is a leading global energy storage solution and service provider, specializing in residential, commercial and utility applications. With 20+ years of experience, more than 90,000 systems are actively running in 80+ countries. The company has manufactured 620MWh BESS and battery strings accumulatively. The FlexCombo DC coupling microgrid ESS range (50kW to 500kW) is widely deployed across the EU, US, Canada, and Africa.
🌍 Exhibition & Presence
❓ Frequently Asked Questions
What makes the 125kW inverter suitable for commercial applications?

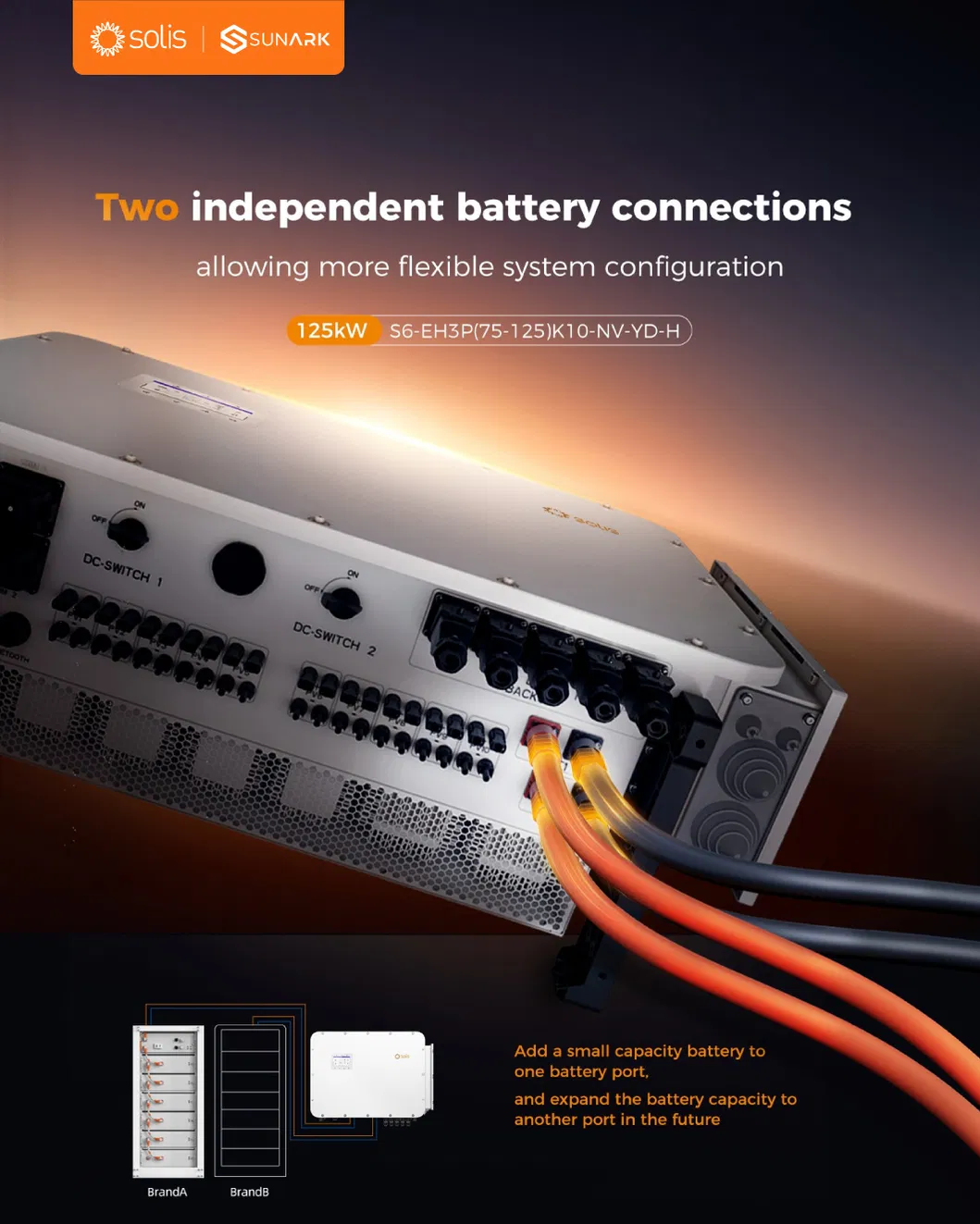

Its 160% overload capacity (200ms) handles industrial motor startup currents, while dual battery ports and AI energy management optimize ROI for large-scale solar-plus-storage systems.

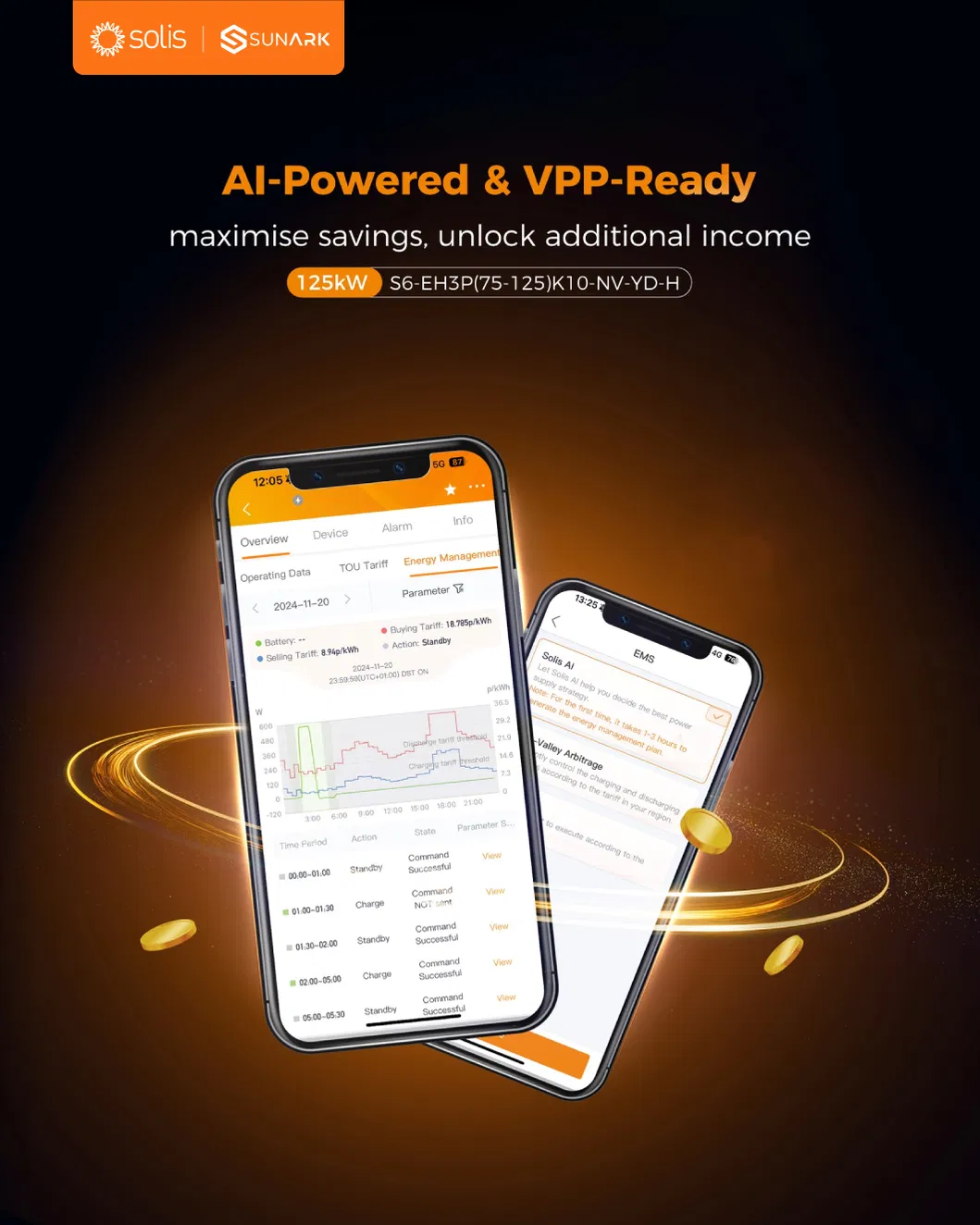

How does the monitoring system work?
The AI-powered platform enables real-time tracking via mobile app, automatic tariff optimization, and VPP participation for revenue generation, supporting 4G/5G/Wi-Fi/Ethernet.
Does it support off-grid operation?
Yes, with robust grid-forming capability and generator compatibility, it ensures stable off-grid power for critical industrial loads.
Can it integrate with external generators?
Yes, it seamlessly integrates with generators in the 25-125kW range, enabling hybrid operation for backup power and reducing initial investment costs.
What is the standard protection rating?
The unit features an IP66 ingress protection rating, making it suitable for harsh outdoor environments and ensuring long-term reliability.
What is the warranty period for this inverter?
The product comes with a 5-year standard warranty, with options for a 10-year extended warranty to ensure peace of mind for commercial investments.
