Overview
Model NO.
S6-EH3P(12-20)K-H
Certification
SAA, CE, ROHS, ISO9001
Application
Solar Power System
Cooling
Intelligent Fan-Cooling
Product Description

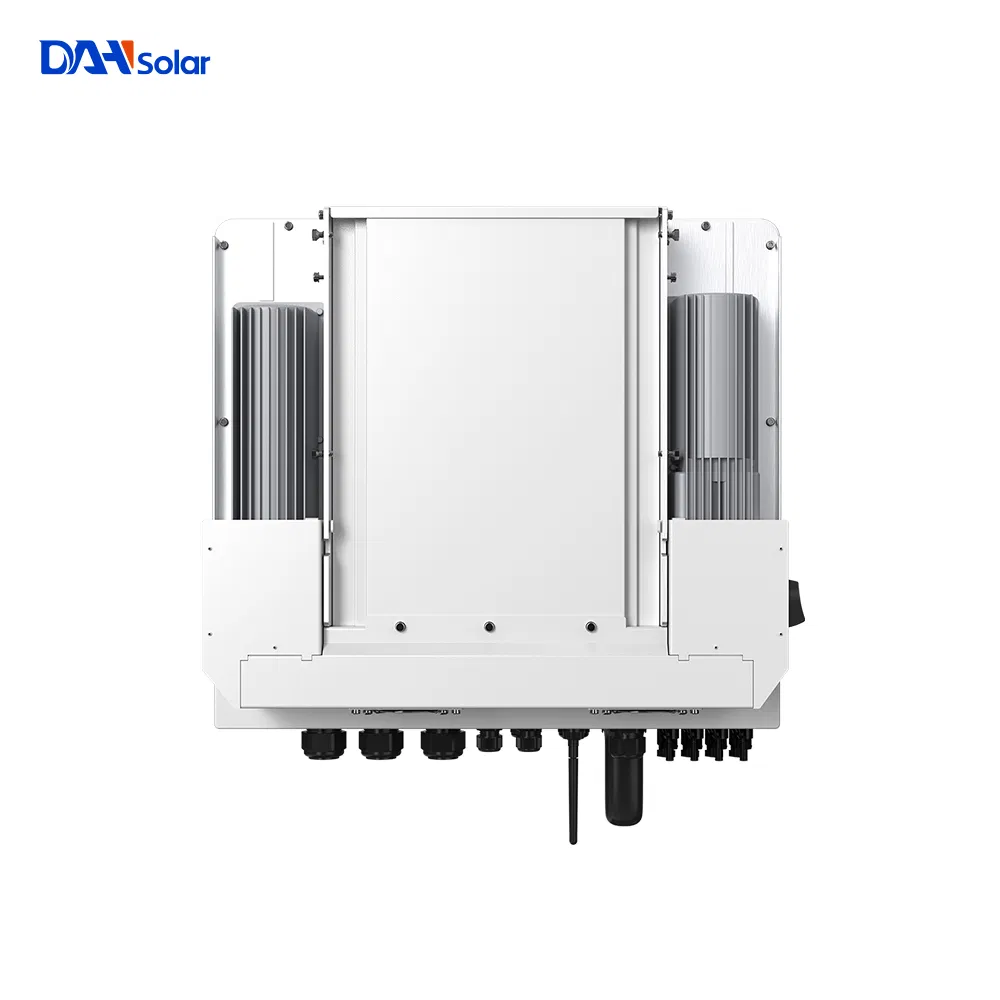

S6-EH3P(12-20)K-H series three-phase energy storage inverter, suitable for large residential and small commercial PV energy storage systems. This series of products support generator networking and parallel operation of multiple inverters; 4 MPPT design, is perfect for large rooftop PV energy storage systems with more roof orientation and complex structure. Products with multiple flexible load capacity, including UPS level switching; 10second 200% surge power backup overload capability, and adapt to three-phase unbalanced load, half-wave load, more friendly and reliable power supply for the load.
| 12K |
15K |
20K |
| Max. PV array size |
24 kW |
30 kW |
40 kW |
| Max. input voltage |
1000 V |
| MPPT voltage range |
200-850 V |
| Battery type |
Li-ion |
| Voltage range |
120-800 V |
| Max. Charge/Discharge |
12 kW |
15 kW |
20 kW |
| Max. efficiency |
97.7% |
| EU efficiency |
97.5% |

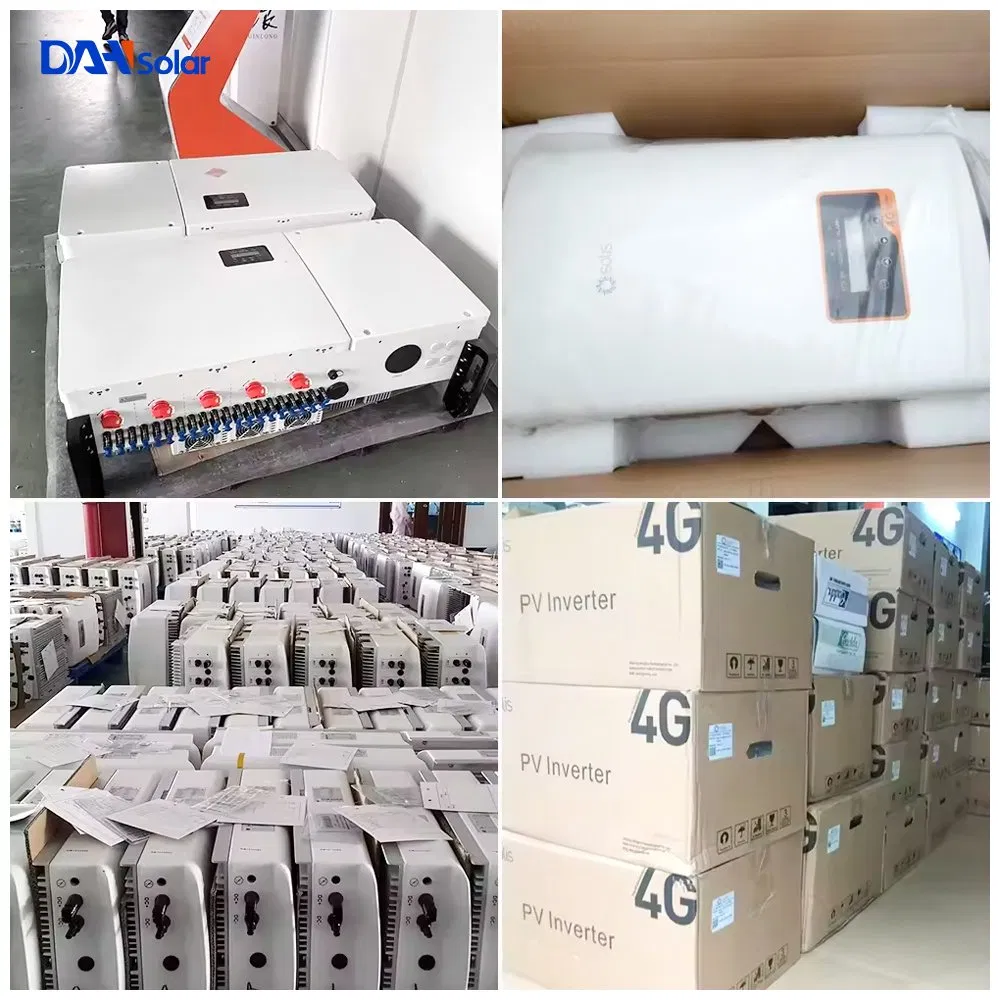

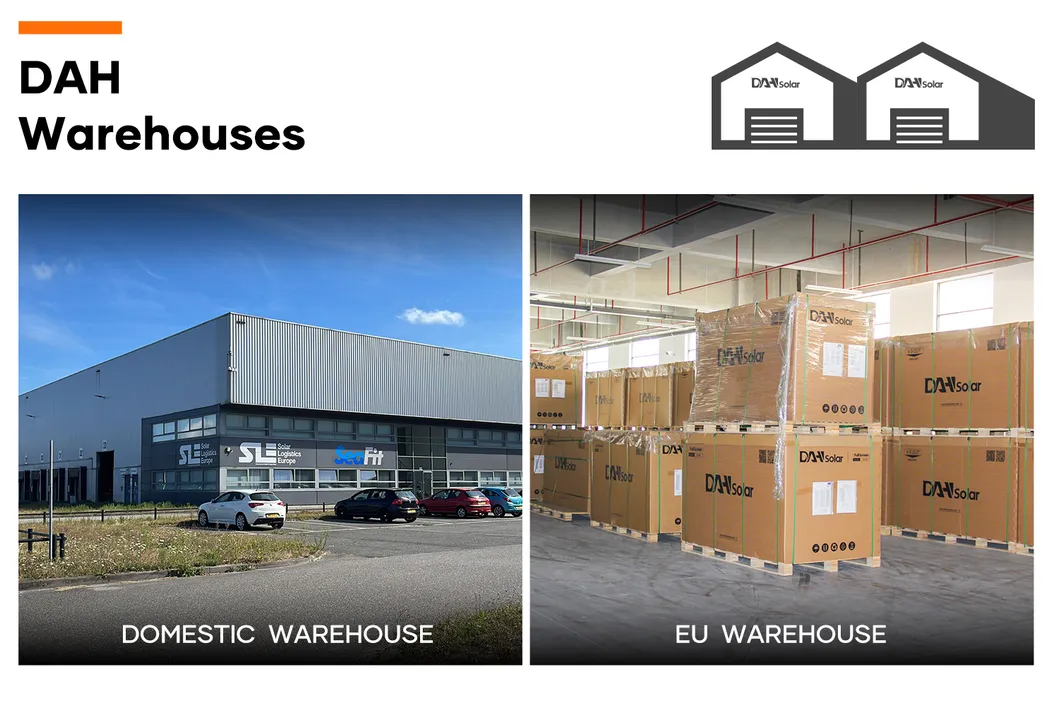

DAH Warehouse

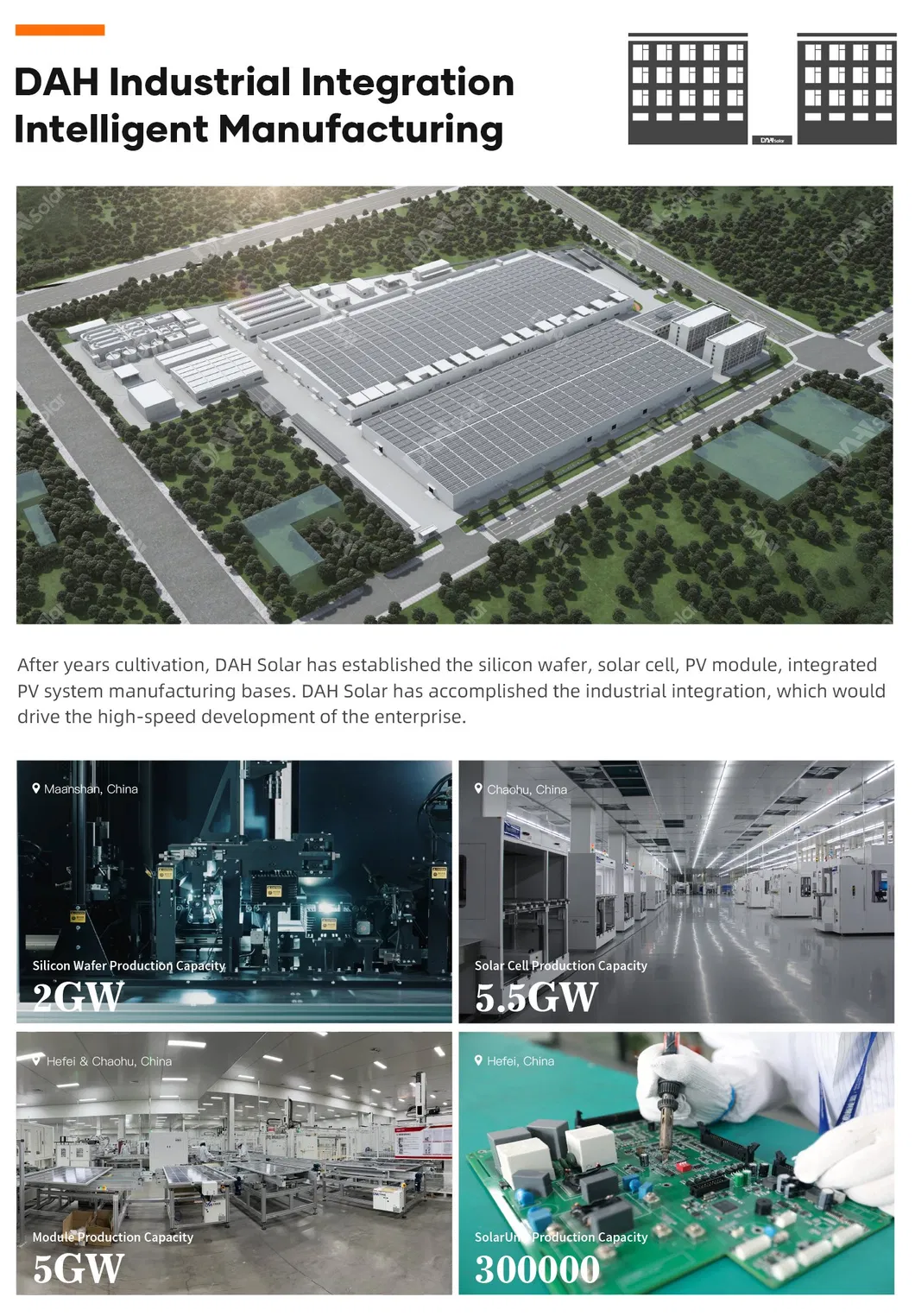

Company Profile
Certifications
Frequently Asked Questions
What is the peak efficiency of this hybrid inverter?
The S6-EH3P series achieves a maximum efficiency of 97.7% and a battery-to-PV charge efficiency of up to 98.5%.
Does this system support unbalanced three-phase loads?
Yes, the inverter is designed to adapt to three-phase unbalanced loads and half-wave loads, ensuring a reliable power supply.
What is the backup switching time during a power outage?
The inverter features UPS-level switching with a response time of less than 10ms.
Can it be used with a generator?
Yes, this series supports generator networking and parallel operation of multiple inverters for expanded capacity.
What is the ingress protection rating?
The inverter is rated IP66, providing high-level protection against dust and water for durable outdoor or indoor installation.
How many MPPTs does the 20kW model have?
This series features a 4 MPPT design, which is ideal for complex rooftop structures with multiple orientations.
