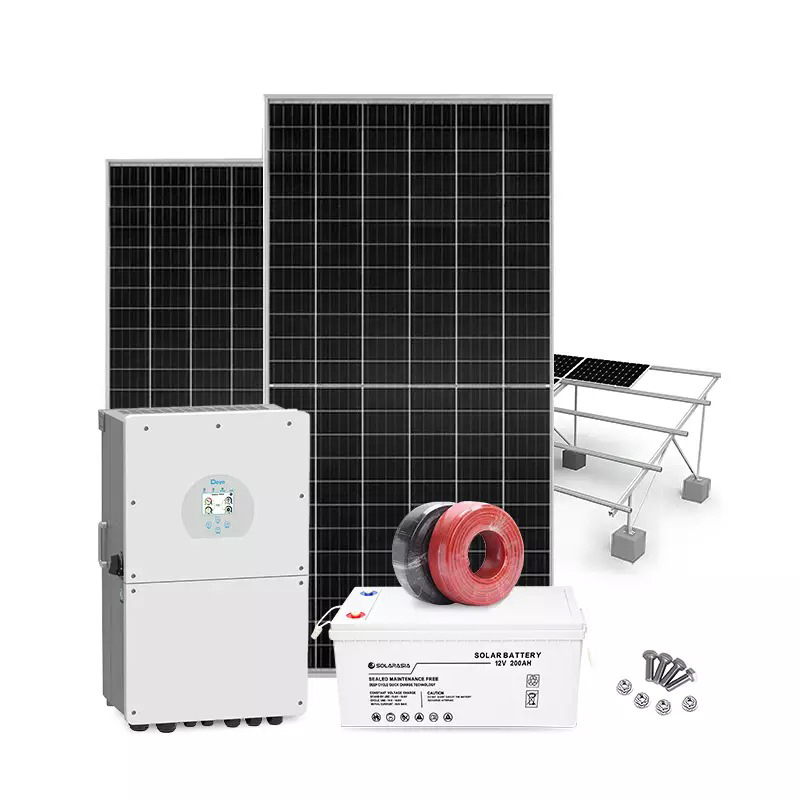

Solar System Complete PV Solar Power System 100kw 250kw 500kw 1MW Grid Connected Solar Panel Inverter for Commercial Use

1 / 5

Solar System Complete PV Solar Power System 100kw 250kw 500kw 1MW Grid Connected Solar Panel Inverter for Commercial Use

Customization:	Available
After-sales Service:	Yes
Warranty:	5years

Send Inquiry

Product Description

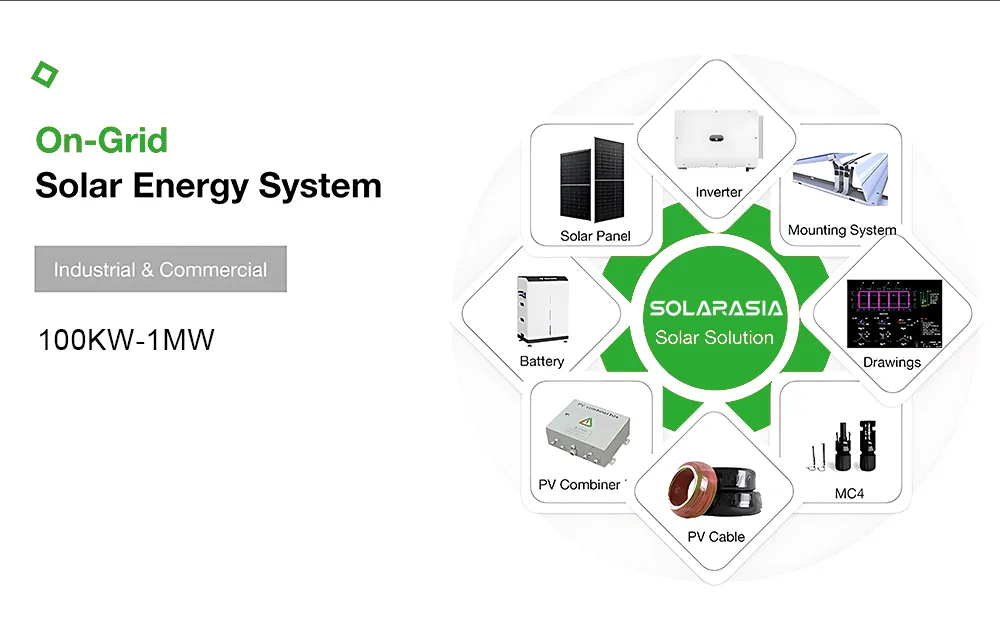

Overview

Model NO.

SA100KW-1MW-ON

Condition

New

Certification

Application

Home, Industrial, Commercial

Battery Type

Lithium Ion

Grid Connection

on Grid

Protection Class

IP65

Cooling

Liquid Cooling

Inverter Type

Huawei on Grid Solar Inverter

Monitoring

WiFi/LAN/GPRS

Product Description

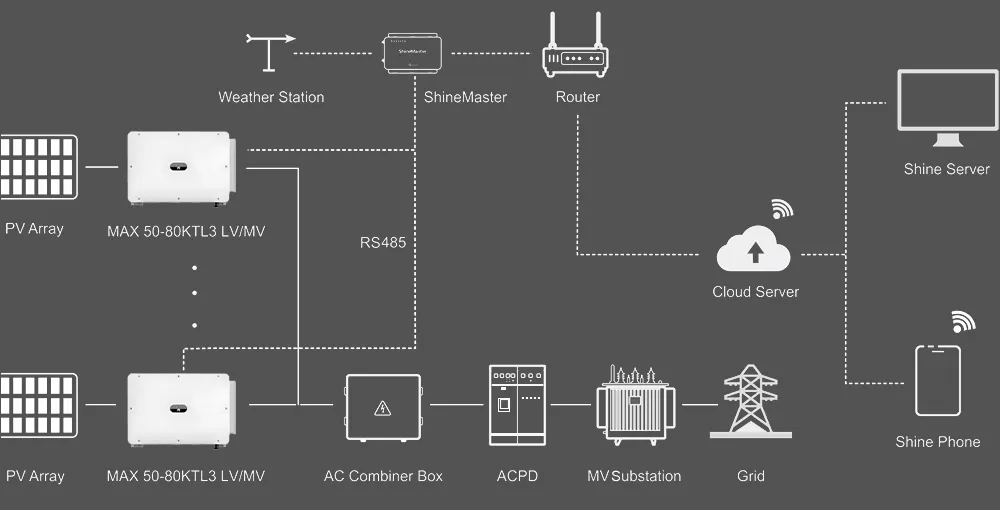

Production Process

Detailed Parameters

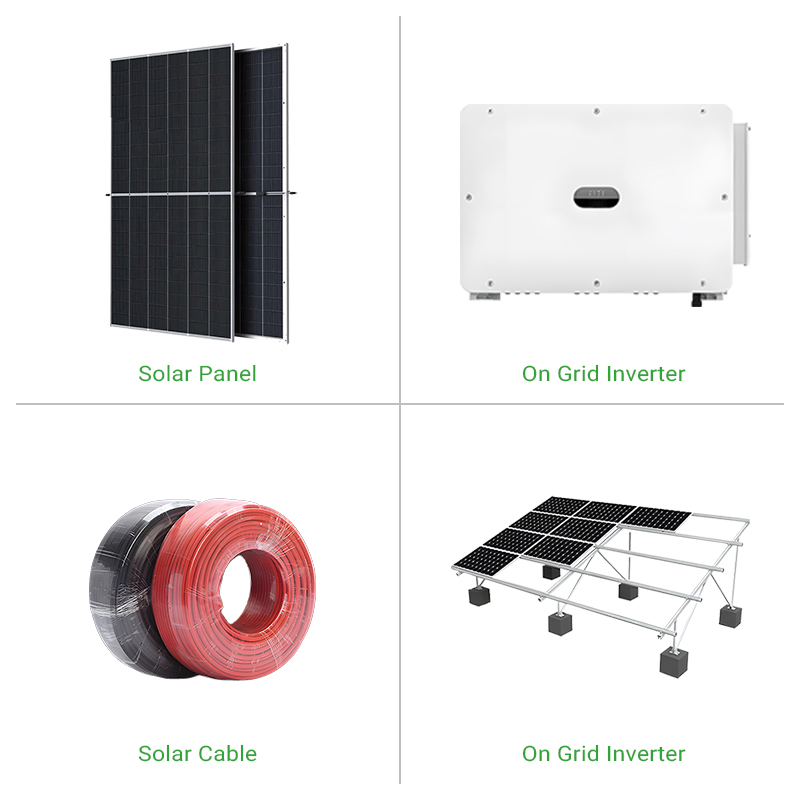

Components	SA100KW	SA250KW	SA1MW
System Power (KW)	100KW	250KW	1MW
On Grid Inverter	100KW × 1 pc	125KW × 2 pcs	125KW × 8 pcs
MC4 Connector	20 pairs	30 pairs	150 pairs
PV Cable	4mm² 1000m	4mm² 1400m	4mm² 10000m
Mounting Structures	Hot Galvanizing	Hot Galvanizing	Hot Galvanizing

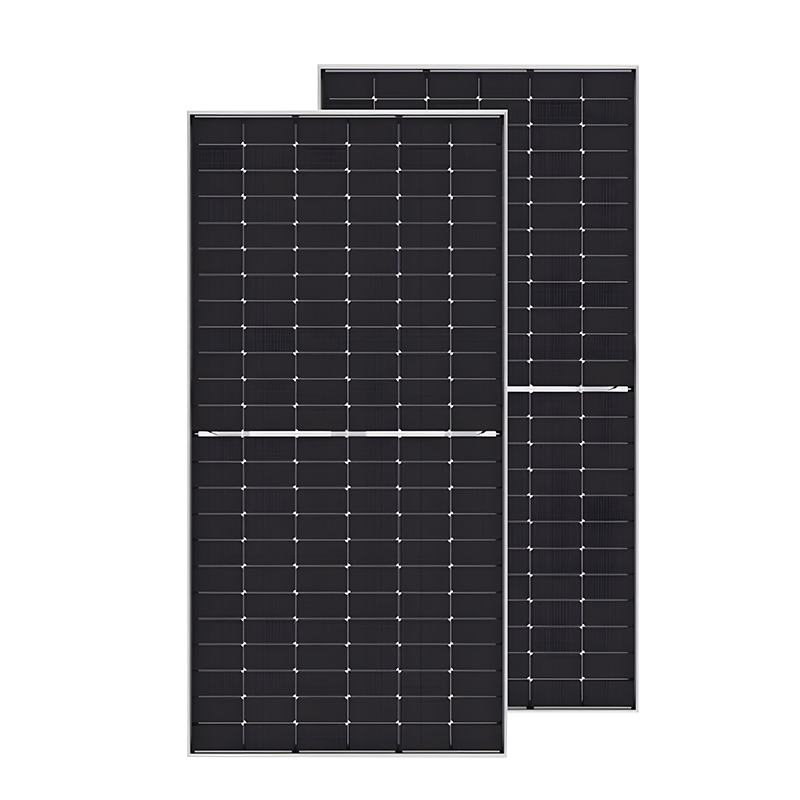

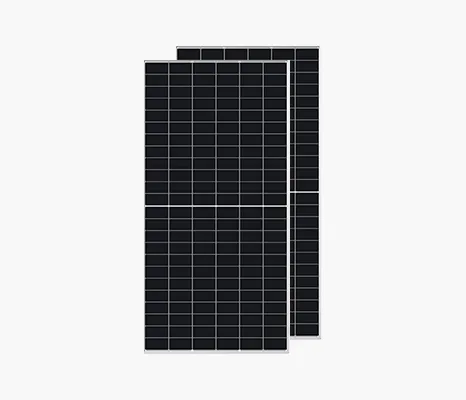

Solar Panel

Peak Power Watts: 410W (SP410M-72H)
Maximum Power Voltage: 41.4V
Maximum Power Current: 9.91A
Open Circuit Voltage: 49.3V
Short Circuit Current: 10.41A
Dimensions: 2024×1004×35 mm
Weight: 22.8 kg

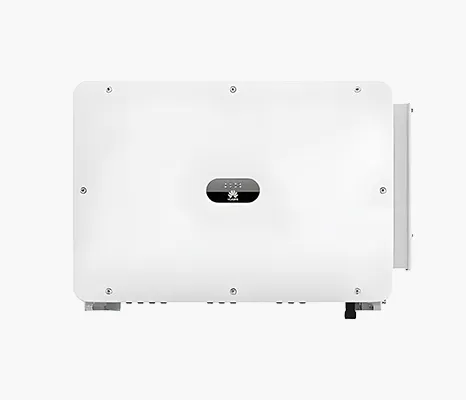

On Grid Inverter

Max. DC Input Power: 125KW
Max. DC Input Voltage: 1000V
MPPT Voltage Range: 860-1450V
Rated Grid Voltage: 480V(US); 400V(EU)
Warranty: 5 Years / 10 Years
WiFi/Lan/GPRS Monitoring Optional

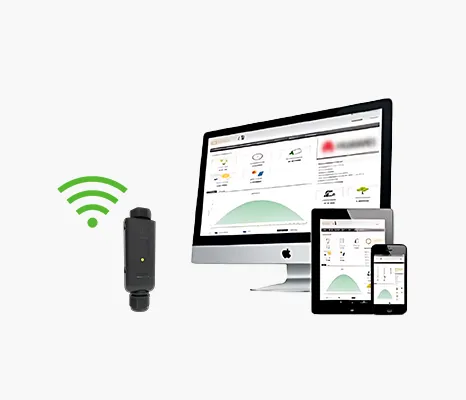

Monitoring System

Data Logging Stick allows you to receive information from solar power system via Wi-Fi, Lan or GPRS. App Available for PC, IOS & Android to keep you informed about the system and atmosphere conditions.

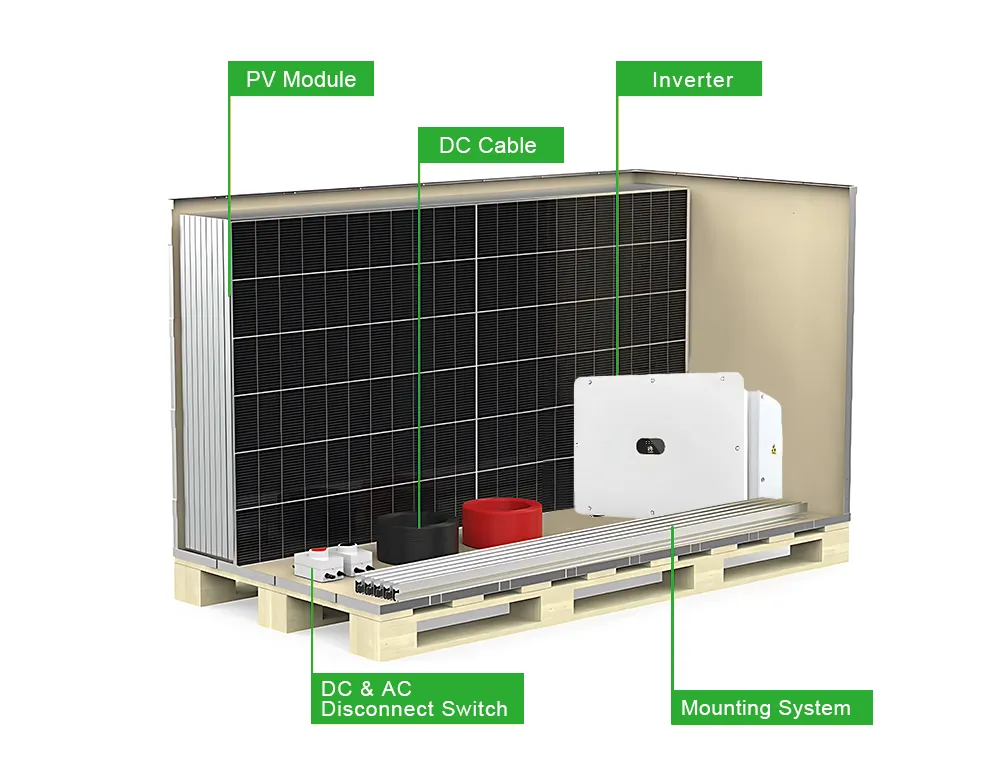

Packaging & Shipping

Certifications

FAQ

How to choose the right system?

Please inform us about the kind of energy storage system required, the capacity of the PV project installation, the installation scenario, and the arrangement of the components.

How about the delivery time?

The delivery time is approximately 7 to 20 days for bulk orders.

What is the warranty for the solar system?

Generally, solar panels have a 25-year warranty. On-grid and hybrid inverters come with a 5-year warranty, while Growatt off-grid inverters have a 2-year warranty.

How can I get better service?

We have a professional engineer team to provide support based on your requirements. We offer 24-hour online service and aim to solve problems within 1 hour.

Do you support OEM orders?

Yes, we accept OEM orders to meet your specific branding and technical requirements.

What monitoring methods are available?

The system supports monitoring via WiFi, LAN, or GPRS, with apps available for PC, iOS, and Android.
