The All-in-One Energy Storage Battery System integrates multiple components into a single compact unit for complete energy management solutions. This system provides reliable backup power and energy storage capabilities with simplified installation and maintenance requirements.
The intelligent design features advanced battery management, high efficiency performance, and compatibility with various power sources. With extended service life and smart monitoring capabilities, these integrated systems deliver energy independence and cost savings for diverse applications.
A complete integrated system combines the inverter, battery, and control functions in a single unit, reducing installation time.
Designed for residential applications, providing backup power and energy independence for household consumption.
High inverter compatibility ensures seamless integration with various solar panel configurations and existing systems.
| INVERTER SPECIFICATIONS | |
|---|---|
| Rated Power | 10kW |
| AC Rated Voltage | 230VAC ±5% |
| Efficiency | 93.50% |
| Transfer Time | 10ms |
| Waveform | Pure Sine Wave |
| Max. PV Array Power | 11kW |
| MPPT Range | 90-450VDC |
| BATTERY SPECIFICATIONS | |
| Rated Capacity | 15.36 kWh |
| Nominal Voltage | 51.2V |
| Max. Charge/Discharge Current | 200A @ 25℃ |

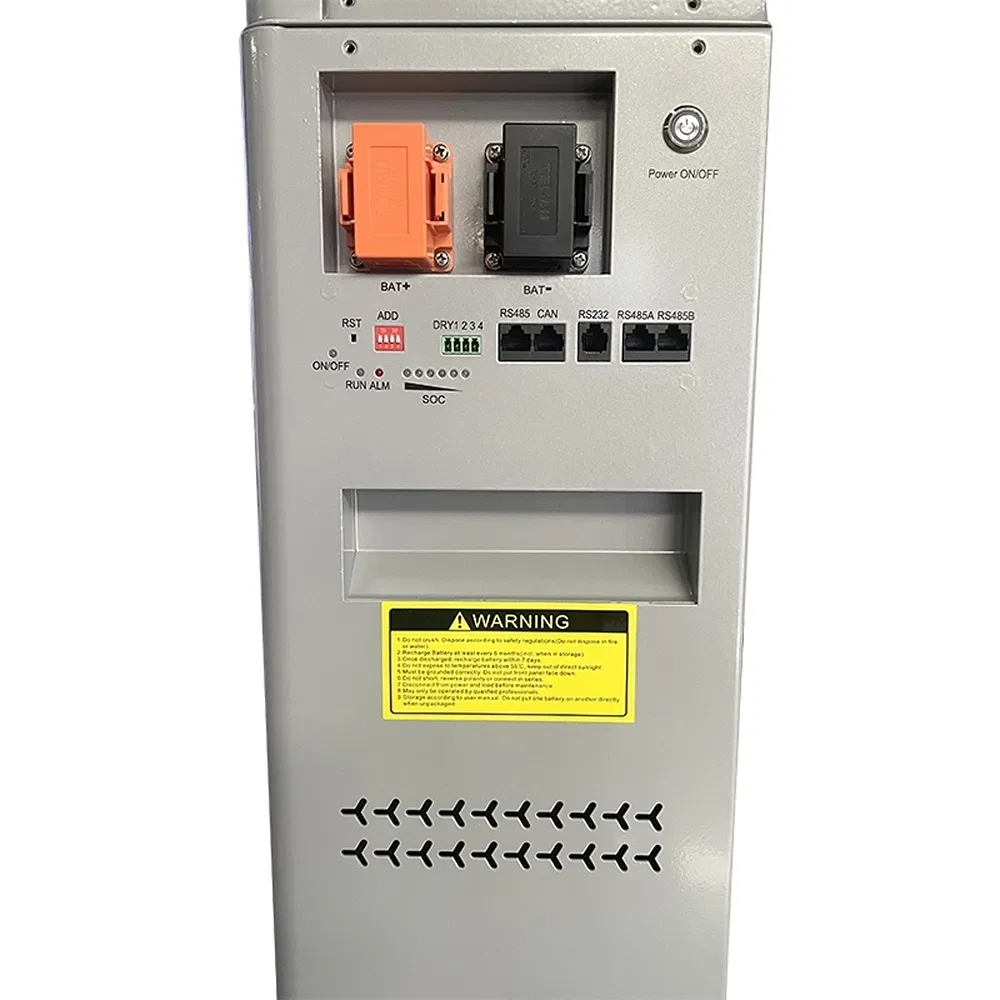

| Communication Interface | RS485 / RS232 / CAN |
| Package Size | 750 × 310 × 865mm |
| Gross Weight | 132kg |
Advanced BMS provides comprehensive protection, monitoring, and optimization to maintain peak performance.
Robust construction delivers exceptional durability with an extended cycle life for long-term storage.
