Basic Information
Size:Medium
OEM:Available
Standard Charge:30A
Max Charge:50A
Standard Discharge:50A
Max Discharge:100A
Communication:RS232, RS485, CAN
Operation Life:10 Years
Scalable:Max 10 Packs
Certification:CE, RoHS, UN38.3, SGS, ISO
Specification:5-50Kwh
HS Code:8507
Product Description

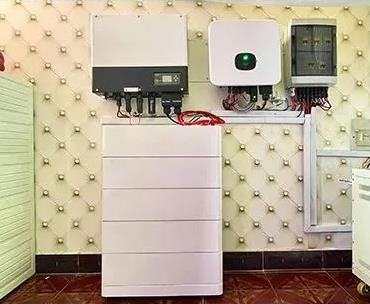

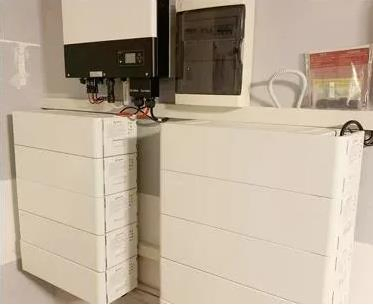

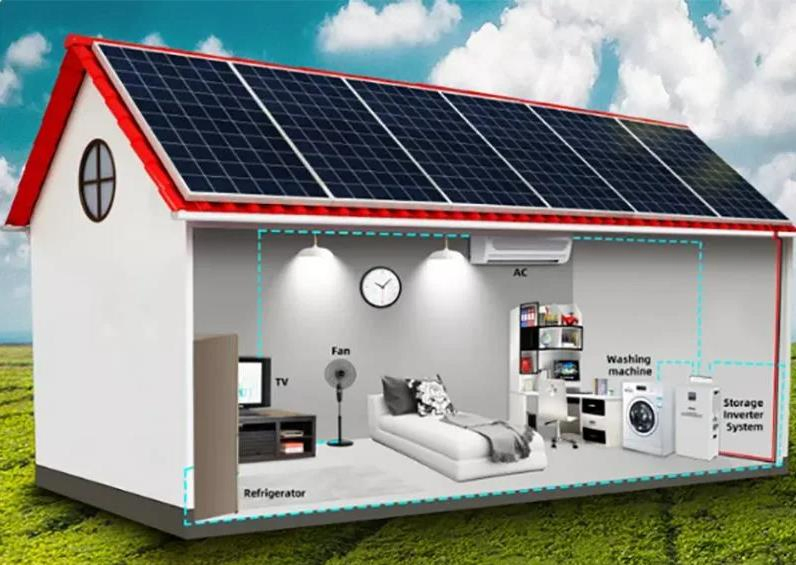

Home energy storage systems use the energy generated by rooftop solar installations and home wind turbines, as well as low-cost sources of electricity for social power systems to store rich electricity for peak use, not only can be used as an emergency power supply, but also can save electricity expenses for families.
As new energy moves into the civilian market, home energy storage systems become one of the essential devices, especially for homes with rooftop photovoltaic systems or small home wind turbine systems.
| Type |
STC-48V100AH |
STC-51.2V100AH |
| Capacity | 102Ah | 102Ah |
| Standard Voltage (Vdc) | 48 | 51.2 |
| Standard Charge Current | 30A | 30A |
| Max Charge Current | 50A | 50A |
| Standard Discharge Current | 50A | 50A |
| Max Discharge Current | 100A | 100A |
| Communication | RS232 RS485 CAN | RS232 RS485 CAN |
| Operation Life (Years) | 10 | 10 |
| Operation Temperature | 0-50ºC | 0-50ºC |
| Weight | 43kg | 45kg |
Key Advantages
◈
Safe BMS: Integrated battery management system with multi-protocol communication, status monitoring, and remote control telemetry.
◈
Flexible Capacity: Options range from 2.5 kWh to 20 kWh to meet various power needs.
◈

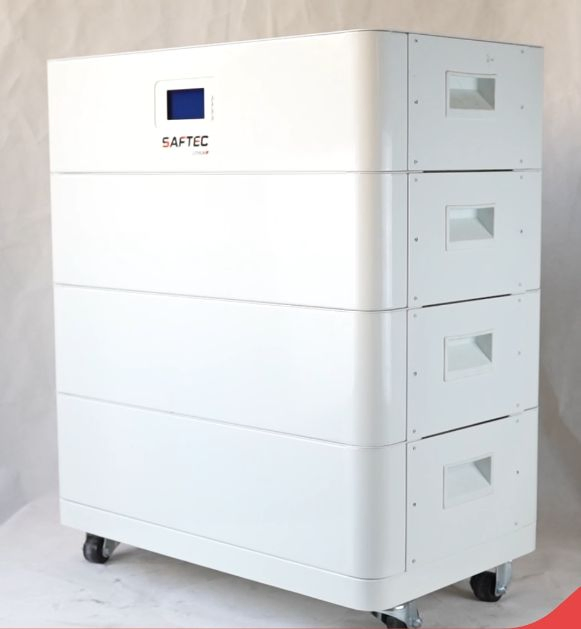

Modular Design: Small size (490*490*135) and light weight (approx 30Kg) for parallel use and easy installation.
◈
Long Life: Maintenance-free design with a service life of at least 10 years.
Application Scenarios

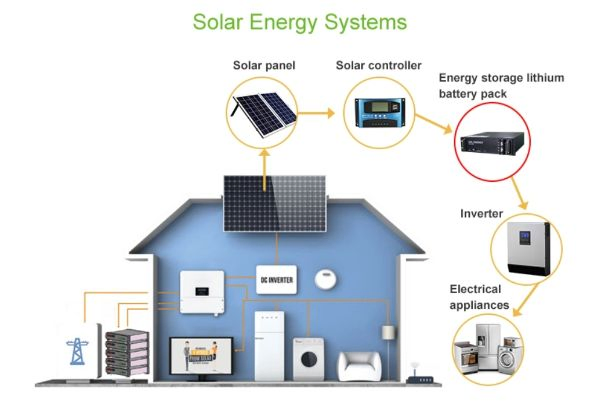

- Solar Energy Storage Systems
- Grid Energy Storage Systems
- Substation Energy Storage
- Photovoltaic Systems
- Plant Energy Storage
- Building Energy Storage
- Communication Base Stations
- Distributed Energy Storage
- AGV Lithium-ion Systems
- Data Center Backup
Other Products
Frequently Asked Questions
Q1: How long is the lifespan of these lithium batteries?
The batteries are designed for a 10-year operation life with high-density LiFePO4 cells, ensuring long-term reliability for energy storage.
Q2: Can I connect multiple battery packs together?
Yes, the system is scalable. Up to 10 battery modules can be connected in series or stacked to increase capacity.
Q3: Does the battery include a management system?
Yes, it features an integrated Battery Management System (BMS) that handles balancing, status monitoring, and safety protection.
Q4: What communication protocols are supported?
The system supports RS232, RS485, and CAN protocols for real-time monitoring and remote control.
Q5: Is it compatible with existing lead-acid battery equipment?
Yes, it supports a seamless upgrade and works with existing devices, supporting battery floating charge modes used in traditional systems.
Q6: What certifications do these batteries have?
The products are certified with ISO9001, ISO14001, CE, RoHS, UN38.3, and SGS for global safety and quality standards.
