| Model NO. | ECO-233LS | Nominal Capacity | 233kwh |
| Cycle Life | 8000 Cycles | Application | Industrial Commercial Factory |
| Cooling | Liquid-Cooled | Communication Port | RS485 |
| Type | Energy Storage System | Grid Type | on Grid/ off Grid |

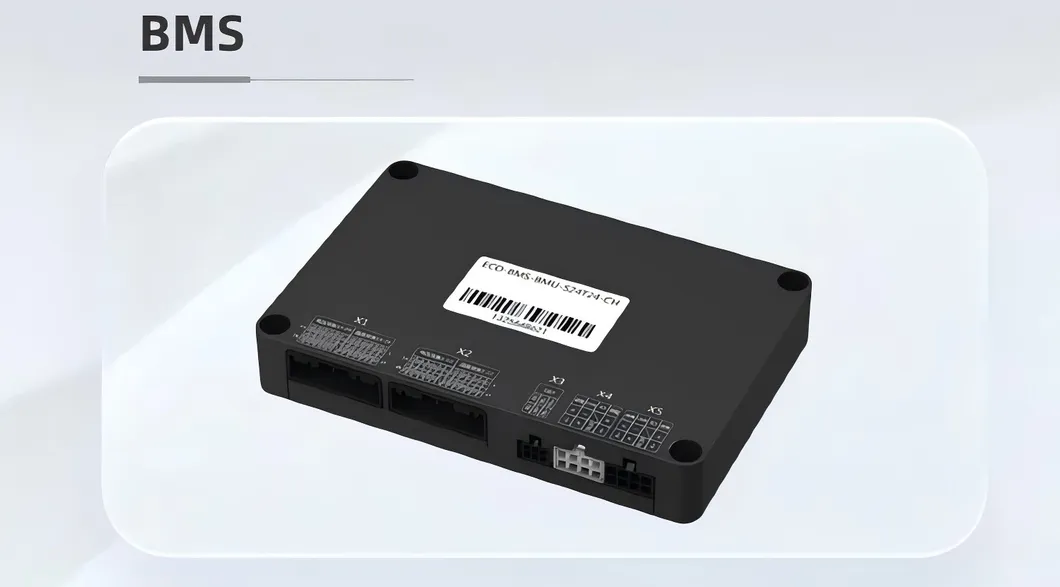

| BMS | Built-in BMS Protection | Specification | 1250*1300*2400mm |

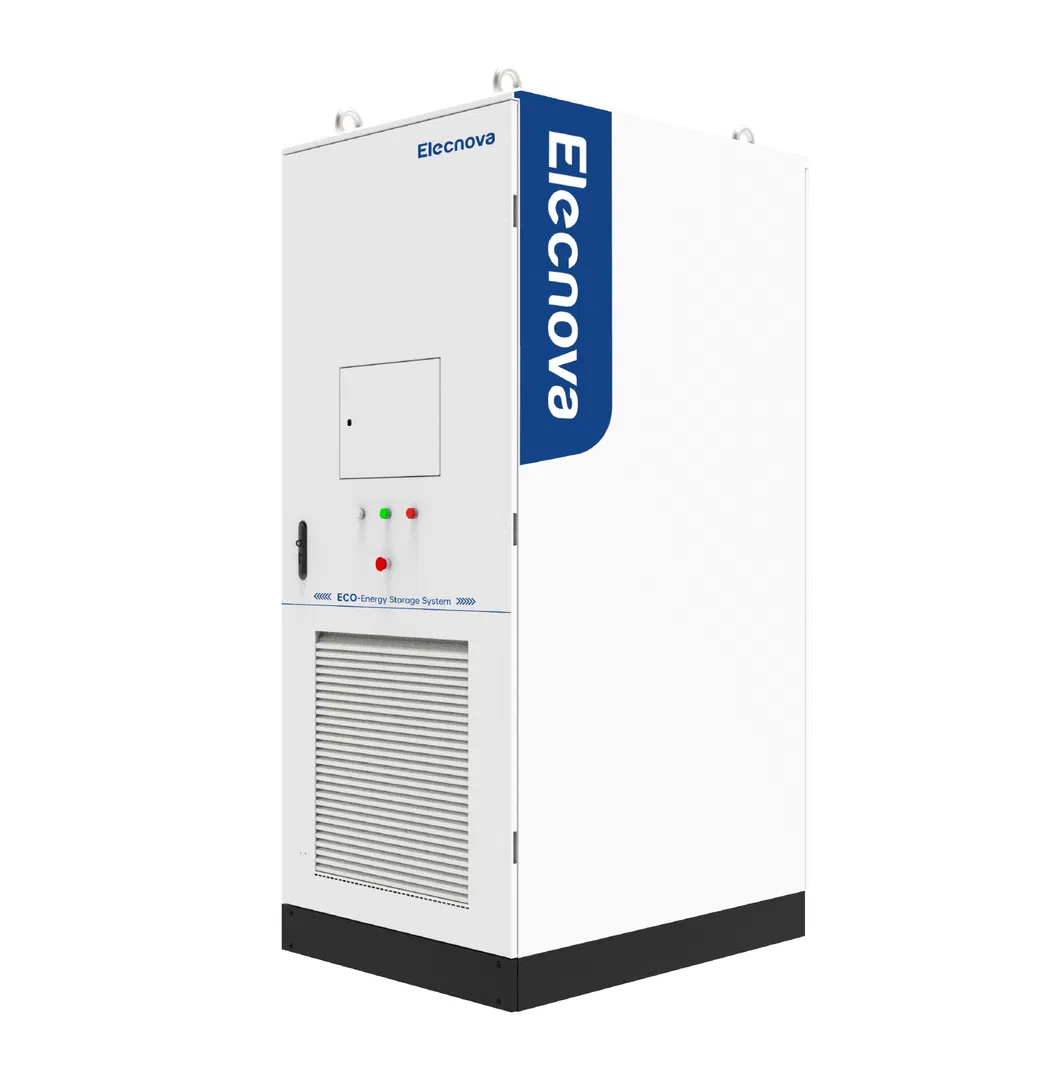

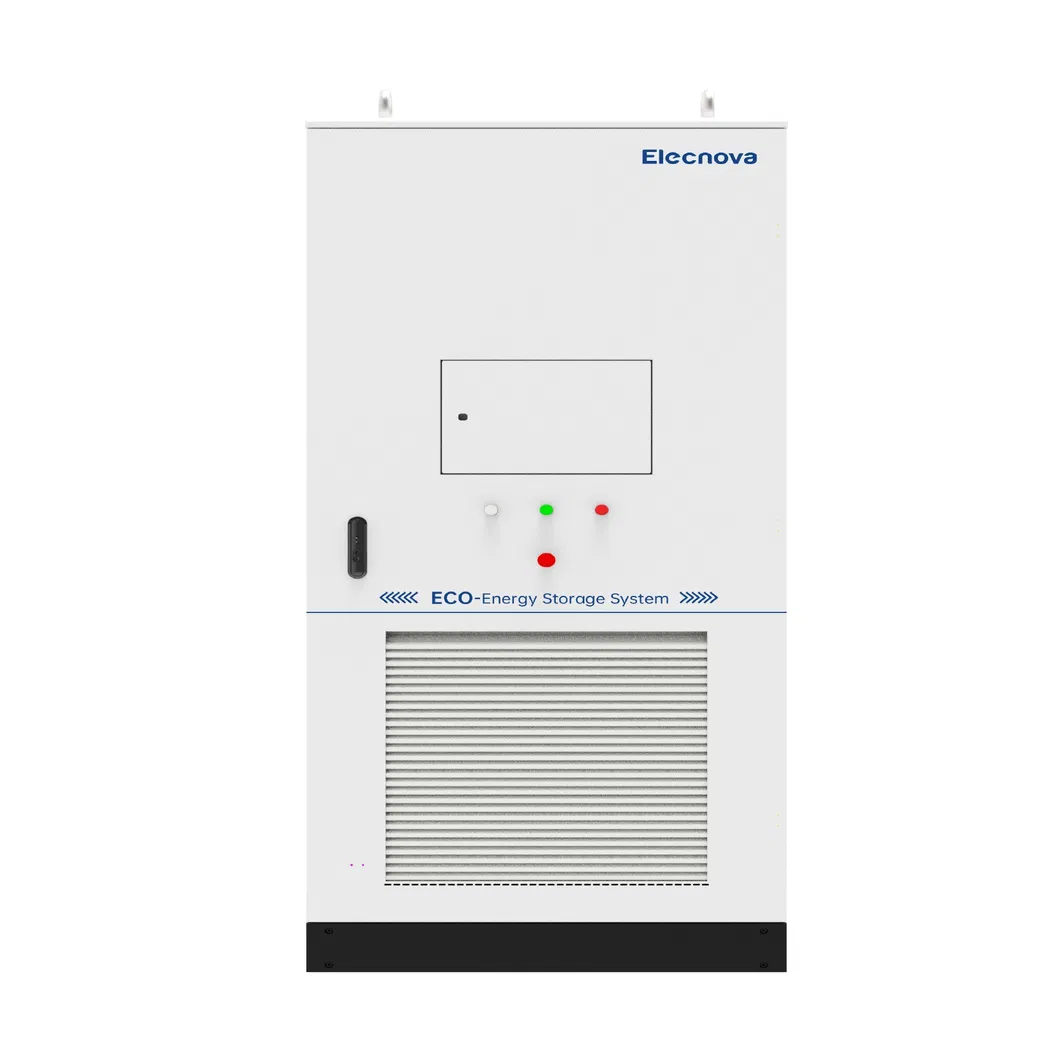

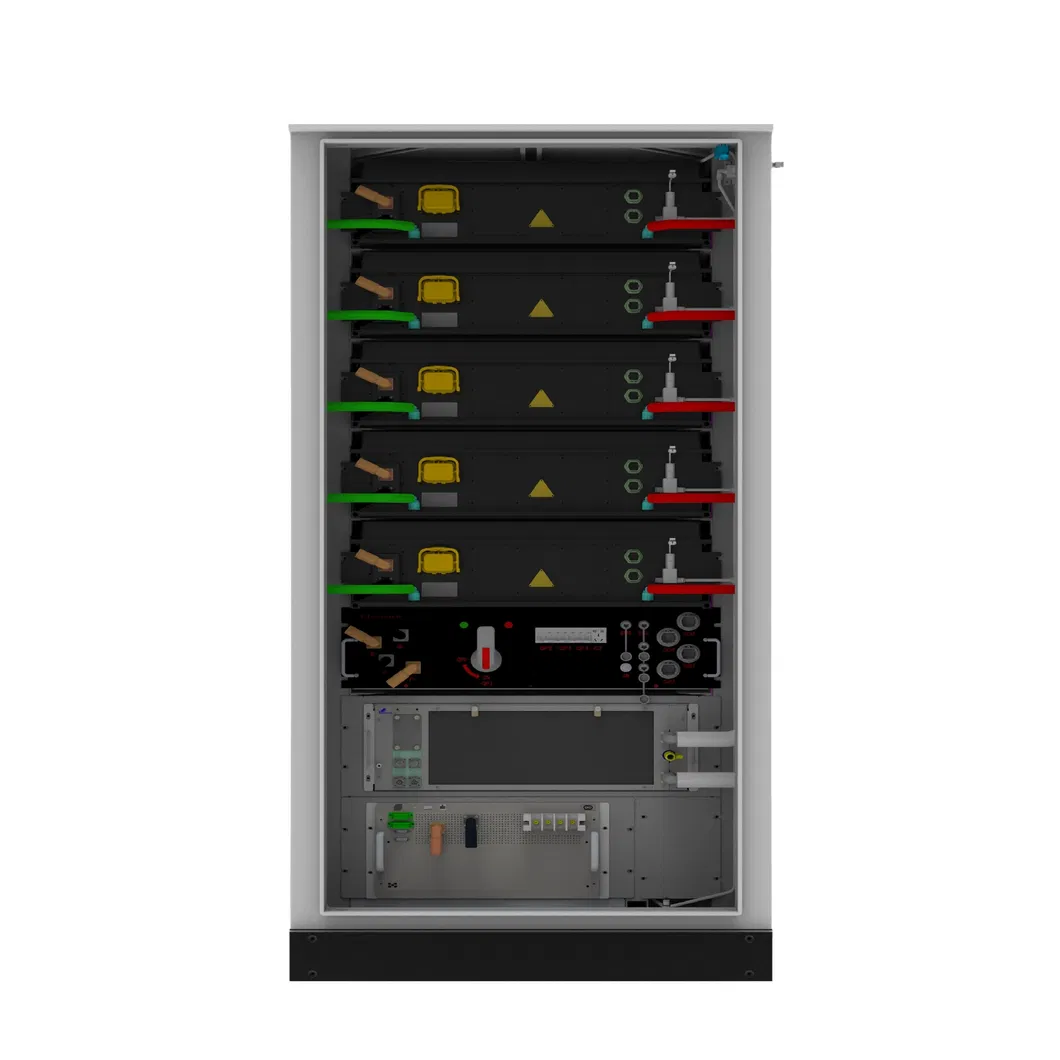

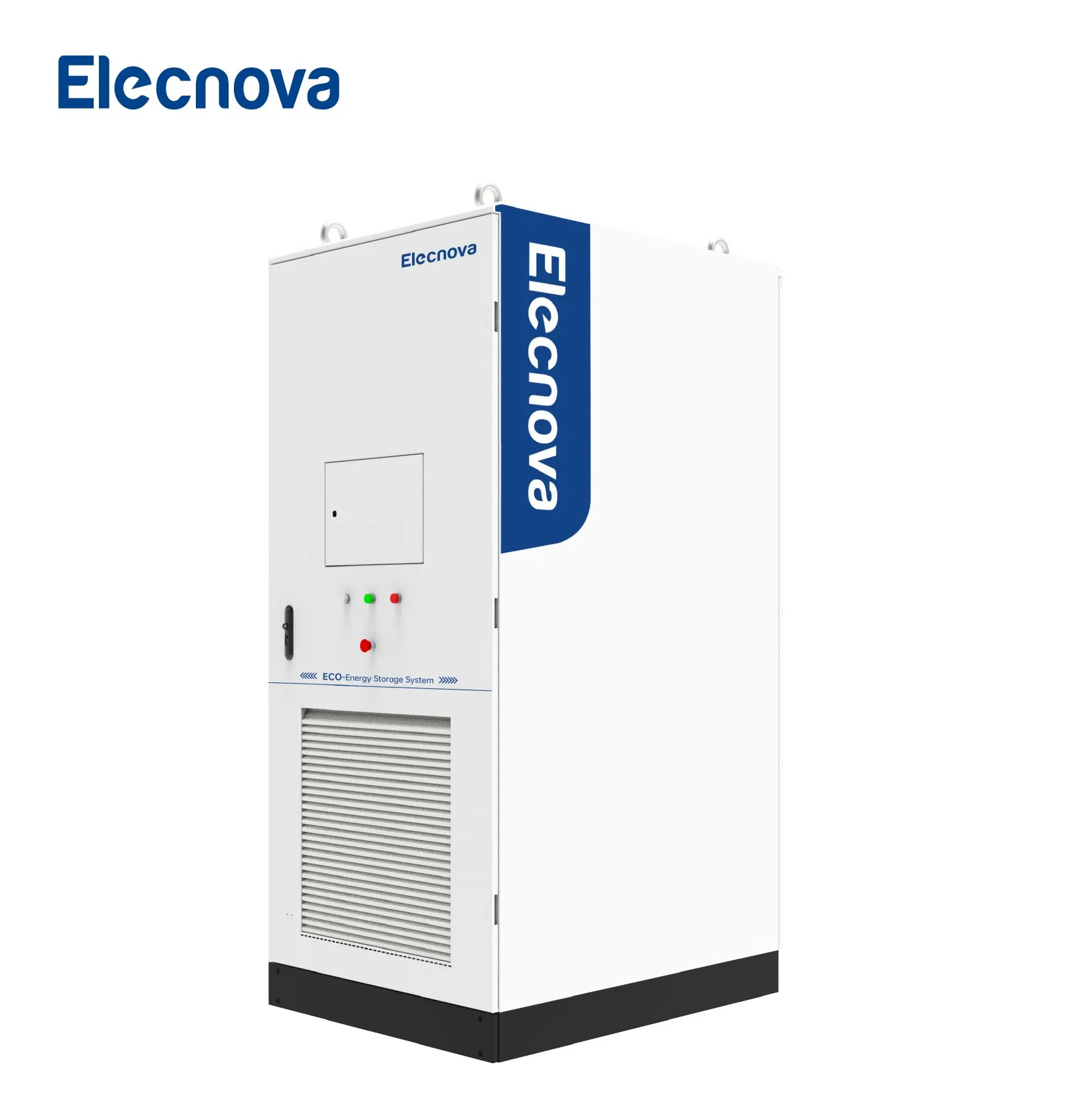

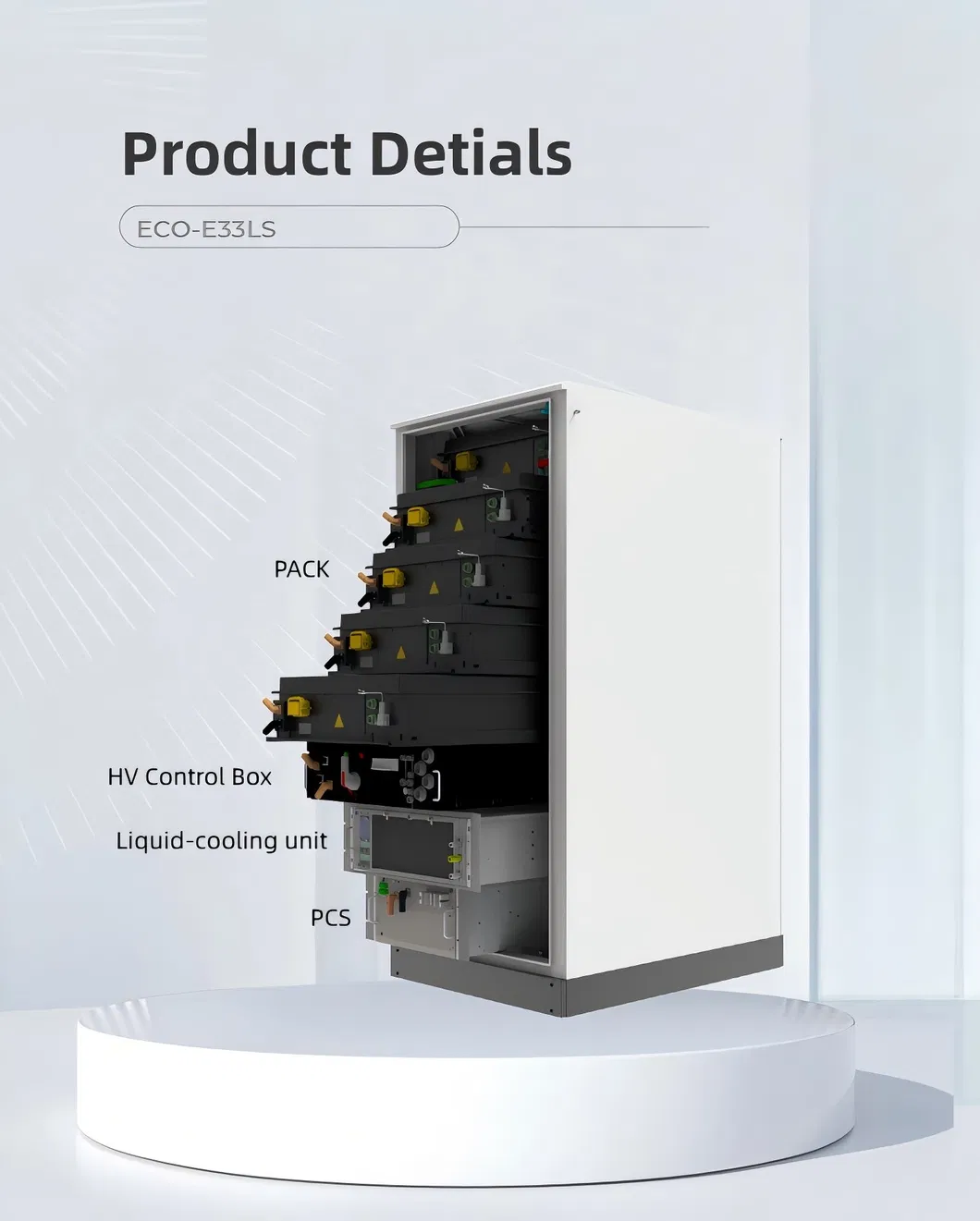

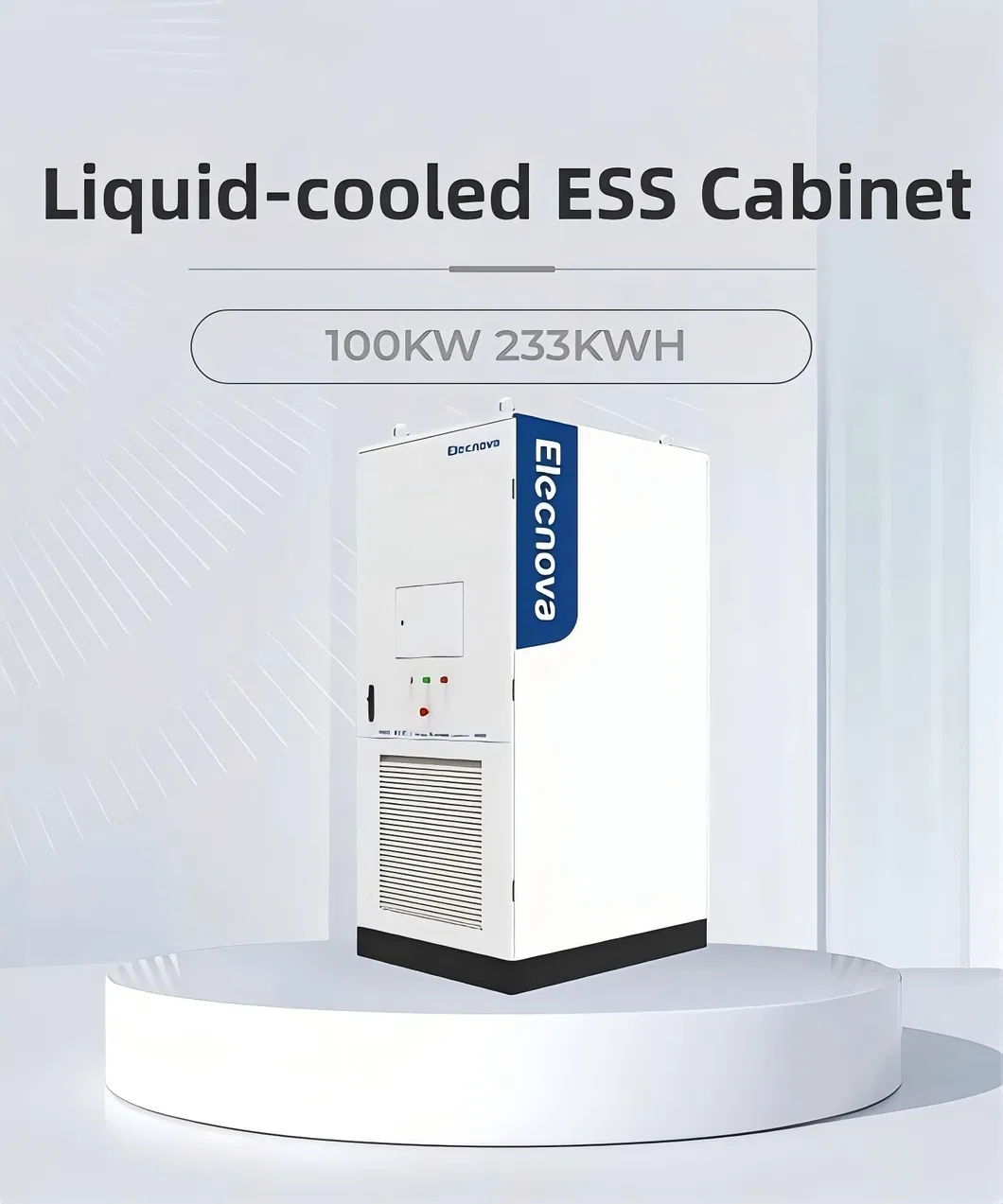

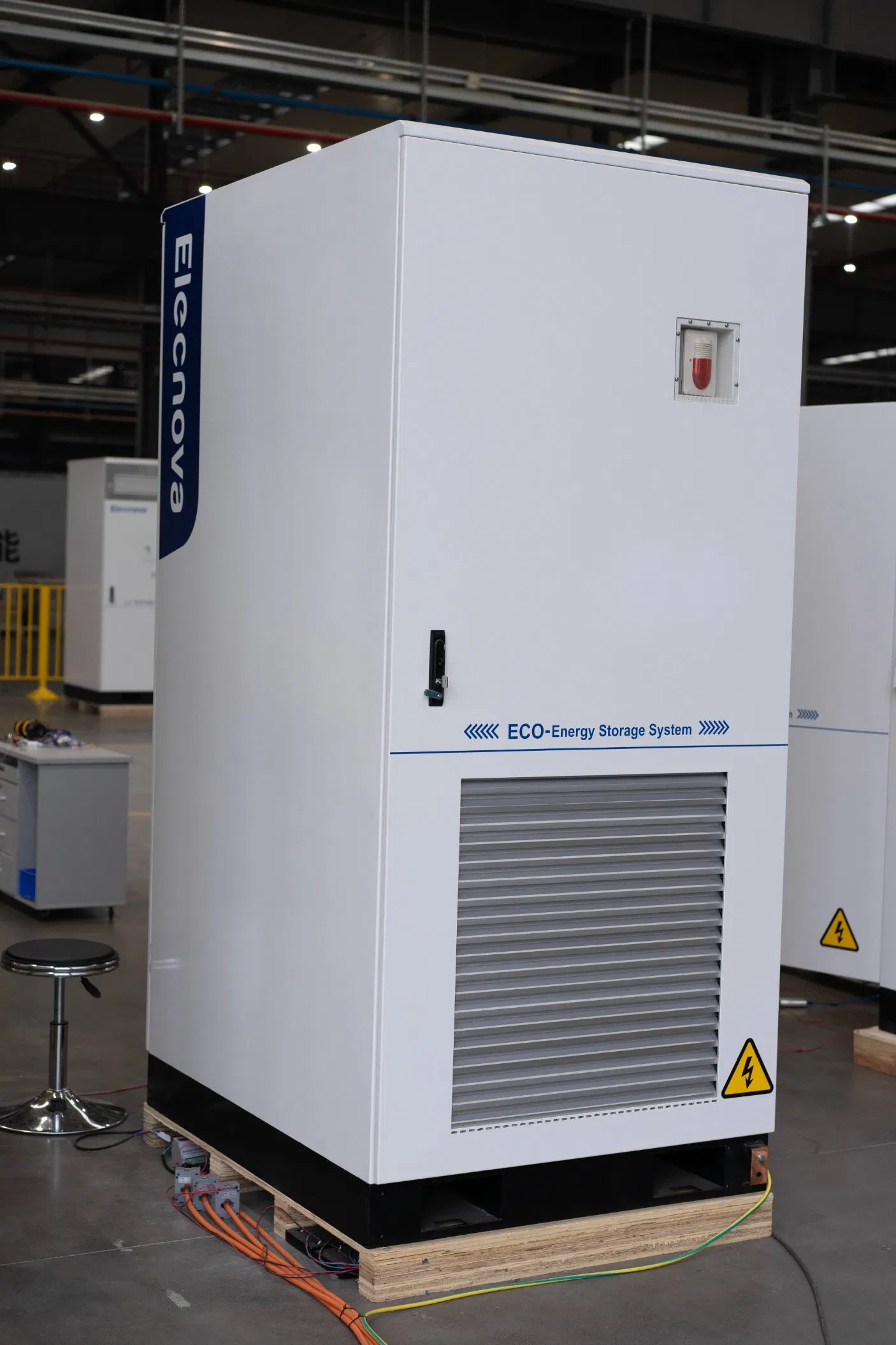

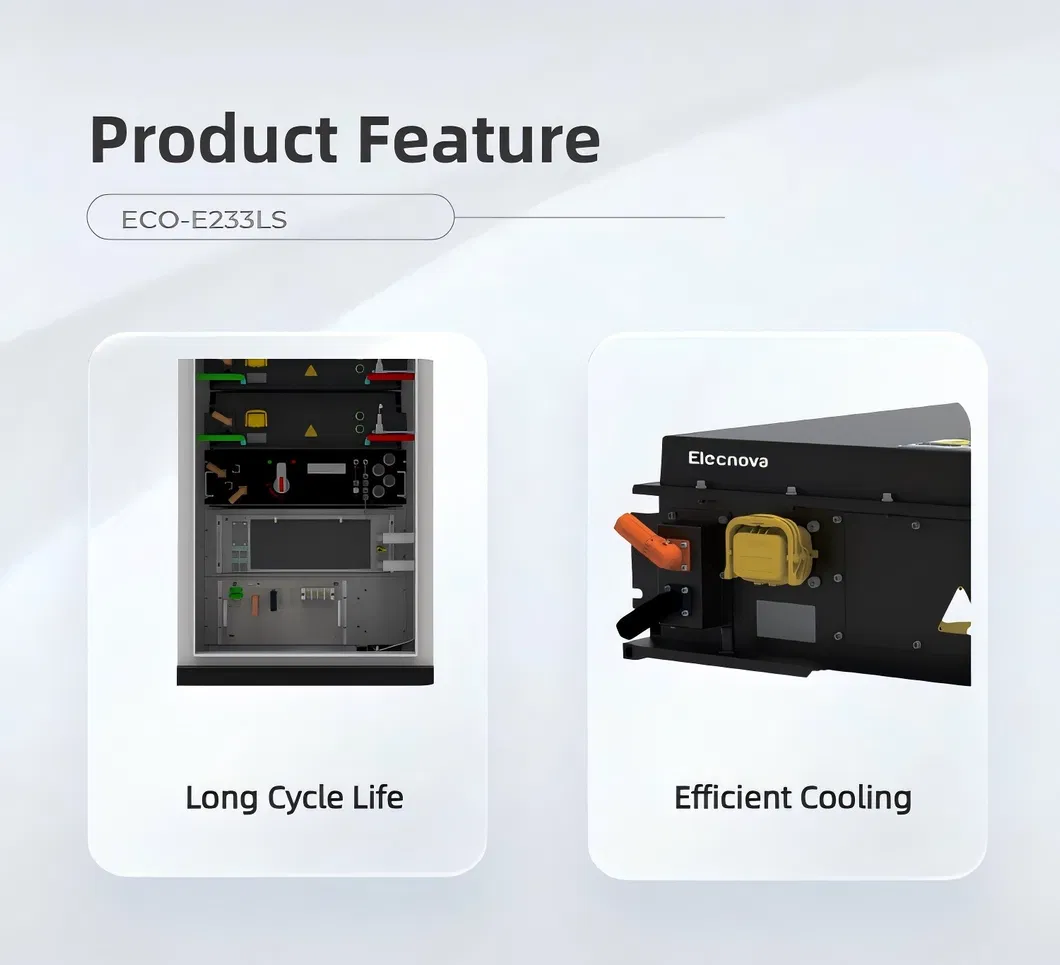

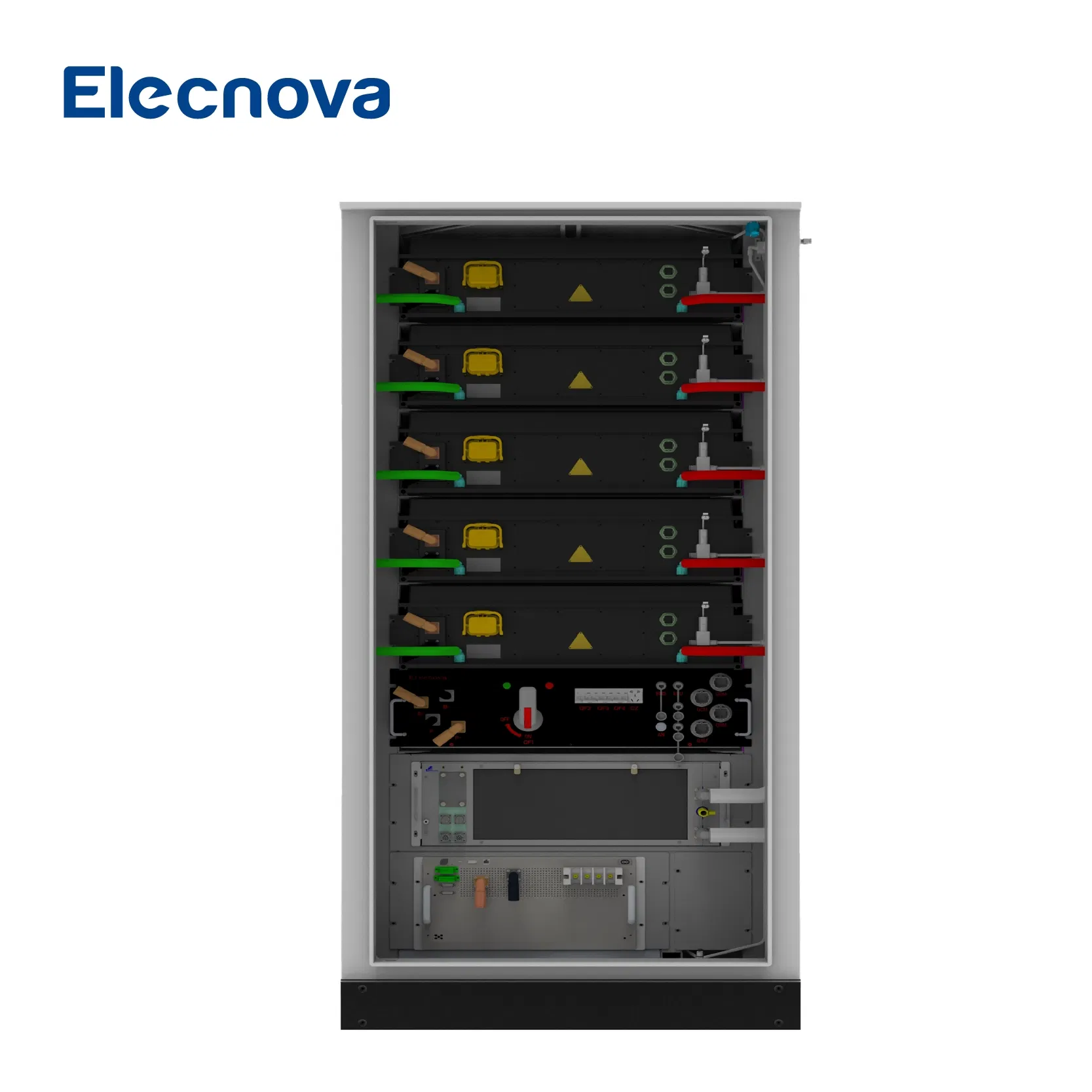

This commercial & industrial energy storage system adopts advanced cabinet-level liquid cooling and temperature balancing strategy. The cell temperature difference is less than 3°C, which improves the consistency of cell temperature and extends battery life. The modular design makes the parallel solution more flexible and has higher energy density.
| DC Side Specifications | |
|---|---|
| Cell Type | LFP280Ah |
| Battery System | 232.96kWh / 1P260S |
| Voltage Range | 728~936Vdc |
| AC Side Specifications | |
| Rated Power | 100kW |
| Nominal Voltage | 400Vac / 3P+N+PE |
| General Data | |
| System Efficiency | ≥90% |
| Cycle Life | ≥8,000 times |
| Operating Temp | -25ºC ~ 55ºC |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |

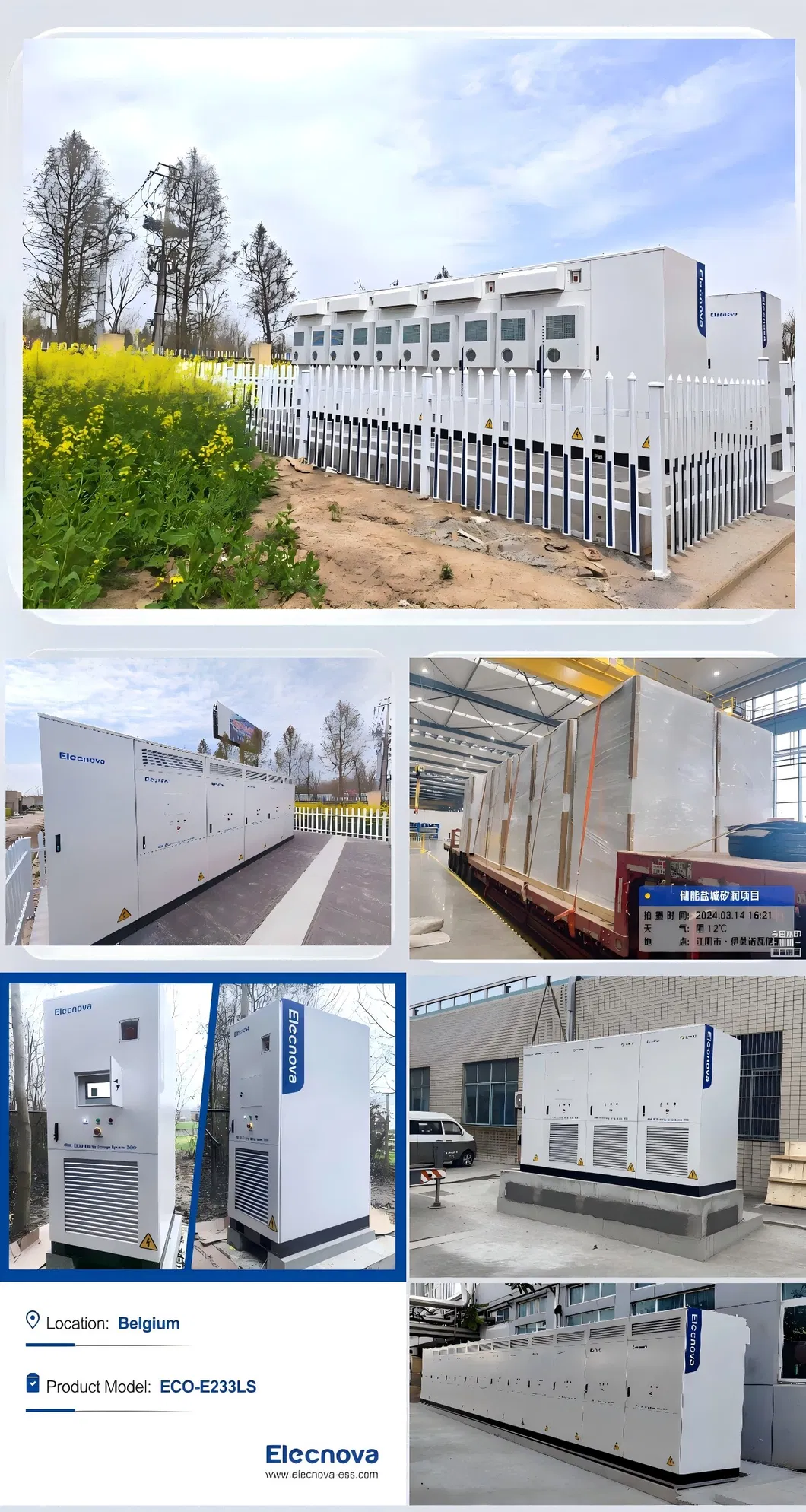

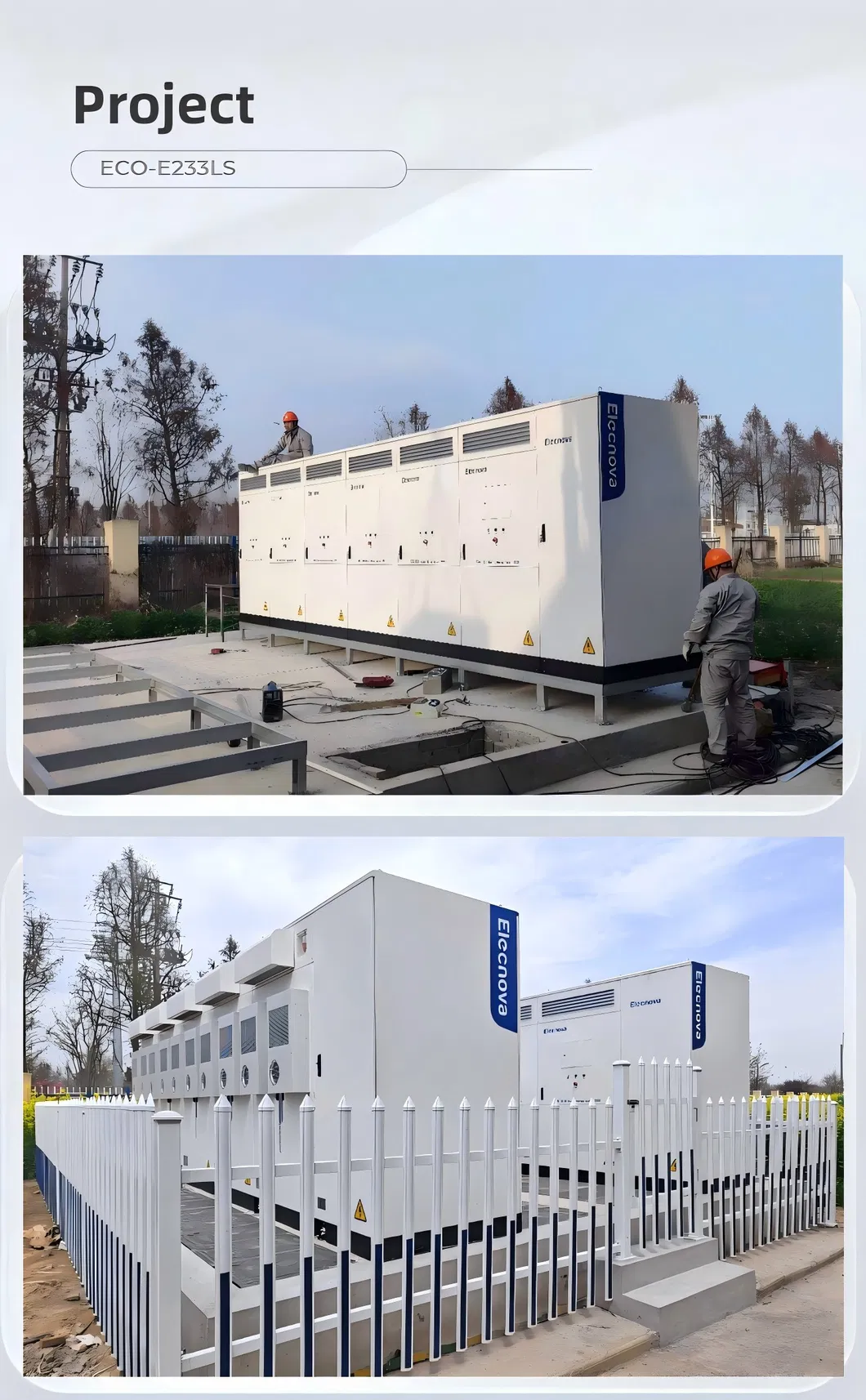

Ideal for C&I ESS, microgrid energy storage, and PV-plus ESS. Successfully implemented in 2.4MWh energy storage projects with high efficiency, stability, and safety.
