off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
1 / 5
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit
off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit

off Grid Solar Energy System 5kw 10kw Hybrid Solar Power System Home Solar Panel Complete Kit

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
SE-HY 3-30Kw
Condition
New
Certification
ISO, CB, CE, TUV
Application
Home
Specification
Normal, 3-30KW
Solar Panel
Monocrystalline 400-700W
Solar Inverter
Hybrid 3-30kw
Battery Type
Gel / LiFePO4 Lithium Battery
Monitoring System
APP Available for PC and Phone
PV Mounting System
Customized
Other Accessories
Cable, Switch, Assembly Tool, etc
Transport Package
Wooden Box
Origin
Anhui
Production Capacity
5000 Set/Week
Product Description
Solar Energy System
Warranty & How it Works
Warranty

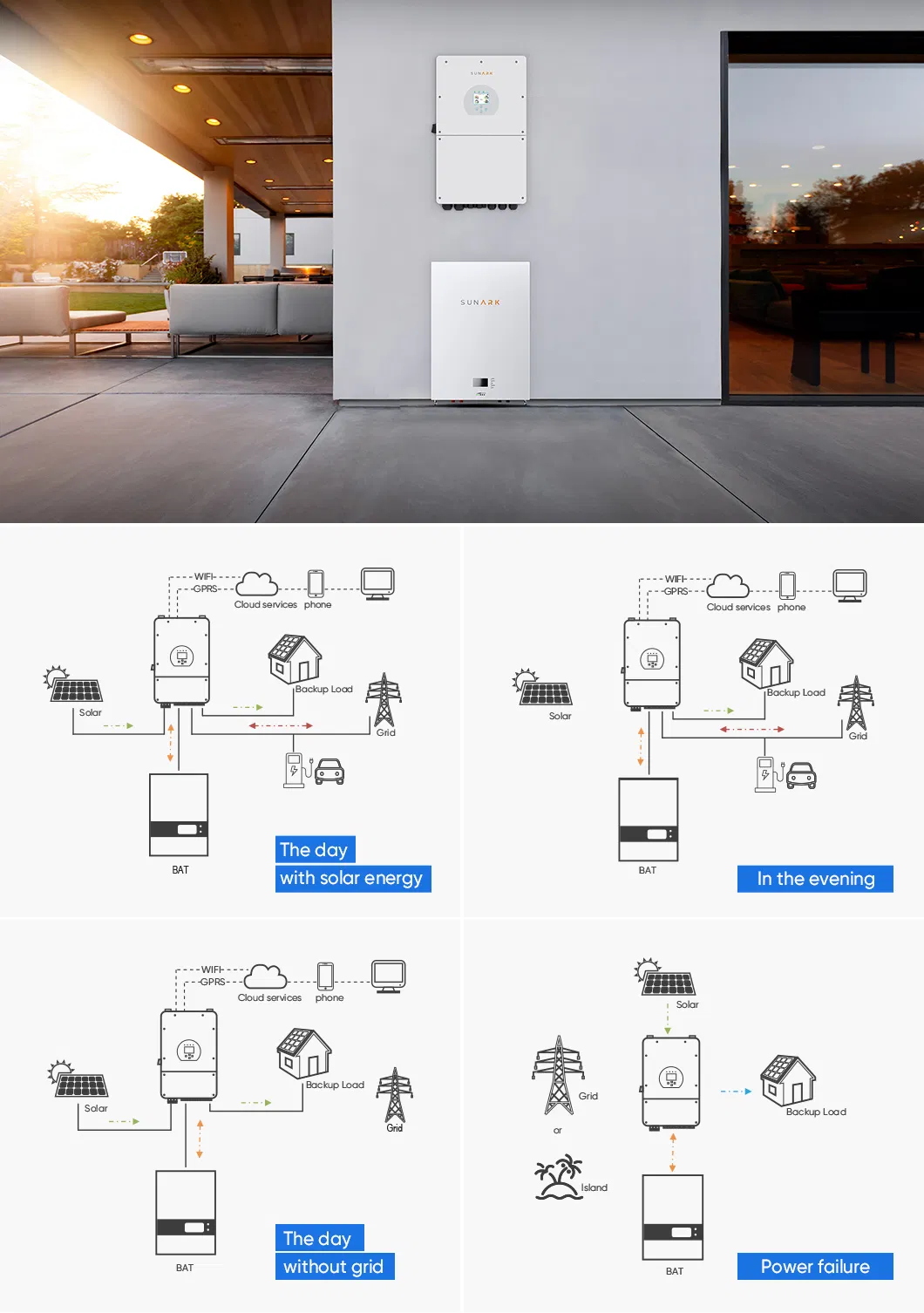

System Flow
Complete Kit
System Specifications
Model SE-3KW-HY SE-5KW-HY SE-10KW-HY
Solar Panel (550W) 6 Pieces 10 Pieces 21 Pieces
Hybrid Inverter SUN-3K-SG04LP1-EU SUN-5K-SG03LP1-EU SUN-10K-SG04LP3-EU
LiFePo4 Battery 5Kwh 5Kwh 10Kwh
DC Cable 4mm2 100 meter 200 meter 400 meter

Half Cut Mono 550W Solar Panel

Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Dimensions: 2279x1134x35mm

Solar Panel
Hybrid Inverter

Hybrid Solar Inverter

48V low voltage battery, transformer isolation design. 6 time periods for battery charging and discharging. Max.10pcs parallel.

LiFePo4 Battery

15-20 years design life. Up to 6000 + cycle life. Scalable for larger storage systems. Built-in high quality BMS.

Battery
Packaging & Shipping
Packaging Shipping
Application & Projects
Application 1 Application 2 Project 1 Project 2
Company Profile
Factory Overview

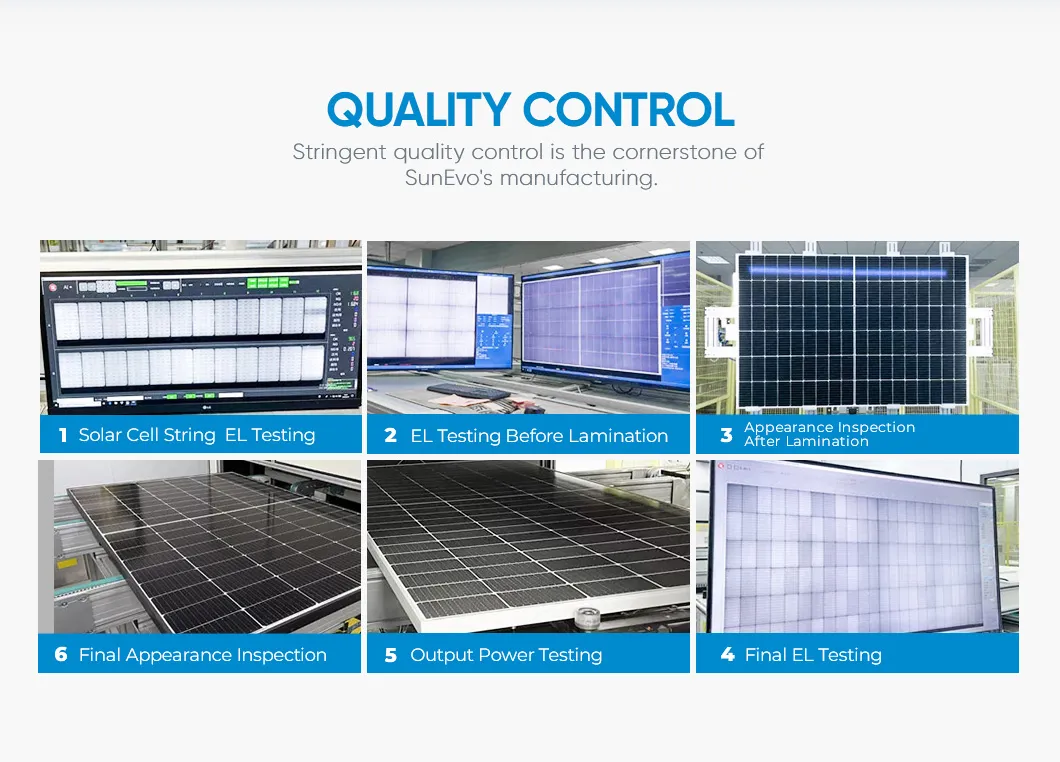

Production Testing
Frequently Asked Questions
Can the product be shipped to my area?
We export to most countries/regions including Central/South America, EMEA, SEA, SSA, and AU. We will confirm based on your specific region.
What is the typical lead time?
Approximately 10 working days for requirements under 200kW. For larger projects, the timeline is negotiable.
What are the available payment terms?
We accept 100% TT, or a 30% advance deposit with the remaining 70% due when goods are ready before shipment.
What kind of warranty is provided?
12 years product warranty on materials and workmanship, and 25 years linear power output warranty.
Is the system compatible with monitoring?
Yes, we provide an APP for both PC and smartphones that supports safe operation and lifecycle data storage.
Are the mounting systems customized?
Yes, all mounting systems are customized based on your specific installation requirements for roof or ground.
