June Power
June Power

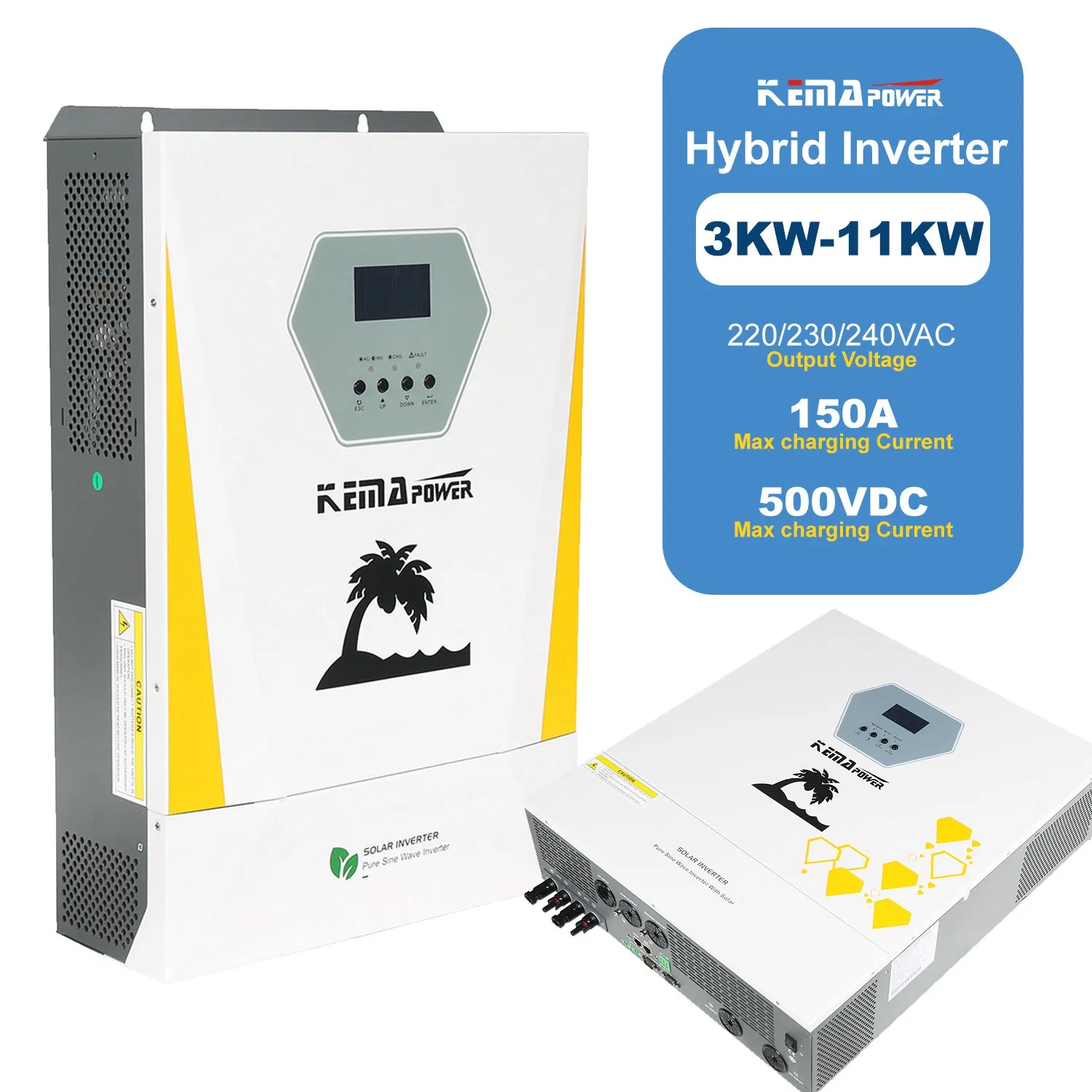

| Model NO. | SUB-D | Phase | Single |
| Output Power | >1000W | Type | DC/AC Inverters |
| Power Source | Solar Power | Circuit Topologies | Half-Bridge Type |
| Nature of Wave | Sine Wave Inverter | Specification | 3KW-11KW |
| Parameter | SUB-D-3624 | SUB-D-6248 | SUB-D-11048 |
|---|---|---|---|
| Rated Power | 3.6KW | 6.2KW | 11KW |
| Input Voltage | 220/230/240VAC | ||
| Battery Voltage | 24 VDC | 48 VDC | 48 VDC |
| Max PV Array Power | 4.2KW | 6.2KW | 2*5.5KW |
| MPPT Range | 150 ~ 500 VDC | ||
| Max PV Charge Current | 100A | 100A | 150A |
| Waveform | Pure Sine Wave | ||
| Operating Temp | -10°C to 50°C | ||

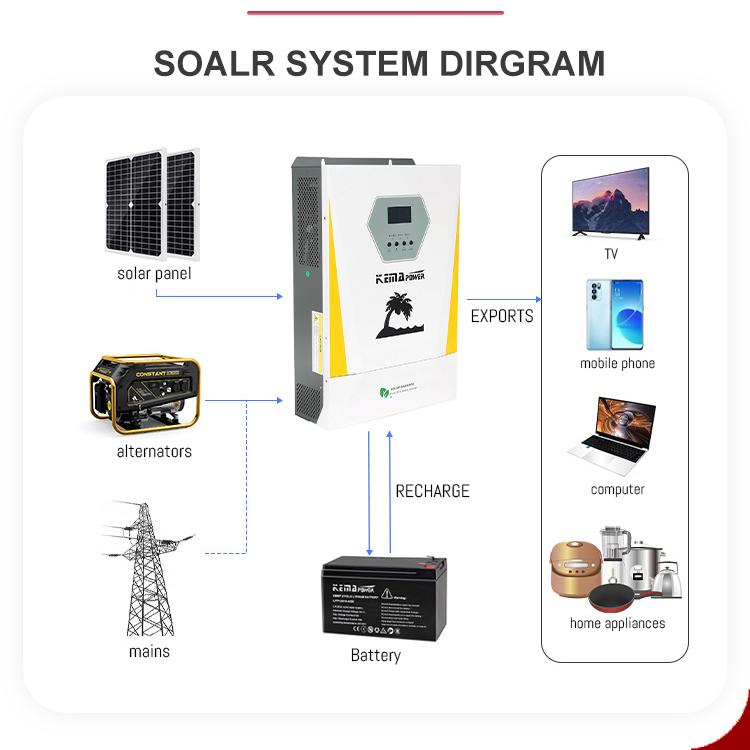

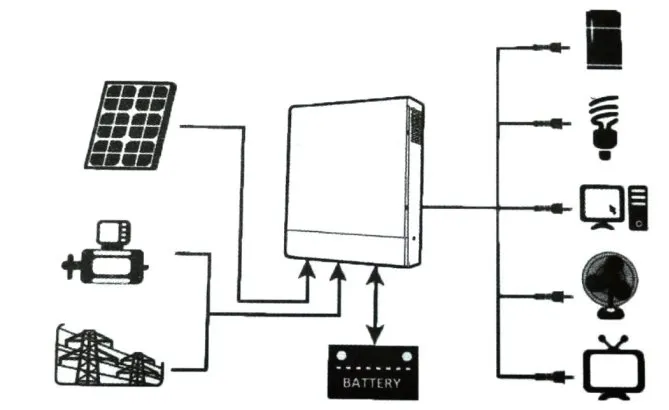

Working Mode Diagram

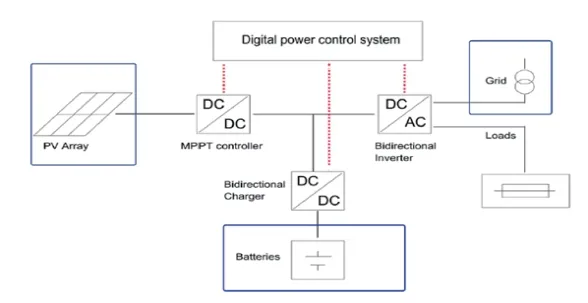

Design Layout

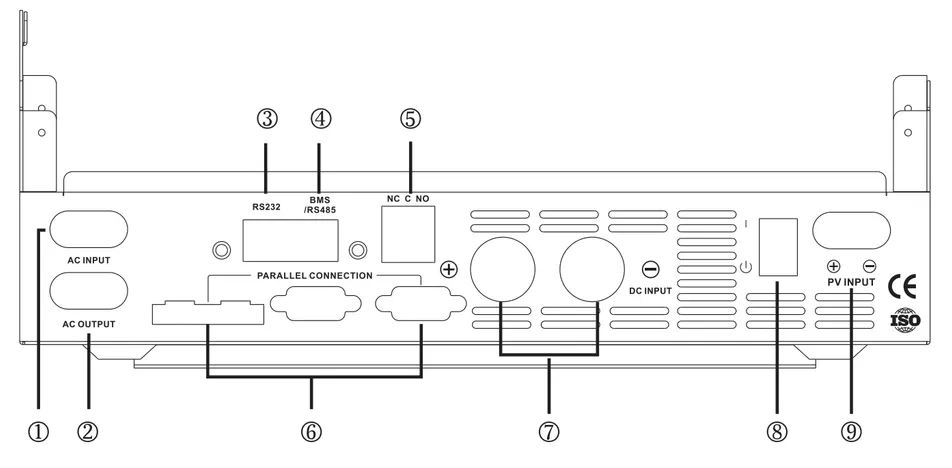

Outside Port (3KVA-6.2KVA)

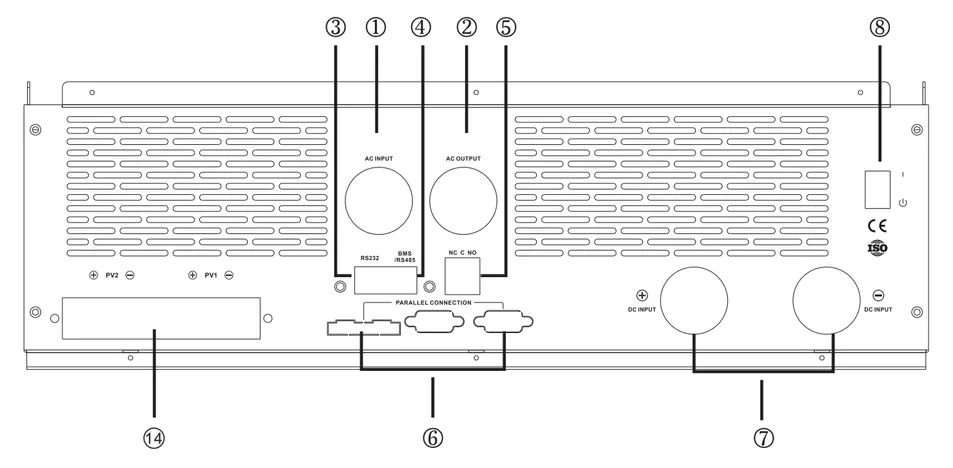

Outside Port (11KVA)
A: Yes, the SUB-D series is designed to work without a battery during the daytime, powered directly by solar panels.

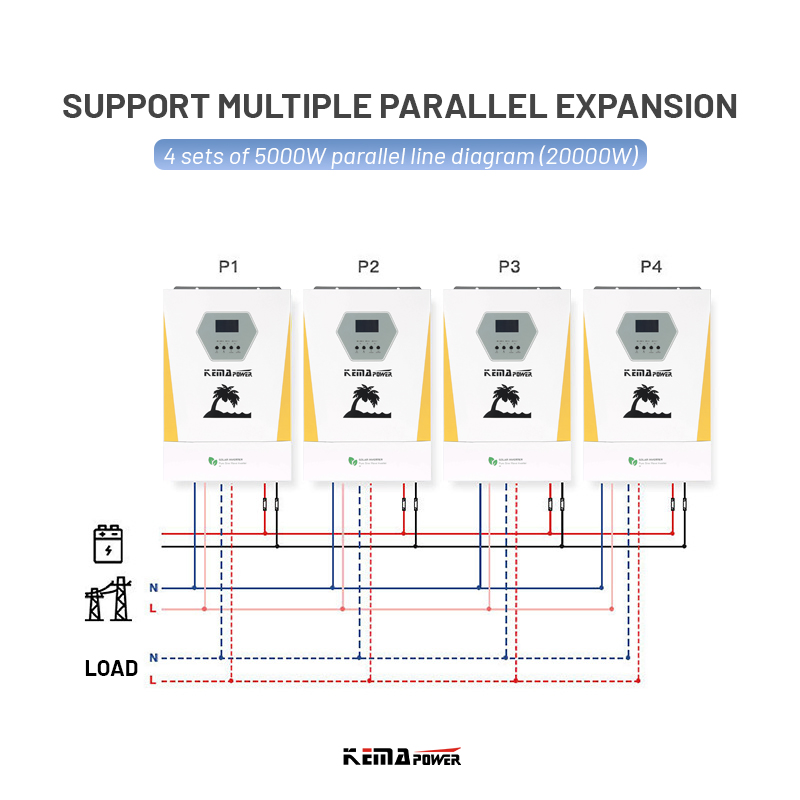

A: The 6.2KW and 11KW models support parallel functionality for up to 9 units.
A: Yes, it features selectable Lead-acid or Lithium battery modes and includes a lithium activation wake-up function.
A: It provides a Pure Sine Wave output, making it suitable for sensitive electronic devices and various home appliances.

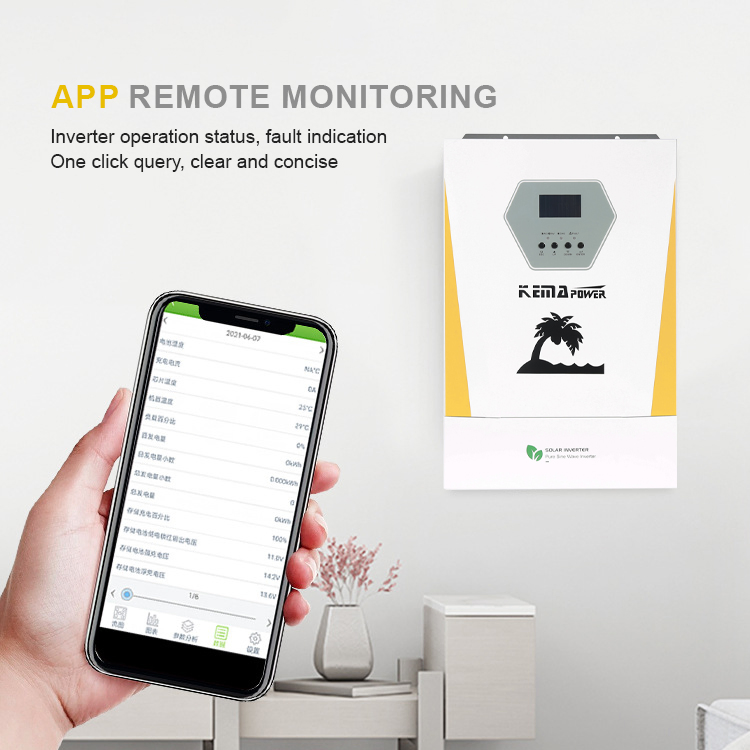

A: The inverter supports RS232, BMS/RS485, Dry Contact, and optional WiFi/GPRS for mobile app monitoring.
A: Yes, it includes comprehensive protection for overload, over-temperature, short-circuits, and battery reverse connection.
