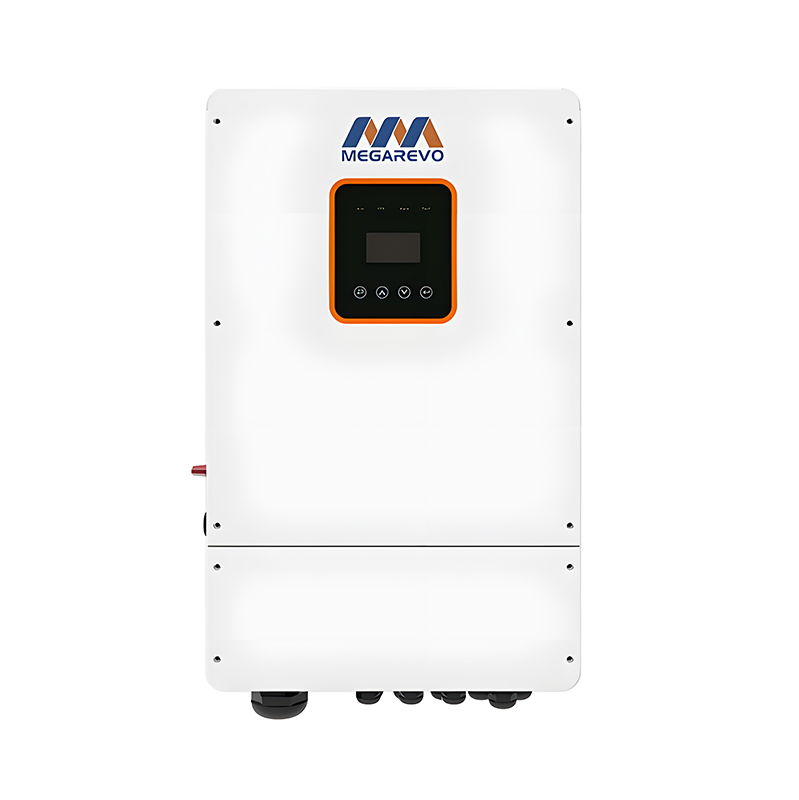

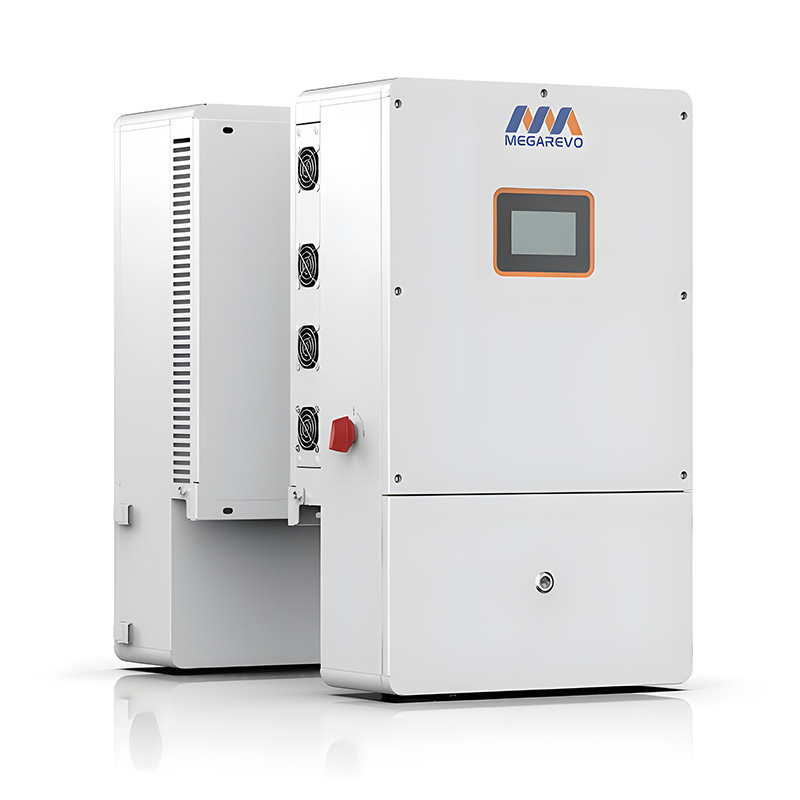

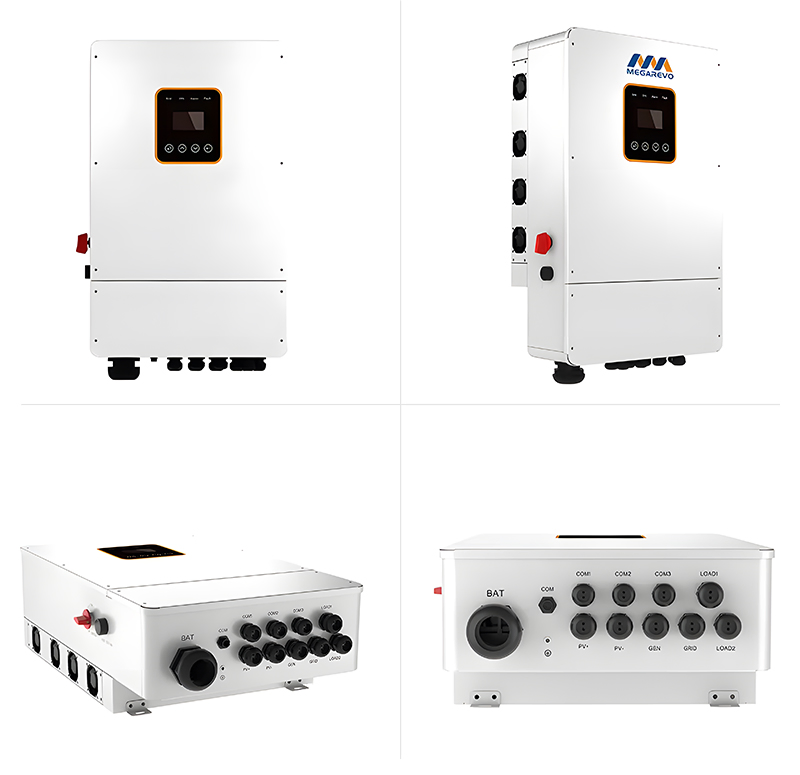

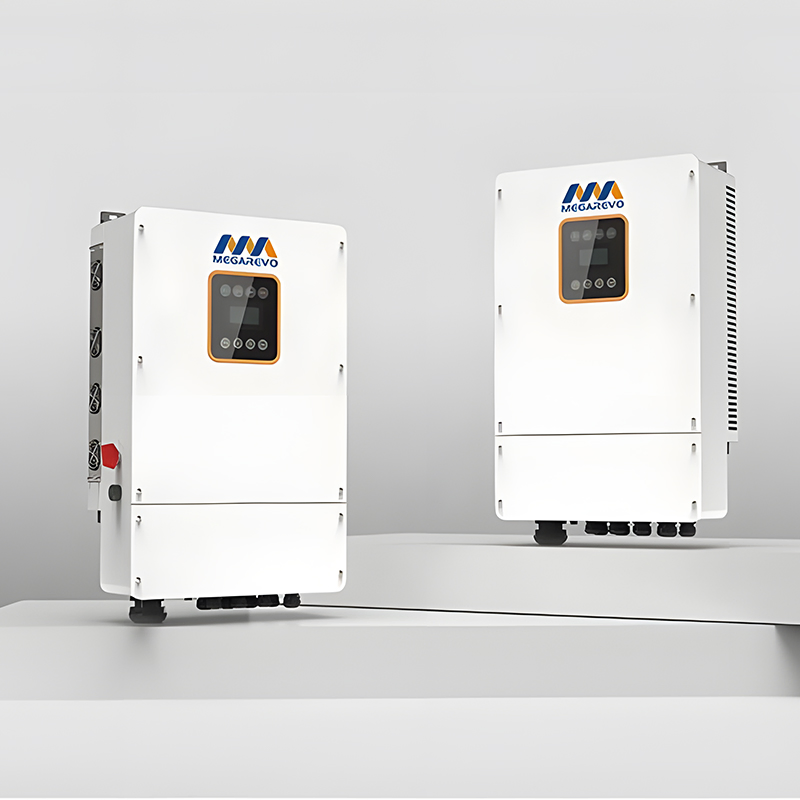

American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
1 / 5
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter
American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter

American Version Megarevo Inverter 5kw 8kw Solar Power Inverter Home Use 48V Split Phase Hybrid Inverter Battery Low Voltage 120V to 240V Hybrid Solar Inverter

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

Basic Information
Model NO.
Inverter
Nature of Source
Passive inverter
Phase
Single
Output Power
>1000W
Certification
CE, ISO9001, TUV
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Push-pull Type
Wave String
Sine Wave Inverter
Protection Degree
IP65
AC Input Voltage
230 VAC
Efficiency
99%
Cooling
Forced Air
Display
LCD Display
Interface
RS485 / WiFi / Can / DRM
Dimensions
460*225*760 mm
Product Description

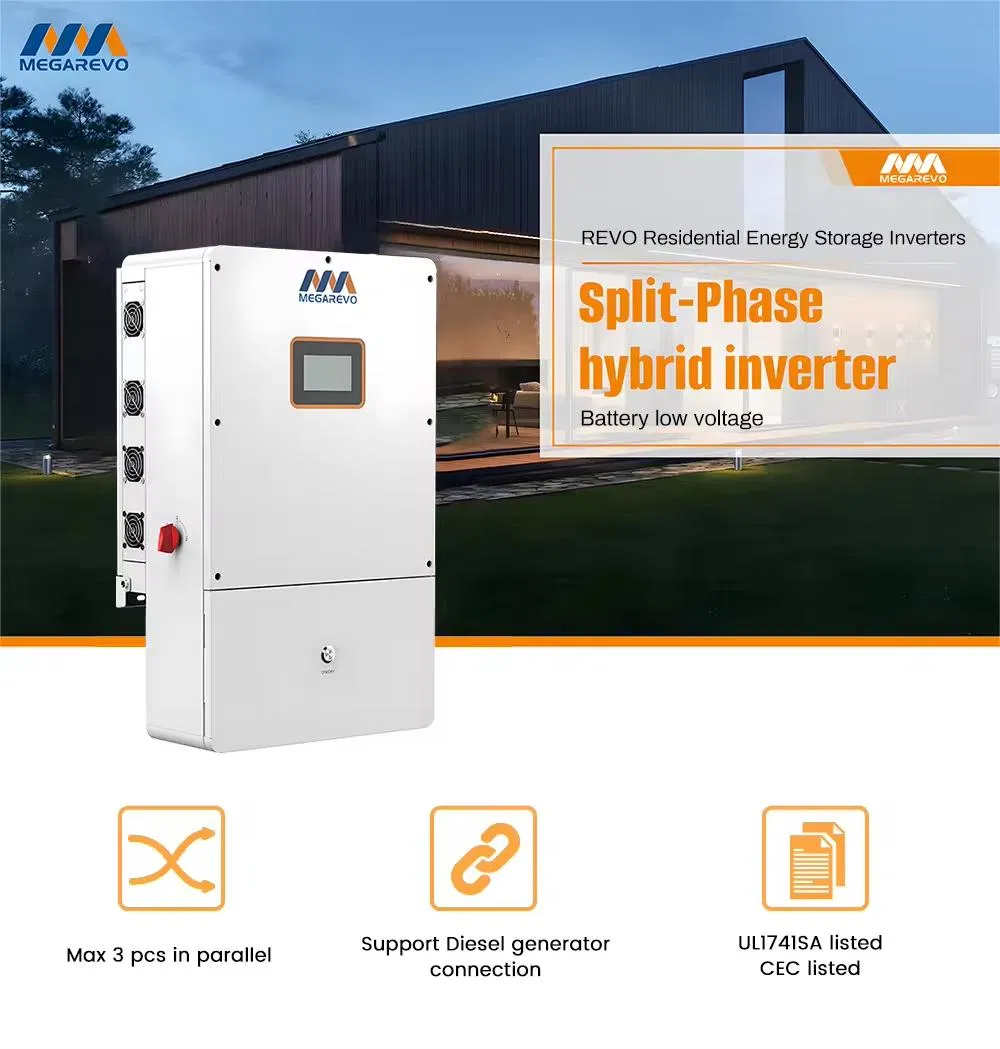

Solar Power Inverter
Technical Specifications
PV String Input
ModelR5KLNAR6KLNAR8KLNAR10KLNA
Max. Power (kW)7.591213
MPPT Voltage (V)120 ~ 500
AC Output
Rated Power (KVA)56810
Rated Current (A)20.82533.341.7
Voltage (V)120/240 (Split Phase)
Battery & EPS
Battery Range40 ~ 58 V
Battery TypeLithium / Lead-acid
EPS Rated Power56610
Project Case & Details

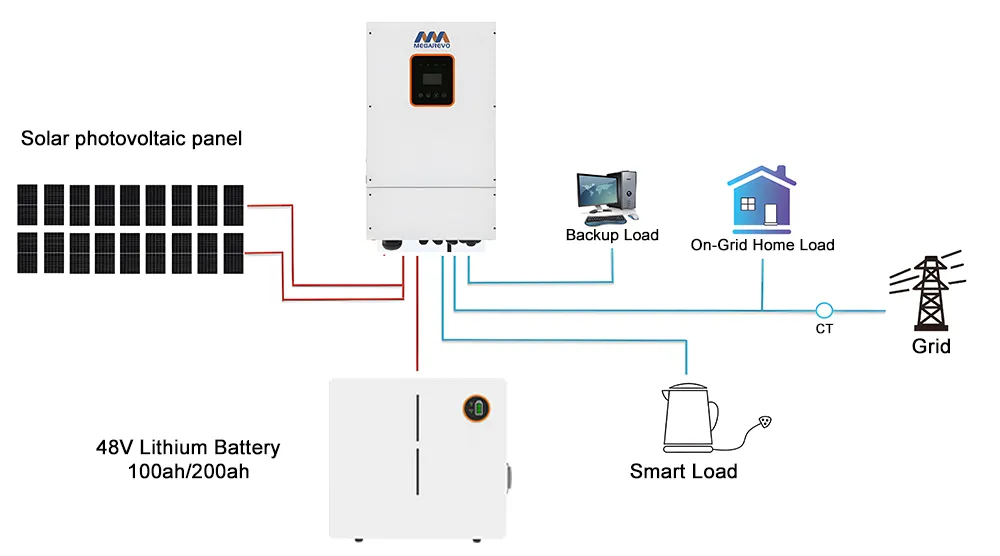

Project Case

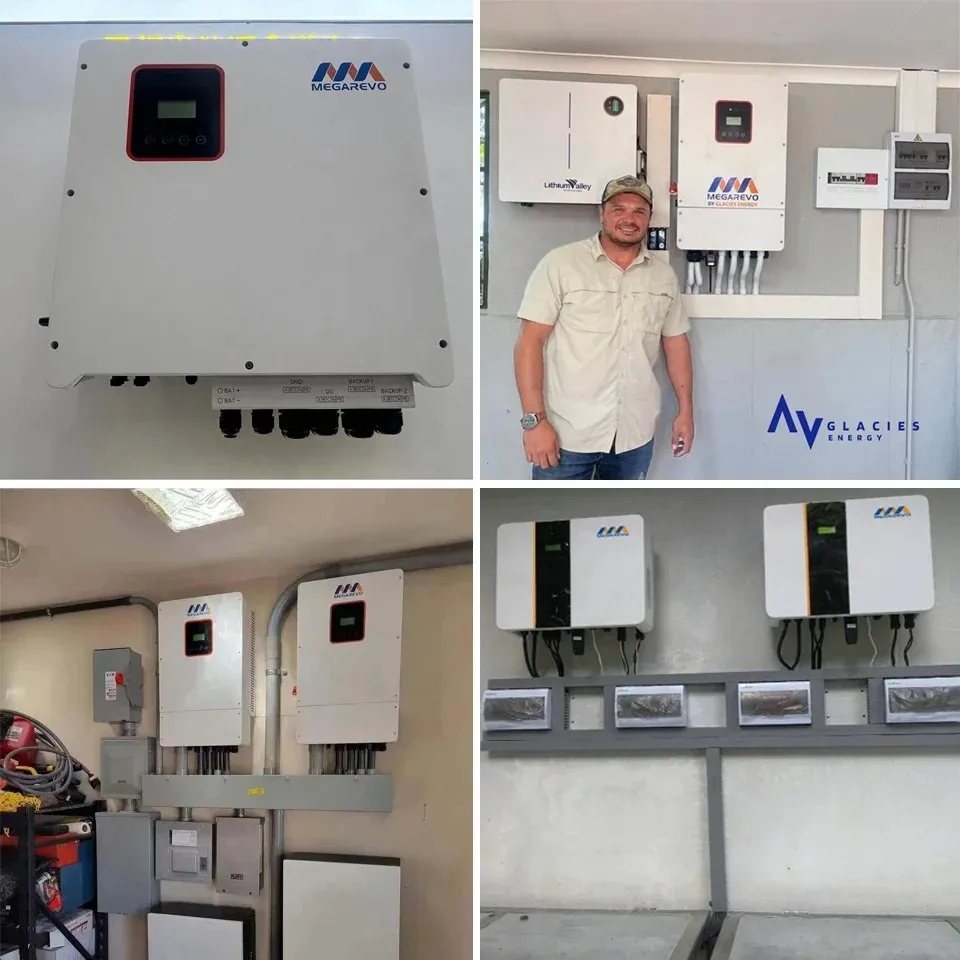

Installation

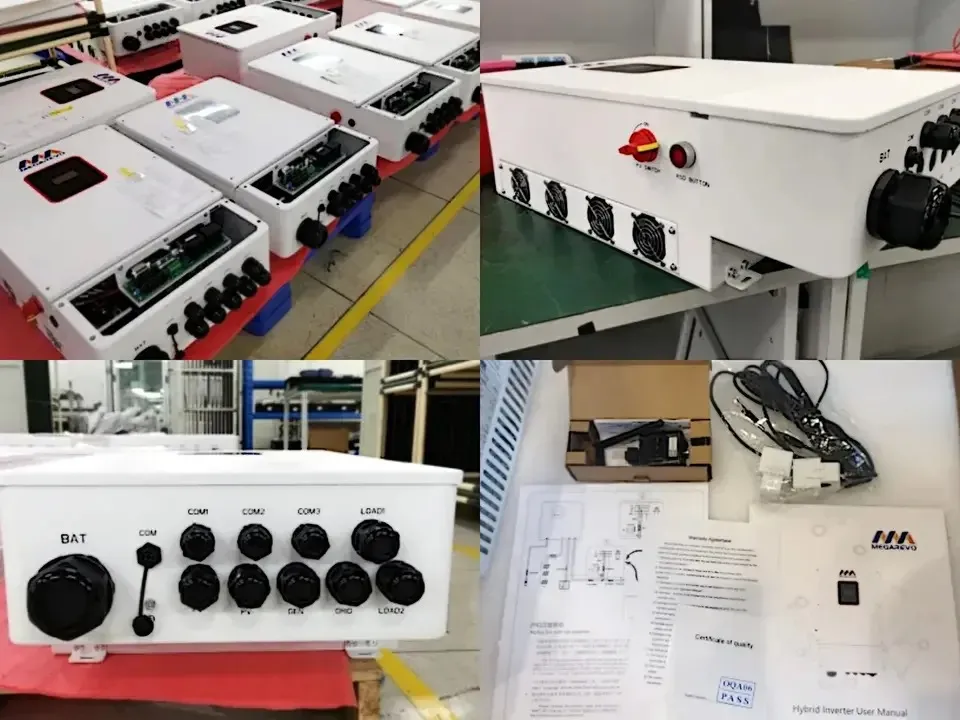

Product Detail
Packaging & Delivery
Package Size
47.00cm * 23.00cm * 80.00cm
Gross Weight
42.000kg
Packaging 1
Packaging 2
Frequently Asked Questions
What if I don't have import experience?
We have reliable forwarder agents which can ship items to you by sea/air/Express to your doorstep. We will help you choose the most suitable shipping service.
How long is the warranty of your products?
The warranty for off-grid inverters is 3 years, and for on-grid and hybrid inverters, it is 5 years.
What is your lead time for mass production?
Typical delivery time is around 7 to 25 days depending on the order volume.
Is the inverter compatible with lithium batteries?
Yes, the system supports both lithium and lead-acid battery types with a voltage range of 40-58V.
What is the protection rating of the inverter?
The inverter features an IP65/Type 3R ingress protection rating, making it suitable for various environmental conditions.
Does it support remote monitoring?
Yes, it features RS485, WiFi, and GPRS communication interfaces for efficient remote monitoring and management.
