Product Description

Overview - Basic Info.
Model NO.
OLU3024VMII
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ISO9001, CCC
Type
DC/AC Inverters
Power Source
Solar Power
Nature of Wave
Sine Wave Inverter
IP Rating
IP20
Nominal Current
80A
Battery Voltage
40-60V
Working Temp
-15 -60 Degrees
Specification
590*380*200mm
Product Features
  • Pure sine wave output inverter
  • LCD Configurable battery charge current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Auto restart while AC is recovering
  • Overload, over temperature, short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function
  • Integrated MPPT controller
Hybrid Solar Inverter
Home Energy Storage
Interface Diagram
Dimensions
Product Parameters
Model type OLU3024GII OLU3048GII OLU3548GII OLU5048GII
Rated power 3KVA/3KW 3KVA/3KW 3.5KVA/3.5KW 5KVA/5KW
Battery voltage 24VDC 48VDC
PV Input
Max. PV input power 3.5KW 4KW 4.5KW
MPPT Voltage range 120VDC~430VDC
AC Output (On/Off Grid)
Rated output voltage Single phase 220/230/240VAC
Output wave Pure sine wave
Max. efficiency 93% - 95%
Certifications
Certification Documents

We get CE certificate, UN38.3 Test report, and safety transport approval.

Production & Quality Control
Factory Overview
Workshop
Testing

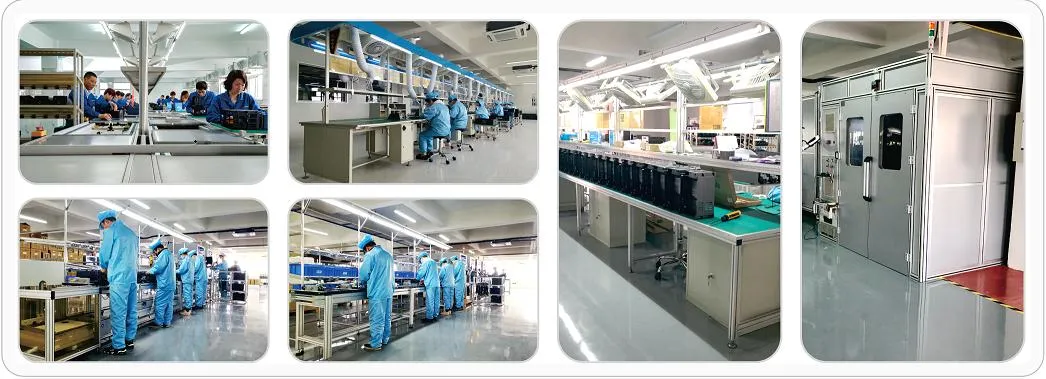

Production Line
Packaging & Shipping
Packing 1
Packing 2
Packing 3
Global Exhibition
Exhibition 1
Exhibition 2
Exhibition 3
Frequently Asked Questions
1. Are you a factory?
Yes, we are a professional factory producing solar inverters and storage batteries for more than 13 years in China.
2. How to select the right model?
Before purchasing, please contact us to confirm the model number and specifications to ensure it meets your requirements.
3. What are your shipping methods?
We normally ship goods by sea, express (DHL/UPS/FEDEX/EMS), and air. We also accept customer-appointed forwarders.
4. Can I request a sample for testing?
Yes, charged samples are available for testing and quality evaluation.
5. Do you offer OEM or ODM services?
Yes, we have a dedicated R&D department and accept both OEM and ODM service requests.
6. What is your warranty policy?
We provide an 18-month warranty along with technical support to help solve any operational problems.
