Home Energy Storage System Low Voltage 51.2V 280ah 15kwh Lithium-Ion LiFePO4 Battery

Customization: Available
Nominal Voltage: 51.2V
Warranty: 1 Year

Product Description

Basic Information
Model NO.M16S280BL-F
Nominal Capacity14.3kwh
Cycle Life>6000 cycles
Product NamePortable Battery Integrated Machine
TypeLiFePO4 Battery
Rated Voltage51.2V
Standard Charge Current50A
Battery Capacity280ah
Net Weight124.2kg
Discharge Temperature-10℃~+65℃
Specification580*280*800mm
OriginChina
Production Capacity5000 Pieces/Month
Packaging & Delivery
Package Size70.00cm * 50.00cm * 90.00cm
Package Gross Weight142.700kg
Product Description

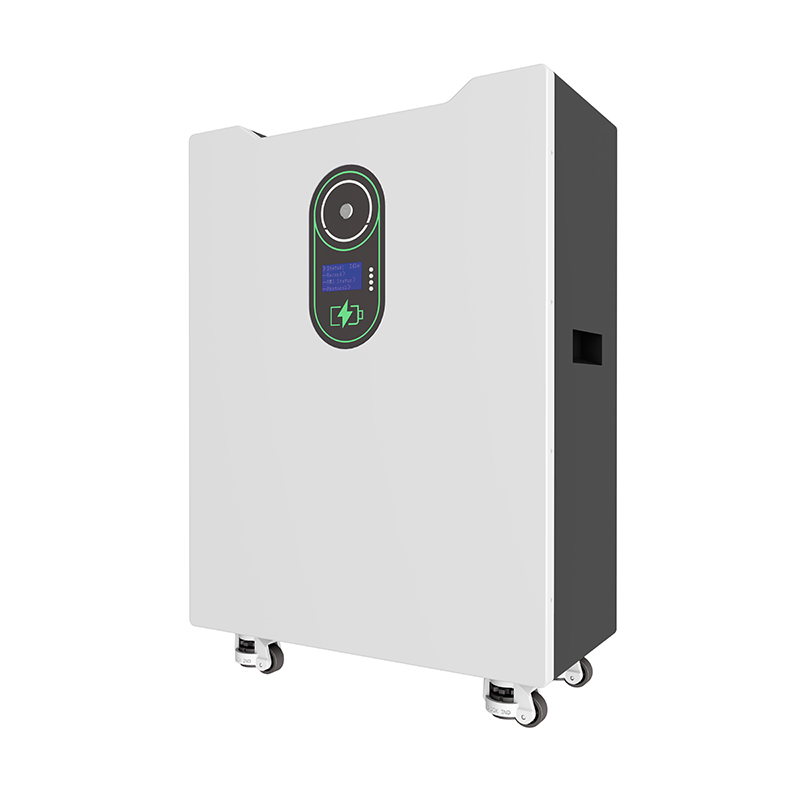

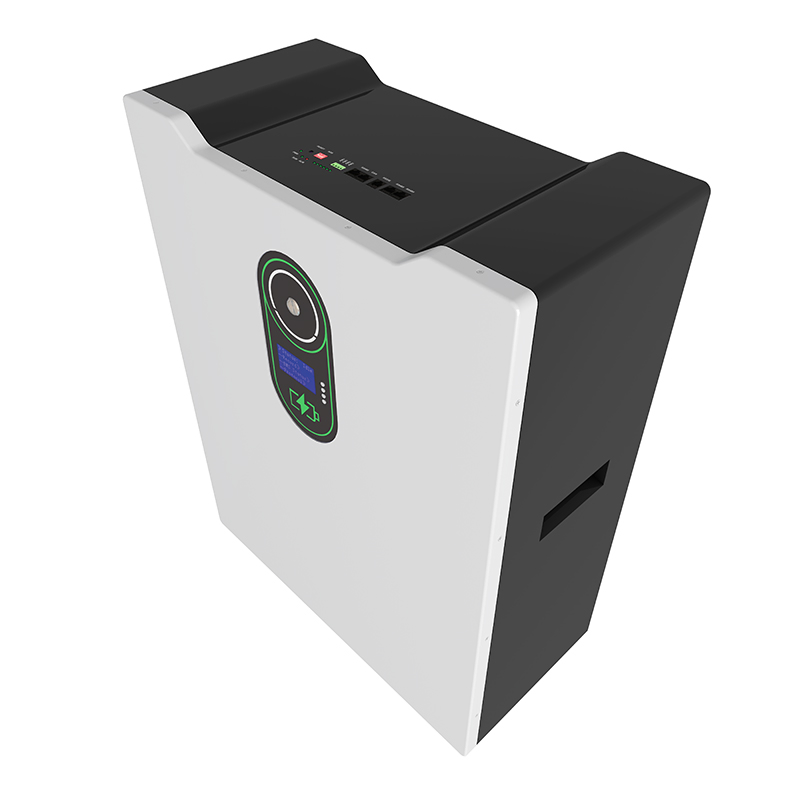

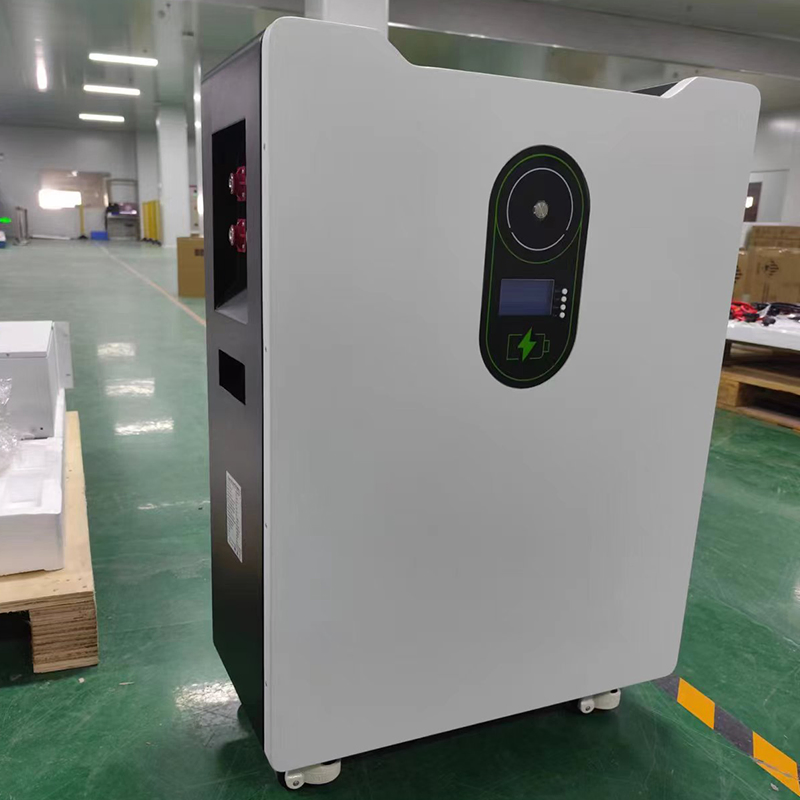

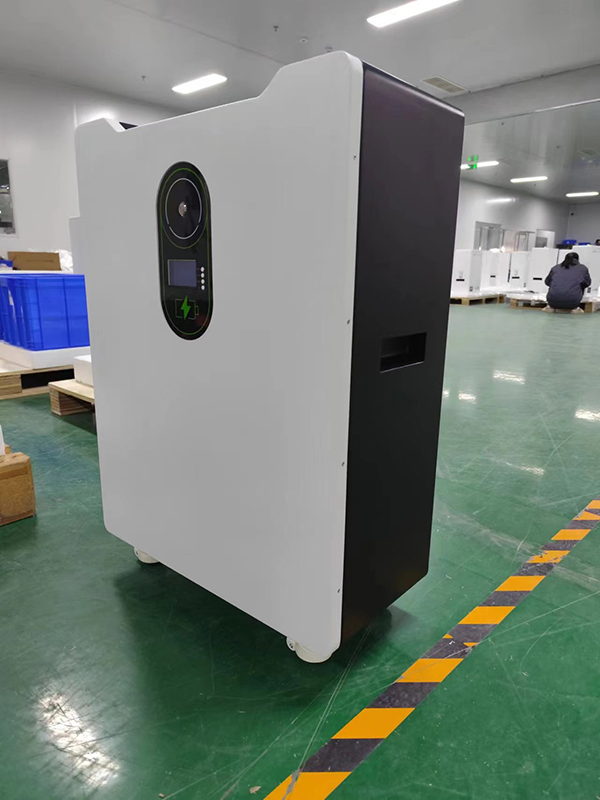

Home Energy Storage System Low Voltage 51.2V 280Ah 15Kwh Lithium-Ion Lifepo4 Battery

Original Grade A lithium iron phosphate battery cell has high safety and reliability
The charging and discharging efficiency is high, and the number of cycles is more than 6000 times
Compatible with most inverters on the market
Supporting RS485 and CAN communication
Modular design, can be expanded at any time to increase system energy
Supporting up to 15 batteries in parallel
ON/OFF switch control output
The LCD display monitors the operating status in real time

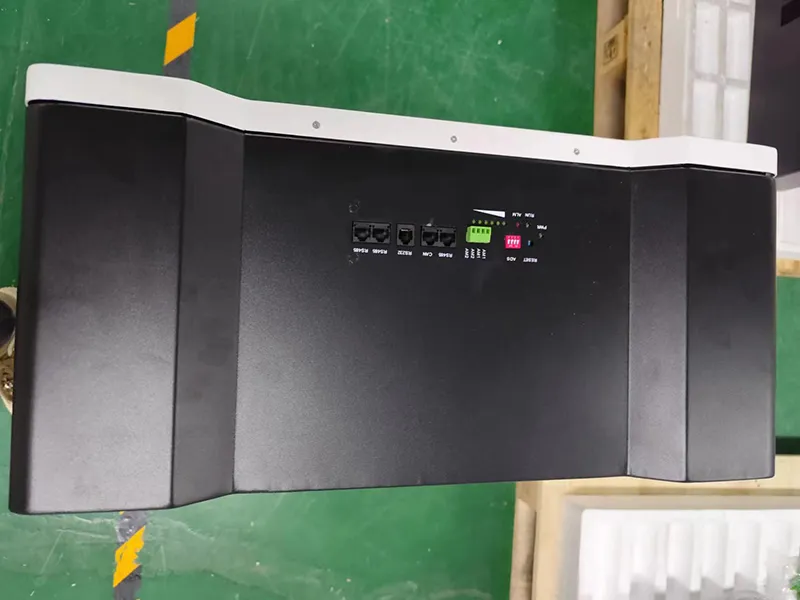

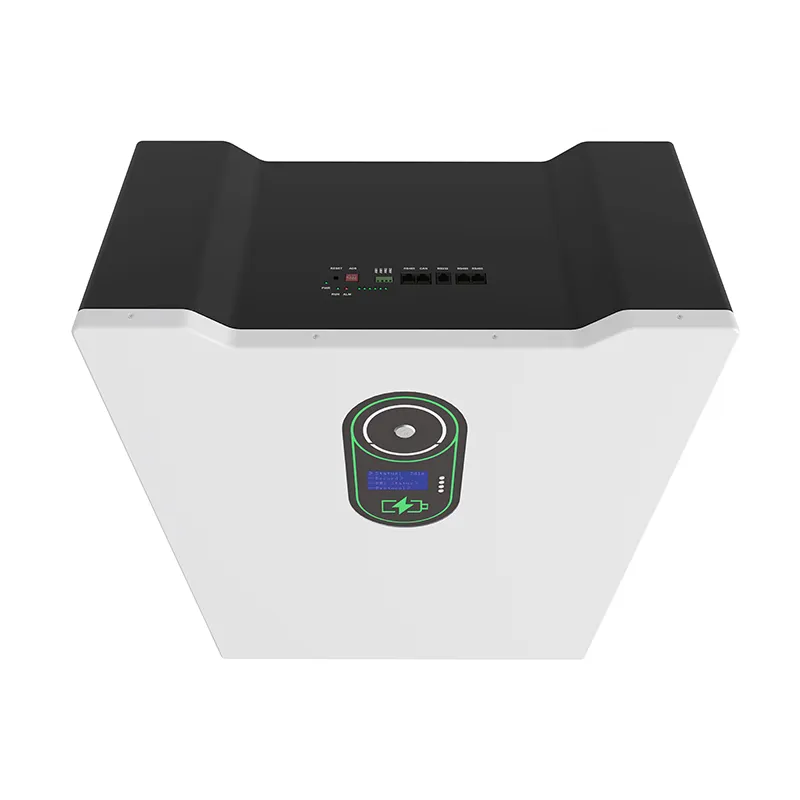

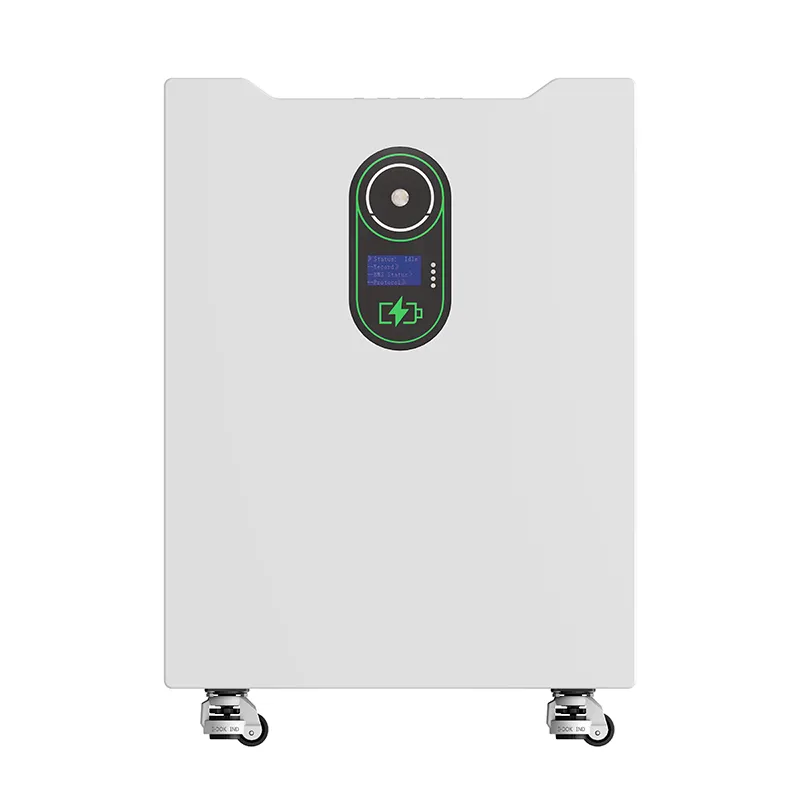

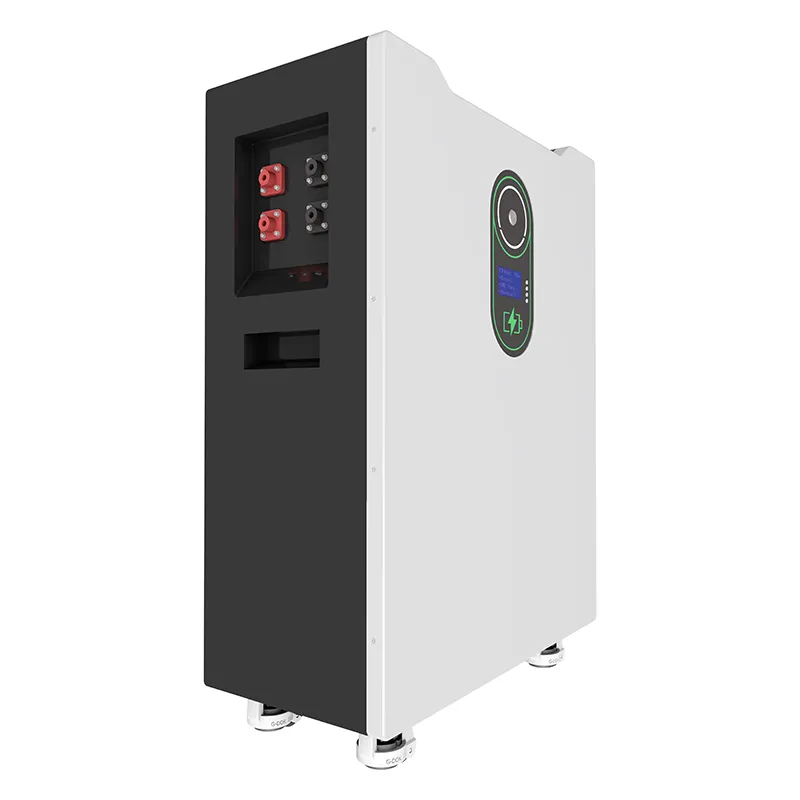

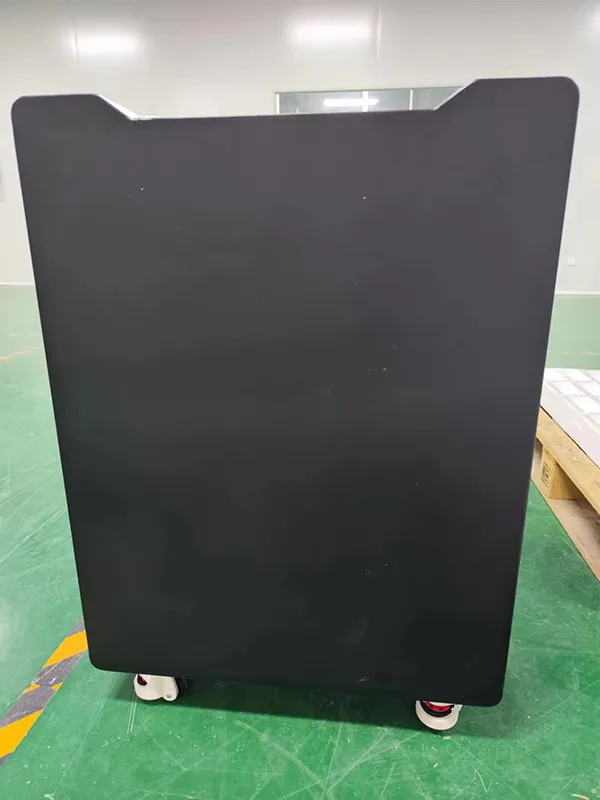

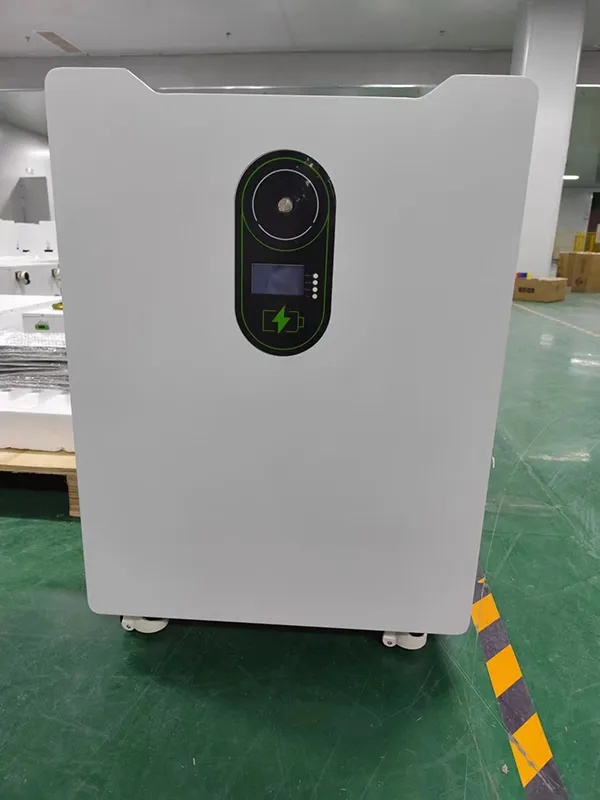

Detailed Photos
Product Parameters
Product ModelM16S280BL-F
Cells In Series16S
Rated Energy (kWh)14.3
Rated Voltage (V)51.2
Charging Voltage (V)58.4
Discharge Cut-off Voltage (V)42
Standard Charge Current (A)50
Maximum Charging Current (A)100
Maximum Discharge Current (A)100
Cycle Life≥ 6000 times @ 80% DOD, 25 ºC
Methods Of CommunicationRS232/RS485/CAN
IP ProtectionIP21

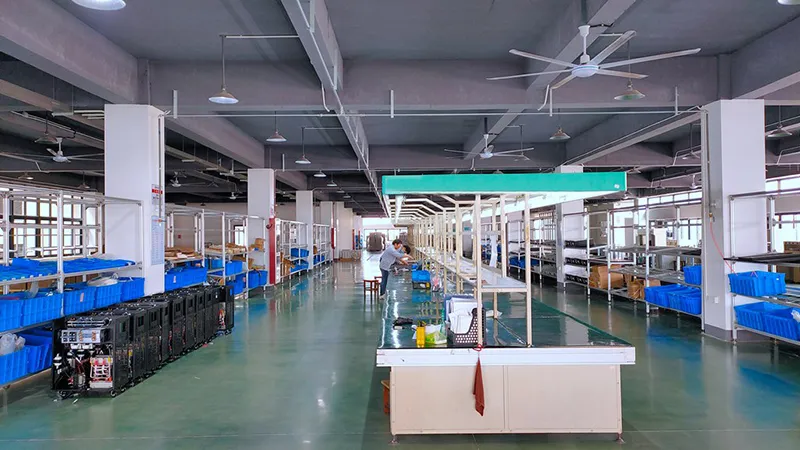

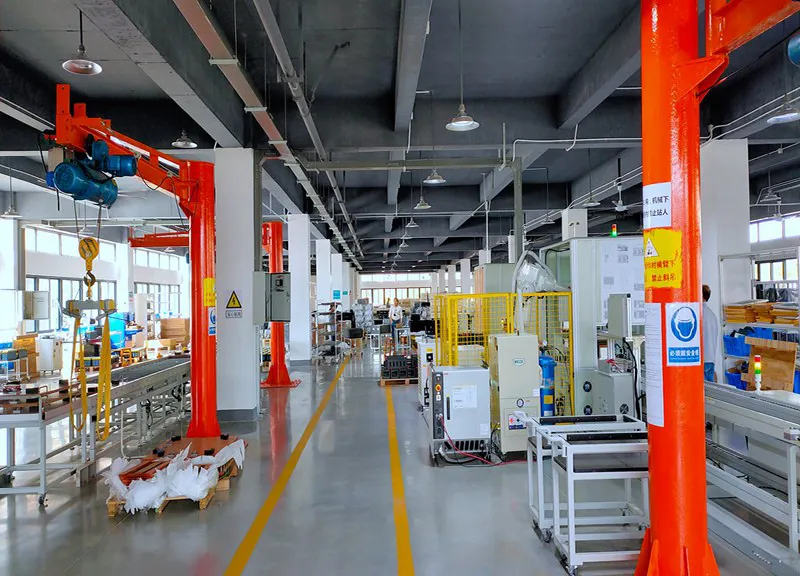

Facility & Certifications
Frequently Asked Questions
1. Are you a factory or a trading company? As a professional manufacturer, our company was established in 2010 and has been engaged in photovoltaic solar panels, inverters, and power systems for many years.
2. What is your advantage in photovoltaic products? We can supply both solar panels and turnkey solutions for solar systems, including a 25-year warranty for solar panels.
3. What are the payment terms? We accept payment via T/T, L/C, Credit Card, and other standard methods.
4. How can you guarantee product quality? We always provide a pre-production sample before mass production and conduct a final inspection before every shipment.
5. Do you provide after-sales service? Yes, we provide a 6-year warranty. If any quality problems occur on our side during this period, we will provide a new one as a replacement.
6. Is the battery compatible with standard inverters? Yes, our LiFePO4 battery systems are designed to be compatible with most major inverter brands available on the market.
