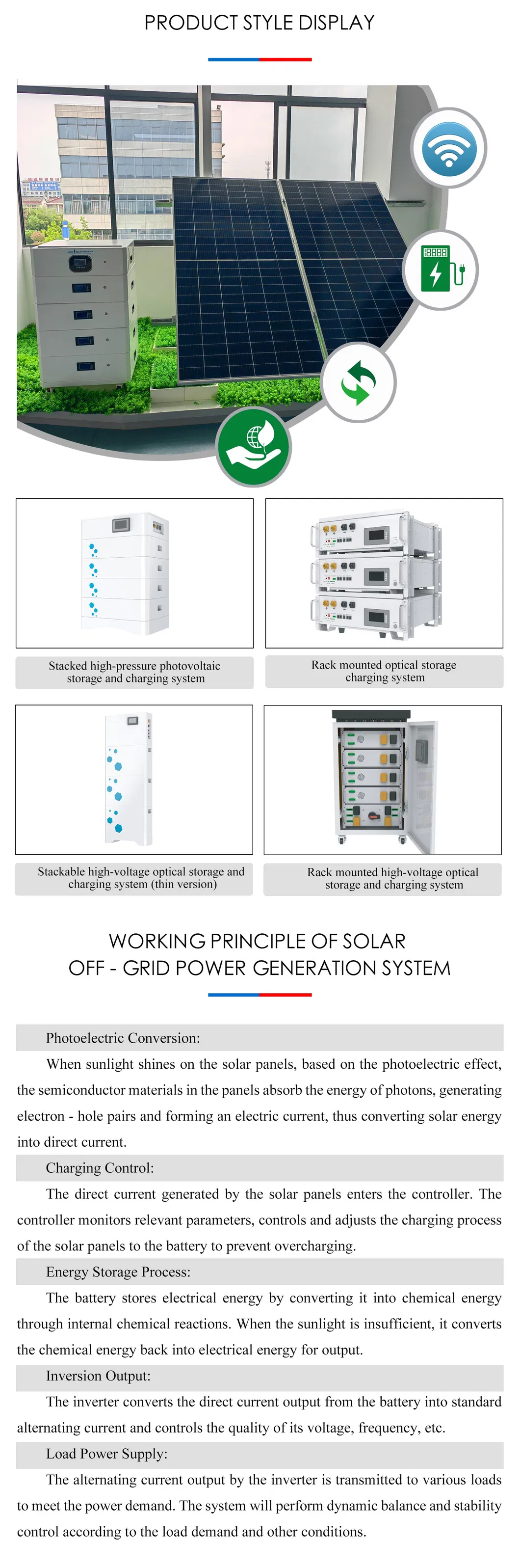

When sunlight irradiates solar panels, based on the photovoltaic effect, semiconductor materials in the panels absorb photon energy, generating electron-hole pairs that form an electric current. This process converts solar energy into direct current (DC).
The DC power generated by the solar panels enters a controller, which monitors parameters and adjusts the charging process from the panels to the battery. This ensures safe charging and prevents overcharging.
The battery stores electrical energy through internal chemical reactions. When sunlight is insufficient, it reverses the process, converting chemical energy back into electrical energy.
An inverter transforms the DC power from the battery into standard alternating current (AC), regulating voltage and frequency to meet grid-standard requirements.
The AC power is transmitted to various electrical loads. The system dynamically balances and stabilizes the power supply according to real-time load requirements.

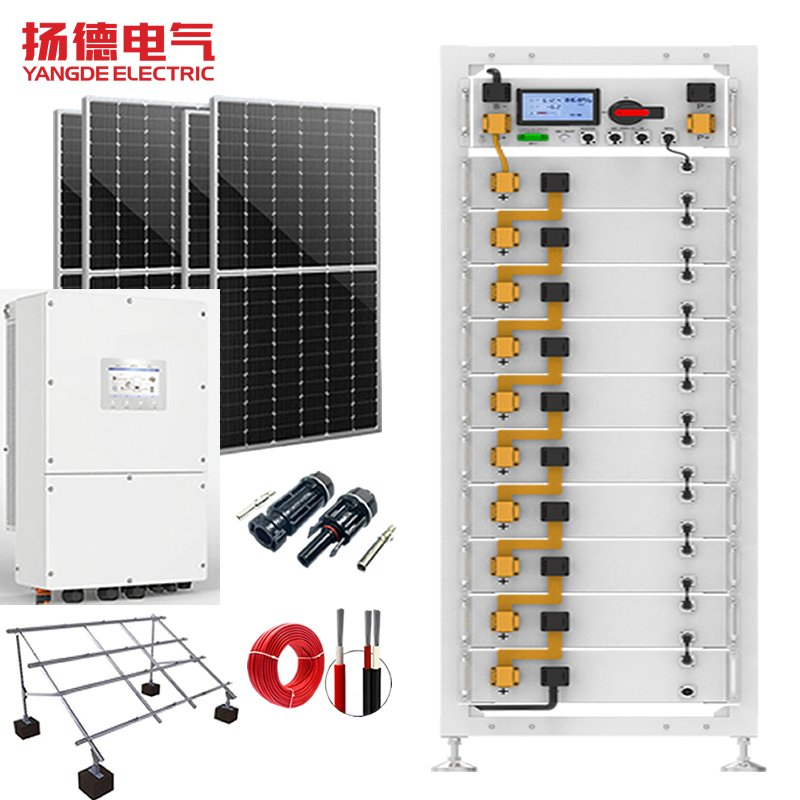

| MODEL | OMS-51K (512V100AH) |
| Nominal Voltage | 512V |
| Nominal Capacity | 100AH |
| Dimension RACK(mm) | 560*510*1780 |
| Weight(kg) | 520 |
| SPECIFICATIONS | PARAMETER |
| Nominal Capacity (KWH) | 51.2 |
| Discharge Cut-Off Voltage (V) | 440 |
| Max. Charge/Discharge Current | 100A |
| Communication | RS485/RS232/CAN |
| Design Life | 15 years+ |
| Cycle Life | >6000 times (80% DOD) |
Type: Mono N-Type
Dimensions: 2382*1134*30mm
Pmax: 625W
Vmpp: 41.4V

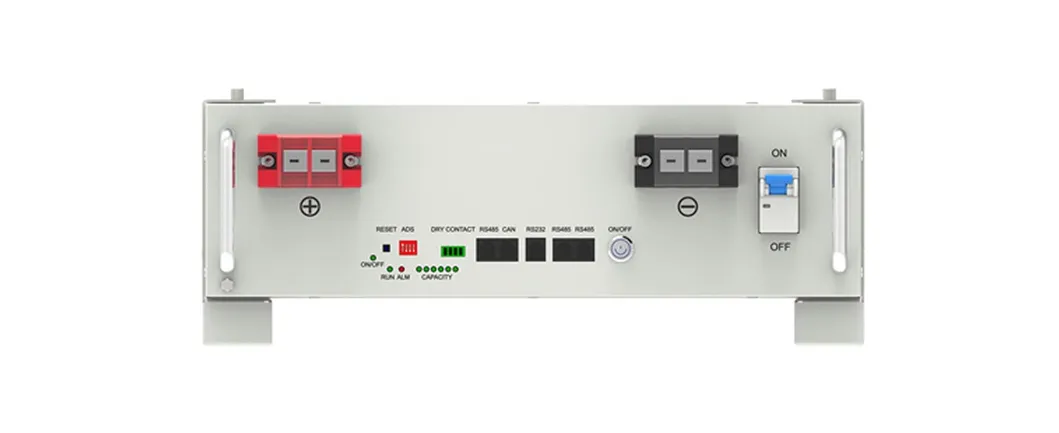

Model: 51.2V100AH
Life cycle: 6000
Design life: >10 years
Safety: CE, TüV, UN38.3

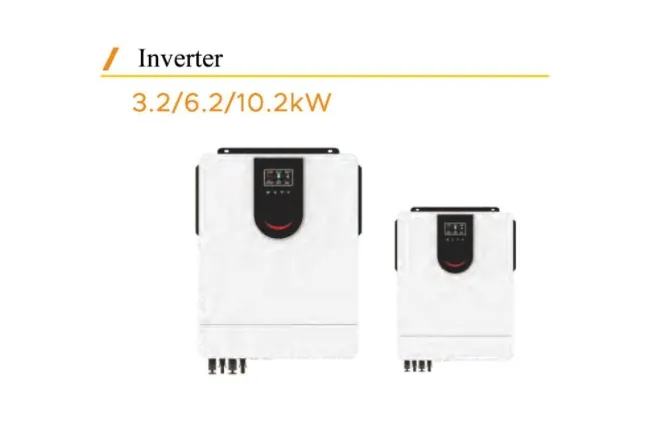

Hybrid Storage Inverter: 10KW/48V, IP65 protection, Intelligent air cooling.

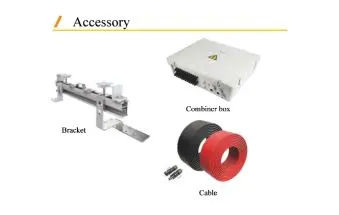

Auxiliary Materials: 20KW Distribution box, PV cables, MC4 connectors.
