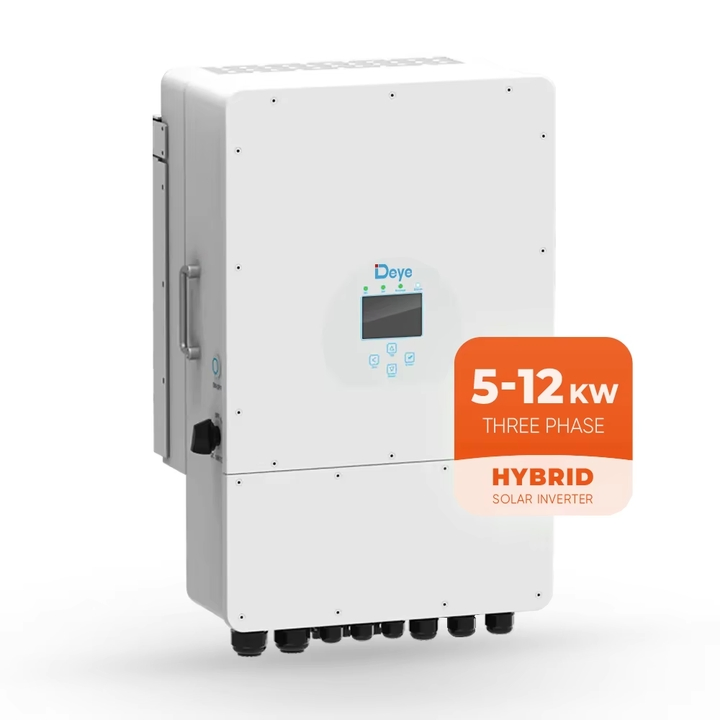

High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
1 / 5
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System
High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System

High Efficiency Deye 5kW 6kW 8kW 10kW 12kW Three Phase Hybrid Solar Inverter with 48V Low Voltage Battery for Energy Storage System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
Deye SUN
Phase
Three
Output Power
＜50W
Certification
CE, IEC
Type
DC/AC Inverters
Power Source
Solar Power
Rated Power
10000W
Battery Voltage
48V DC
Protection
IP65
Max. PV Voltage
800V
Product Description
Deye Hybrid Inverter
Inverter Features

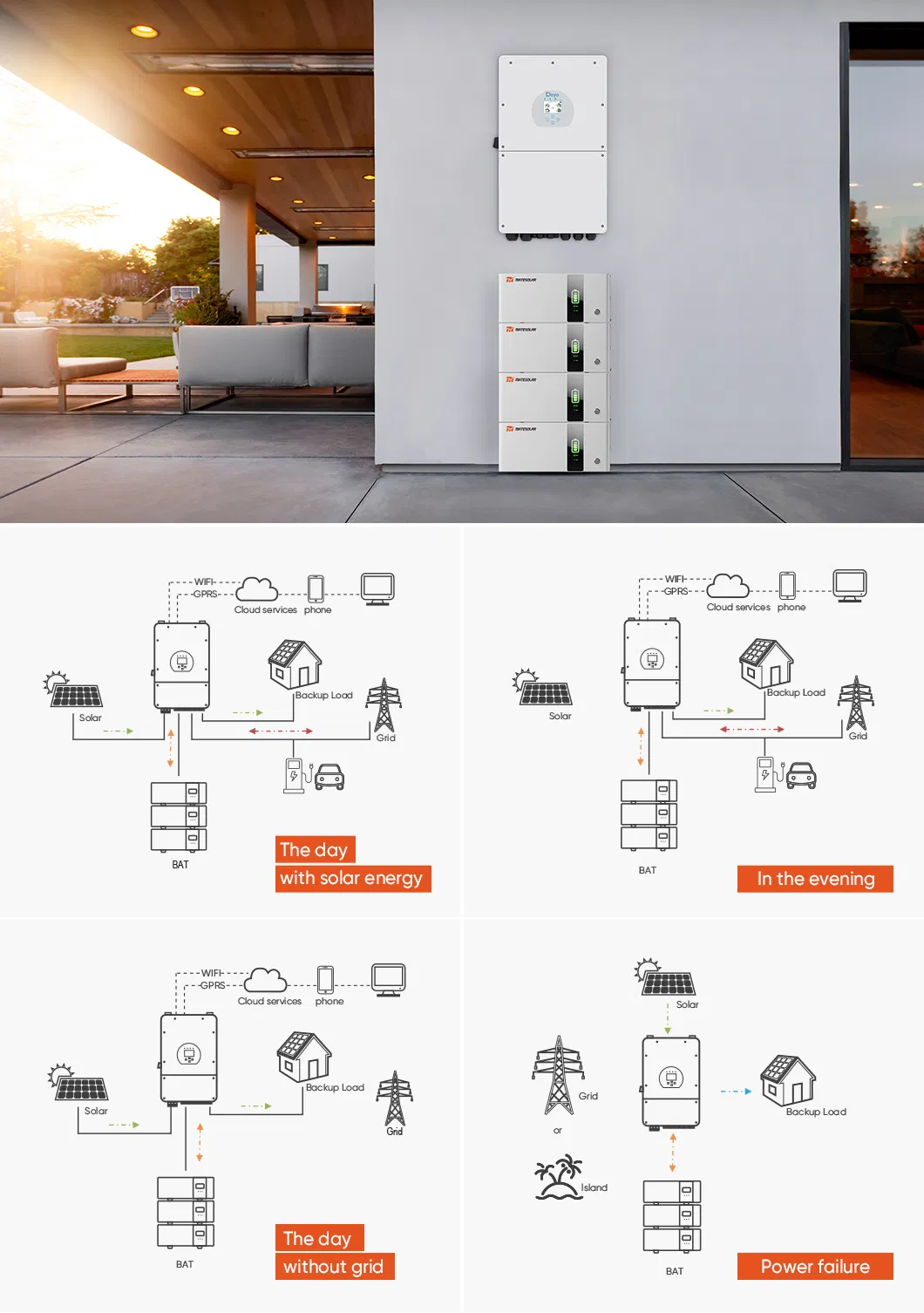

Technical Layout
Model SUN-8K-SG04LP3 SUN-10K-SG04LP3 SUN-12K-SG04LP3
Battery Input Data
Battery TypeLead-acid or Li-lon
Max. Charging Current (A)190A210A240A
PV String Input Data
Max. DC Input Power (W)10400W13000W15600W
MPPT Range (V)200V-650V
AC Output Data
Rated AC Output (W)8000W10000W12000W
Max. Efficiency97.60%
Details & Packing

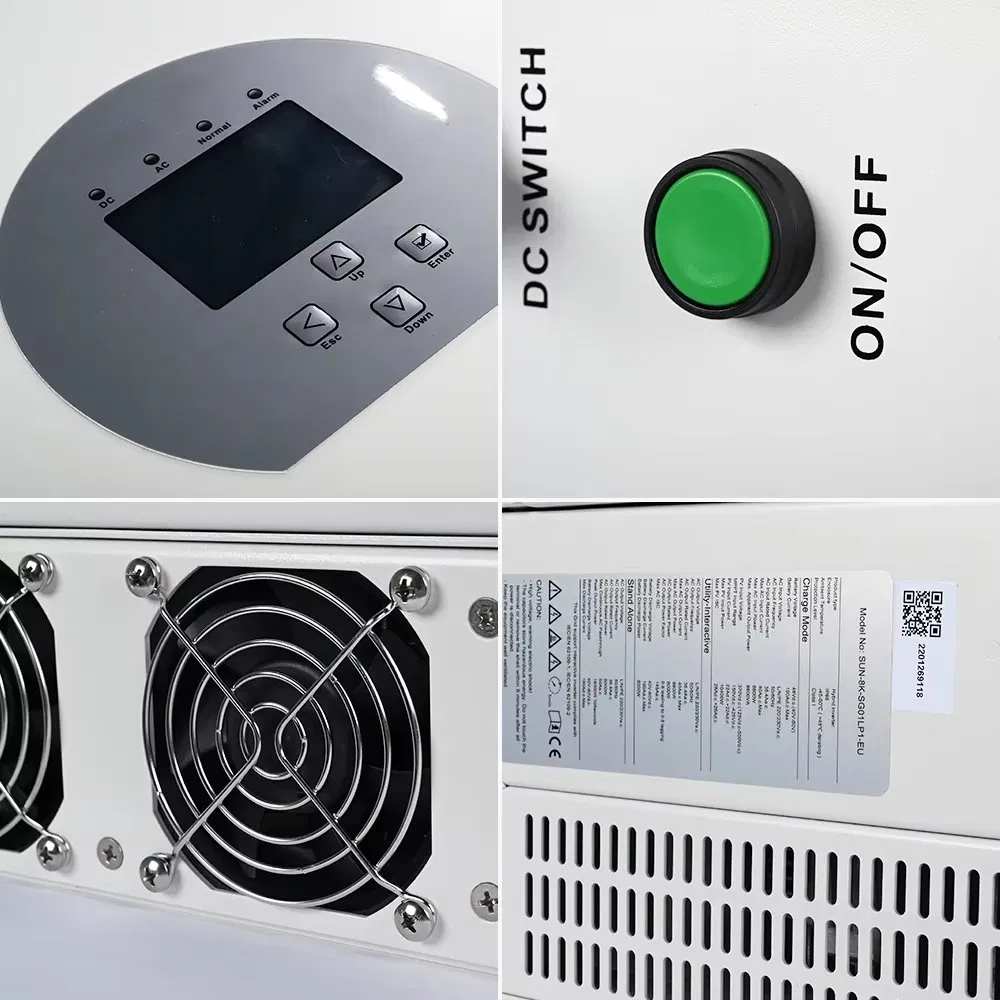

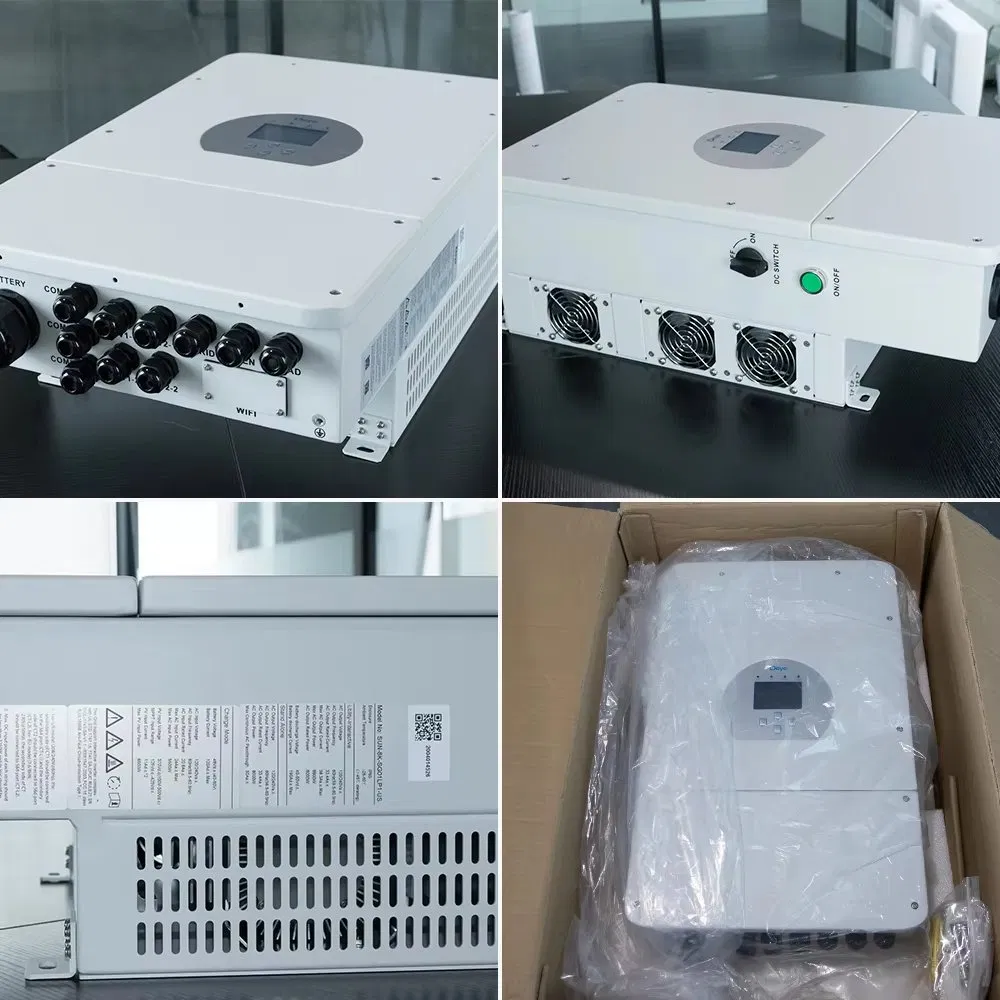

Deye Inverter Details
Deye Packaging

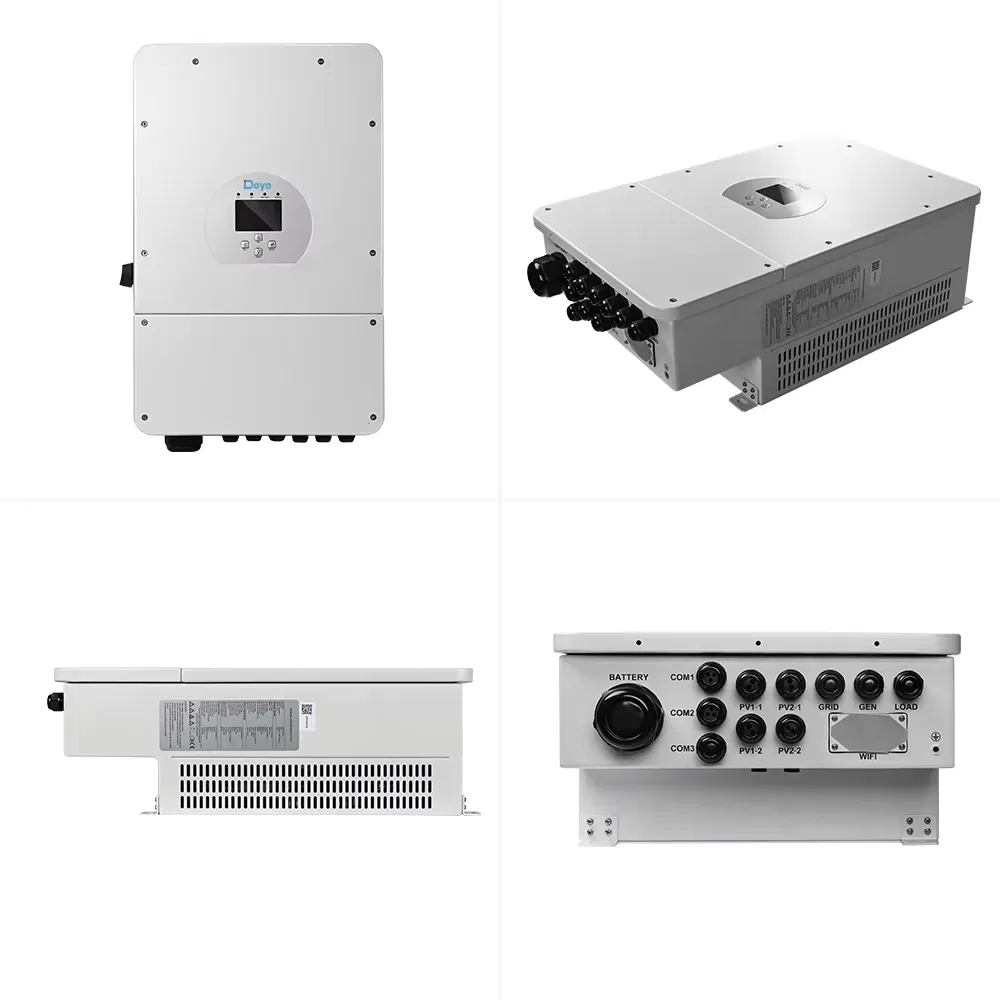

Product View
Project Cases & Factory
Solar Project 1
Solar Project 2

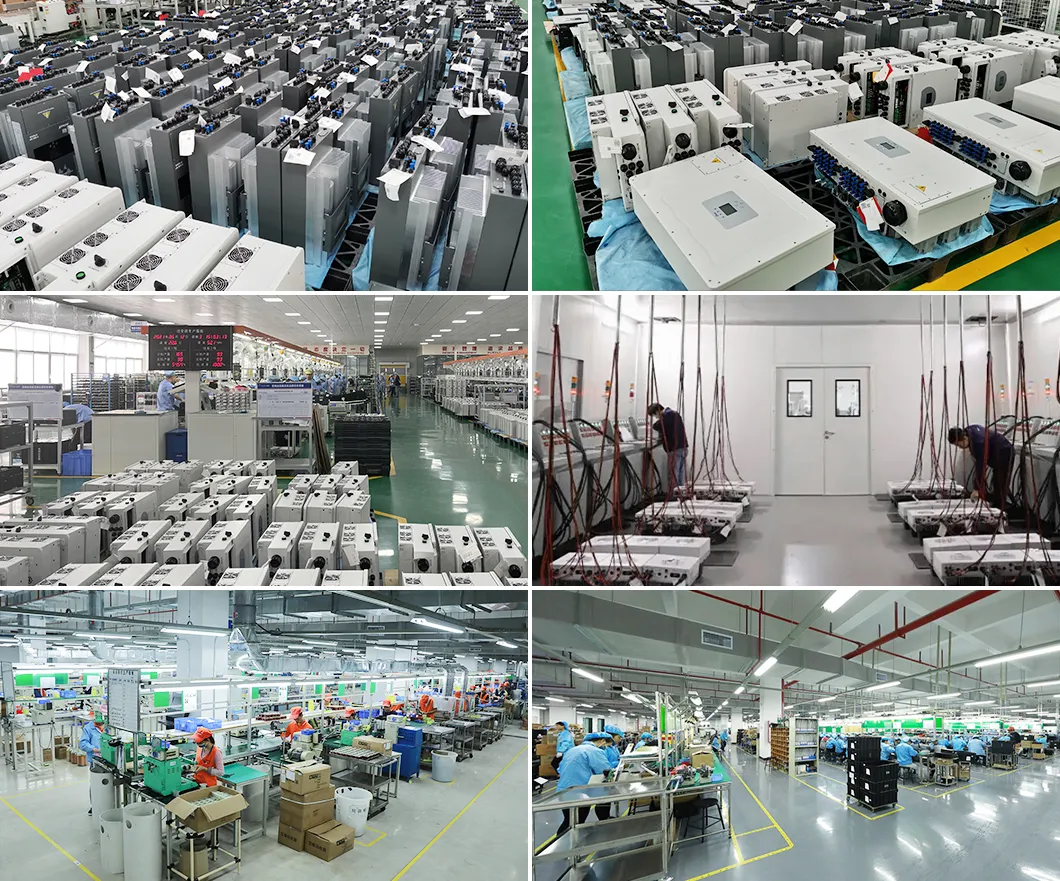

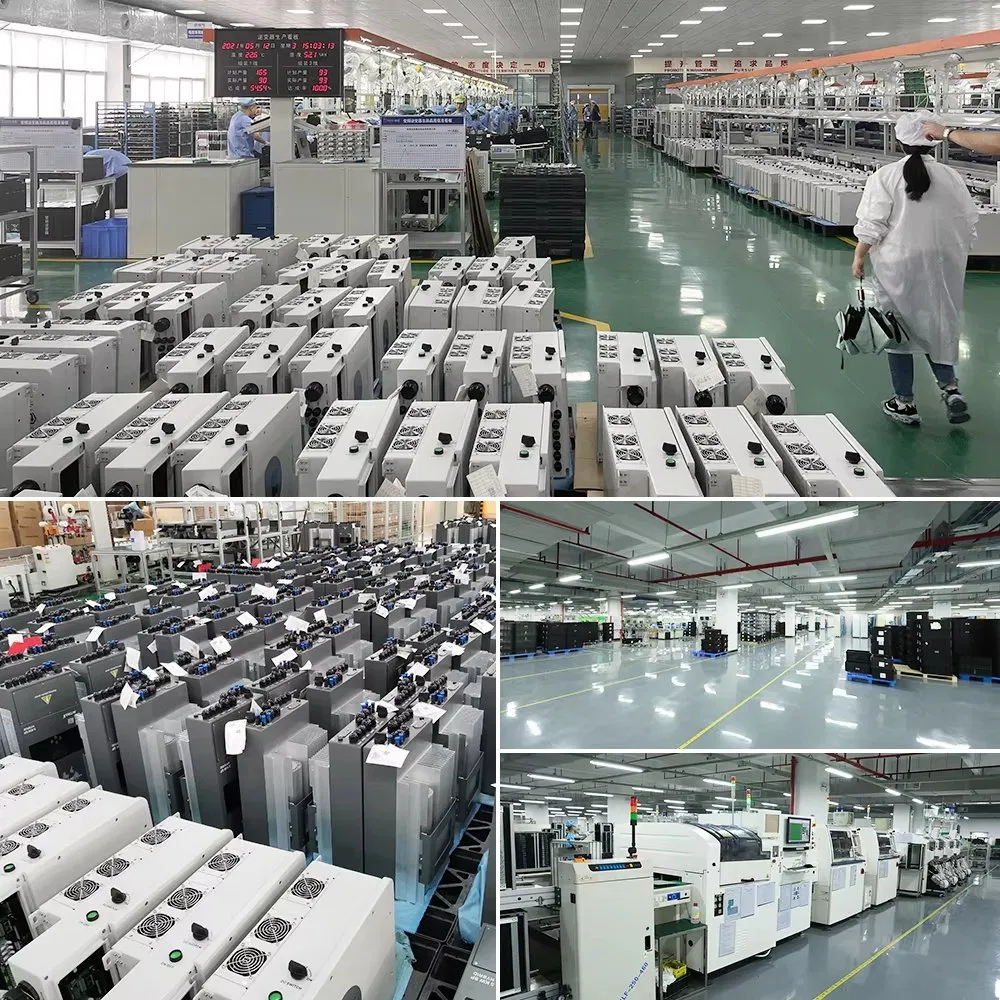

Factory Overview
Frequently Asked Questions
Q1: What is the maximum efficiency of the Deye hybrid inverter?
The Deye hybrid inverter achieves a maximum efficiency of 97.60% and an MPPT efficiency of 99.90%.
Q2: Can this inverter work with different battery types?
Yes, it is compatible with both Lead-acid and Lithium-ion batteries with a voltage range of 40V to 60V.
Q3: What is the protection rating for outdoor installation?
The inverter has an IP65 protection degree, making it suitable for both indoor and outdoor wall-mounted installation.
Q4: Does it support remote monitoring?
Yes, the system supports WiFi and RS485 communication for remote monitoring and management.
Q5: What certifications does the product hold?
The inverter is CE and IEC certified, complying with international safety and grid regulations like IEC62109 and NRS 097.
Q6: What is the warranty period for the Deye inverter?
The product comes with a standard warranty of 5 years.
