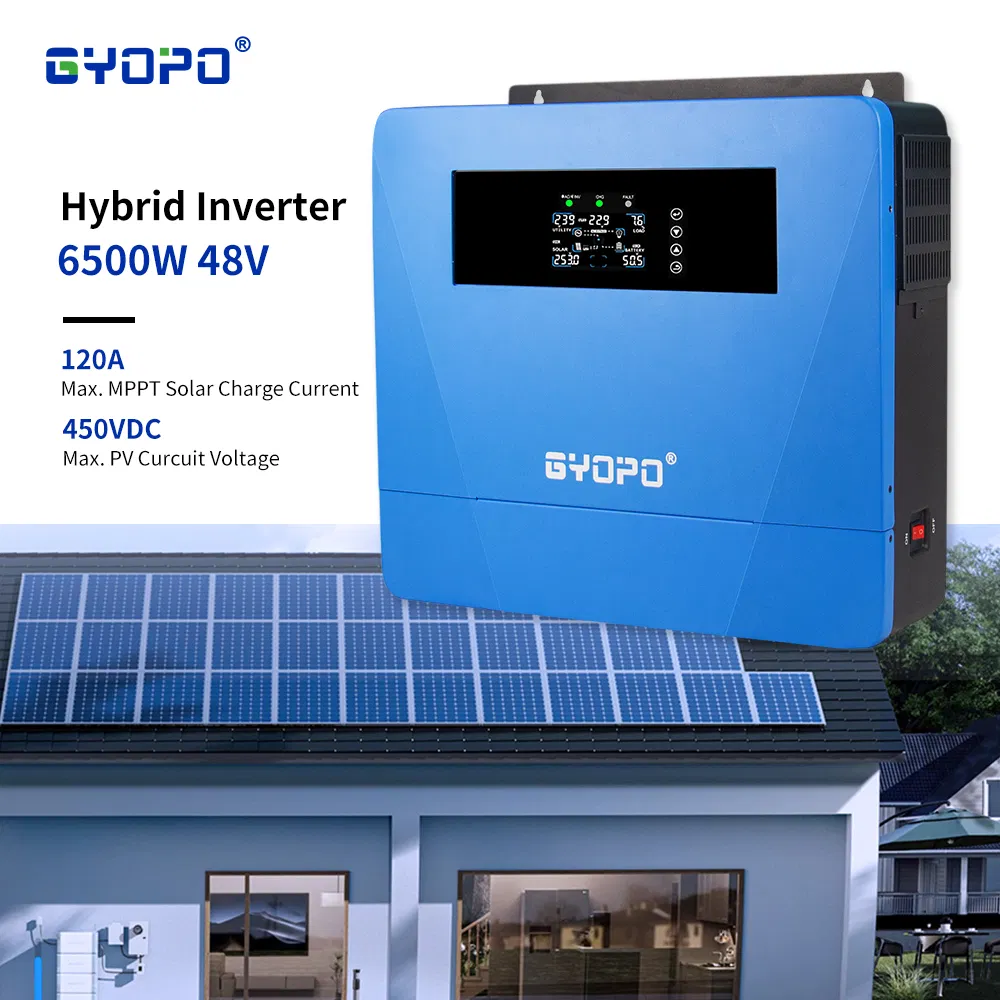

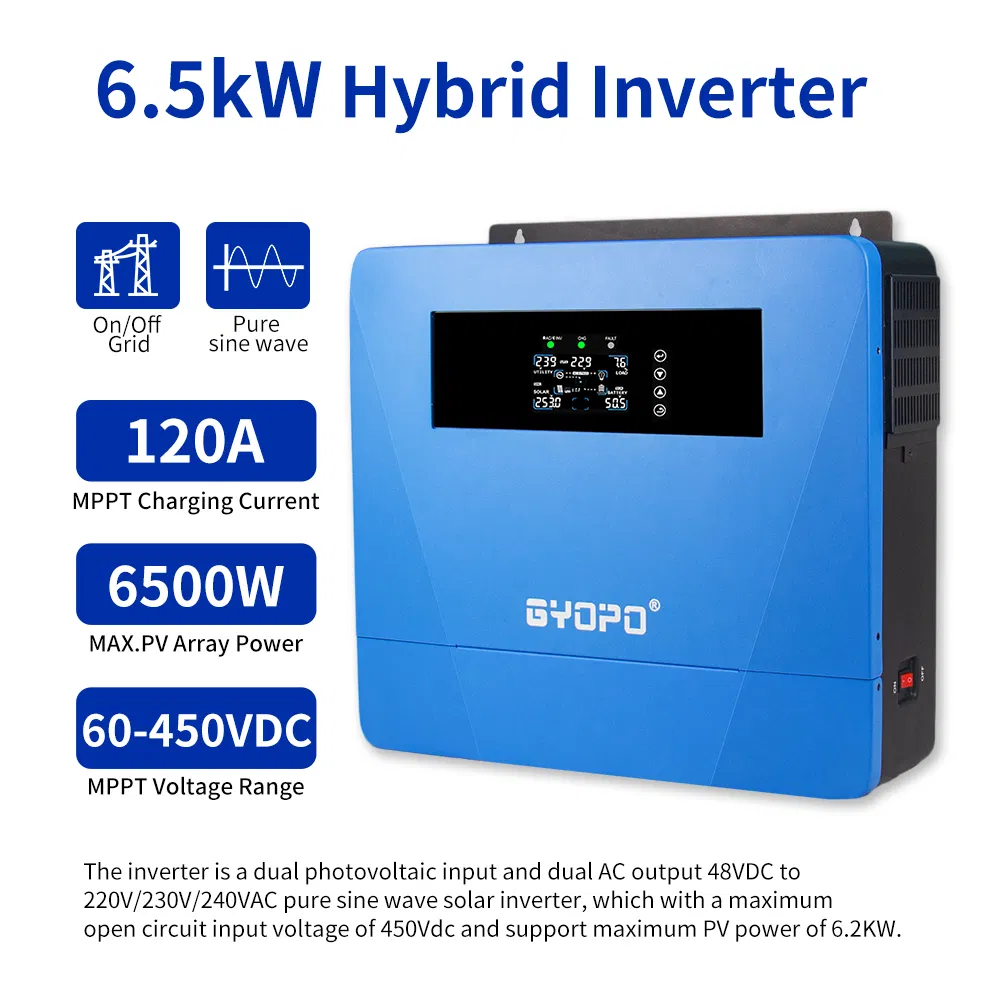

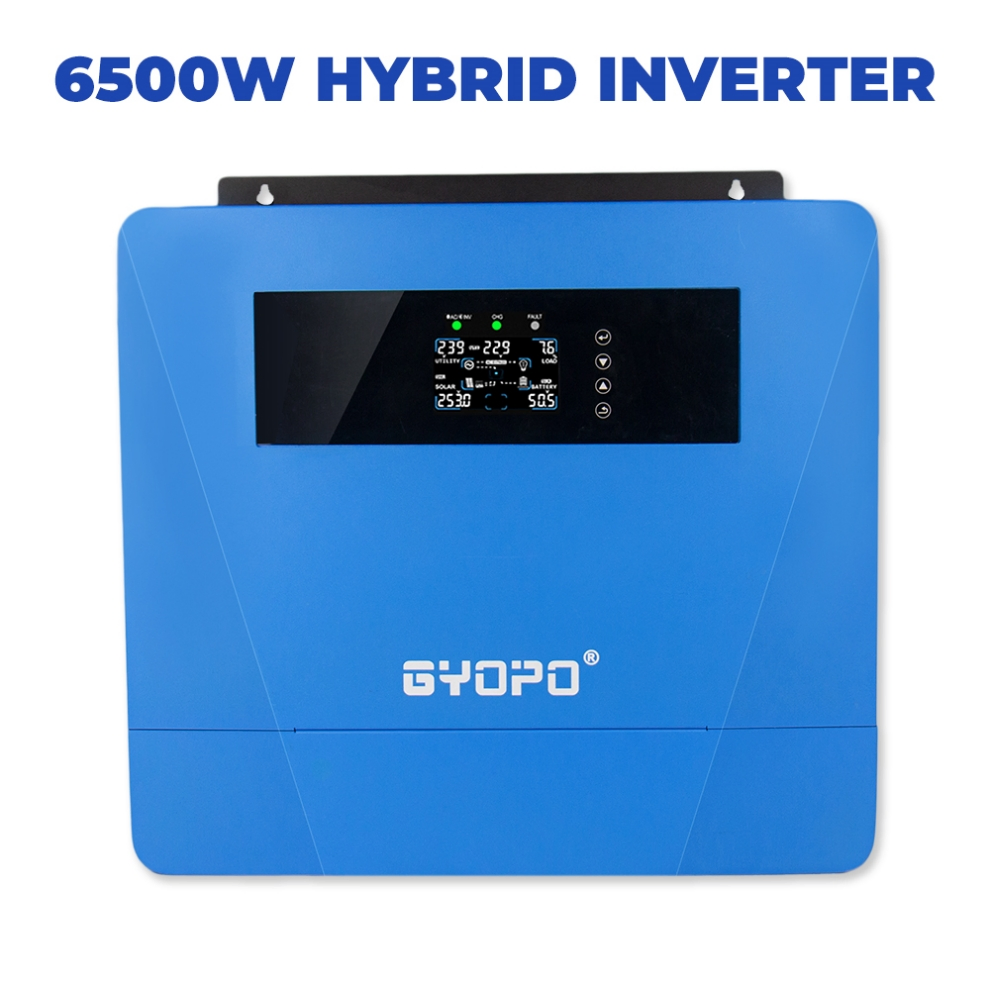

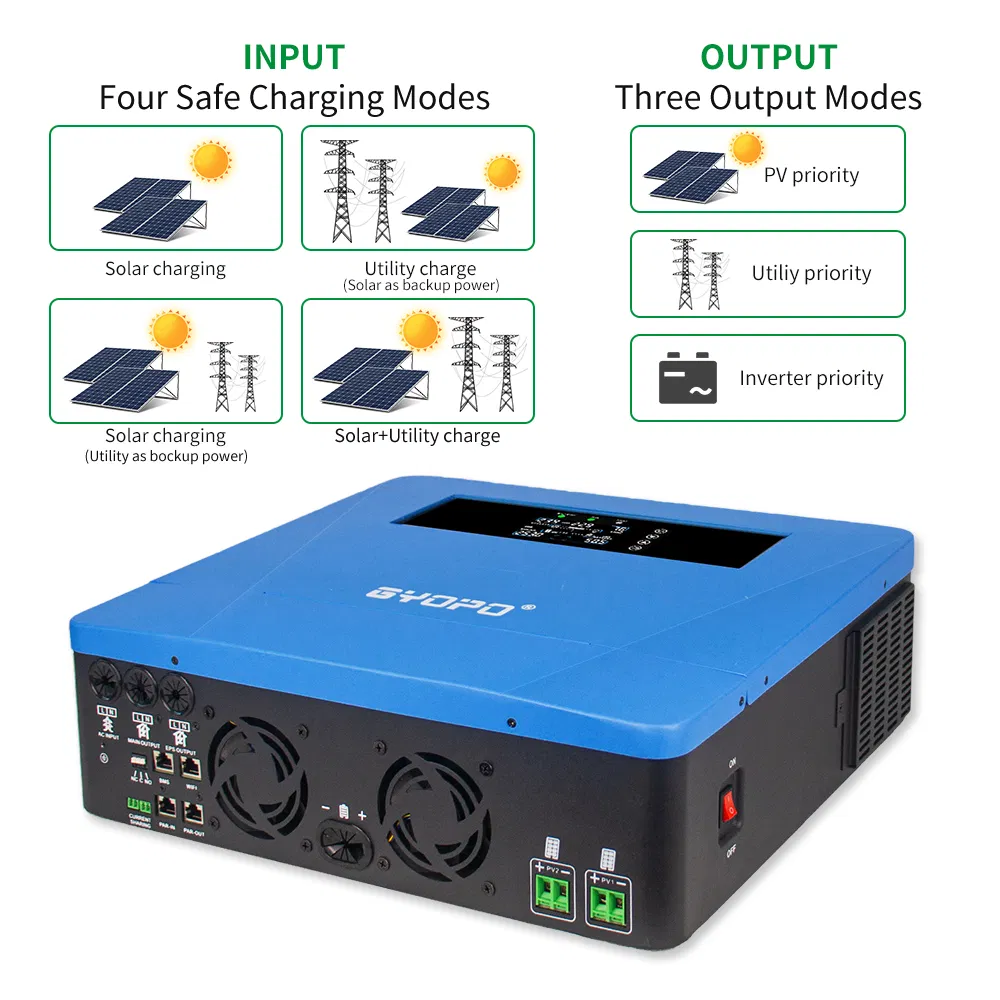

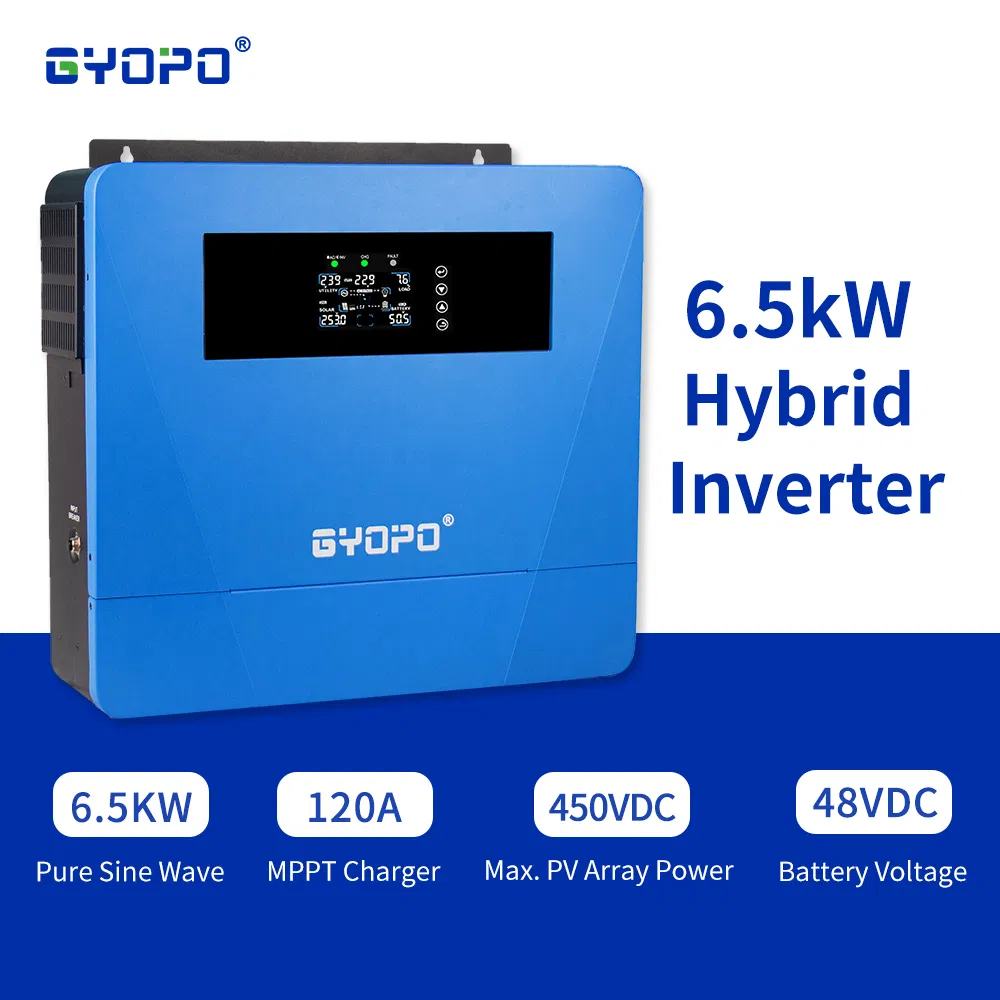

Gyopo 6500 Watt Solar Hybrid Inverter for off-Grid Living Household

Send Inquiry

Product Description

Technical Specifications

Model	OHP-MAX-6.5KW
Rated Power	6500W
System DC Voltage	48Vdc
PV Specification
Max. Power	3100W*2 (4000W Single-Tracker)
Max. PV Array Open Circuit Voltage	500Vdc
PV MPPT Voltage Range	85Vdc ~ 450Vdc
Number of MPPT Trackers	2
AC Input Specification
Nominal Input Voltage	230Vac
Input Frequency	50Hz / 60Hz (Auto Detection)
Battery Mode Specification
Waveform	Pure Sine Wave
Peak Efficiency	93%
Transfer Time	10ms typical / 20ms Max

Product Description

Key Features

Dual MPPT, High YieldTwo independent trackers (3.1kW each) maximize solar harvest from different roof orientations.

Works Without BatteryReduces initial system cost; enables PV-to-AC operation directly.

Strong Overload CapacityHandles 150% load for 5 sec, 110–150% for 10 sec; ultra-fast transfer time.

Smart Battery ManagementCompatible with Li-ion & lead-acid. 100A max solar charging.

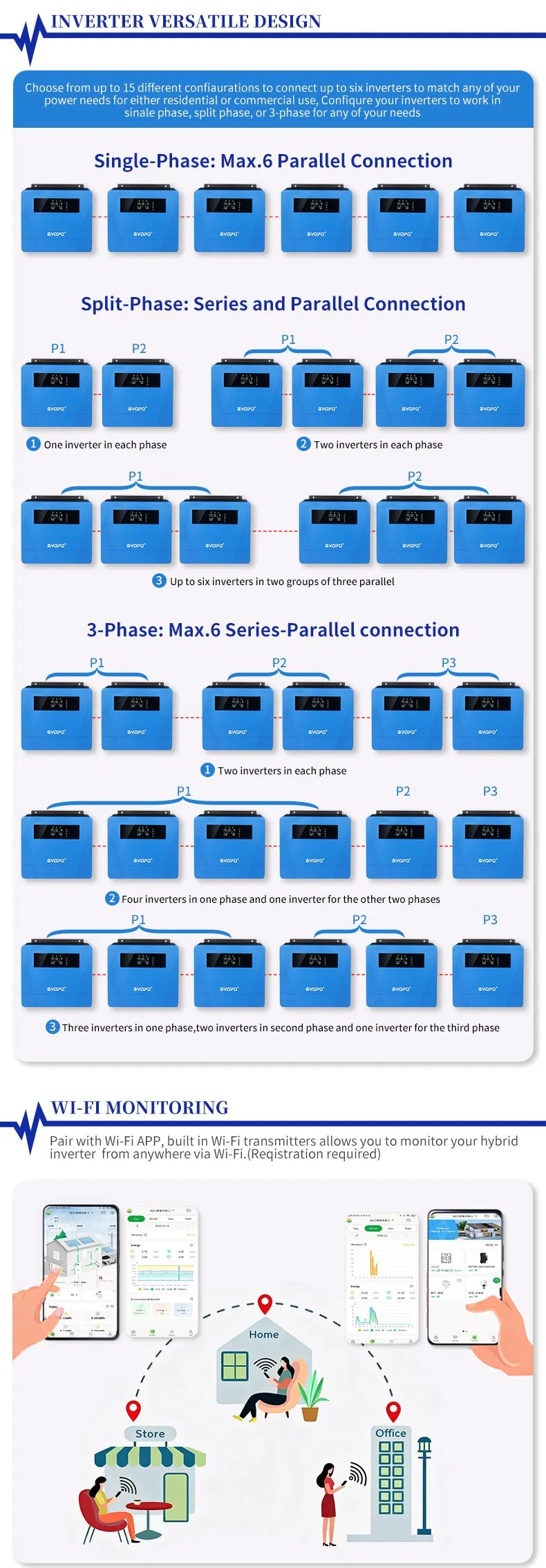

Scalable via ParallelUp to 6 units single-phase, 2 groups three-phase for system expansion.

Real-Time App MonitoringLive data and generation statistics for remote management via mobile.

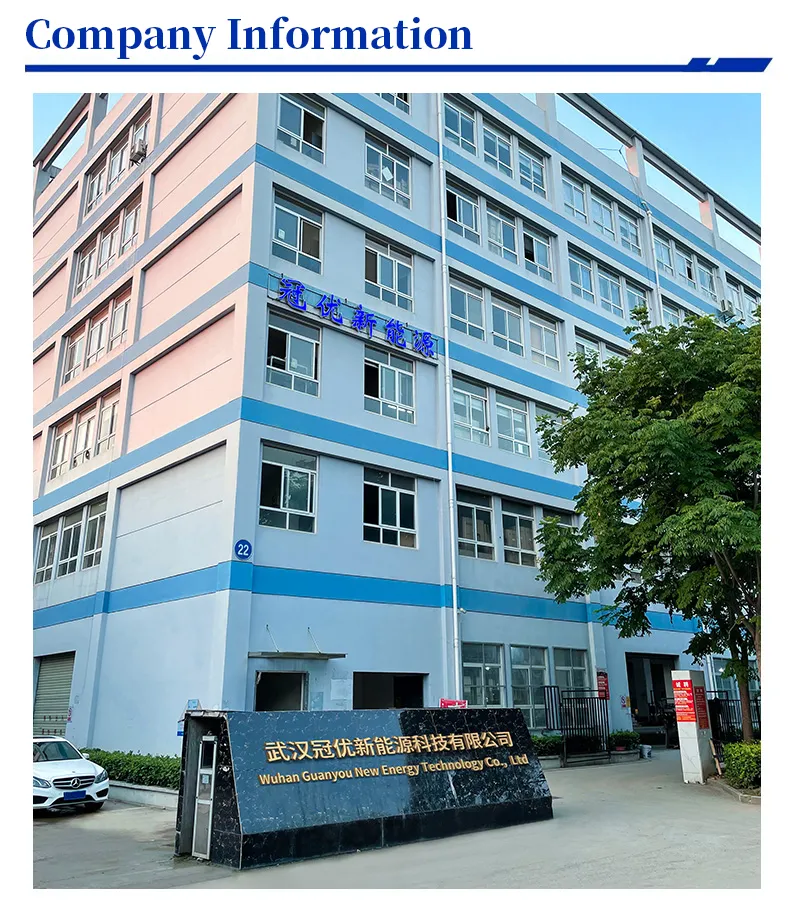

Manufacturing & Quality

Frequently Asked Questions

What certifications does your inverter have?

Our products meet international standards and are certified for safety and performance, including CE, RoHS, and ISO9001.

What is the minimum order quantity (MOQ) for wholesale?

Our standard MOQ is 10 units, but we offer flexible terms for long-term partners and volume discounts for large orders.

What warranty do you provide?

All inverters come with a 24-month warranty against manufacturing defects.

Can you customize the inverter for unique requirements?

Yes, we offer OEM/ODM services, including firmware adjustments, interface modifications, or hardware upgrades.

How do I ensure optimal performance?

Use within specified voltage ranges, follow installation guidelines strictly, and perform regular dust removal and connection inspections.

What are your payment terms?

We accept T/T (bank transfer) and L/C. A 50% deposit is required for order confirmation, with the balance due before shipment.
