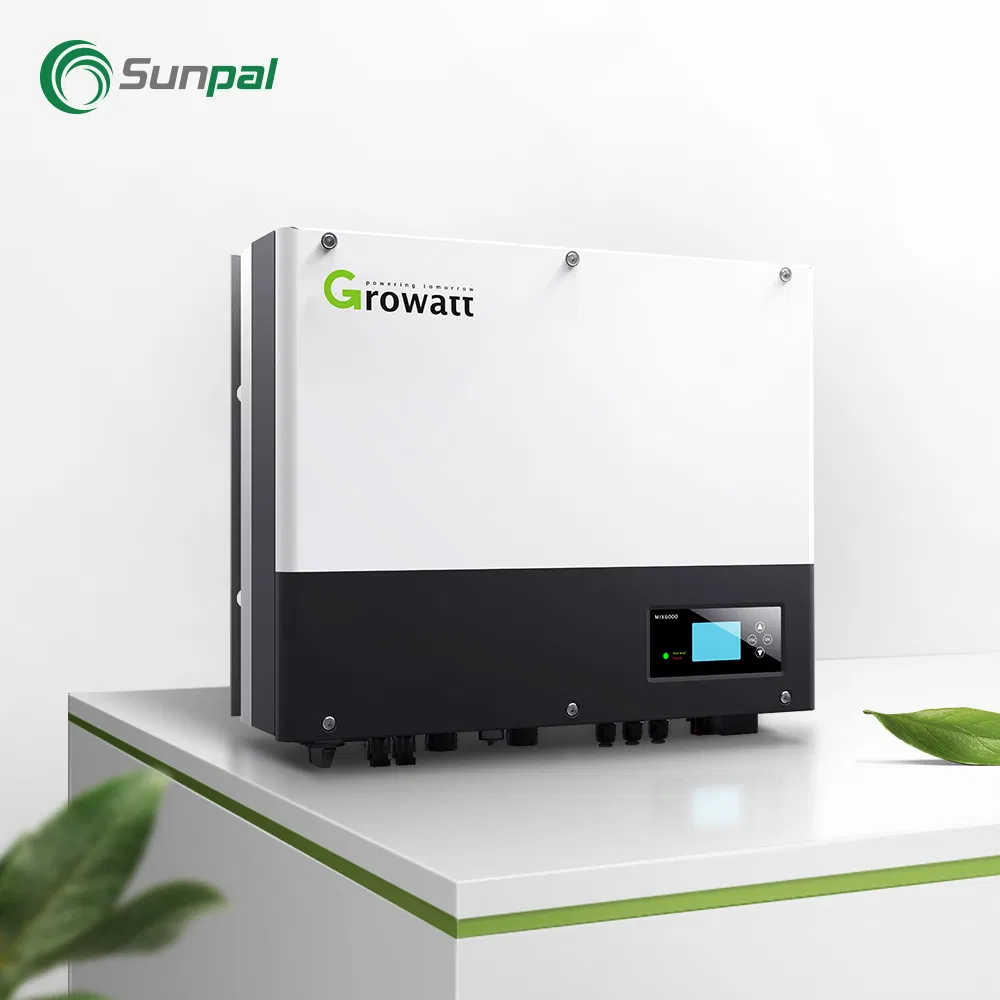

Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
1 / 5
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter
Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter

Growatt Sph5000 Hybrid Solar Inverter 3Kw 4Kw 5Kw 6Kw On Off Grid Pv Solar Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
Growatt SPH 5000
Phase
Single
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Type
DC/AC Inverters
Battery Voltage
48V DC
Protection
IP65
Max. PV Voltage
550V
🔍 Product Description

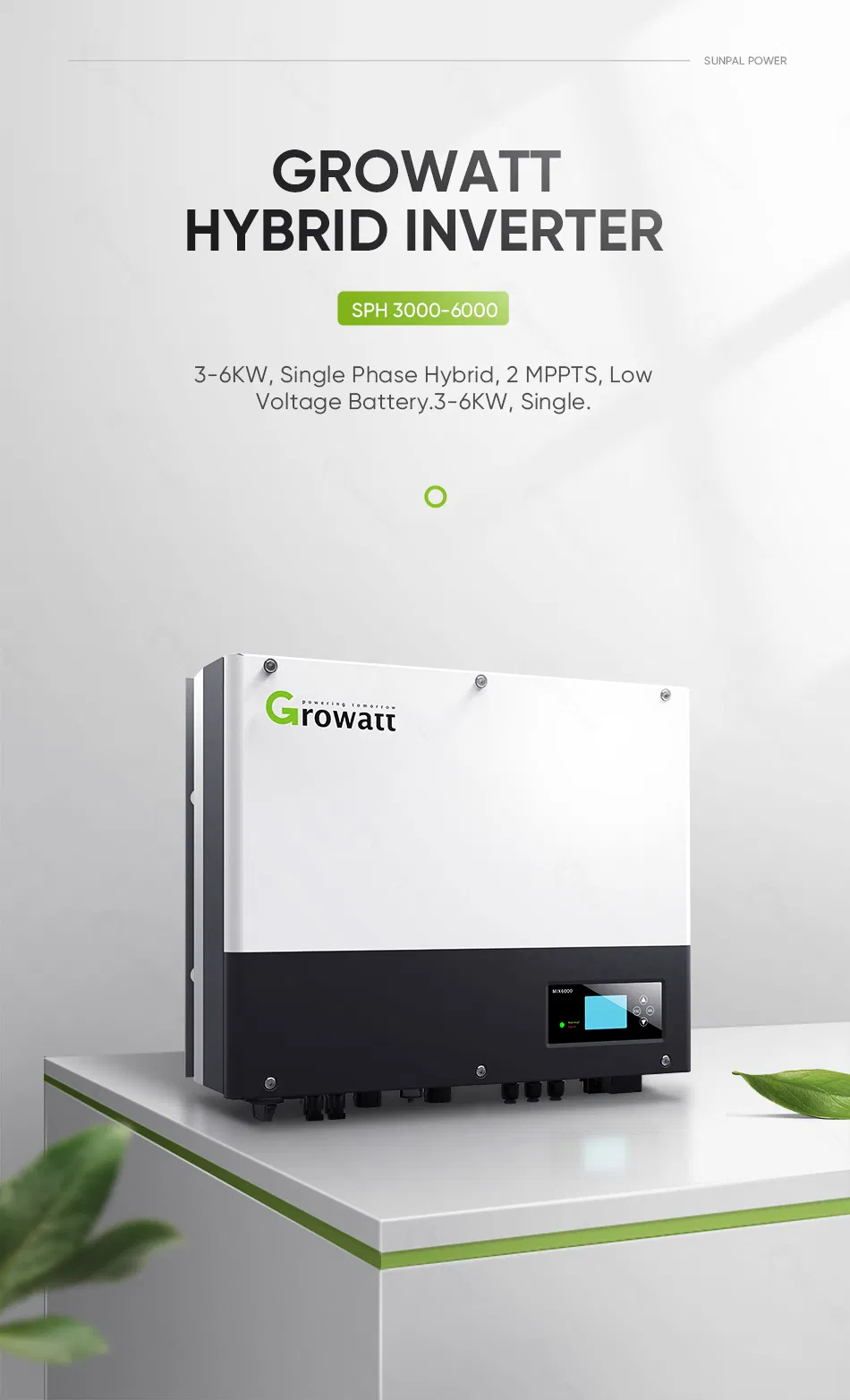

Growatt SPH5000 Overview Hybrid Solar Inverter Details
Hybrid Storage System

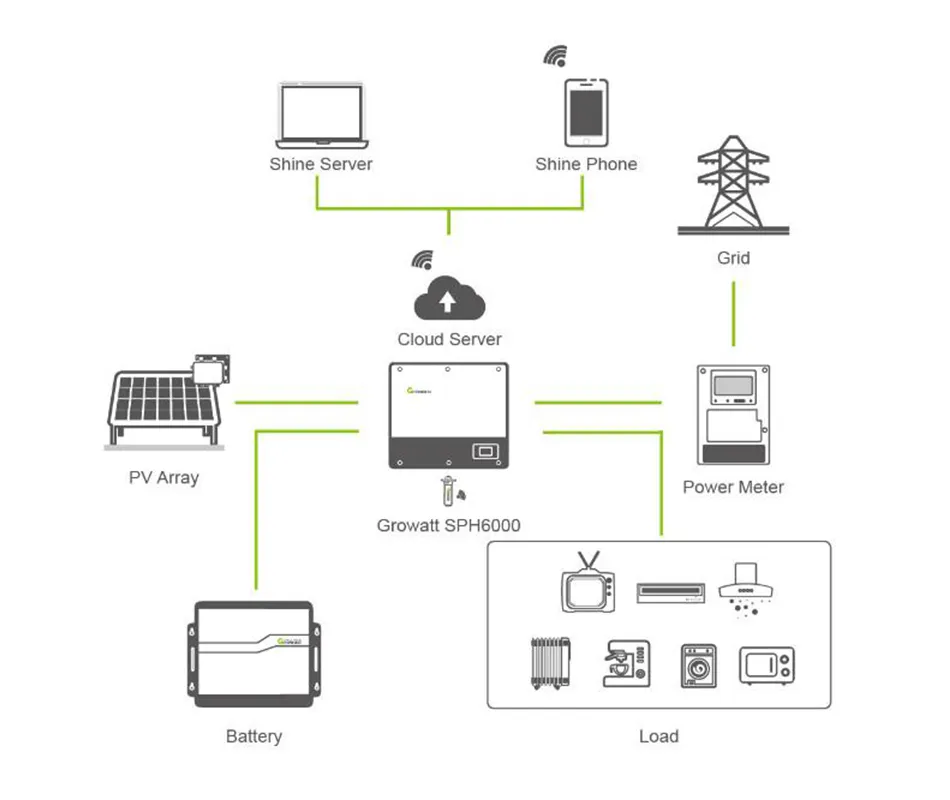

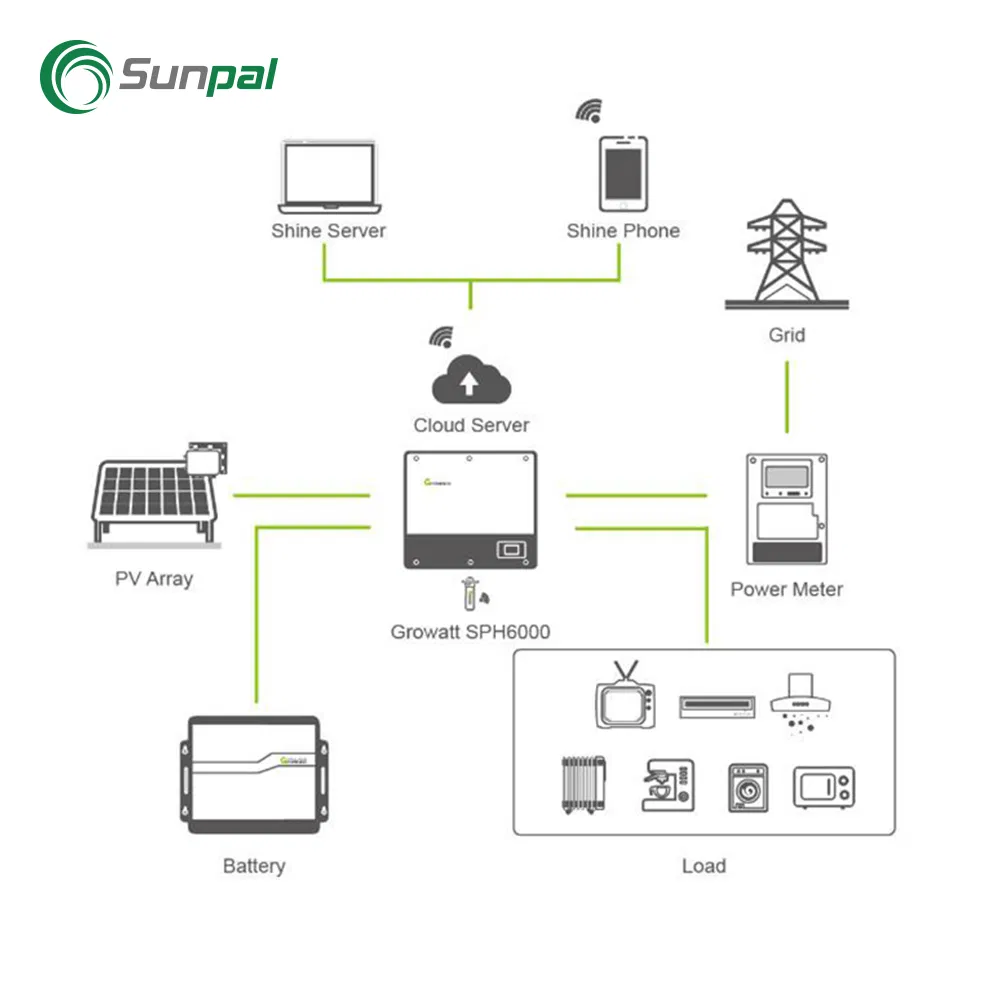

Hybrid Storage Diagram
Online Smart Monitoring

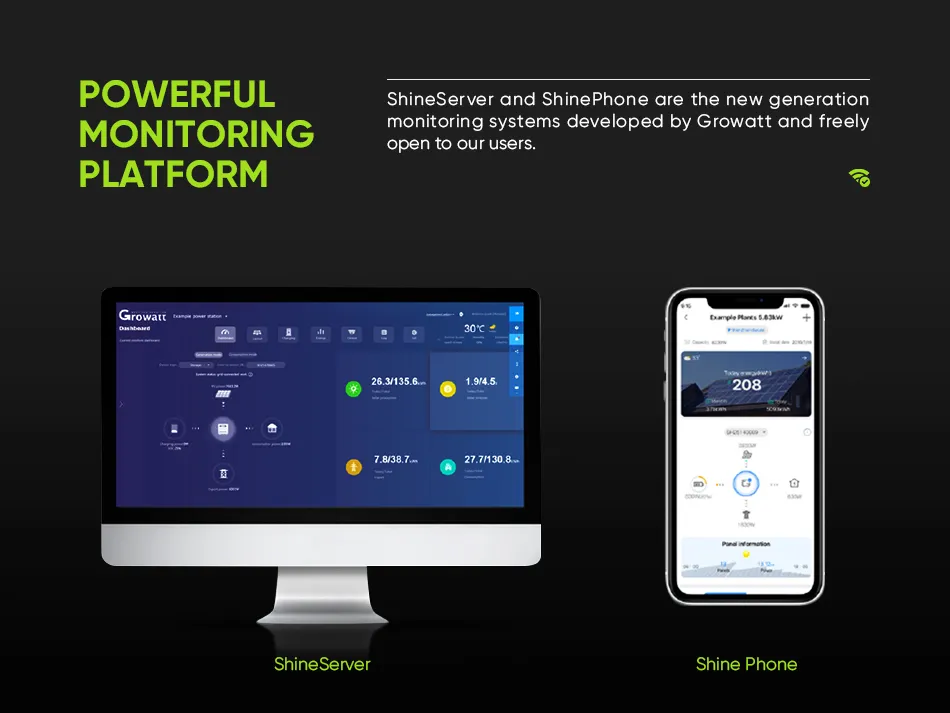

Smart Monitoring Interface
⚙️ Product Parameters
Datasheet SPH 3000 SPH 3600 SPH 4000 SPH 4600 SPH 5000 SPH 6000
Max. recommended PV power6600W6600W6600W8000W8000W8000W
Start voltage150V
Max. PV voltage550V
Rated AC output power3000W3680W4000W4600W4999W6000W
Automatic switchover time<0.5S
Battery voltage range42~59V
Max. efficiency97.5%97.5%97.5%97.6%97.6%97.7%
Environmental ProtectionIP65
💡 Application & Exhibition

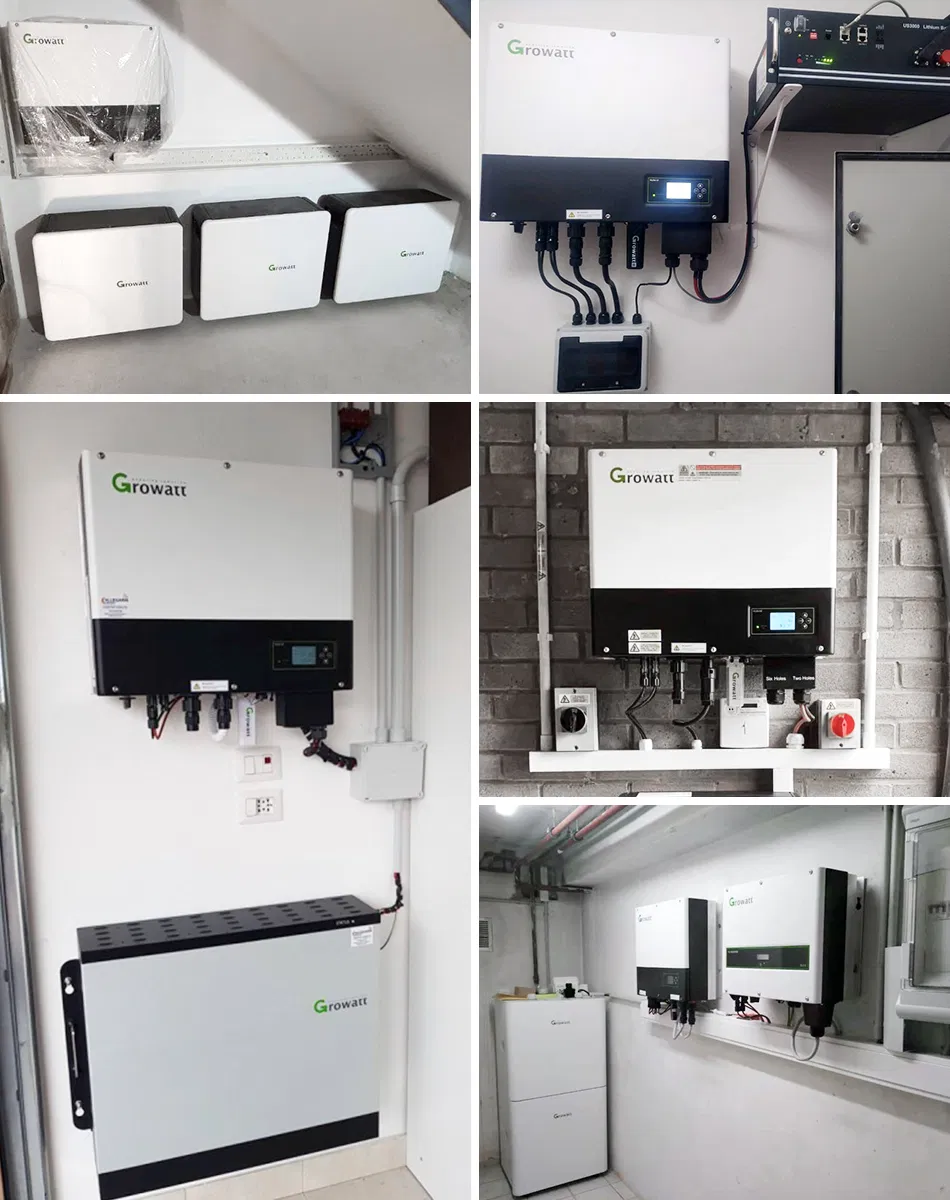

Solar Application Product Exhibition
Our Advantages
❓ Frequently Asked Questions
Q1: What is the protection rating for the Growatt SPH series?
A: The Growatt SPH series features an IP65 protection rating, making it suitable for both indoor and outdoor installation.
Q2: Does this inverter support both Lithium and Lead-acid batteries?
A: Yes, it is compatible with both Lithium and Lead-acid batteries with a voltage range of 42~59V.
Q3: How long is the switchover time during a power failure?
A: The inverter provides an automatic switchover time of less than 0.5 seconds to ensure continuous power supply.
Q4: Can I monitor my solar system remotely?
A: Yes, it supports online smart monitoring via WiFi, RS485, or GPRS options for real-time data tracking.
Q5: What is the maximum efficiency of the SPH 5000 model?
A: The SPH 5000 model reaches a maximum efficiency of 97.6% with an MPPT efficiency of 99.9%.
