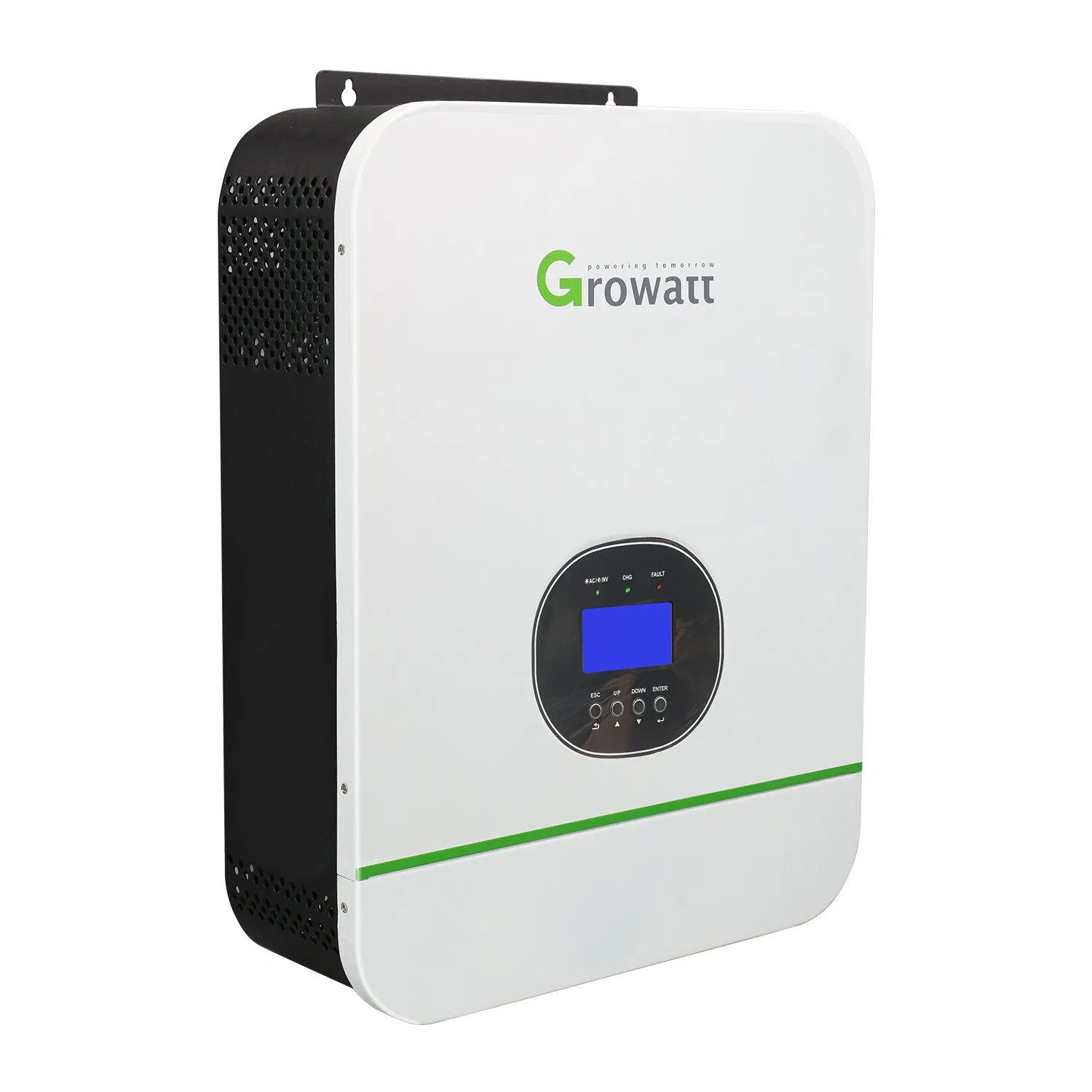

Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
1 / 5
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw
Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw

Growatt Solar Inverter Grid Tie Hybrid Inverter 5kw 10kw

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Growatt
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Application
Solar Power System
MPPT Efficiency
99.5%
Protection Level
IP 65
Cooling
Smart Cooling / Natural Convection
Trademark
Deye
📦 Packaging & Delivery
Package Size
37.00cm * 35.00cm * 16.00cm
Gross Weight
10.800kg
🔍 Product Description

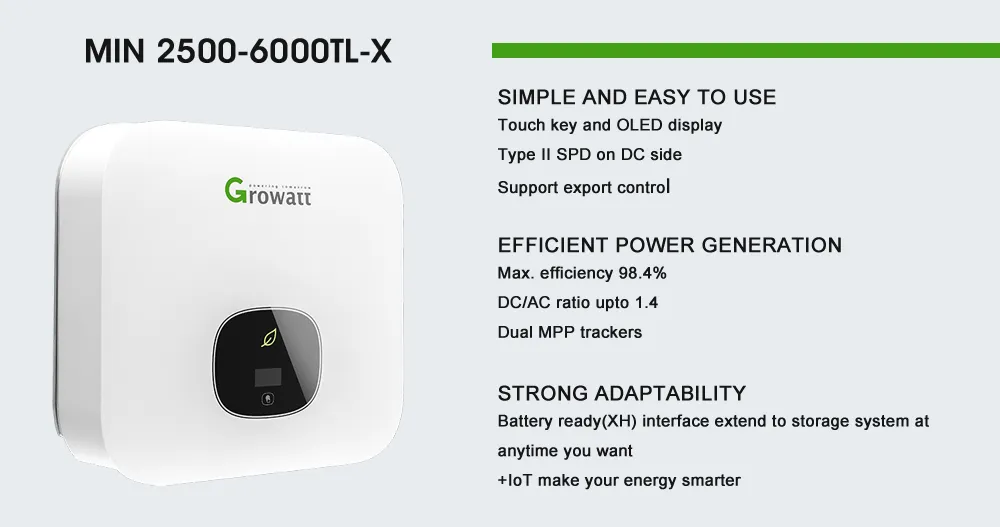

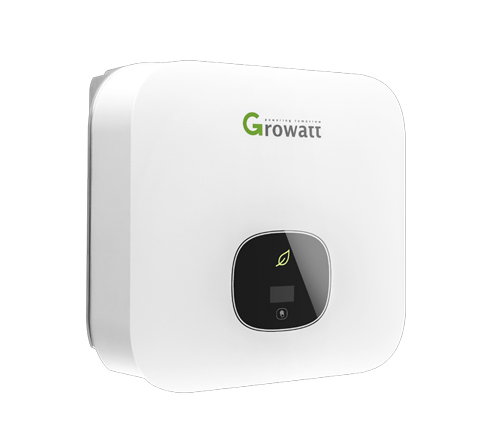

Growatt Solar Inverter Grid Tie Hybrid Inverter
Datasheet MIN-2500TL-X MIN-3000TL-X MIN-3600TL-X MIN-4200TL-X MIN-5000TL-X MIN-6000TL-X
Input Data (DC)
Max. PV Power3500W4200W5040W5880W7000W8100W
Max. DC Voltage500V500V550V550V550V550V
MPP Voltage Range80V-500V80V-500V80V-550V80V-550V80V-550V80V-550V
Output Data (AC)
AC Nominal Power2500W3000W3600W4200W5000W6000W
Max. Efficiency98.2%98.2%98.2%98.4%98.4%98.4%

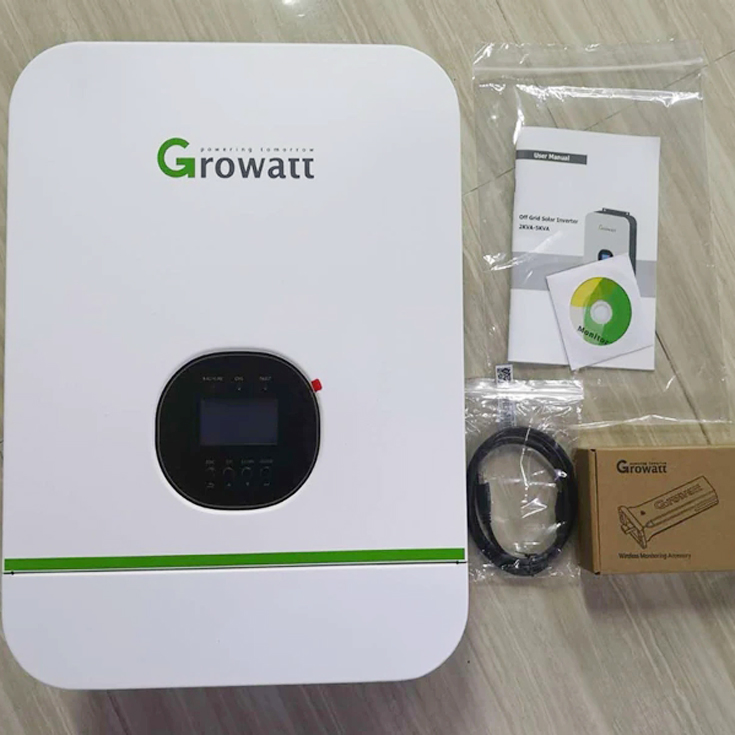

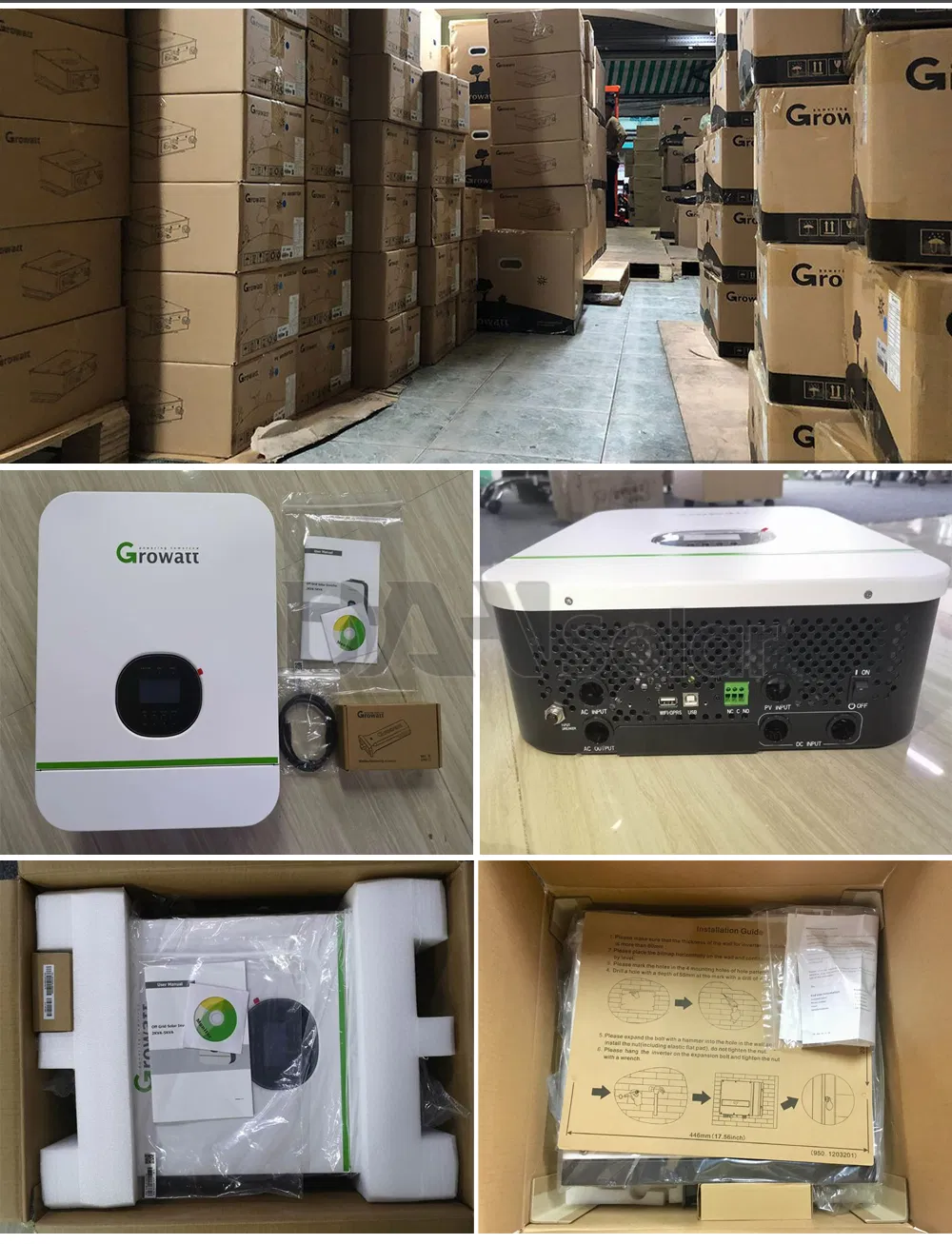

📦 Package Details
Package Details

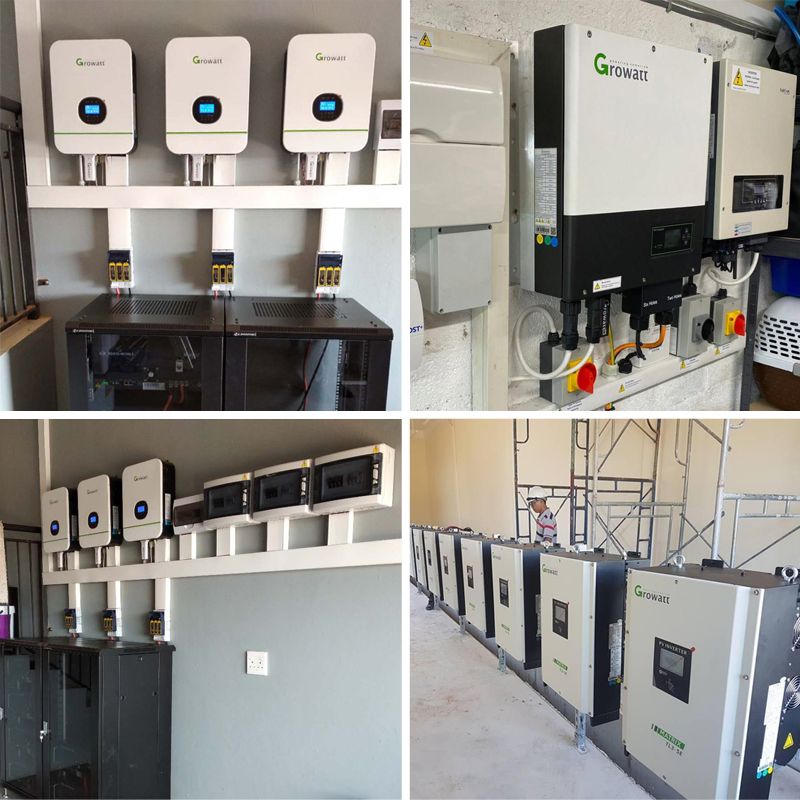

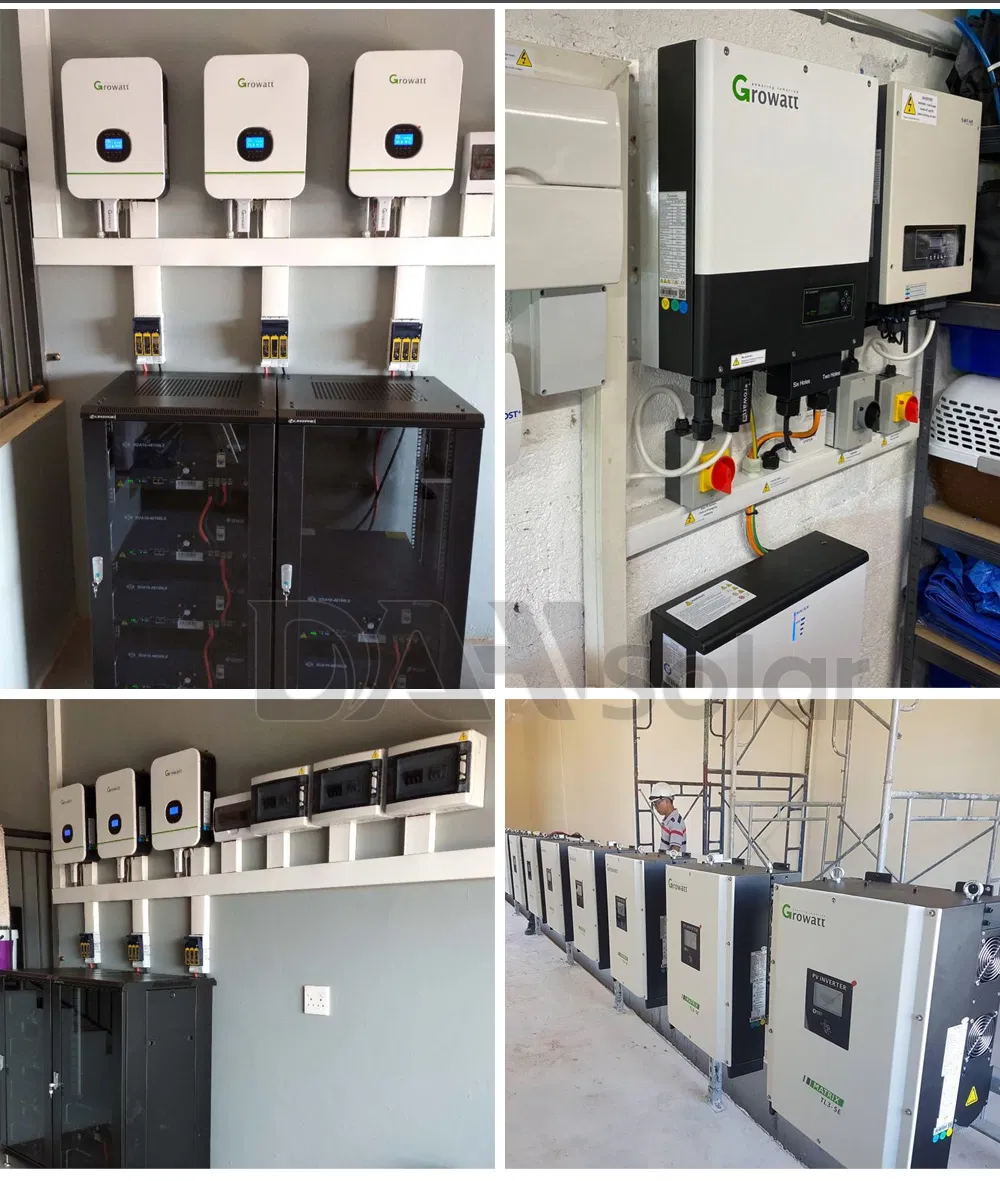

🌍 Global Projects
Global Projects
❓ Frequently Asked Questions
1. What is the maximum efficiency of these solar inverters?
The inverters feature a high efficiency rating, with maximum efficiency reaching up to 98.4% and an MPPT efficiency of 99.9%.
2. Are these inverters suitable for outdoor installation?
Yes, the products come with an IP65 protection level, making them resistant to dust and water, suitable for various environmental conditions.
3. What types of protection devices are integrated?
Integrated protections include DC reverse polarity protection, DC switch, AC/DC surge protection (Type II/III), insulation resistance monitoring, and anti-islanding protection.
4. What monitoring and communication interfaces are available?
The units support multiple interfaces including RS485, USB, and optional WiFi, GPRS, RF, or LAN for comprehensive system monitoring.
5. What is the standard warranty period?
The standard warranty is 5 years, with an option to extend it to 10 years depending on your requirements.
6. Can these inverters handle high altitudes?
Yes, these inverters are designed to operate effectively at altitudes up to 4000 meters.
