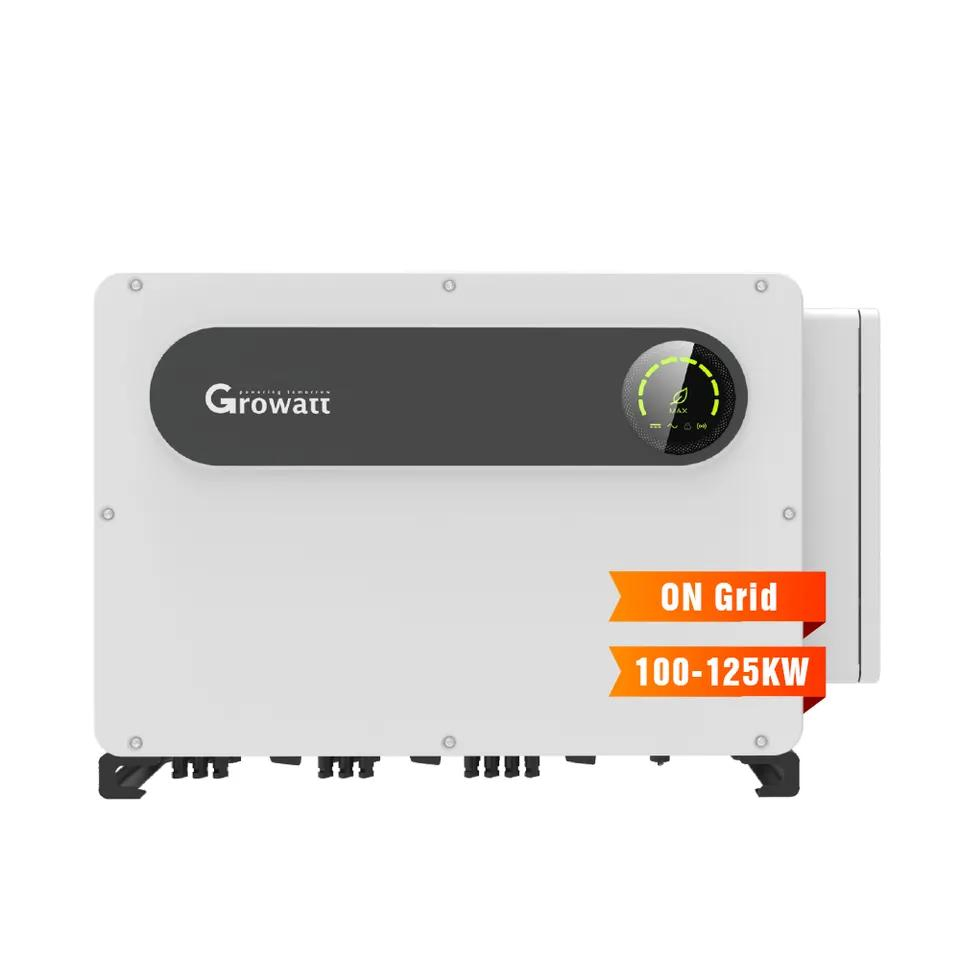

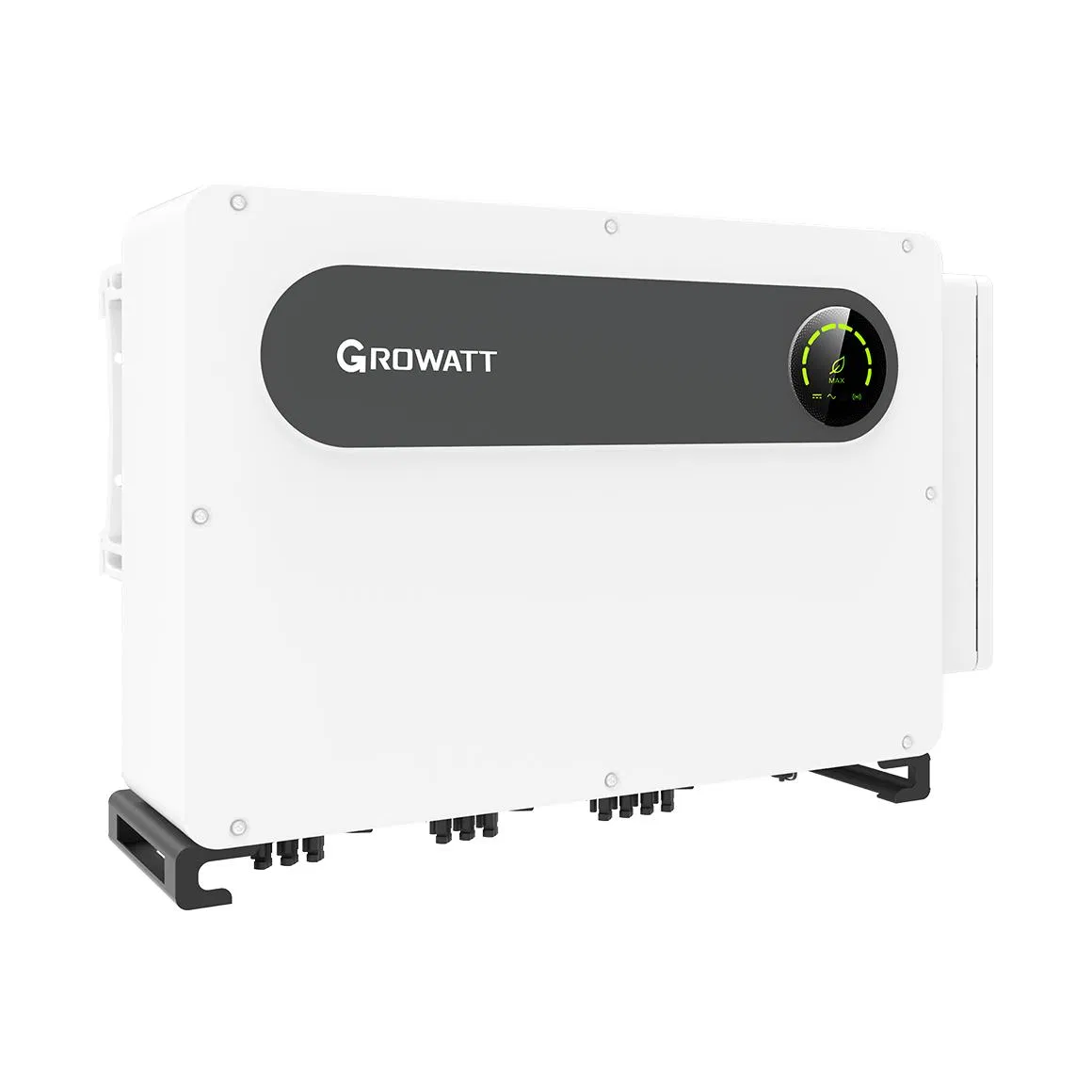

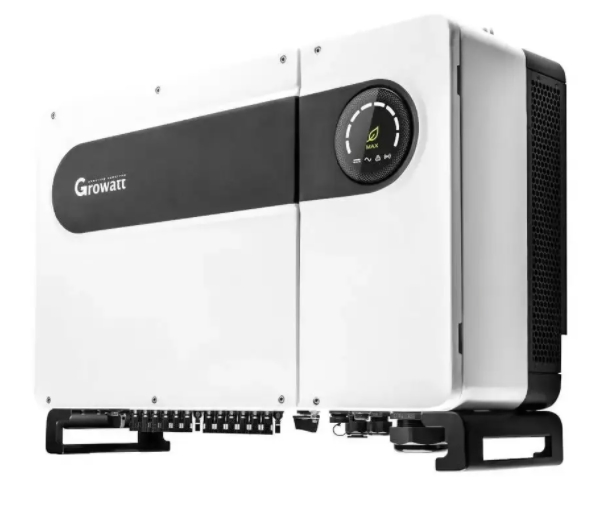

Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
1 / 5
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter
Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter

Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
MAX 100-125KTL3-X LV
Nature of Source
Active Inverter
Phase
Three Phase
Output Power
100-125kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Input Voltage
1100V
Inverter Efficiency
98.8%
Protection Degree
IP66
Cooling
Smart Air Cooling
Package Size
105.00cm * 70.00cm * 40.00cm
Product Description

Growatt Max 100-125ktl3-X LV Three Phase 100kw 110kw 125kw on Grid Tie Solar Inverter

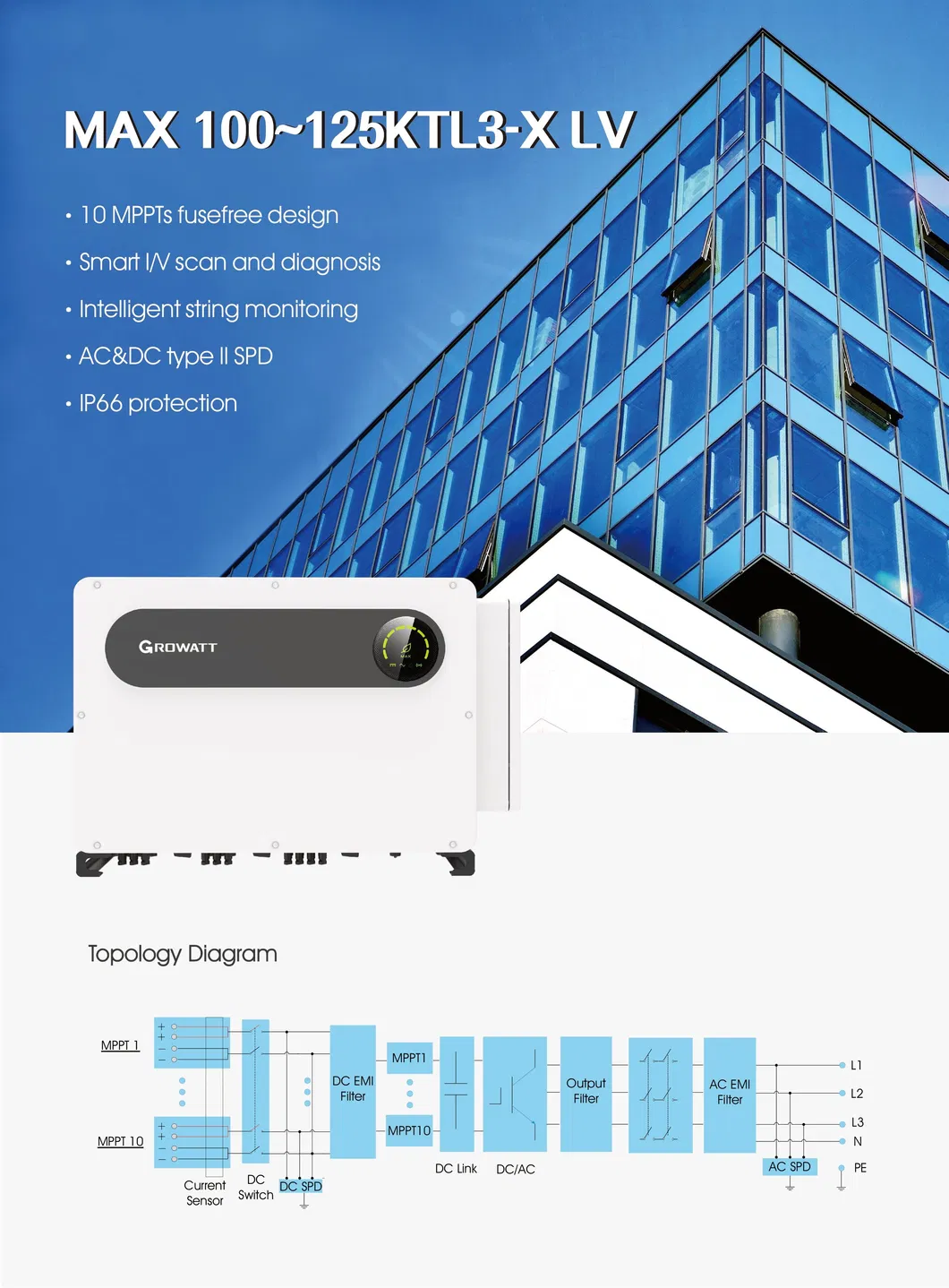

Growatt Max Inverter
Product Parameters
Model MAX 100KTL3-X LV MAX 110KTL3-X LV MAX 120KTL3-X LV MAX 125KTL3-X LV
Max.DC voltage1100V
Start voltage195V
MPP voltage range180V-1000V
No.of MPP trackers10
AC nominal power100000W110000W120000W125000W
Max. output current158.8A174.6A190.5A198.5A
Max. efficiency98.8%
System Architecture & Project Cases

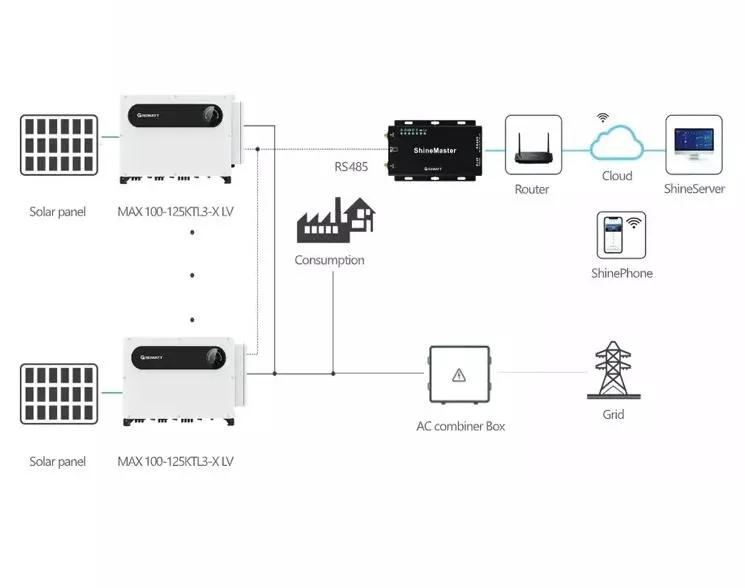

System Architecture

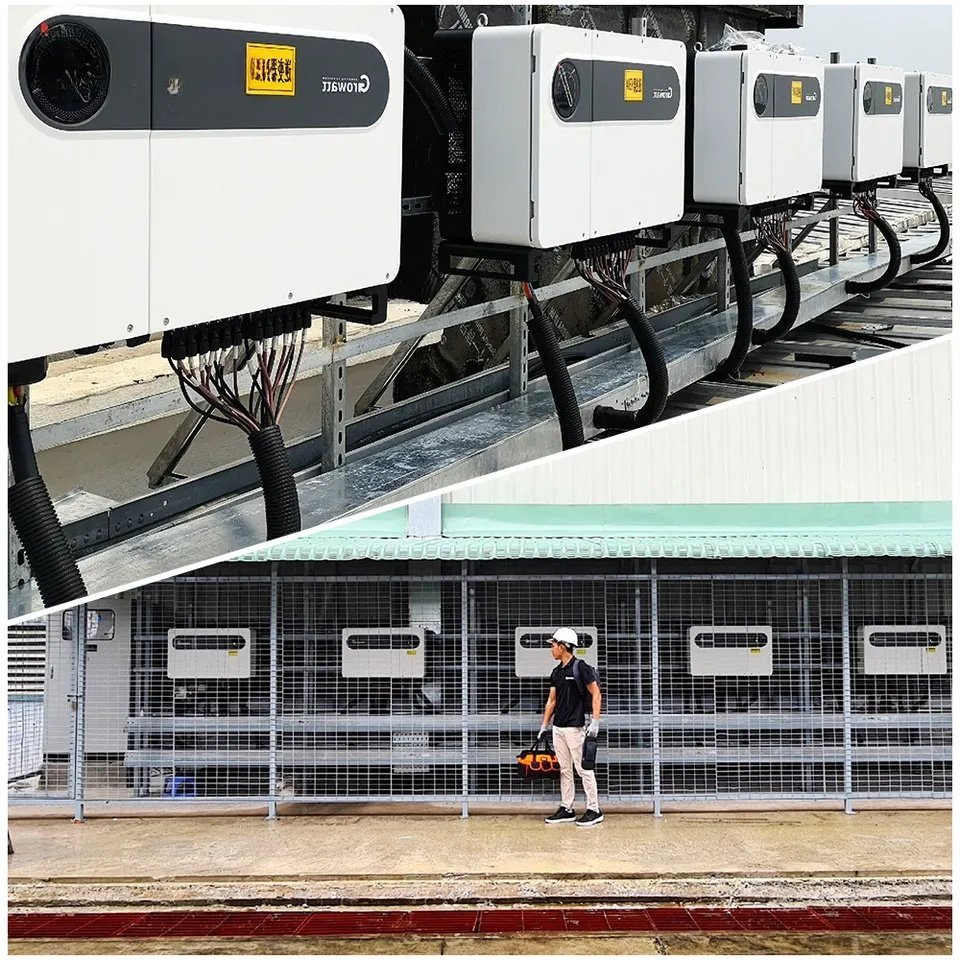

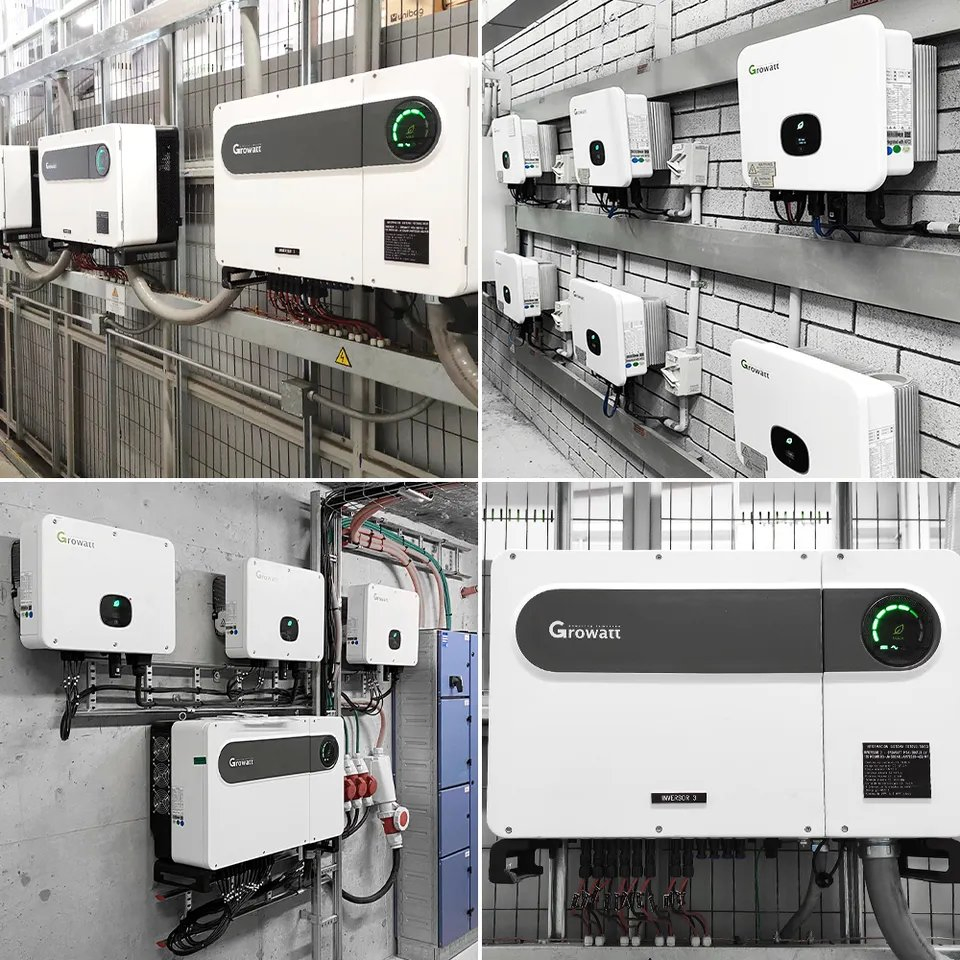

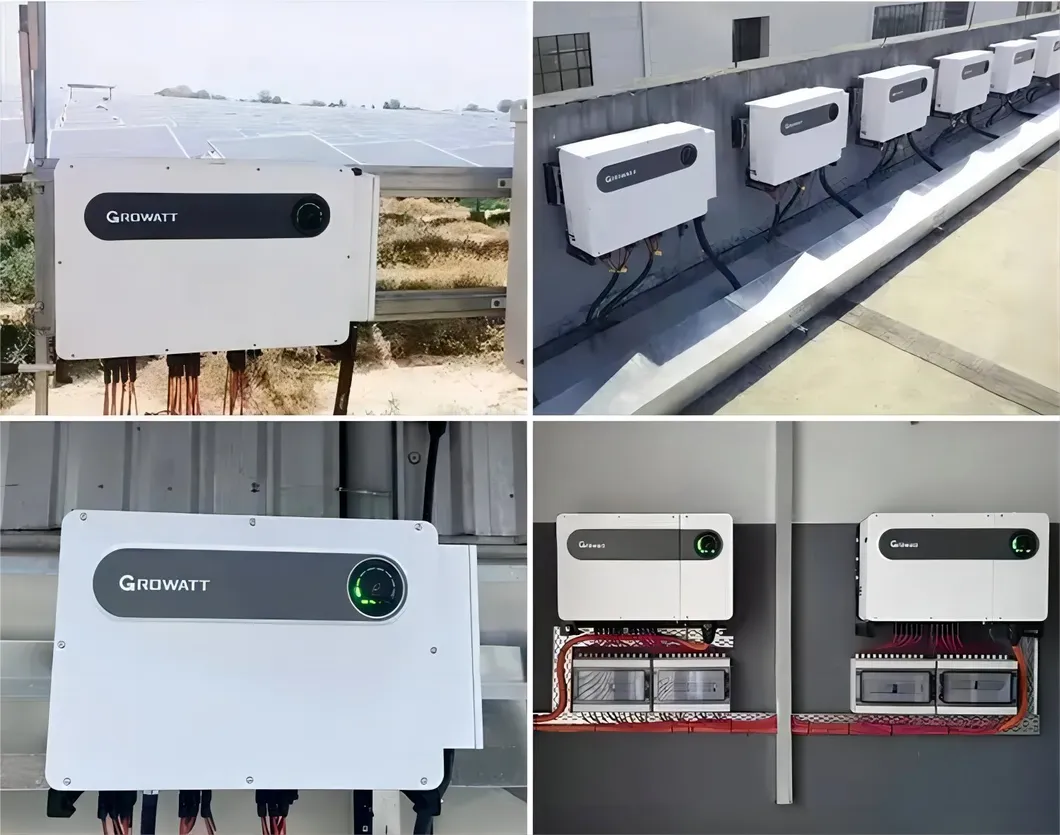

Project Case
Packaging & Shipping
Packaging
Frequently Asked Questions
What is the maximum efficiency of the Growatt MAX series?
The Growatt MAX 100-125KTL3-X LV series achieves a maximum efficiency of 98.8%.
How many MPPT trackers does this inverter have?
This series is equipped with 10 independent MPP trackers to optimize energy harvest.
Is the inverter suitable for outdoor installation?
Yes, it features an IP66 protection rating, making it highly resistant to dust and water for outdoor use.
What type of cooling system is used?
The system utilizes Smart Air Cooling to maintain optimal operating temperatures.
What certifications does the product hold?
The inverter is certified by SAA, CE, ROHS, ISO9001, and CCC.
What is the maximum DC input voltage?
The maximum DC input voltage for these units is 1100V.
