Growatt Wit 28kw 30kw 35kw 40kw 50kw 55kw Hybrid AC-Coupled 220V/208V Commercial Storage Inverter for Solar Power Energy System

Customization: Available
After-sales Service: Yes
Warranty: 5 Years

Product Description

Overview
Nature of Source Flow: Passive inverter
Phase: Three
Output Power: 50-500kw
Certification: CE, ROHS, ISO9001, CCC
Type: DC/AC Inverters
Power Source: Solar Power
Circuit Topologies: Push-pull Type
Nature of Wave String: Sine Wave Inverter
MPPT Voltage Range: 125-500V
Battery Type: LiFePO4
Product Description

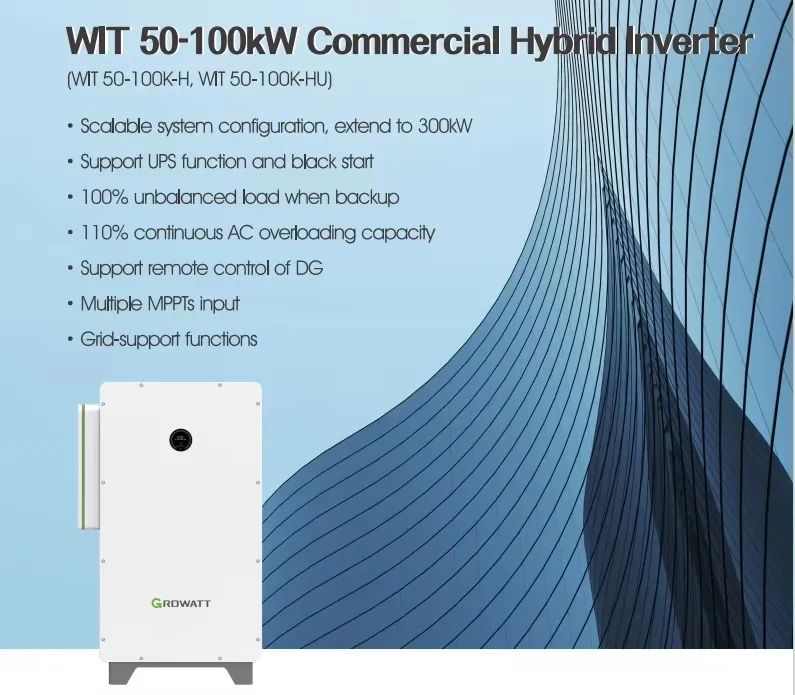

WIT 50-100KW Hybrid Inverter Advantage
Compared with the AC coupling method of photovoltaic storage, the DC coupling system architecture of photovoltaic storage is simpler and more convenient, and can flexibly meet various application requirements to achieve maximum benefits.

1. Improve the self-generation and self-use rate of photovoltaics: store the photovoltaic power that cannot be used by the load in batteries, release the stored power at peak load, increase the proportion of photovoltaic power consumption, and optimize the power consumption curve.

2. Peak shaving and valley filling, demand management: The system energy output is controllable, charging when the electricity price is low, and discharging when the electricity price is high, so as to achieve peak shaving and valley filling to obtain benefits and reduce the maximum demand or special transformer capacity.

3. Build a microgrid system: With diesel engine access, combined with photovoltaic energy storage, it can provide reliable and stable electricity for areas without electricity or frequent power outages.

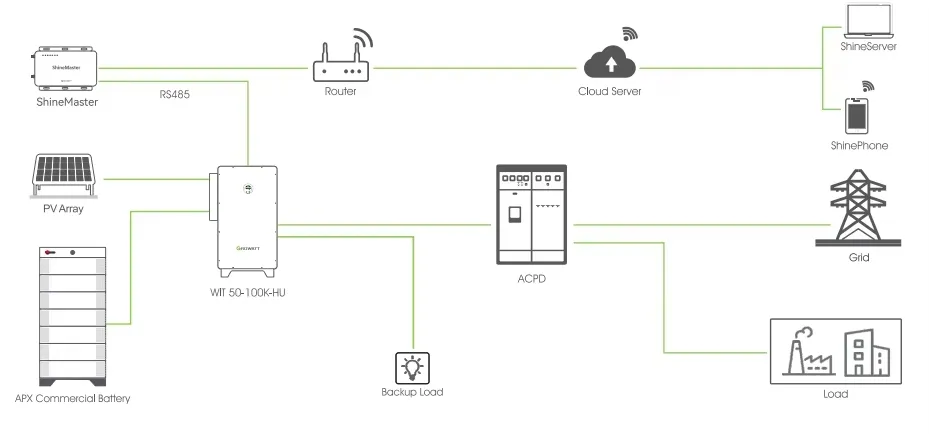

Hybrid Inverter System Architecture Commercial Storage Inverter
Product Parameters
Datasheet WIT 50K-HU WIT 63K-HU WIT 75K-HU WIT 100K-HU
Max. PV Power 109.2kW 124.8kW 156kW 156kW
Max. Input Voltage 1100V
MPPT Range 550V, 180V~800V
AC Nominal Power 50kW 63kW 75kW 100kW
Max. Efficiency 98.2%
Installation Instructions

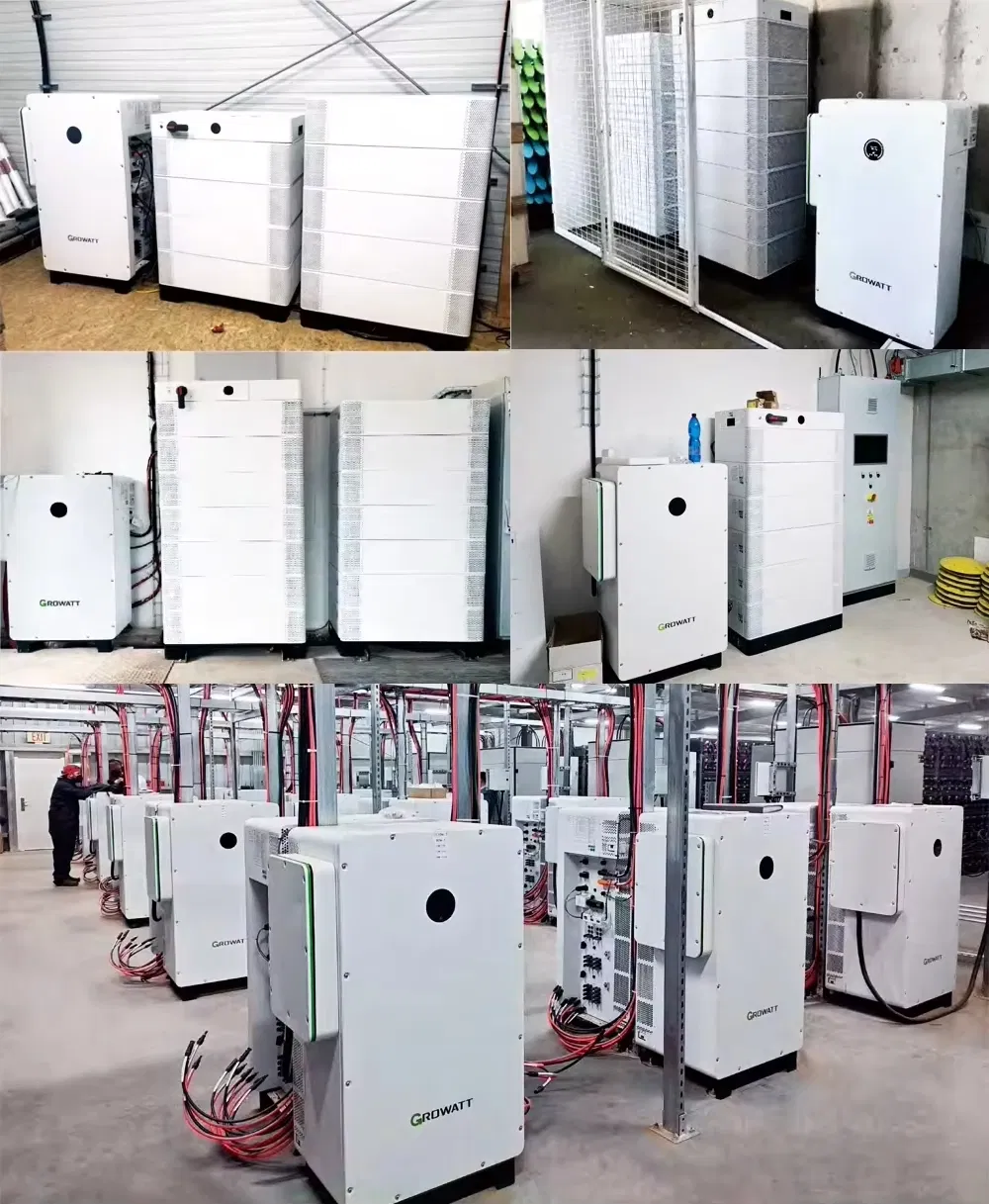

Installation Diagram
Packaging & Shipping
Package Size: 43.00cm * 71.00cm * 21.00cm
Package Gross Weight: 1000.000kg

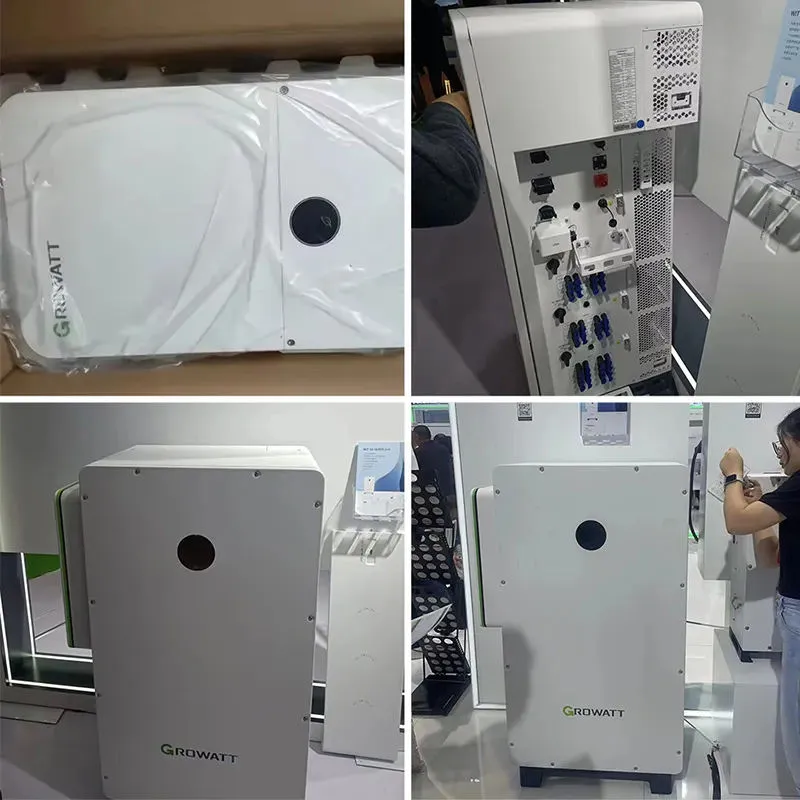

Packaging Details
Frequently Asked Questions
What are the main advantages of this hybrid inverter?
It improves photovoltaic self-consumption, supports peak shaving and valley filling, and can build stable microgrid systems with diesel engine integration.
What is the maximum efficiency of the WIT series?
The system achieves a maximum efficiency of 98.2%, ensuring minimal energy loss during conversion.
Does the inverter support unbalanced loads?
Yes, it supports 100% three-phase unbalanced loads, providing high flexibility for different operational requirements.
What is the transfer time between on-grid and off-grid modes?
The switchover time is extremely fast, typically less than or equal to 20ms, ensuring continuous power supply.
What battery types are compatible with this system?
The system is optimized for LiFePO4 batteries with a recommended voltage of 768V.
What communication interfaces are available?
The inverter supports RS485 and CAN communication interfaces for BMS and system monitoring.
