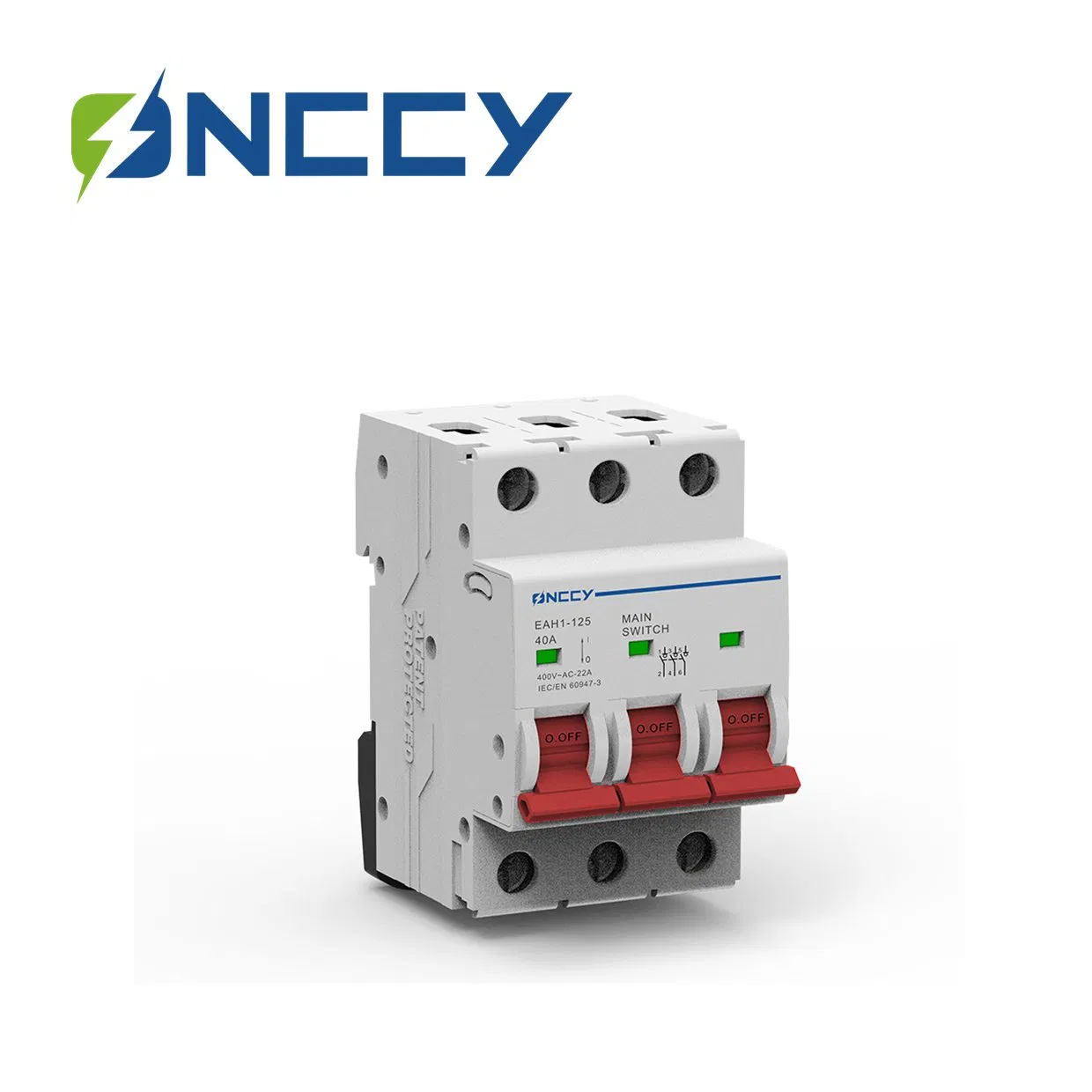

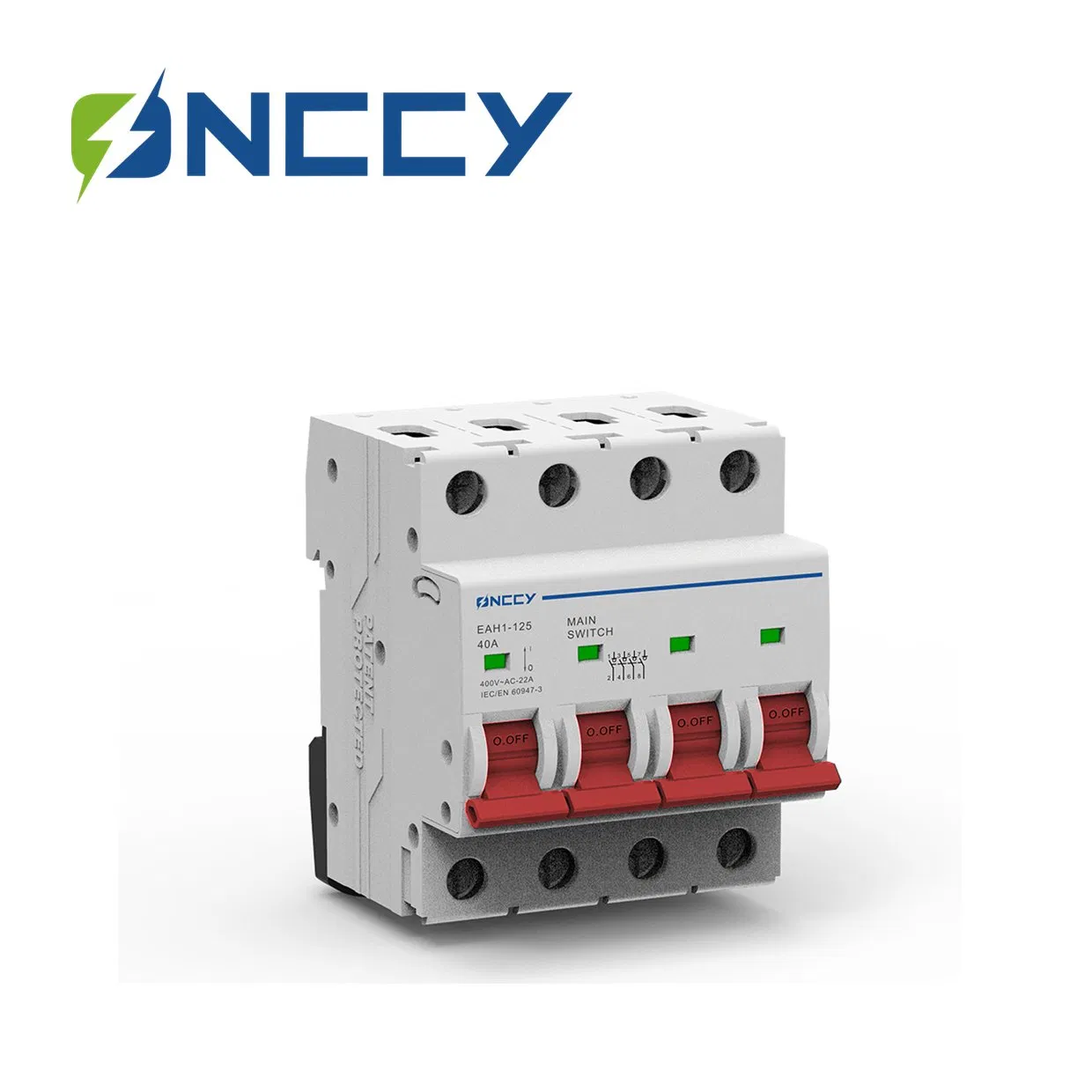

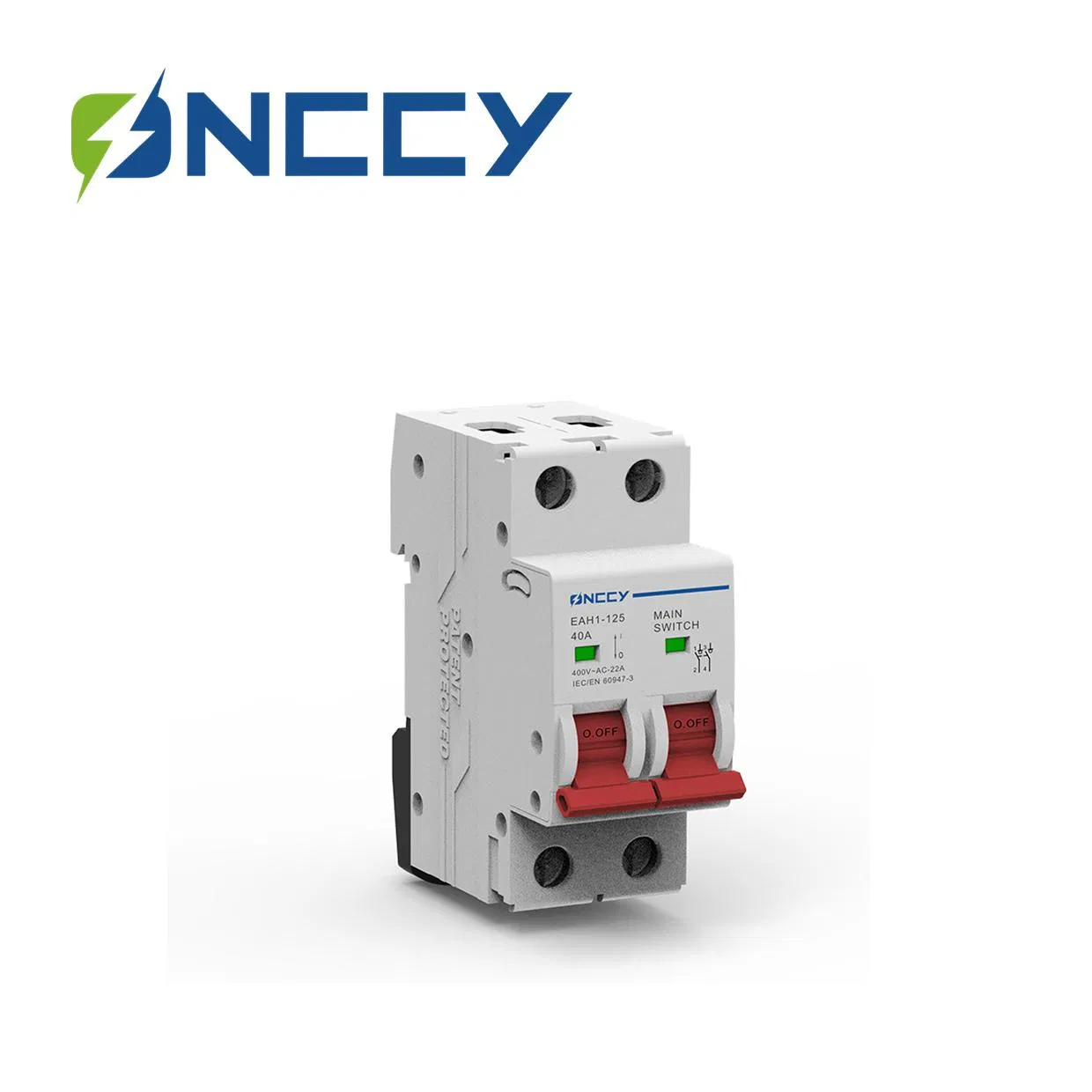

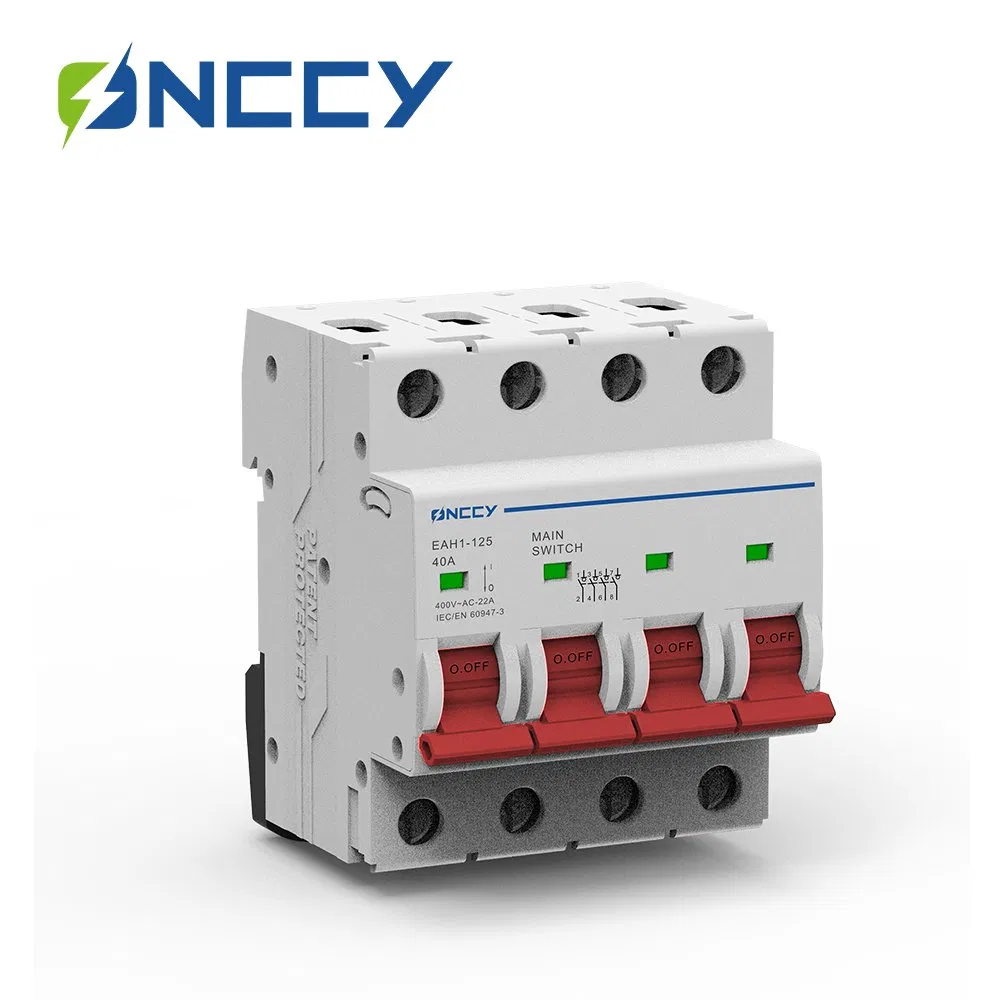

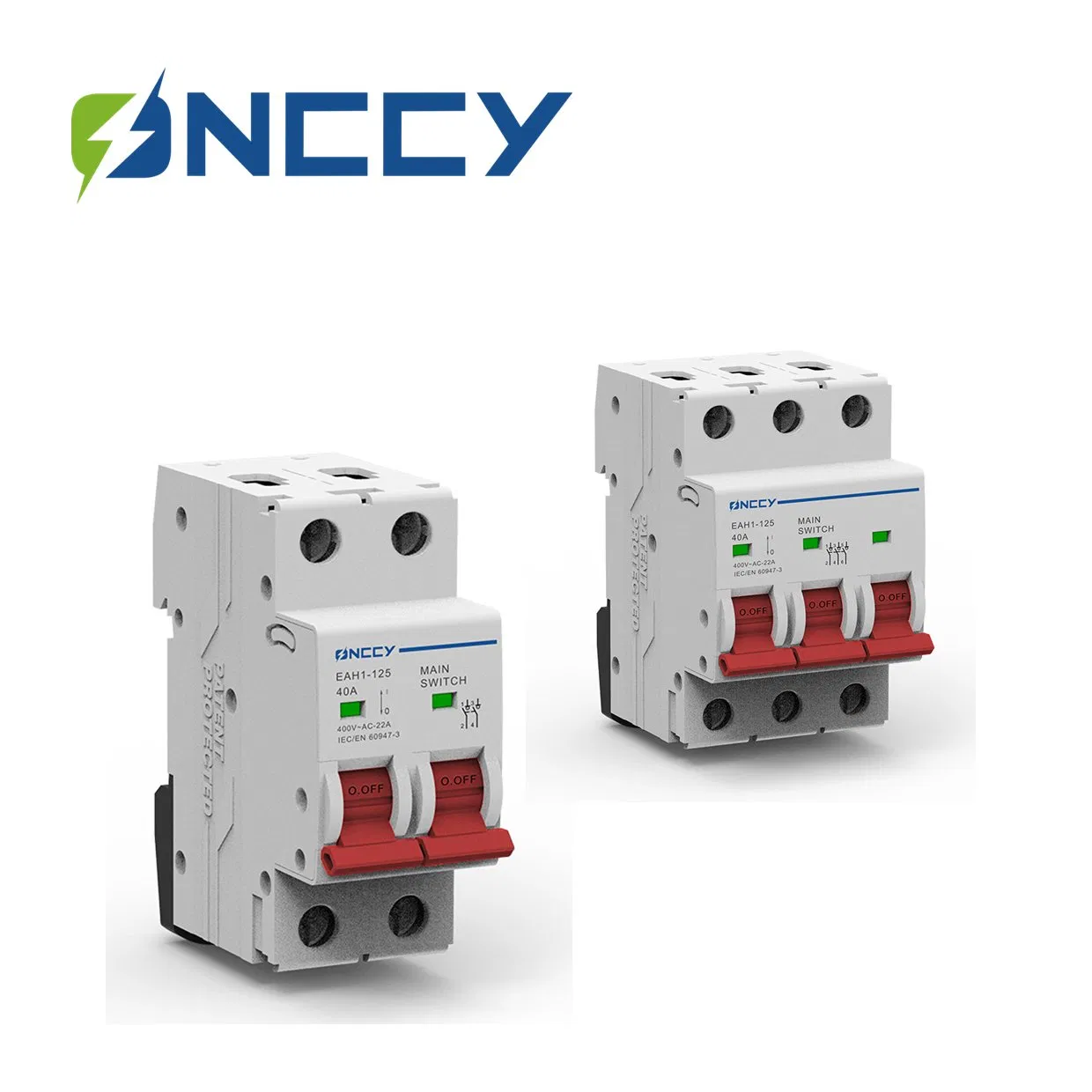

Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
1 / 5
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator
Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator

Grid-Connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
eha
Installation
DIN Rail
Operation
Electric
Number of Poles
1p/2p/3p/4p
Voltage Ui
500V
Rated Current
20A/35A/63A
Certification
RoHS, CE, SAA, Tvu
Warranty
5 years

Product Description

Grid-connected Solar Array 40A 125A 230V 440V Outdoor Main Isolator

Professional Electrical Components Manufacturer for Solar PV, Battery Energy Storage and EV Charging System. 30+ Years of Production Experience and Service.

Features & Benefits

  • Used for all PV main electrical circuits.
  • Solar 25A PV 4 pole Inverter Isolation Switch.
  • Emergency shutdown and maintenance safety.
  • IP65 PC enclosure for outdoor durability.
  • Compliant with IEC 60947.3 standards.
  • Ideal for 230V/440V power termination.
Solar Isolator Main
Application Diagram

Technical Data

Electrical Features Specifications
Rated current (In)40A 50A 63A 80A 100A 125A
Pole1P 2P 3P 4P
Rated voltage (Ue)1P: 240V~ / 2,3,4P: 415V~
Insulation voltage (Ui)500V
Rated frequency50/60Hz
Electrical and Mechanical life20,000 Cycles
Terminal size for cable25mm²
Tightening torque2.5N·m

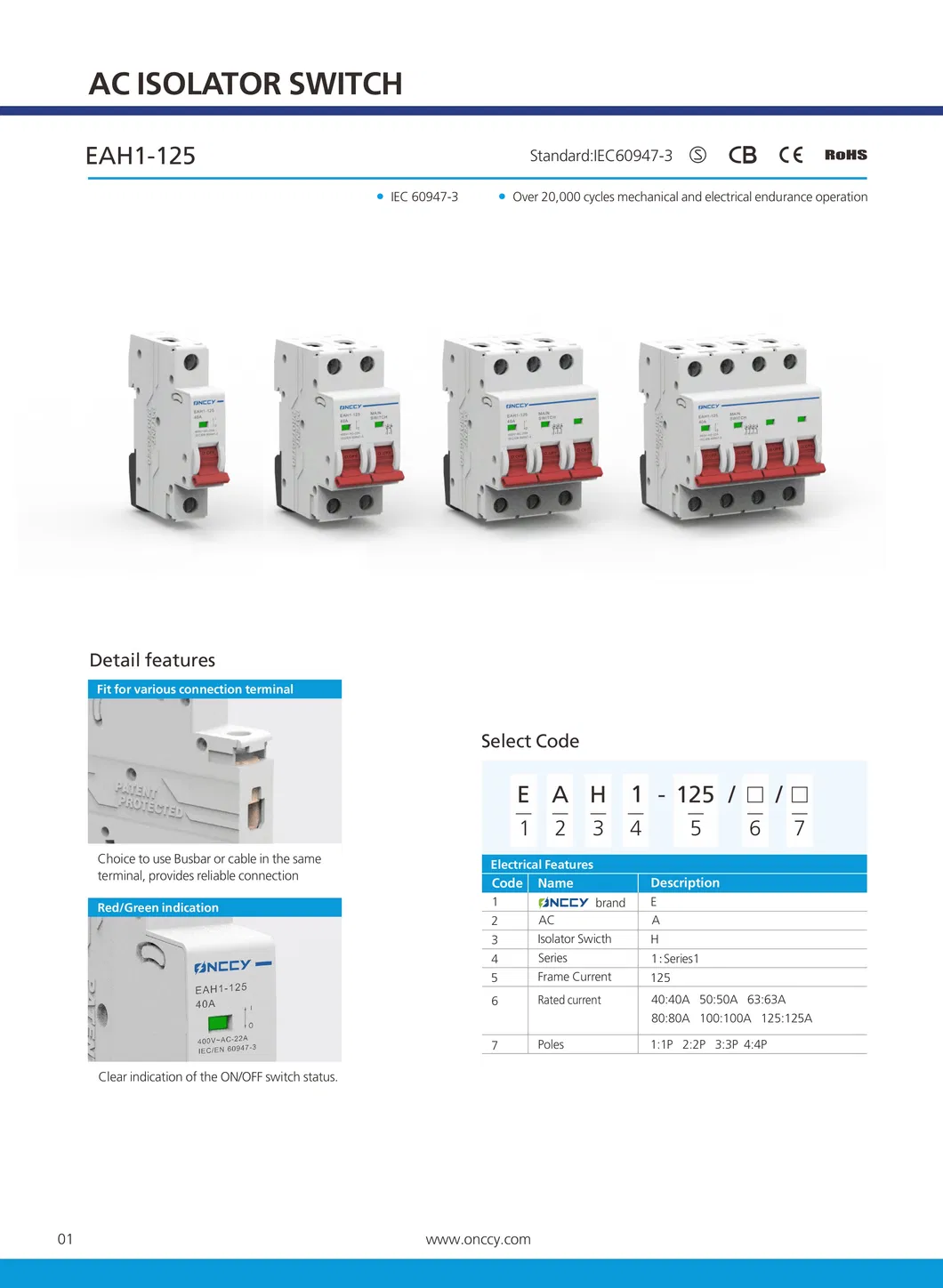

Technical Drawing 1

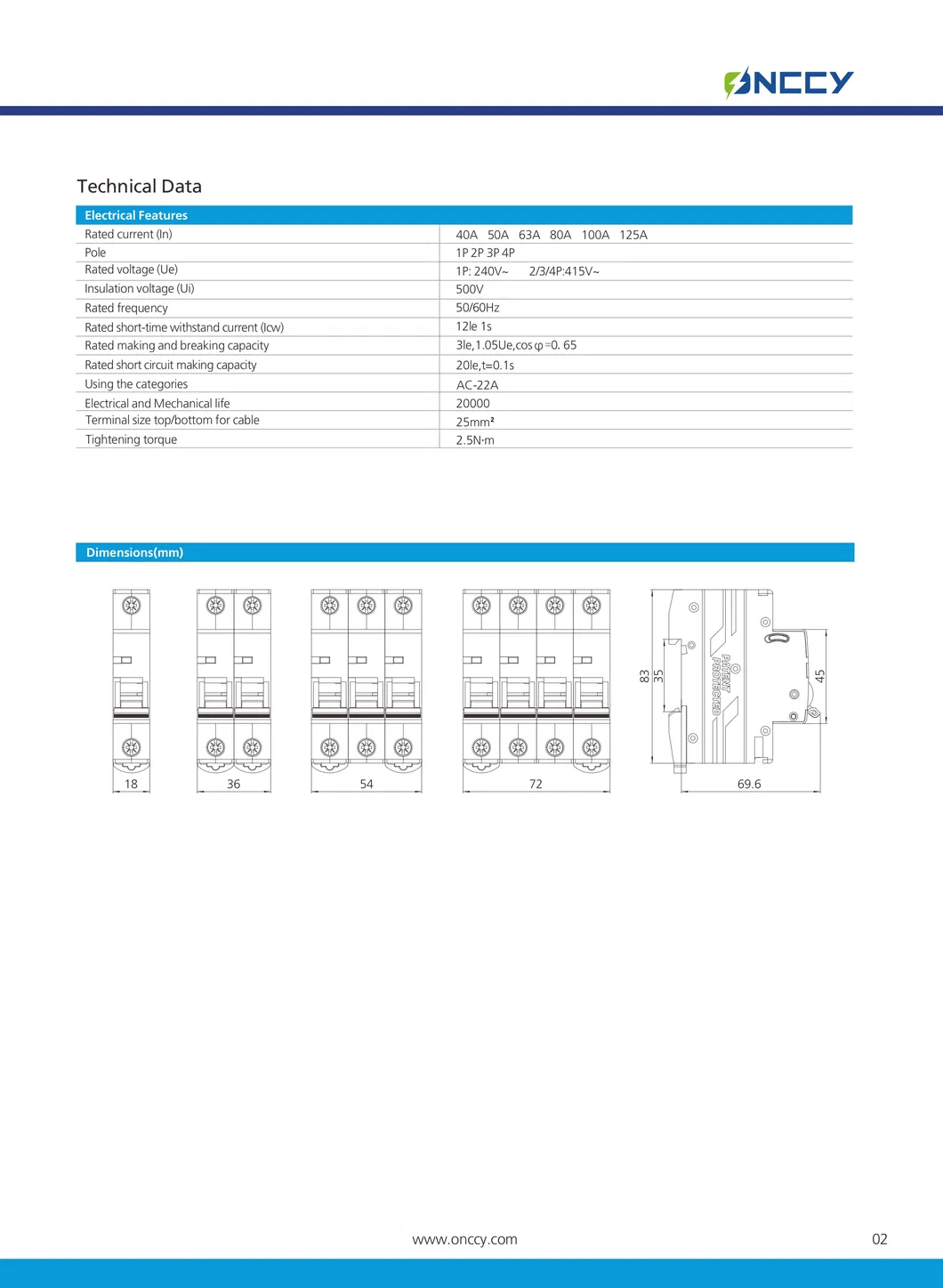

Technical Drawing 2

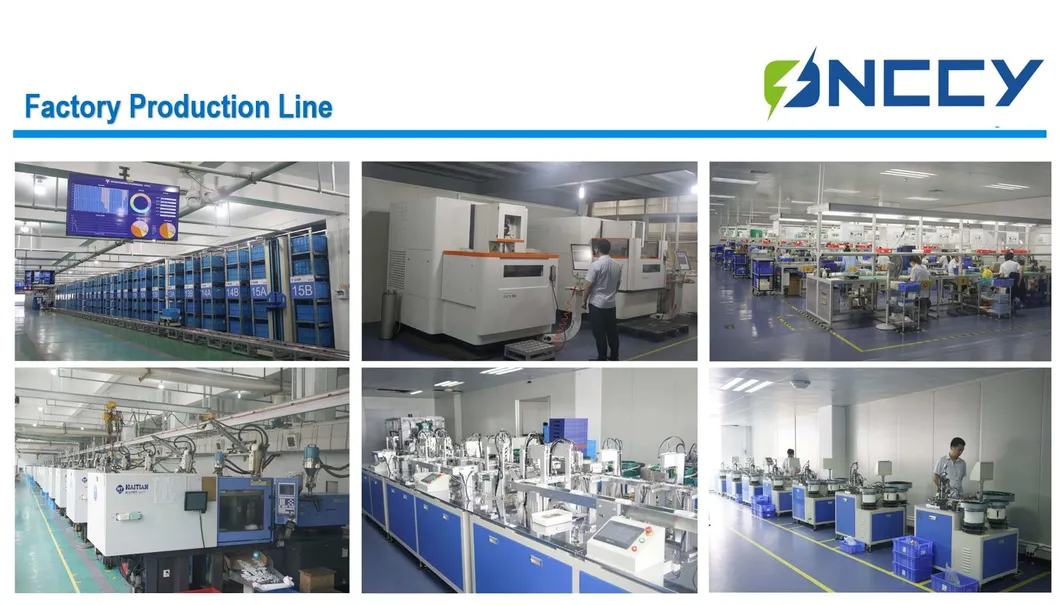

Production Line

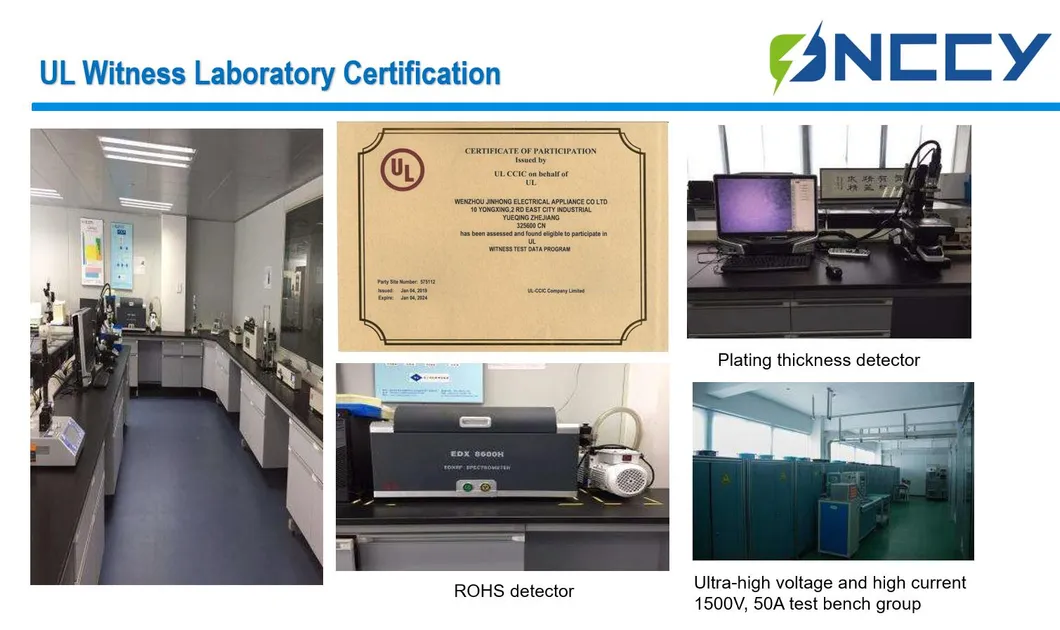

Testing Lab

Frequently Asked Questions

Q: Are you a trading company or manufacturer? A: We are a manufacturer with 30,000 square meters of self-owned plant and 30+ years of experience.
Q: What certifications do your products have? A: Our products are certified by UL, TUV, CB, SAA, CCC, and CE to meet international standards.
Q: Can you provide samples for quality inspection? A: Yes, we can supply samples. Please contact us with your detailed requirements.
Q: What is the typical lead time for orders? A: Small quantities are generally shipped within 3 days. Standard general orders typically take 15-20 days.
Q: How do you ensure product quality? A: We have a comprehensive inspection system from raw materials to finished products, including transient, delay, and mechanical life tests.
Q: Do you support customized requirements? A: Yes, our professional engineering team can design and develop molds to meet specific customer requirements.
