Product Description

i

Overview & Basic Info

Model
GW8000/10K/12K-ES-C10
Brand
Goodwe
Output Power
8-12kw
Phase
Single Phase
Battery Type
Lead Acid / Lithium (48V)
Protection
IP66
Efficiency
Max 97.6%
Certification
SAA, CE, ROHS, ISO9001
★

Product Description

Goodwe Single Phase Low Voltage 48V 8kw 10kw 12kw Hybrid Solar Inverter

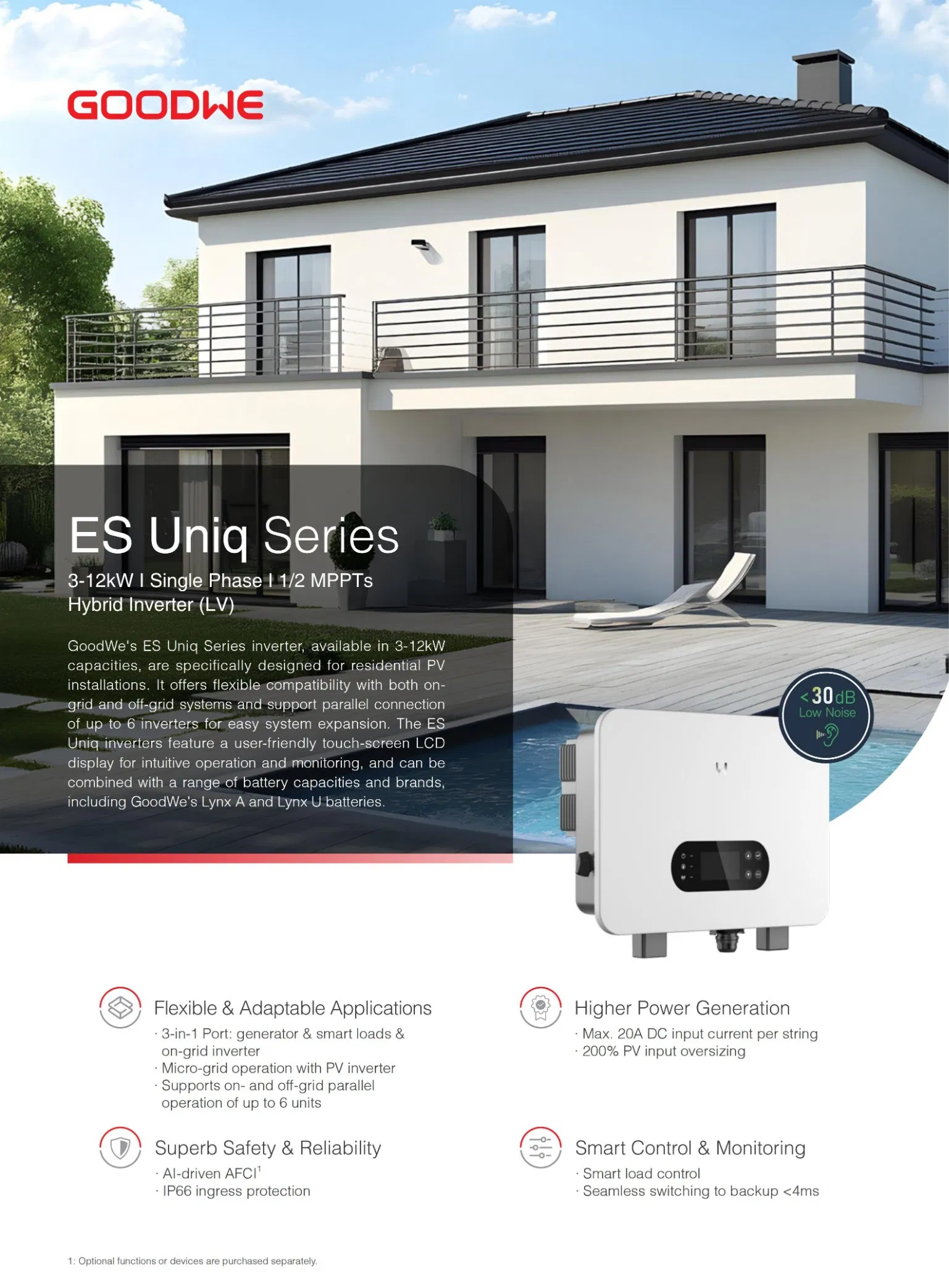

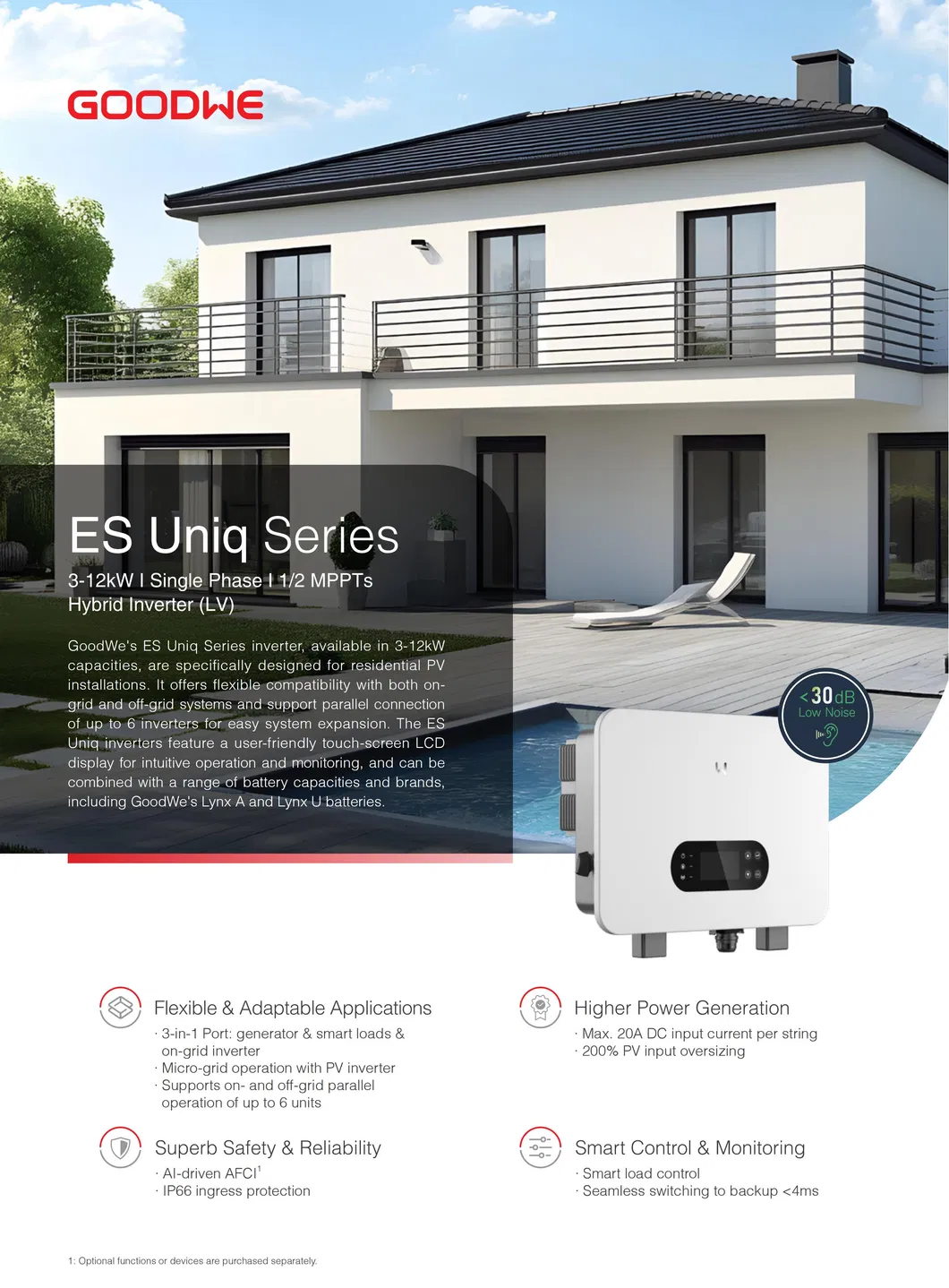

Goodwe Hybrid Inverter Overview
⚙

Product Parameters

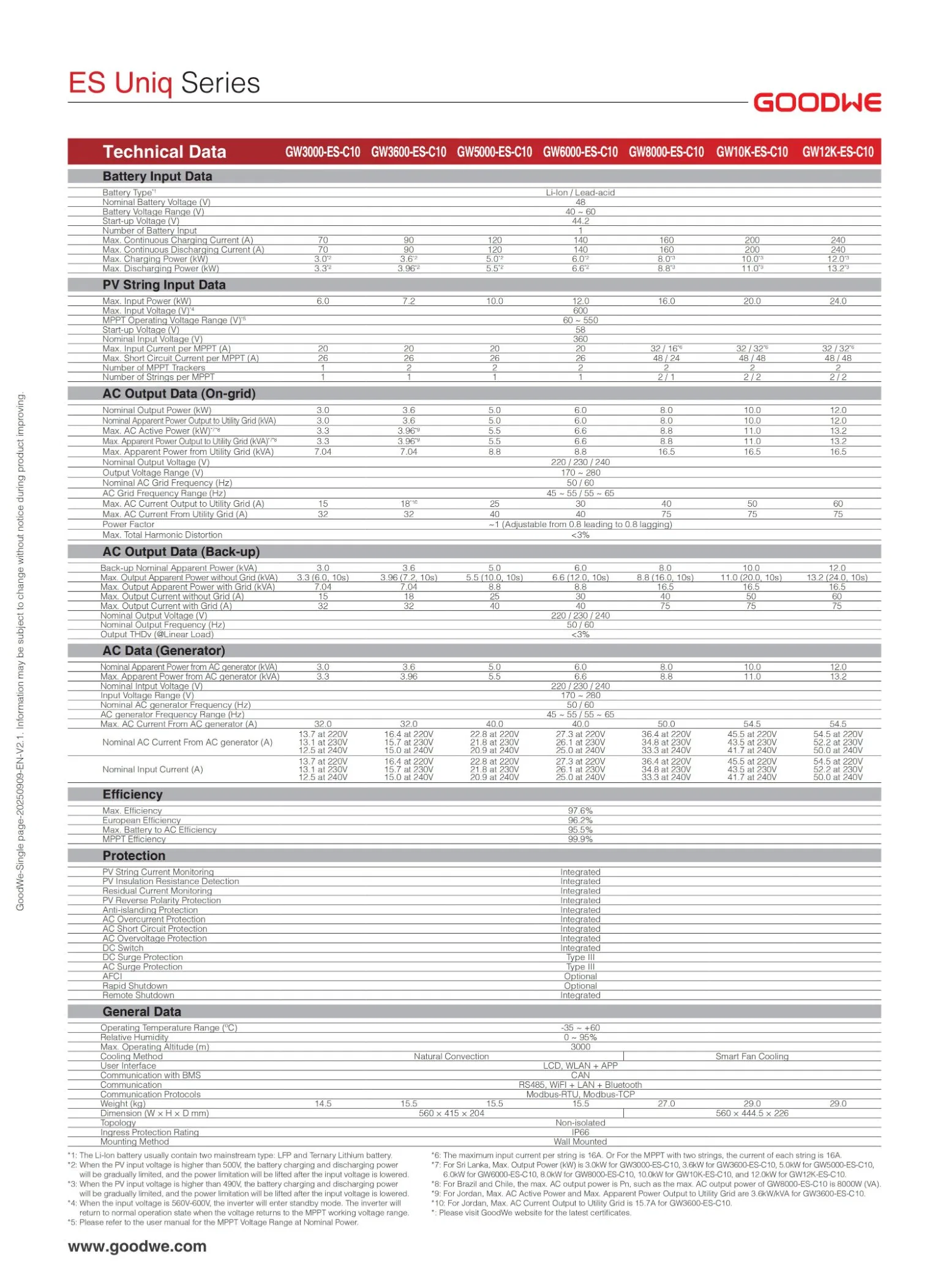

Technical Data GW8000-ES-C10 GW10K-ES-C10 GW12K-ES-C10
Max. PV Input Power (kW) 16 20 24
Nominal Output Power (kW) 8 10 12
Max. AC Current (A) 40 50 60
Battery Voltage Range (V) 40 ~ 60 V
MPPT Range (V) 60 ~ 550 V
Dimensions (mm) 560 × 444.5 × 226
Weight (kg) 27 29 29
📦

Packaging & Project Case

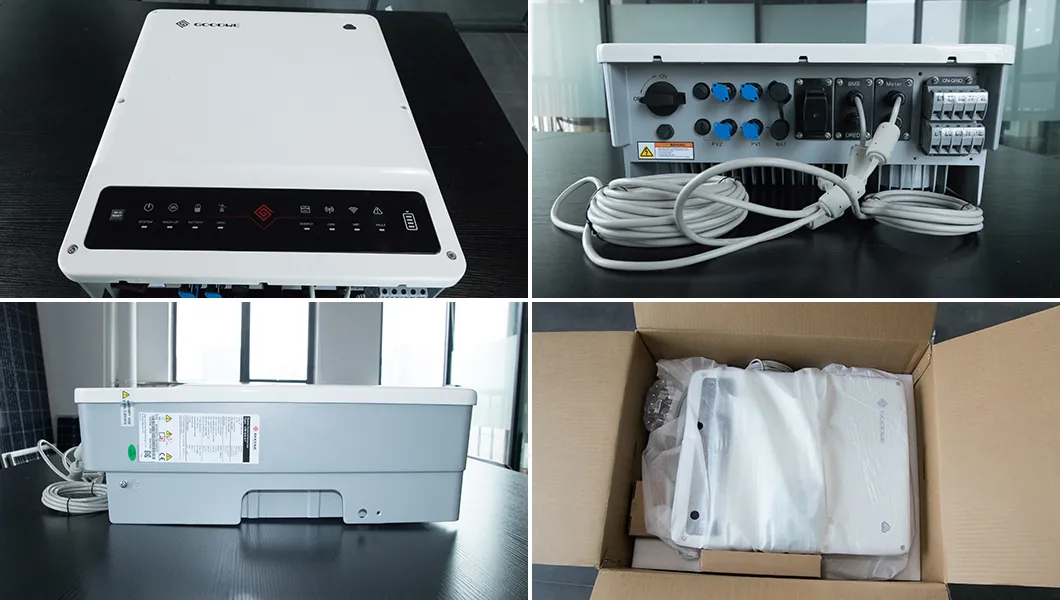

Packaging

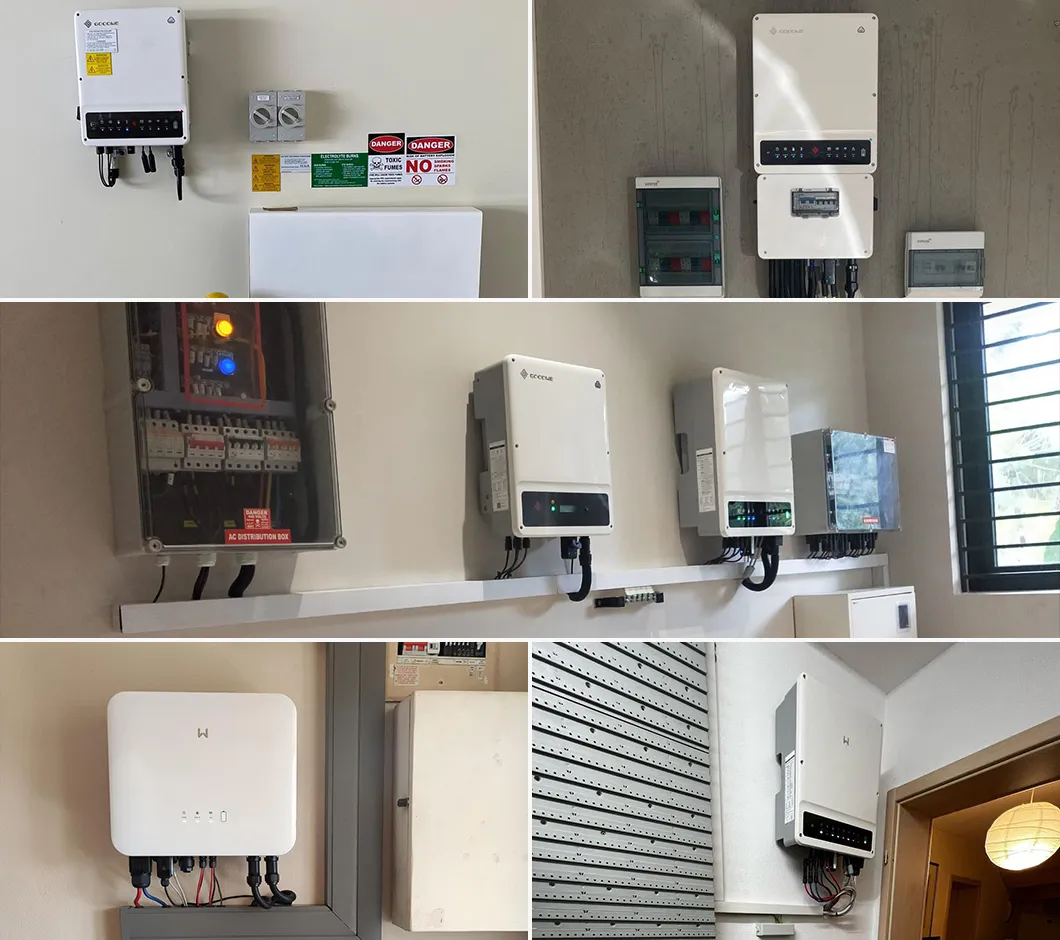

Project Case
?

Frequently Asked Questions

1. What battery types are compatible with this inverter?
This series supports both Lithium-ion and Lead-acid batteries with a nominal voltage of 48V.
2. Is this inverter suitable for outdoor installation?
Yes, the inverter features an IP66 ingress protection rating, making it highly resistant to dust and water for outdoor use.
3. Can it work with a backup generator?
Yes, the ES-C10 series includes dedicated AC data support for generator integration.
4. What is the maximum efficiency of the unit?
The inverter reaches a maximum efficiency of 97.6% and an MPPT efficiency of 99.9%.
5. How is the inverter cooled?
The 8kW to 12kW models utilize Smart Fan Cooling to maintain optimal operating temperatures.
6. Does it support remote monitoring?
Yes, it features multiple communication options including WiFi, LAN, Bluetooth, and RS485 for APP and WLAN monitoring.
