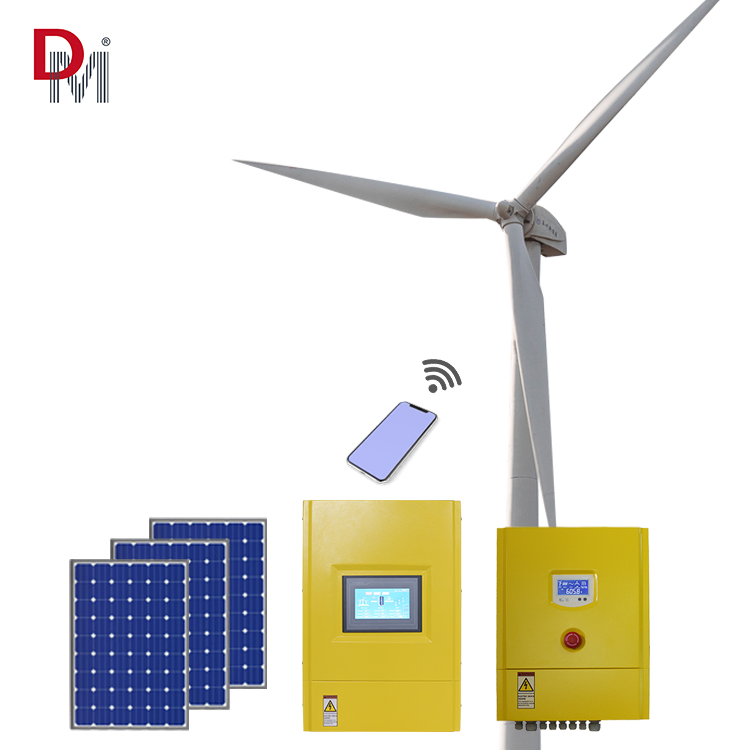

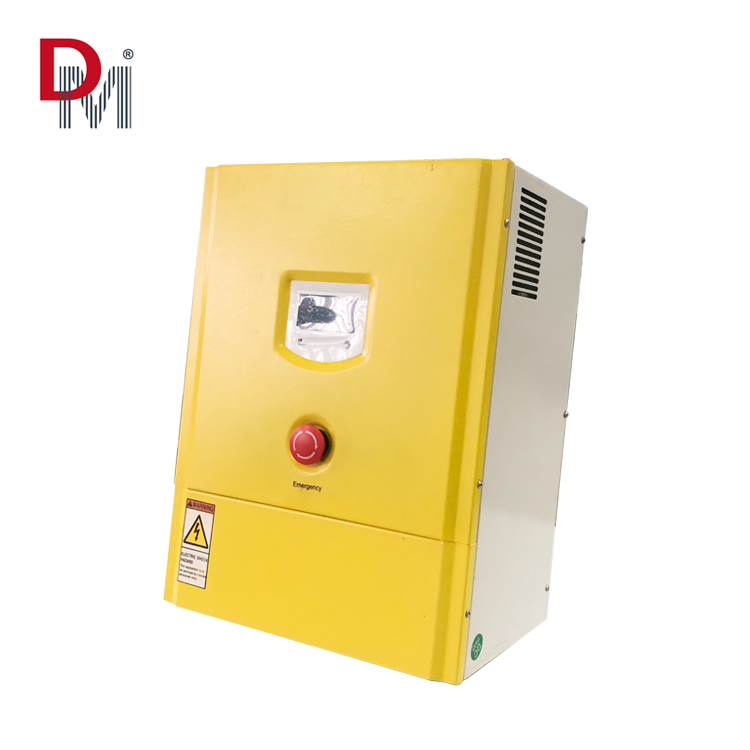

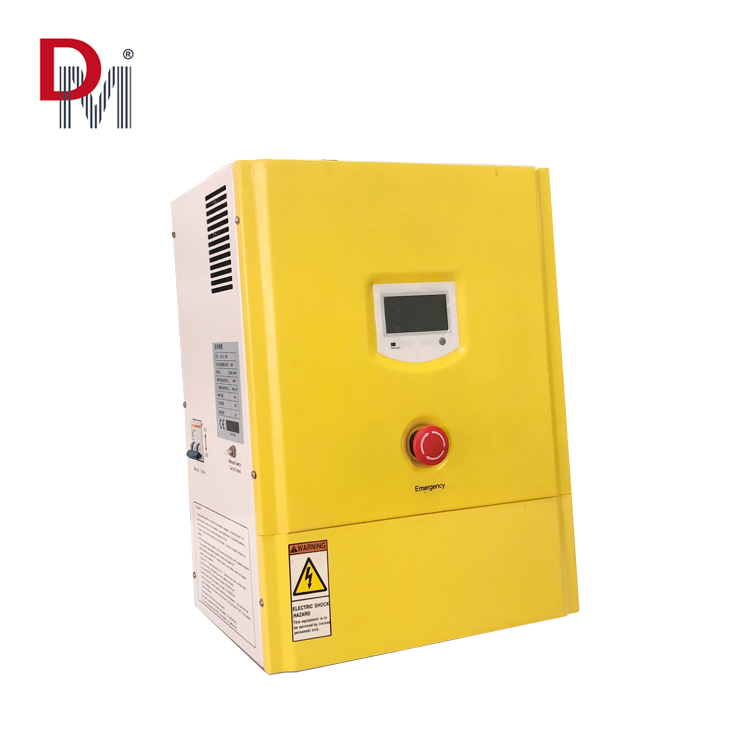

Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
1 / 5
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller
Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller

Fkj-Gt 1.5kw Hybrid Wind Grid-Connected Controller with Solar Wind Solar Hybrid Charge Controller

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📌 Basic Information
Model NO.:
FKJ-GT 1.5KW
Condition:
New
Certification:
ISO, CE
Application:
Wind Controller
Wind Turbine Rated Power:
3kw
Solar Panel Power:
3kw
Display Mode:
LCD
Efficiency:
More Than 92%
⚙️ Product Description

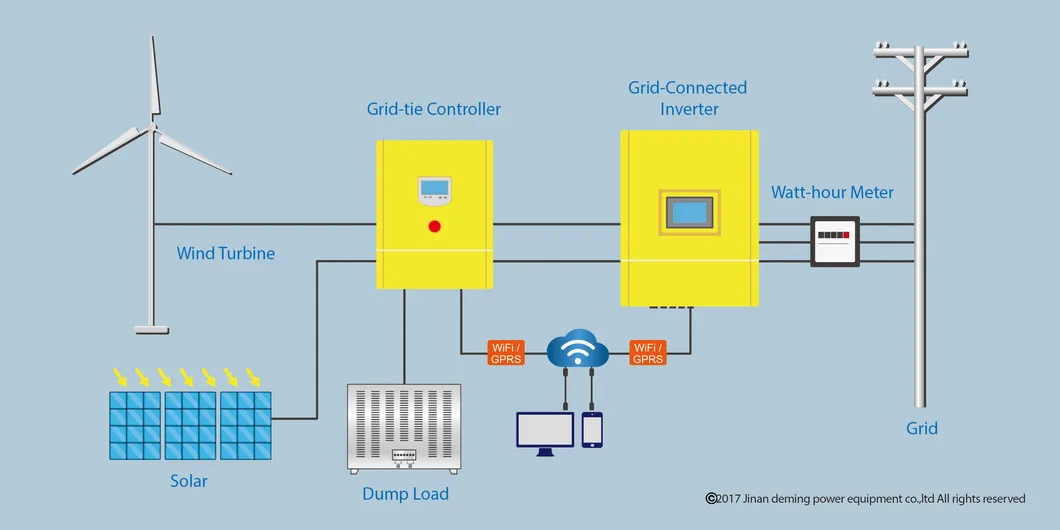

Product Description Banner

FKJ-GT (Grid-tie) model On grid Wind Turbine Controller Characteristics:

  • Manufactured according to JB/T6939.1-2004 and GB/T 19115.1-2003 standards.
  • Big LCD display showing real-time voltage, current, and power generation data.
  • Dual control systems: PWM constant voltage and three-phase dump load system.
  • Strong wind protection: Automatic three-phase dump load activation during over-capacity.
  • Grid-off safety: Automatic brake when grid is cut off to protect equipment.
  • Built-in surge protector to conduct lightning current to earth.
  • Emergency stop switch for immediate manual braking.
  • Modbus Communication protocol support for secondary development.

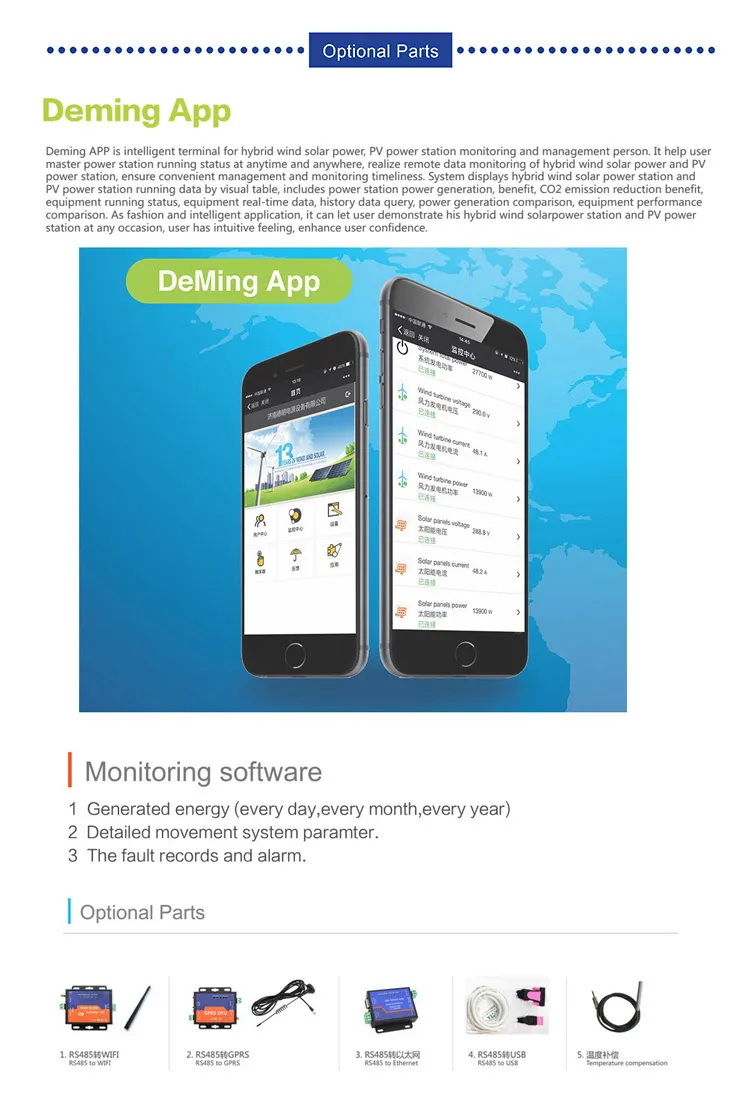

  • Remote monitoring via RS485, WIFI, or GPRS (Android & iOS compatible).
📸 Detailed Photos

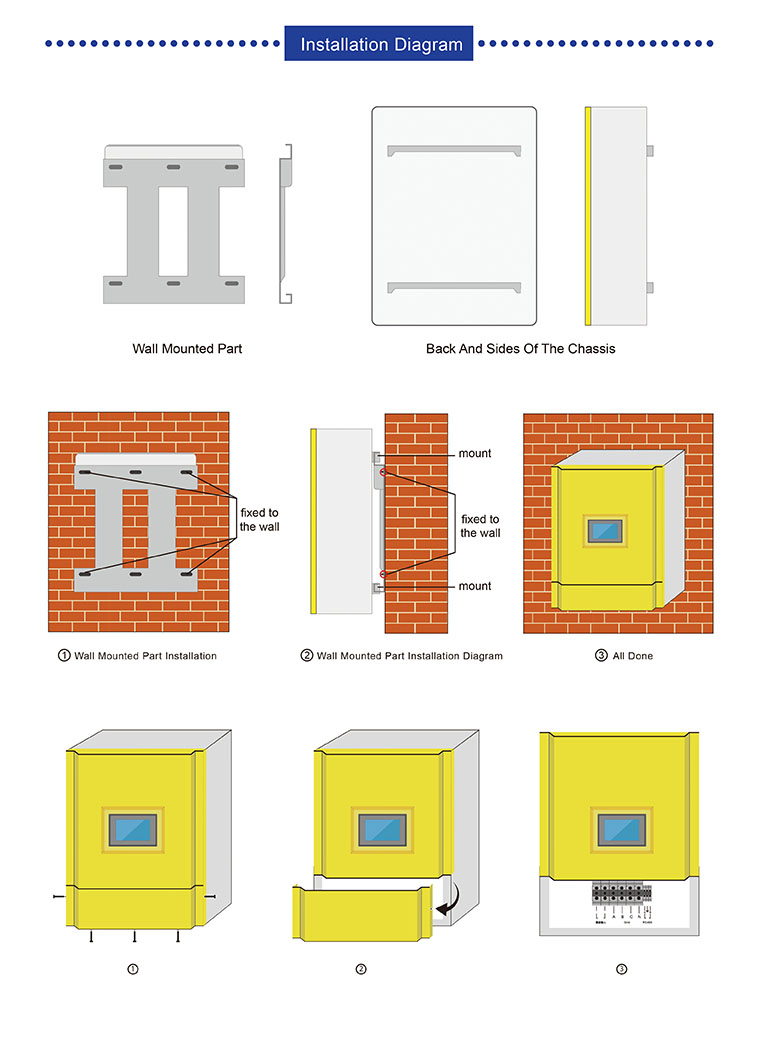

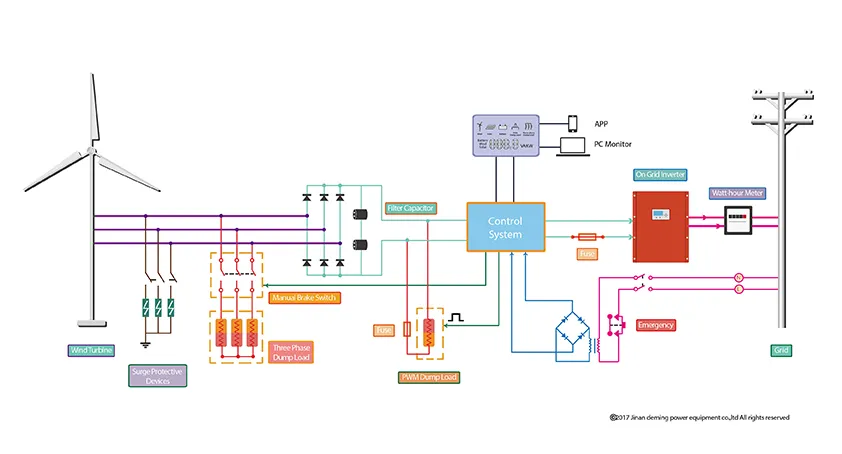

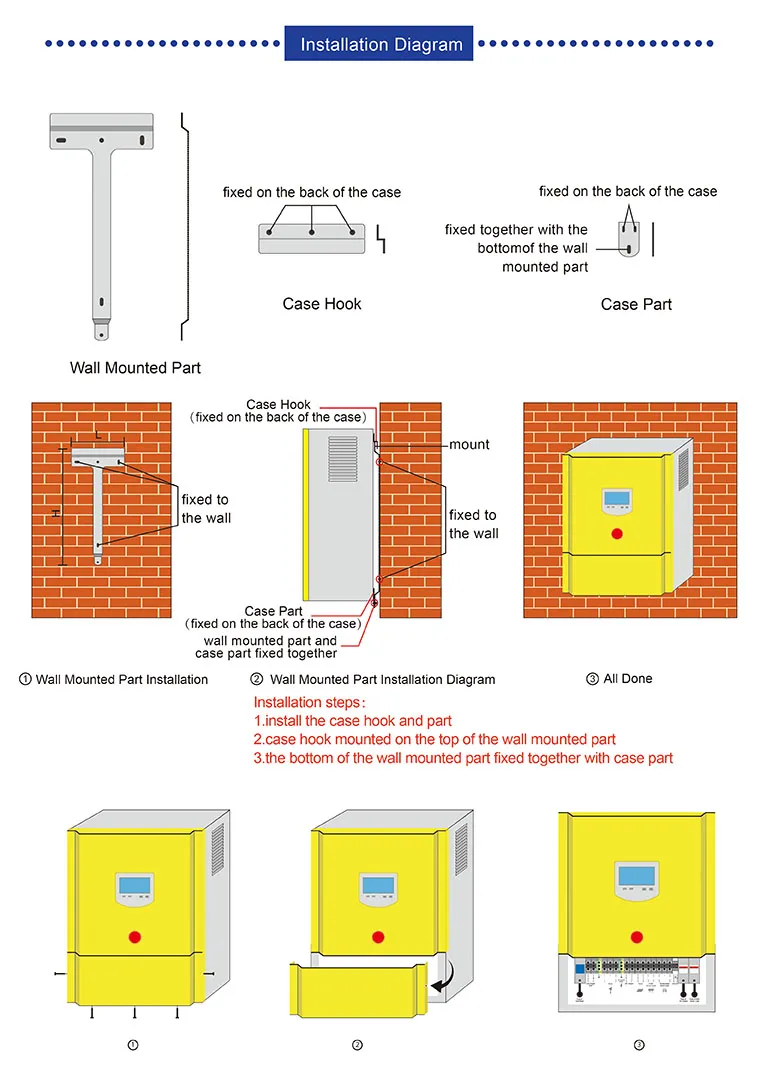

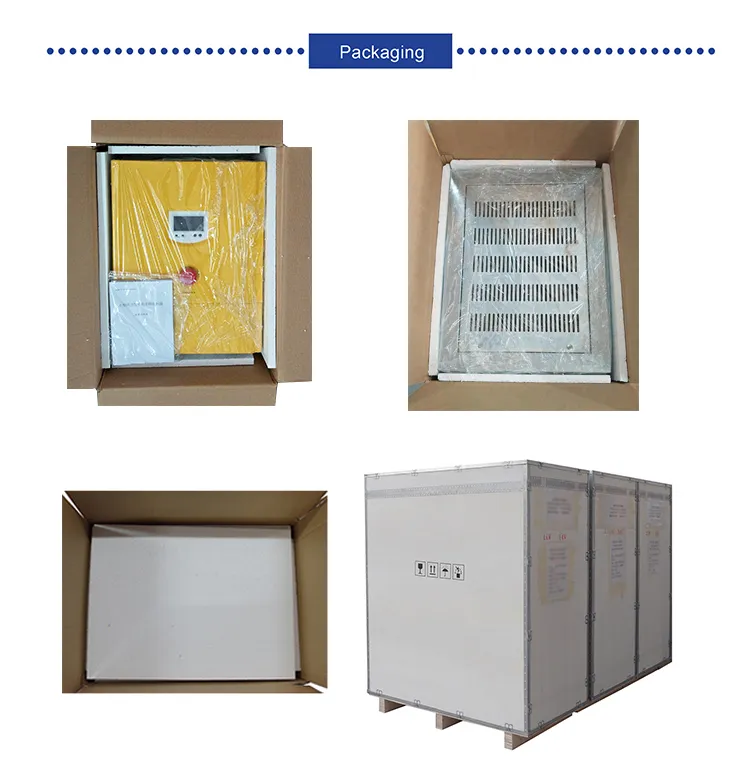

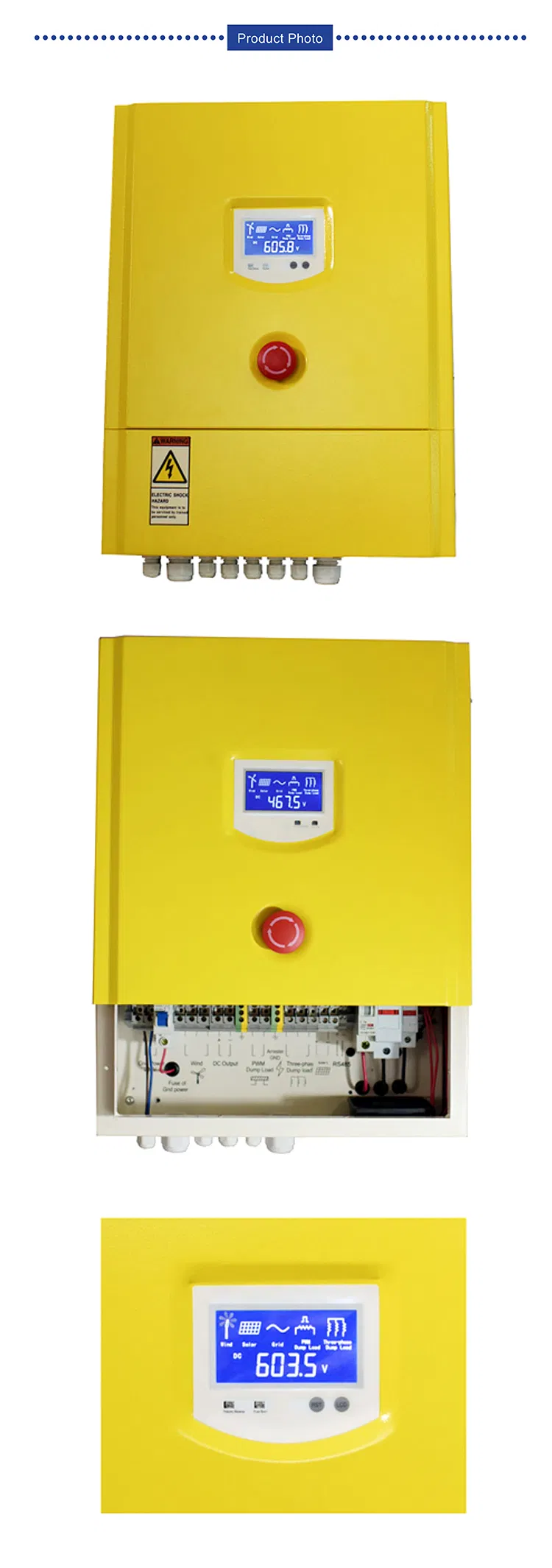

Detail 1 Detail 2 Detail 3 Detail 4 Detail 5
📊 Product Parameters (1.5KW-3KW)
Type FKJ-GT1.5KW FKJ-GT2KW FKJ-GT3KW
Wind turbine rated power1.5KW2KW3KW
Wind turbine Max. power3KW4KW6KW
Wind turbine rated voltageAC220VAC220VAC220V
Solar panels power (optional)300W600W3KW
Automatic protectionOver voltage, network cut off, arrester
Display ModeLCD (Voltage, Current, Power, Total Energy)
PWM constant voltage≥320dc≥320dc≥320dc
Weight (Controller)15Kg17Kg17Kg
📜 Certifications & Cases

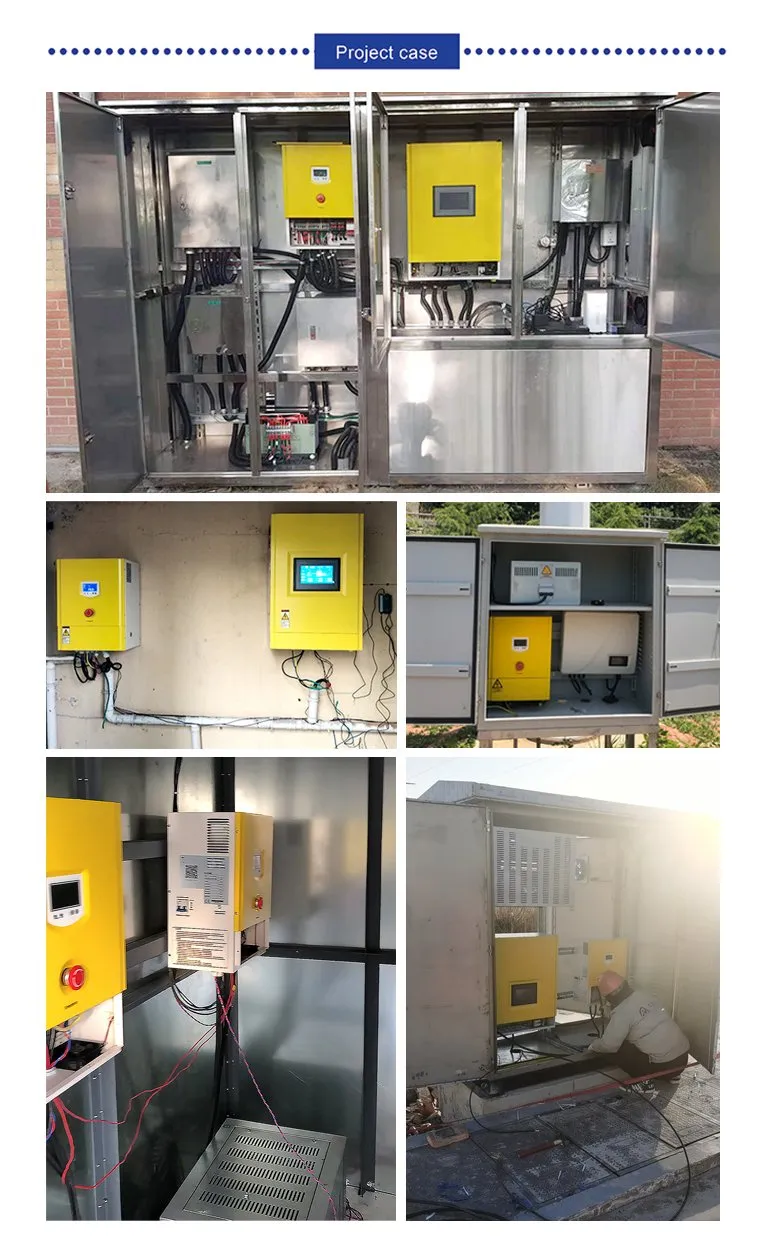

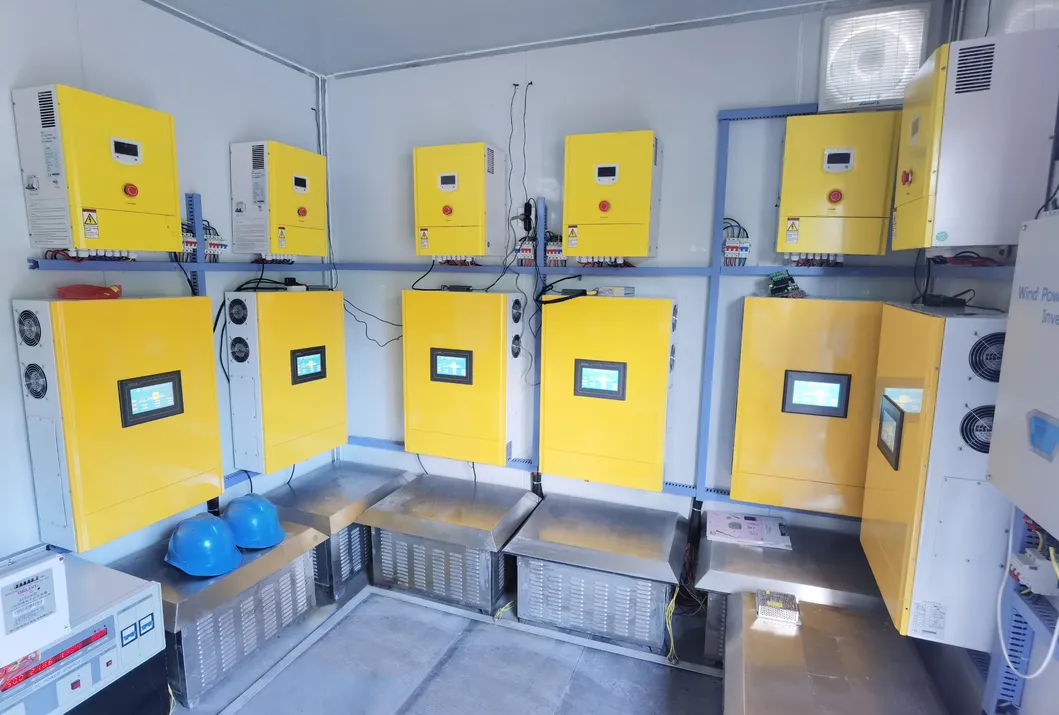

Certifications Company Profile Advantages More Products Case 1 Case 2
❓ Frequently Asked Questions
Q1: What standards do these controllers comply with?
The products are manufactured according to the JB/T6939.1-2004 industrial standard and GB/T 19115.1-2003 national standard.
Q2: How does the system handle over-voltage conditions?
The controller uses a dual system: PWM constant voltage control (up to 120% rated power) and an automatic three-phase dump load system for extreme conditions.
Q3: Can I monitor the system remotely?
Yes, the controller supports RS485, WIFI, and GPRS interfaces, allowing real-time monitoring via PC or mobile devices (Android and iOS).
Q4: What happens if the utility grid goes down?
When the grid is cut off, the three-phase dump load will automatically activate, and the inverter will stop outputting to the grid to ensure safety.
Q5: Is it possible to integrate solar panels with this controller?
Yes, a solar panel control system can be added according to customer requirements to create a hybrid wind-solar system.
Q6: What data is displayed on the LCD screen?
The LCD shows real-time wind turbine voltage/current, solar panel data, DC output details, and total power generation history.
