Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
1 / 5
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage
Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage

Felicityess 50kw Three Phase Hybrid Inverter DC to AC Conversion High Voltage

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.IVGM50KHP3G1PhaseThree
Output Power50kwCertificationSAA, CE, ROHS, ISO9001, CCC
TypeDC/AC InvertersPower SourceSolar Power, Grid
Wave StringSine WaveProtection11 Protections
Battery TypeLFP(LiFePO4)Voltage Range160~800vd.C.
IP RatingIP65Max Efficiency97.6%
Product Overview

50kW Three Phase Hybrid Inverter

High Voltage DC to AC Conversion System for Commercial and Residential Energy Storage.

  • 0 Inventory, 0 Cost Investment, 0 Risk
  • Top 100 Global Energy Storage Brand
  • 1.4 Billion Annual Output Value
  • 100+ Global Patented Technologies
  • 30+ Global Branches
  • 100+ Senior Technical Experts
Hybrid Inverter Description
Technical Parameters
Battery Input Data
Max. Charging/Discharging Current50+50 (A)
Battery Input Channels2
PV String Input Data
Max. DC Input Power65 kW
Max. DC Input Voltage1000Vd.c
MPPT Range200~850Vd.c
No. of MPP Trackers4
AC Output Data
Rated AC Output Power50 kW
Max. AC Output Power55 kW
Rated AC Voltage220/380, 230/400Vac
General Data
Warranty10 Years
Cooling MethodSmart Cooling
Net Weight85.6 KG
Product Details

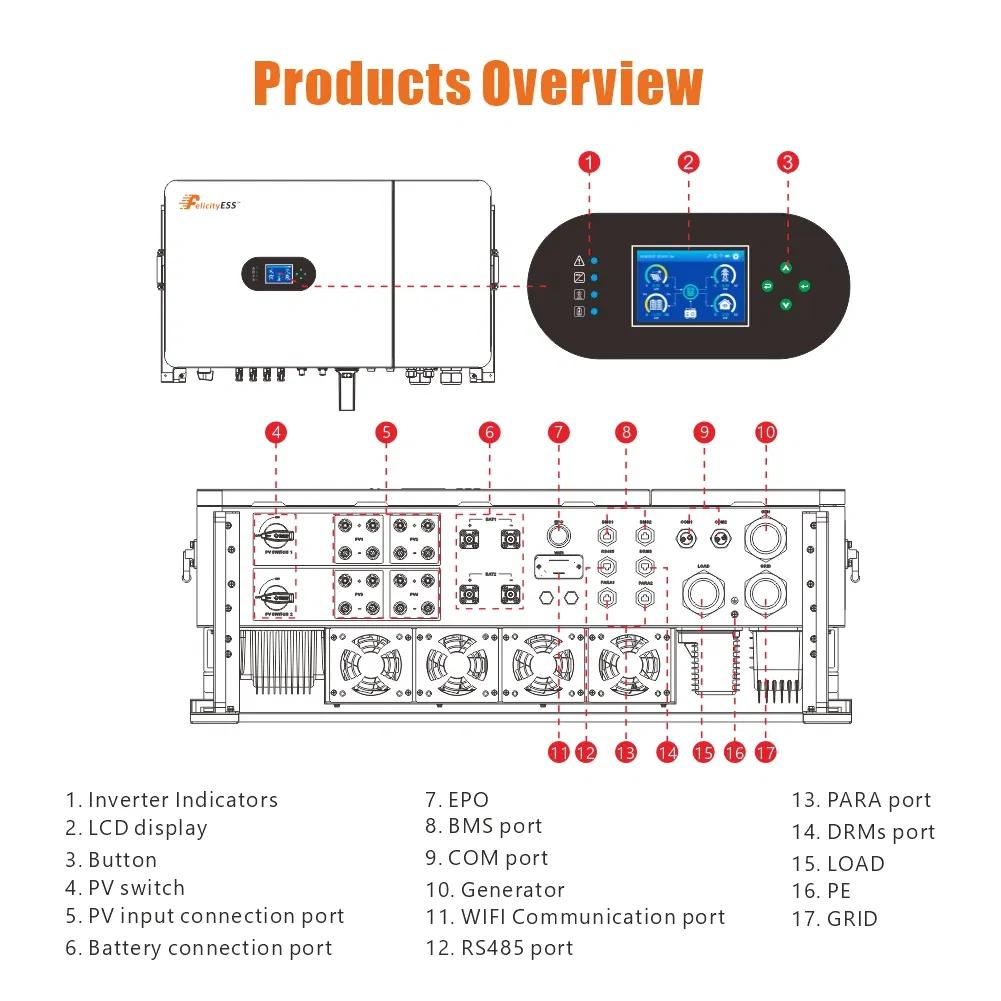

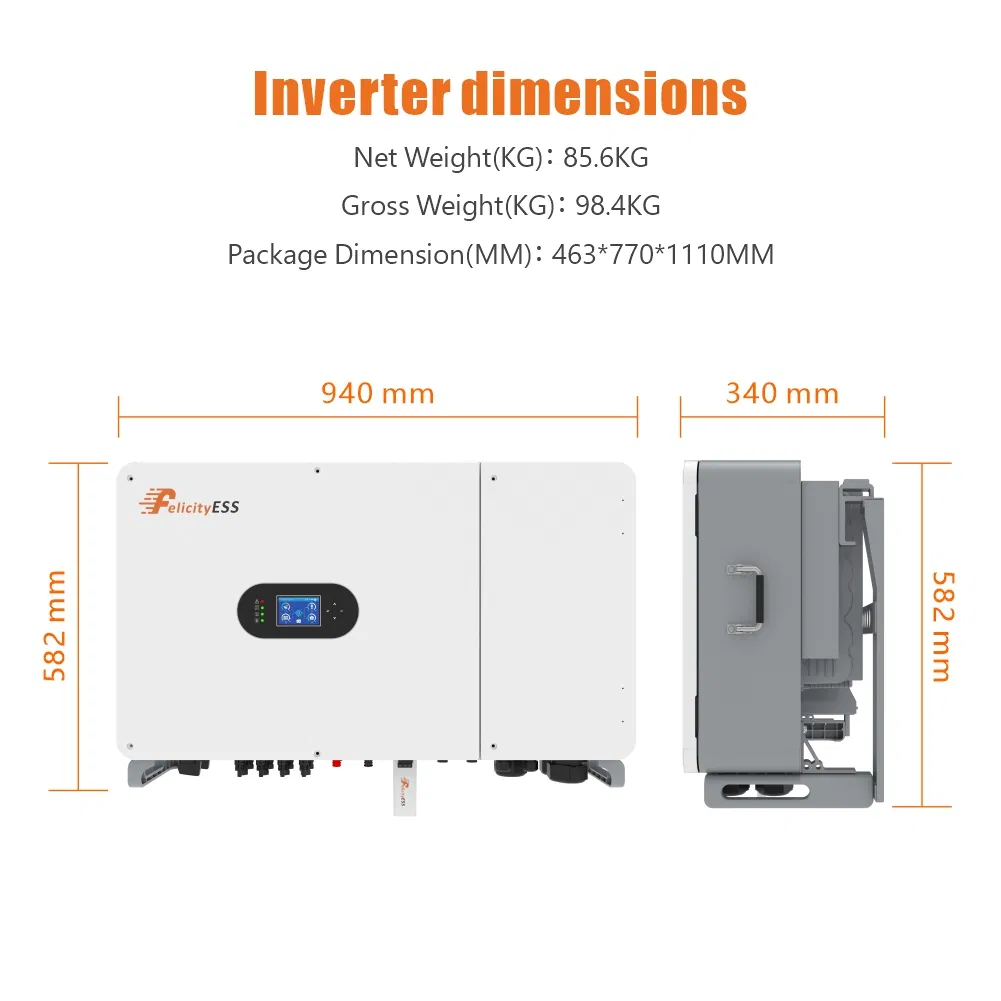

Inverter View 1 Inverter View 2 Inverter View 3
Inverter View 4 Inverter View 5 Inverter View 6

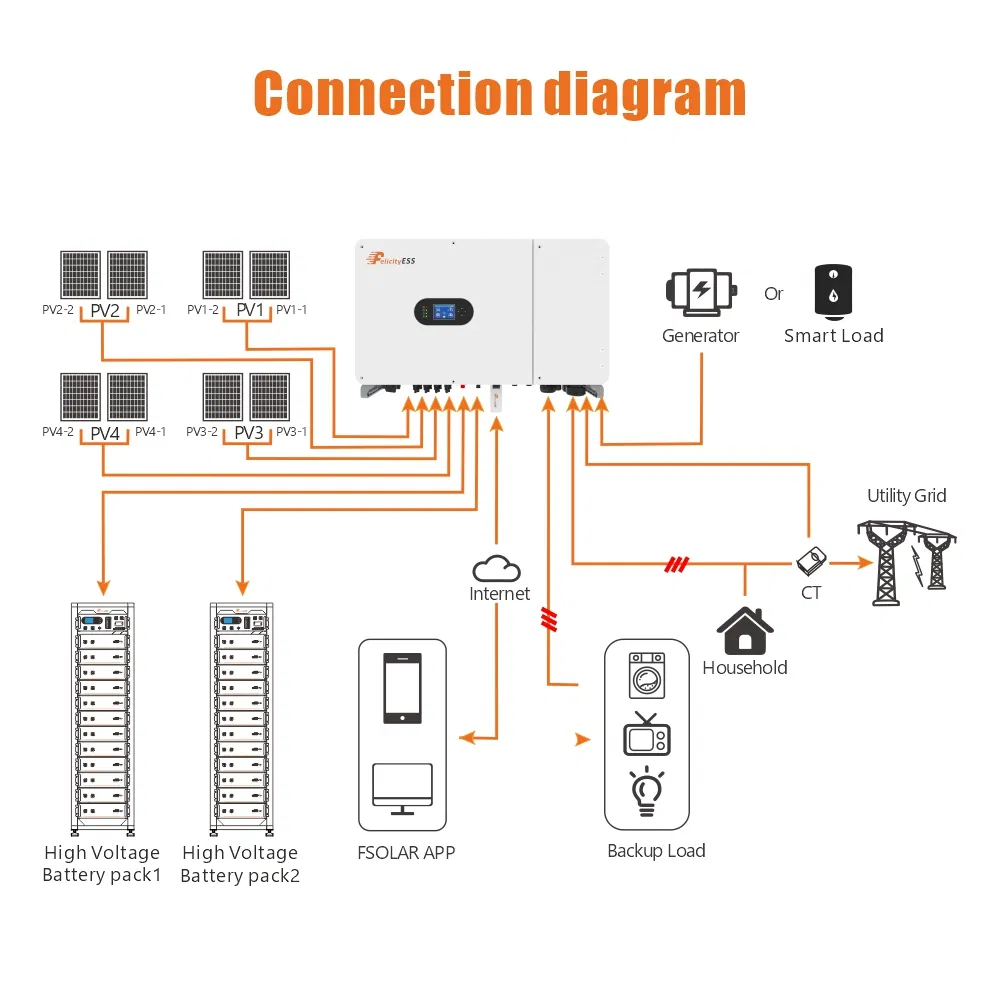

Installation Diagram
Manufacturing & Certifications
Certifications

Our facility spans 40,000 square meters with over 1,000 employees. We specialize in home energy storage batteries, all-in-one systems, and solar inverters, providing efficient energy solutions globally.

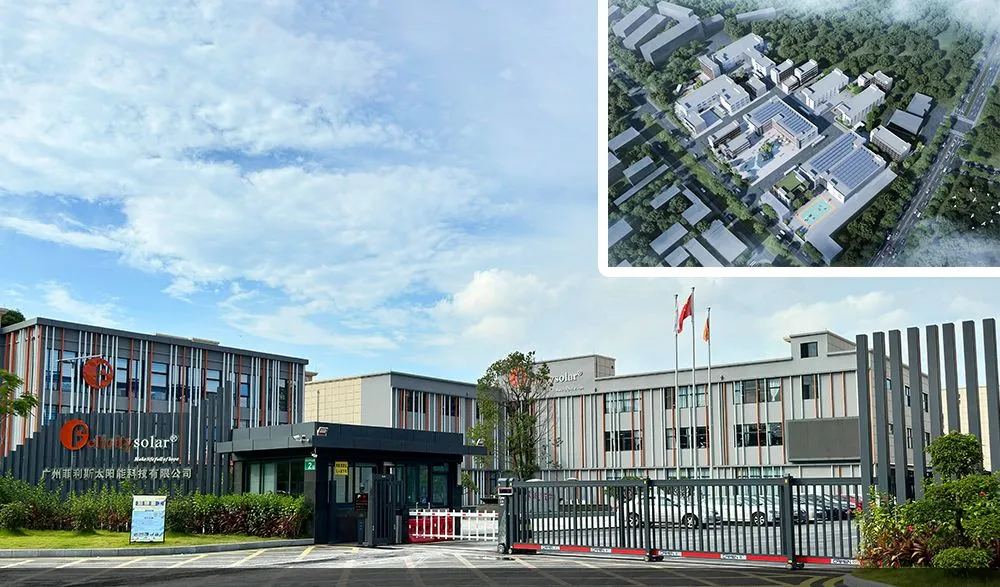

Factory Interior Production Line Quality Control
Logistics & Exhibition

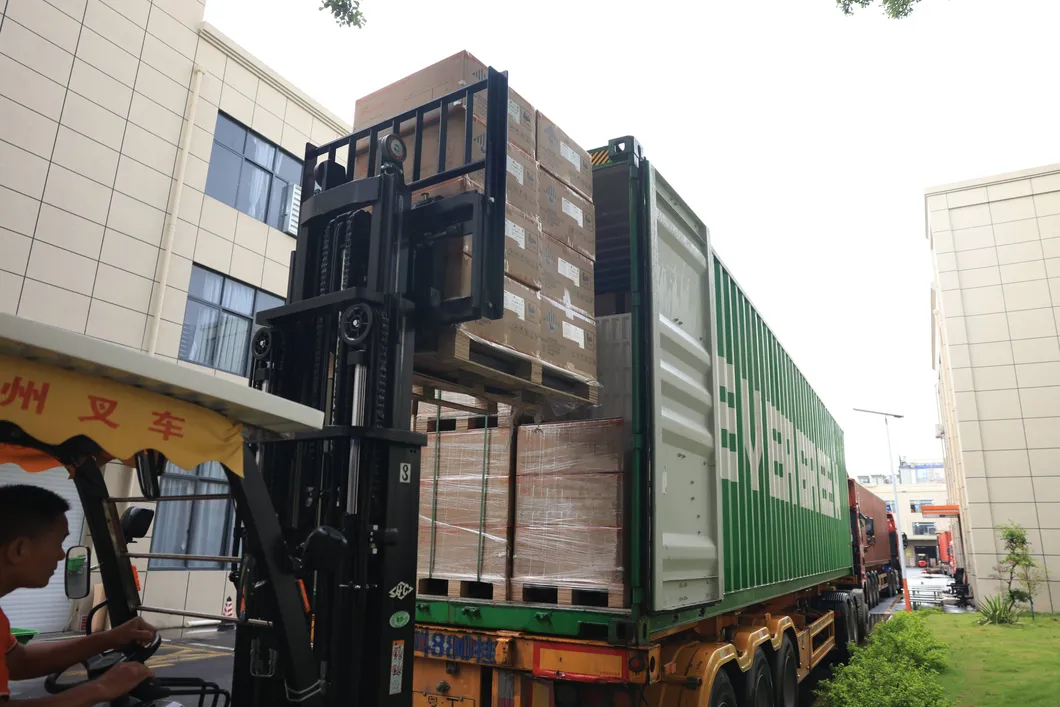

Packaging Shipping
Exhibition
Frequently Asked Questions
Q1: How to install and use the solar inverter?
A1: We provide an English manual and detailed videos covering every step of machine disassembly, assembly, and operation for our customers.
Q2: What if I don't have export experience?
A2: We have numerous overseas offices and warehouses to handle shipping via sea, air, or express. We will assist you in choosing the most suitable service.
Q3: How is your technical support?
A3: Our professional technical engineers and sales teams are available year-round to address pre-sales and post-sales issues via online platforms or on-site assistance if required.
Q4: Can you customize the solar inverter for us?
A4: Yes, we offer customization for product specifications, branding, machine colors, and unique design patterns.
Q5: How can I become your agent?
A5: Please contact us directly, and we will provide comprehensive details regarding our dealer and agent programs.
Q6: What is the warranty for the inverter?
A6: The product comes with a standard 10-year warranty.
