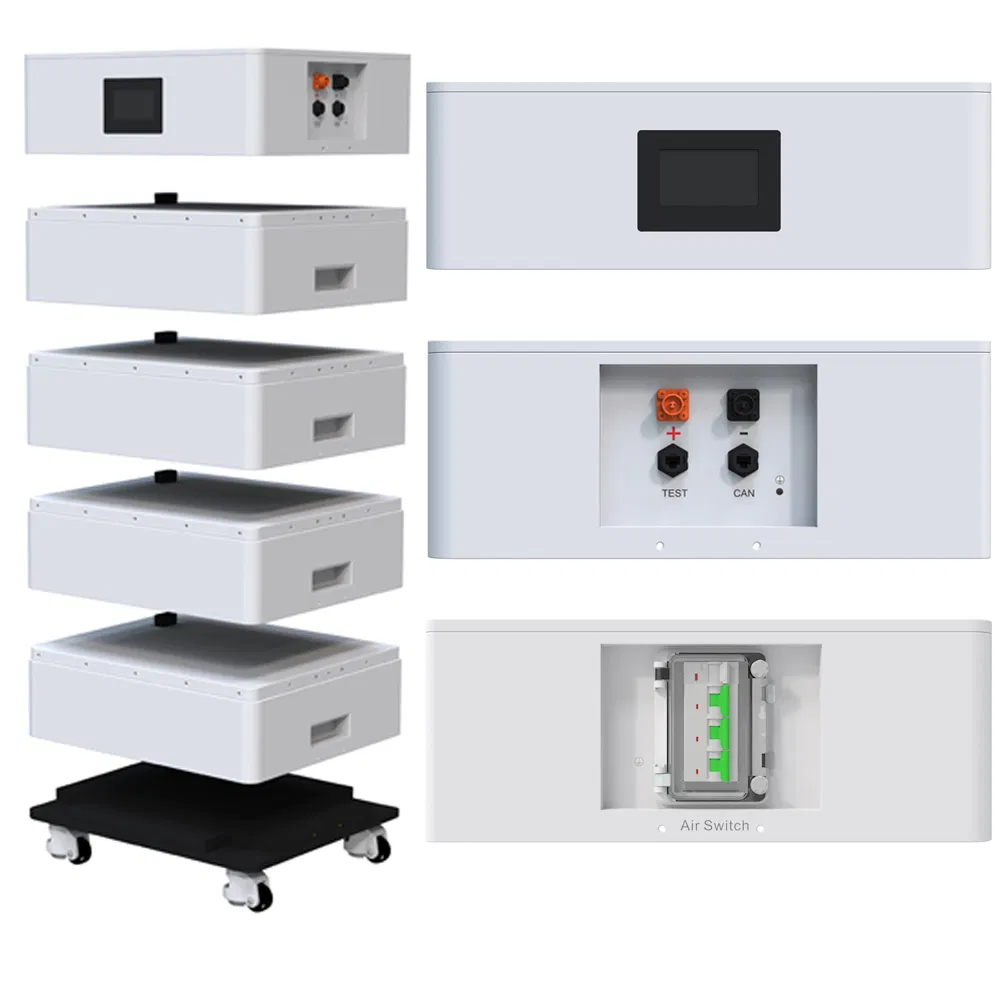

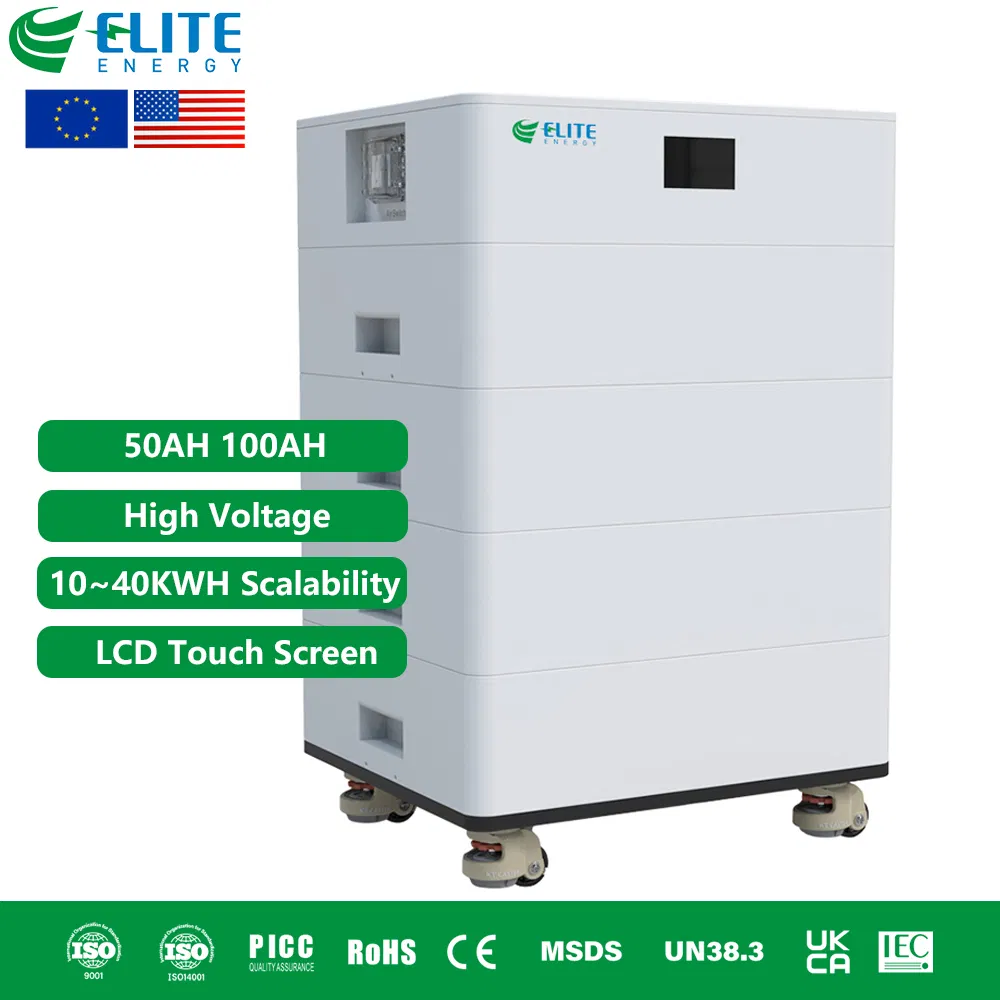

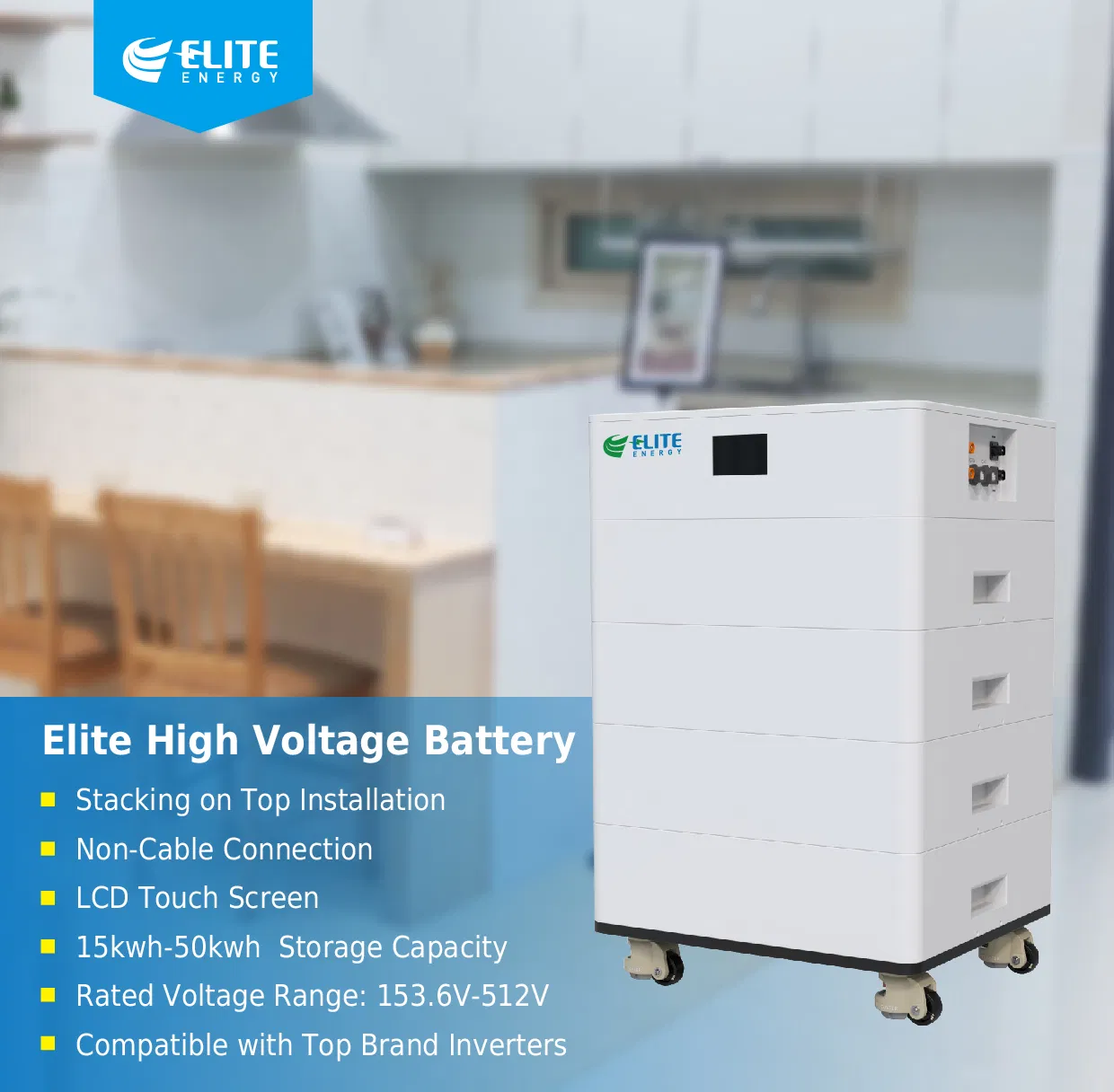

15Kwh 20Kwh 30Kwh 40Kwh 50Kwh High Voltage Energy Storage Battery System LiFePO4 Solar Lithium Ion Batteries Pack. This system is designed for high-performance energy storage with a focus on safety and scalability.
| Typical Model | ELT15K100H | ELT20K100H | ELT25K100H | ELT30K100H | ELT40K100H |
|---|---|---|---|---|---|
| Number of Modules | 3 | 4 | 5 | 6 | 8 |
| System Parameters | |||||
| Battery Type | LiFePO4 | ||||
| Nominal Energy | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 40.96kWh |
| Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 409.6V |
| Max. Continuous Current | 100A | ||||
| General Parameters | |||||
| IP Standard | IP65 | ||||
| Weight (kg) | 177 | 227 | 277 | 327 | 427 |
No, there is no MOQ limit. 1-piece sample orders or small quantities are available.
Standard samples take 3-5 days, while bulk orders typically take 3-4 weeks. Customized products follow a 3-4 week schedule.
Our LiFePO4 batteries provide 4000+ cycles, offering a service life 8 to 10 times longer than standard lead-acid batteries.
Yes, the BMS includes a low-temperature cutoff function to protect the battery from damage during charging (0°C ± 4°C) and discharging (-20°C ± 4°C).
Yes, they are manufactured with automotive-grade cells and feature a stable chemical structure that resists burning or exploding. They are CE certified and include a comprehensive BMS for overcharge and thermal protection.
We recommend a LiFePO4-specific charger. Alternatively, you can use photovoltaic solar panels with an MPPT controller or an inverter with built-in AC-to-DC charging.
