Basic Specifications
Model NO.
R16-02 edge computing
Type
Network Version AD Player
CPU Chipset
Rockchip 3399 PRO 6 Cores A72 A73
Specification
170*105*40mm

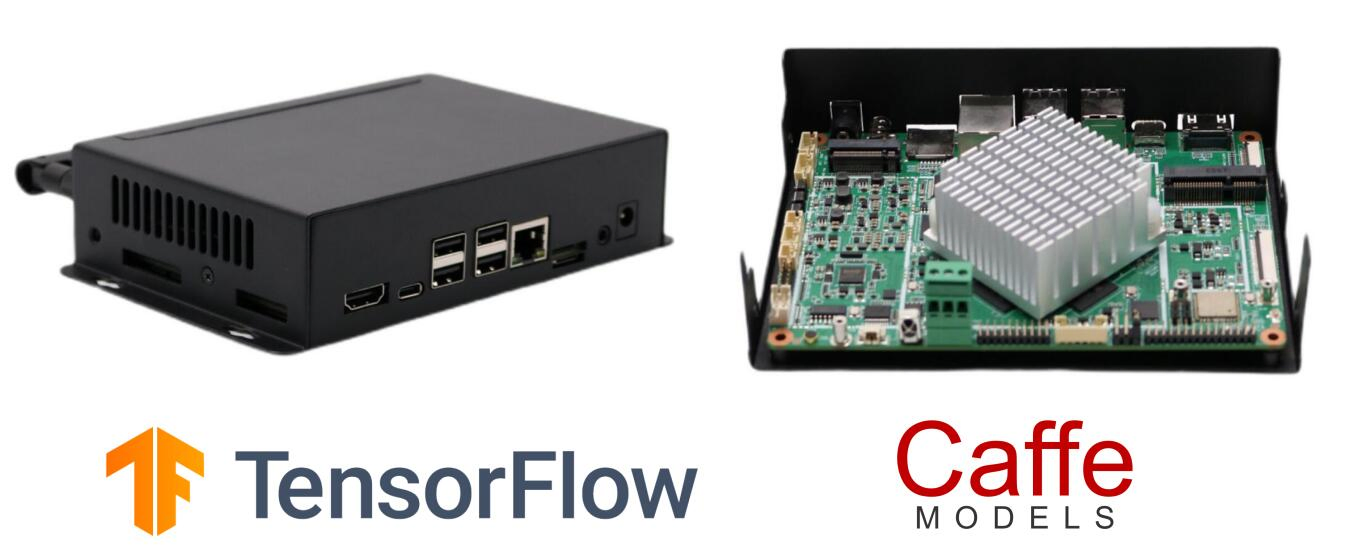

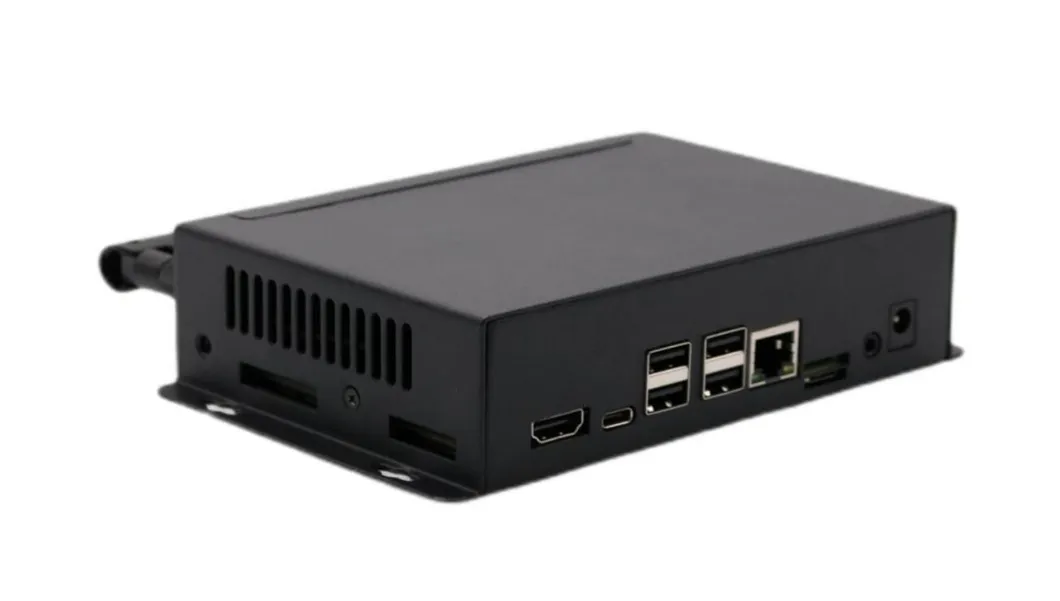

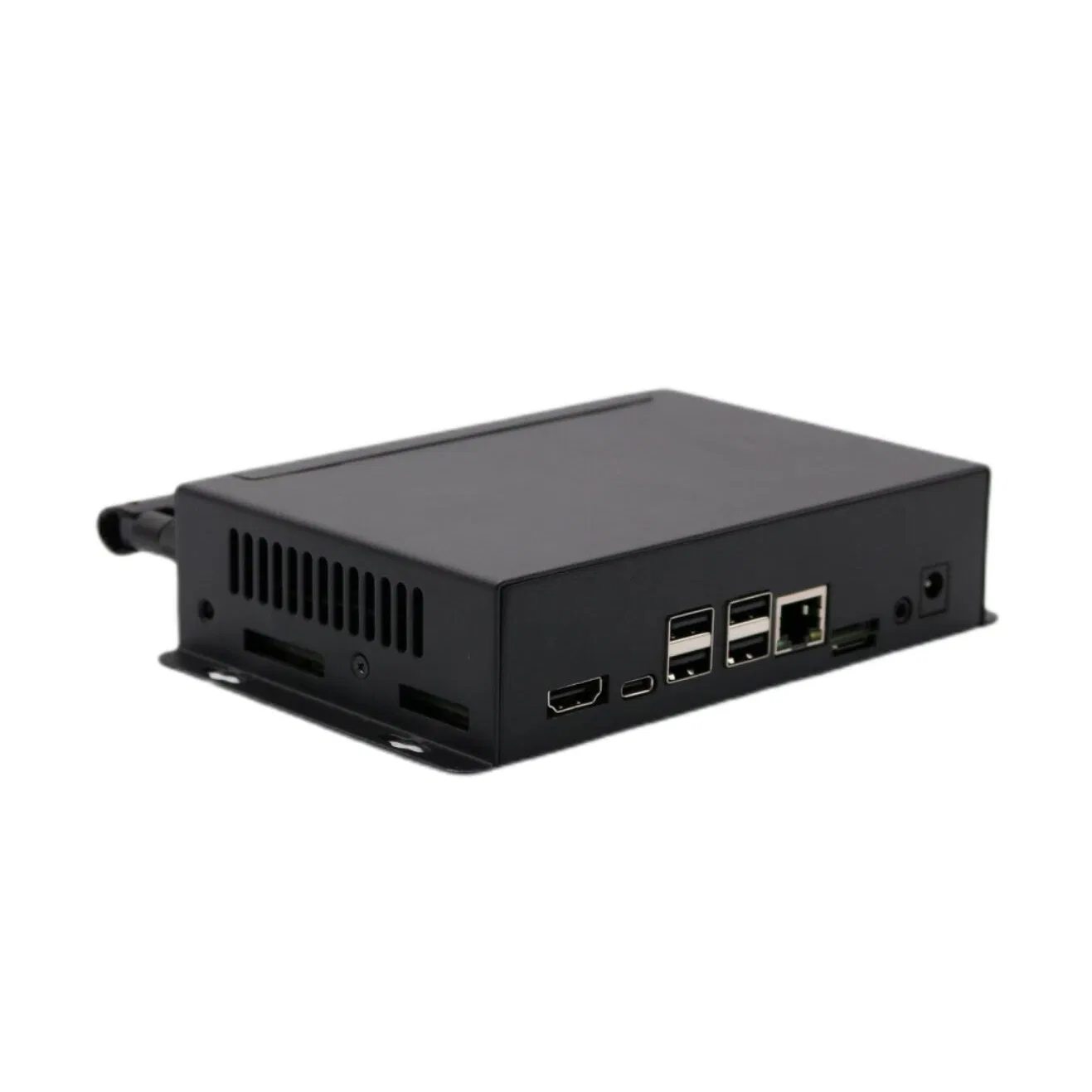

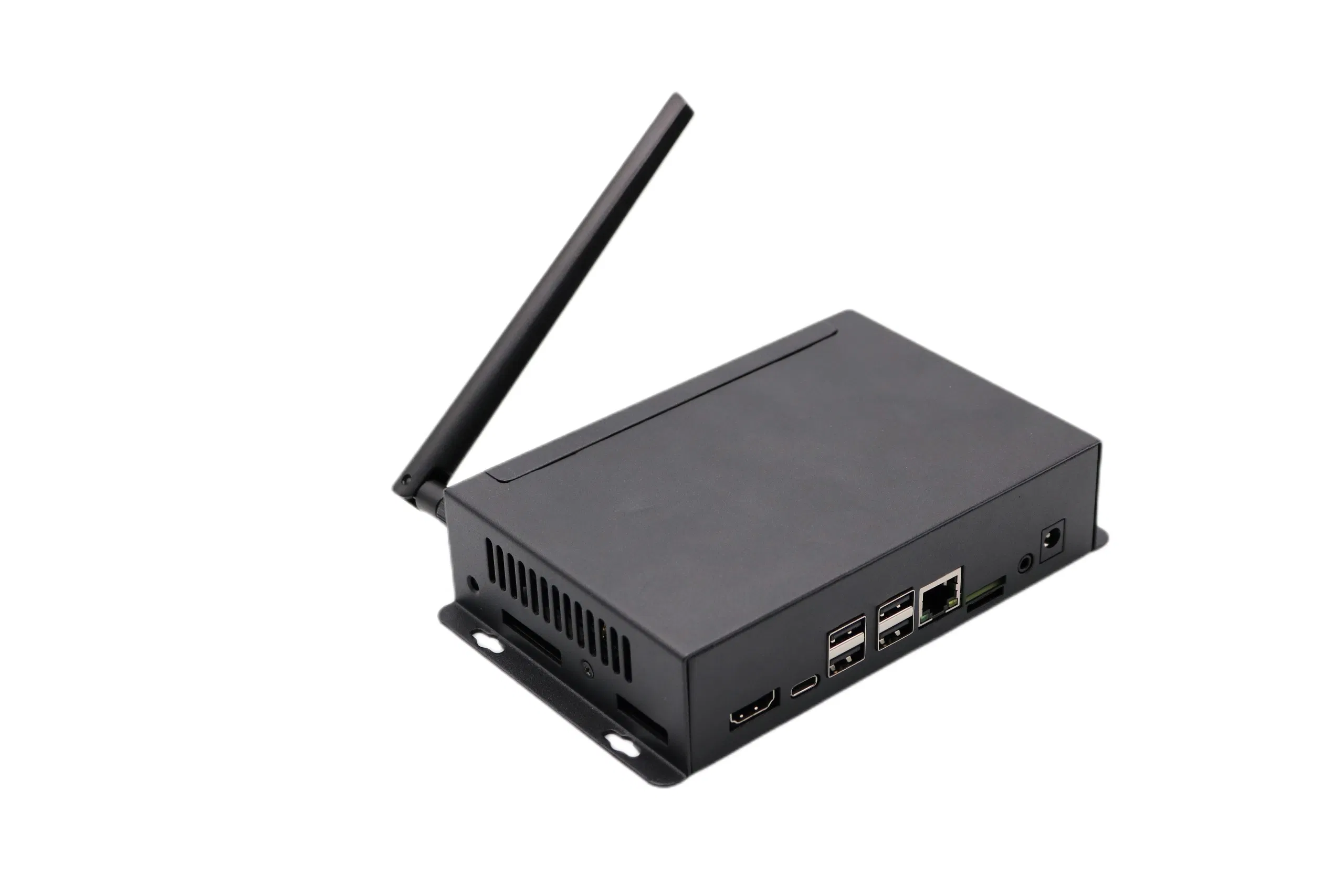

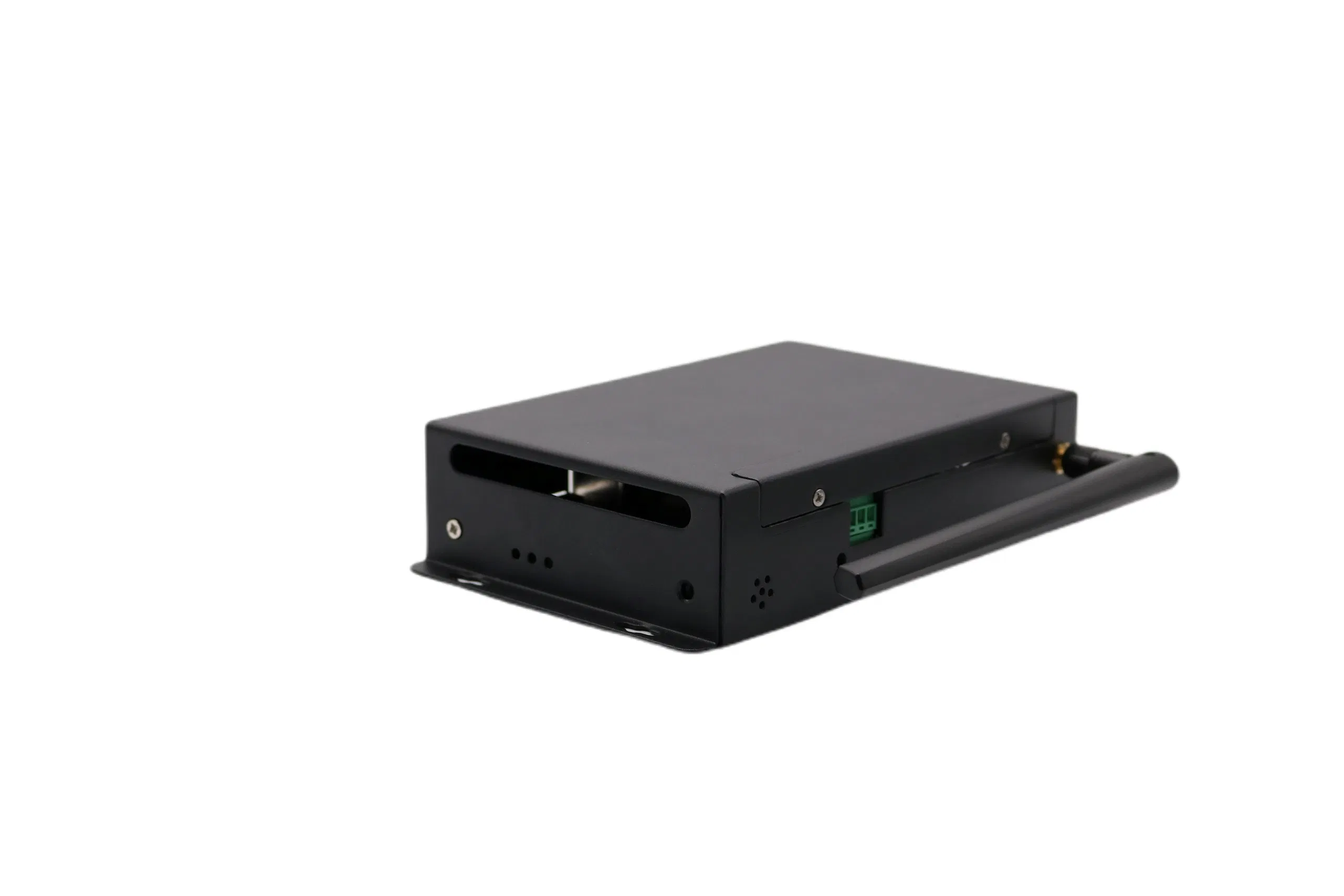

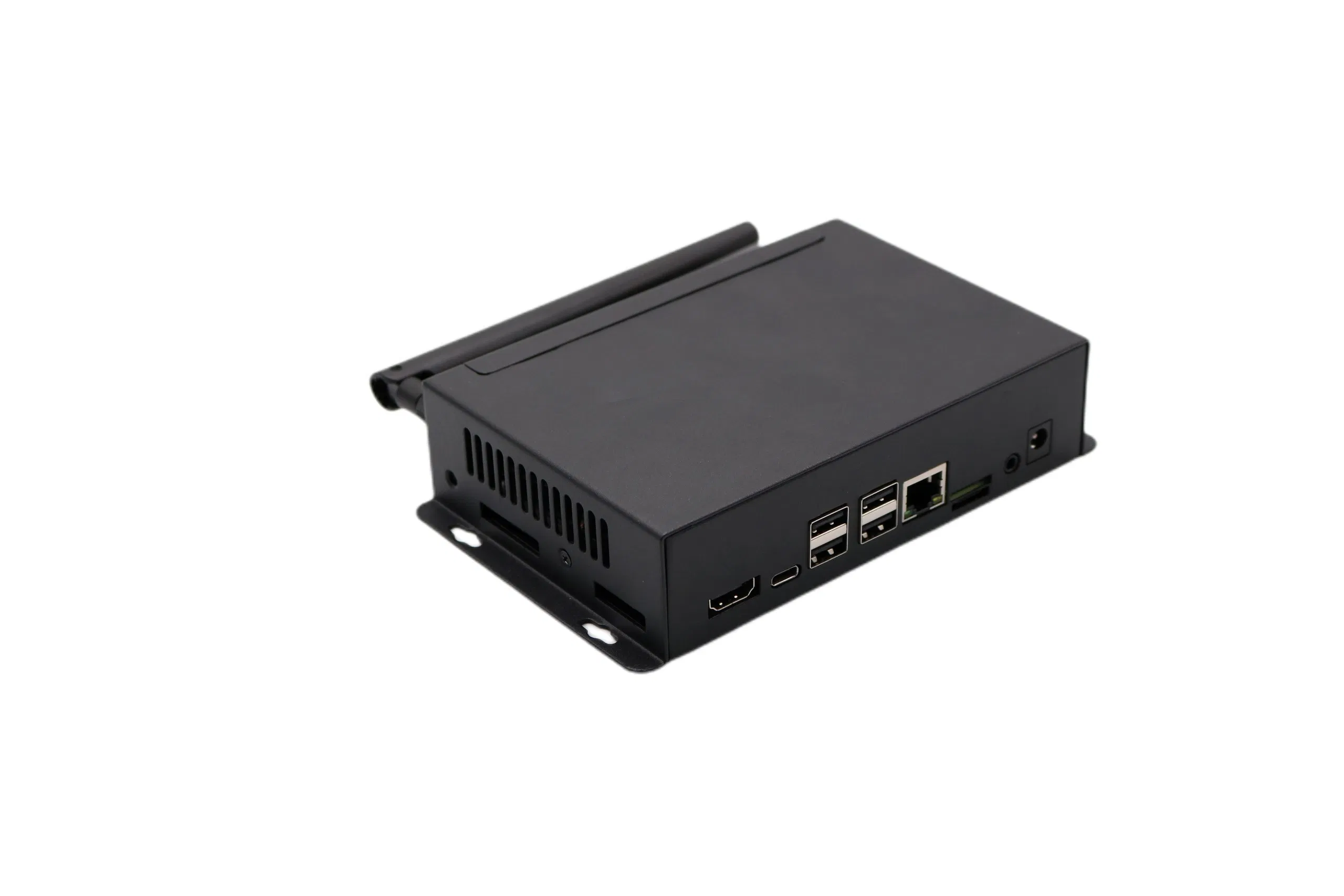

RK3399 Pro AI Embedded PC
Based on Rockchip 3399 Pro artificial intelligence open source platform, this device is equipped with an industrial-grade metal shell, very efficient in heat dissipation, and supports a variety of operating systems with stable and reliable performance. It features super AI computing performance and rich expansion interfaces, making it ideal for various intelligent products.
🚀
High-Performance Processor: Dual-core Cortex-A72 + Quad-core Cortex-A53 architecture, frequency up to 1.8GHz with Mali-T860 GPU.
AI Computing Performance NPU
The integrated NPU (AI Neural Network Processor) supports 8-bit/16-bit operations with performance up to 3.0 TOPS. Compared to traditional GPU units, the NPU power consumption is only 1%, offering extreme computing efficiency.
🧠
Variant AI Applications: Supports Caffe, Tensorflow, Mxnet, Android NN API, and RkNN cross-platform API.
4K Ultra HD Hardware Decoding
Supports strong hardware encoding and decoding: 4K VP9, 4K 10bit H265/H264, and 1080p multi-format decoding. It also supports 1080p video coding in H.264 and VP8 formats.

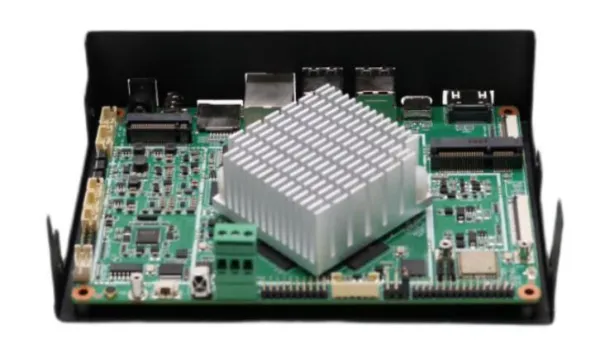

Industrial Grade Design & Open Source

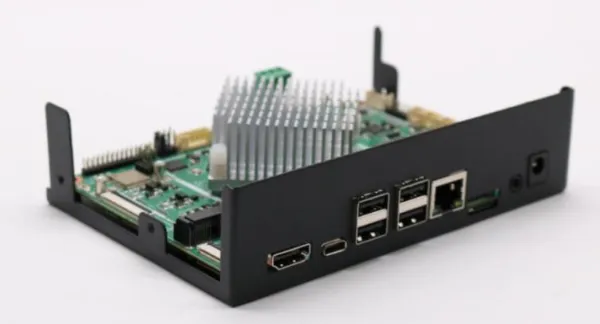

Equipped with a high-quality metal shell and fan-less design, the aluminum alloy structure ensures efficient cooling. We provide source code, tutorials, and development tools to simplify your project integration.
Detailed Product Parameters
| Feature |
Specification |
| CPU | Dual Cortex-A72 + Quad Cortex-A53, up to 1.8GHz |
| GPU | Mali-T860MP4, supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, DX11 |
| NPU | 3.0 TOPS, supports 8bit/16bit, TensorFlow/Caffe models |
| Memory | DDR3/LPDDR3/LPDDR4 support; EMMC 5.1 and SDIO 3.0 |
| Multimedia | 4K 60fps VP9/H265/H264 decoding; 1080p encoding |
| Display | HDMI 2.0 (4K@60Hz), EDP 1.3, Dual-channel MIPI-DSI |
| Interfaces | USB 3.0 Type-C, PCIe 2.1, RS485, RS232, RJ45, Micro SD |

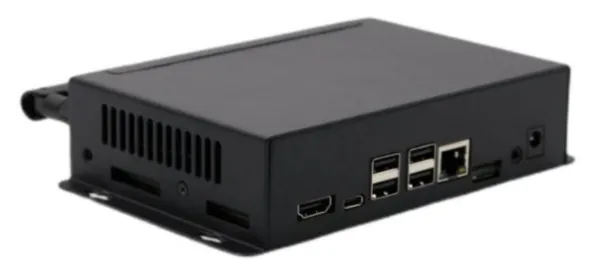

| OS | Android and Linux Ubuntu |
Frequently Asked Questions (FAQ)
Q: What is the AI computing power of the RK3399 Pro?
A: It features an integrated NPU with performance up to 3.0 TOPS, supporting 8-bit and 16-bit operations.
Q: Which operating systems are supported?
A: The device supports both Android and Linux Ubuntu operating systems.
Q: Does it support 4K video?
A: Yes, it supports 4K 60fps hardware decoding for H.265, H.264, and VP9 formats via HDMI 2.0.
Q: Is it suitable for industrial environments?
A: Yes, it features a high-quality industrial steel housing and a fan-less design for efficient cooling and durability.
Q: What AI frameworks are compatible?
A: It is compatible with TensorFlow, Caffe, and Mxnet models, and provides model conversion tools.

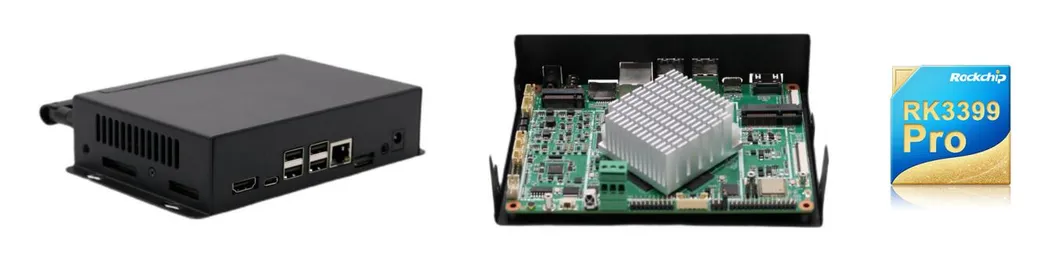

Q: What interfaces are available for expansion?
A: It includes HDMI, Type-C, USB Host x4, RJ45, RS485, RS232, and Micro SD card slots.
