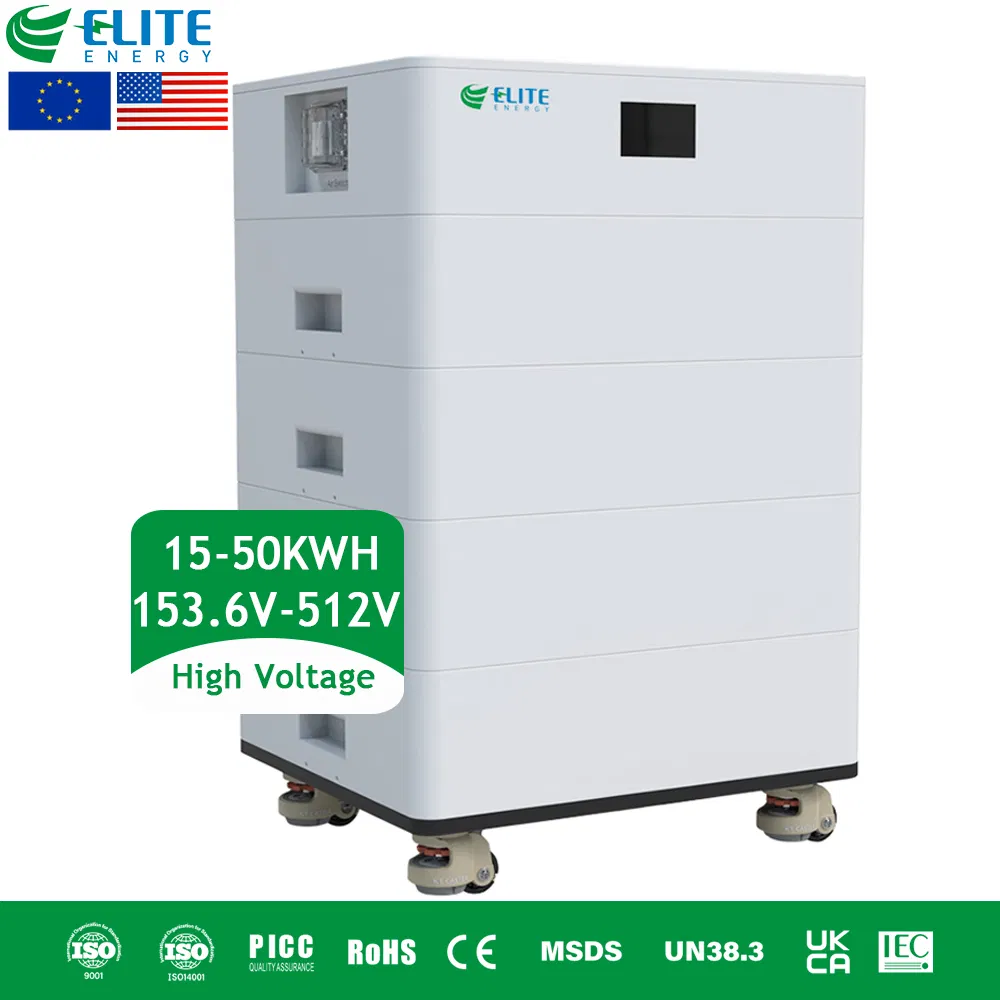

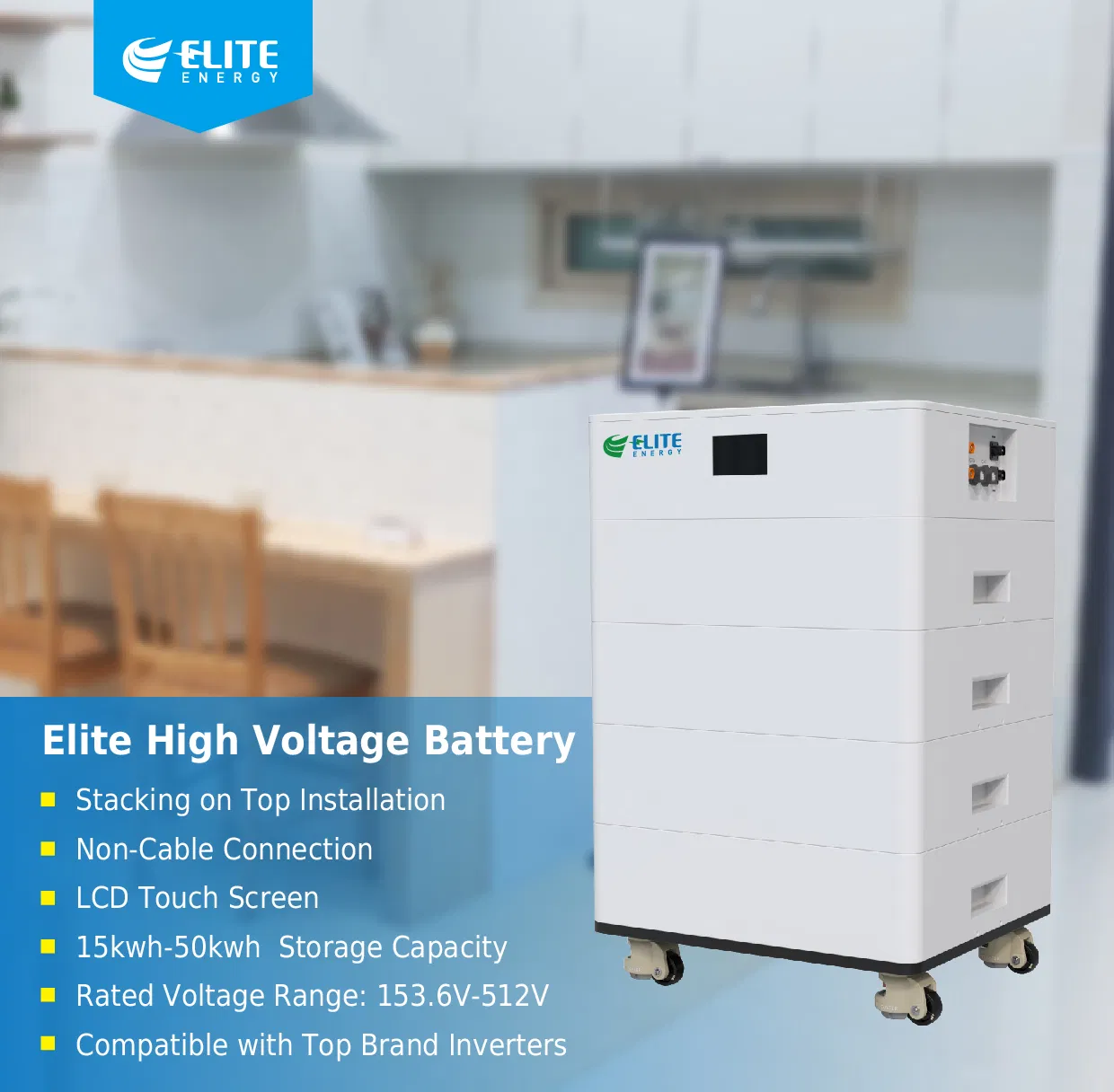

Elite Plug and Play High Voltage Home Energy Storage System Solar Power Stackable LiFePO4 Lithium Battery

1 / 5

Elite Plug and Play High Voltage Home Energy Storage System Solar Power Stackable LiFePO4 Lithium Battery

Customization:	Available
Type:	Li-ion Battery
Cathode Material:	LFP

Send Inquiry

Product Description

Basic Information

Model NO.

ELT512100HV

Rechargeable

Yes

Voltage

153.6V~512V

Nominal Energy

15kwh - 50kwh

Display

LCD Screen

Certification

CE/RoHS/Un38.3/MSDS

Communication

CAN

Warranty

5 Years

Product Description

Expert manufacturer with 15+ years of experience in Energy Storage Systems (ESS) and Motivation Power System Industry. Specializing in high voltage, stackable battery packs, and all-in-one home storage solar system batteries. Our products meet international standards with excellent performance and safety compliance, fully qualified for OEM/ODM markets.

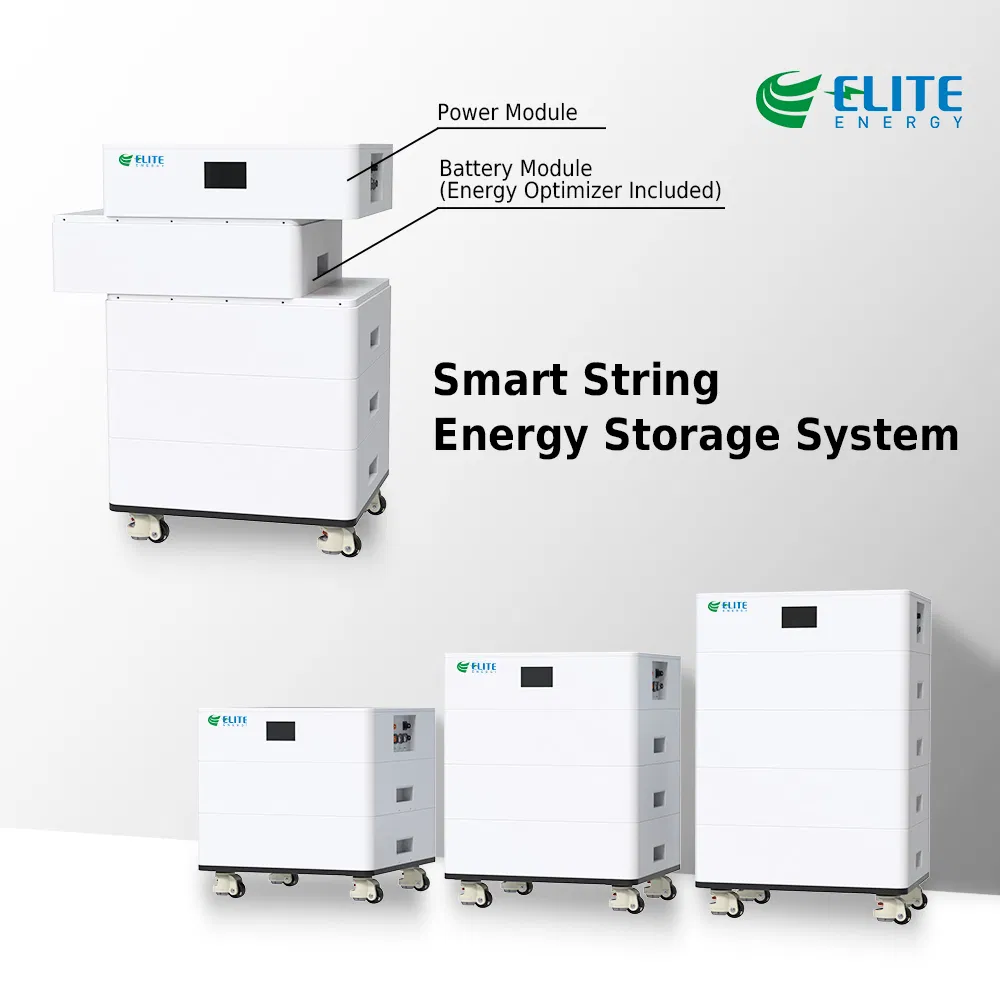

High Voltage Energy Storage Battery System

🔹 Key Features:

✅ Adopts green, safe and reliable LiFePO4 battery cells.
✅ Flexible Investment, meet different energy requirements.
✅ Highest energy efficiency.
✅ Wide compatible with market main inverter brands.
✅ Five years warranty.

Technical Specifications

Typical Model	ELT15K100H	ELT20K100H	ELT25K100H	ELT30K100H	ELT40K100H

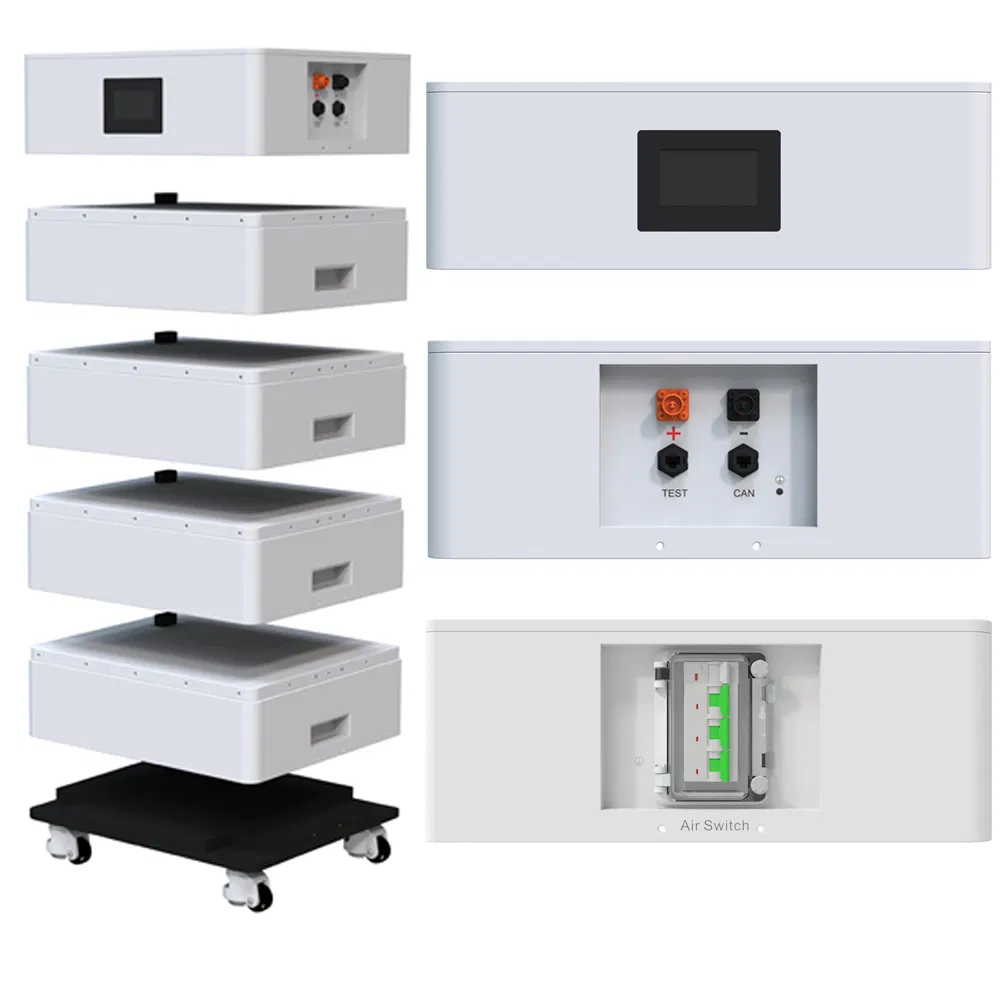

Battery Modules	3	4	5	6	8
System Parameters
Nominal Energy	15.36kWh	20.48kWh	25.6kWh	30.72kWh	40.96kWh
Nominal Voltage	153.6V	204.8V	256V	307.2V	409.6V
Max Charge/Discharge	80A
General Parameters
IP Standard	IP54
Weight (kg)	167.6	214.2	260.8	307.4	400.6

Frequently Asked Questions

Q1: Do you have MOQ (Minimum Order Quantity) limits?

No, there is no MOQ limit. 1 piece sample order or small quantities are available.

Q2: What is a BMS and how does it protect the battery?

A Battery Management System (BMS) protects cells from unsafe conditions like over-voltage, high temperatures, and shorts. It also ensures cell balance during charge cycles to maintain efficiency.

Q3: How long do LiFePO4 batteries typically last?

Our LiFePO4 batteries provide 4000+ cycles, which is 8 to 10 times longer than standard lead-acid batteries (300-500 cycles).

Q4: Are these batteries safe for indoor home use?

Yes, LiFePO4 is chemically stable and resistant to burning or exploding. Our batteries are CE certified and include BMS protections against overheating and overcharging.

Q5: What is the lead time for standard and customized orders?

Standard samples take 3-5 days, while bulk or customized orders typically take 3-4 weeks.

Q6: Do I need a special charger for these batteries?

We recommend a LiFePO4 specific charger. You can also charge via solar panels with an MPPT controller or an inverter with built-in AC-to-DC charging.
