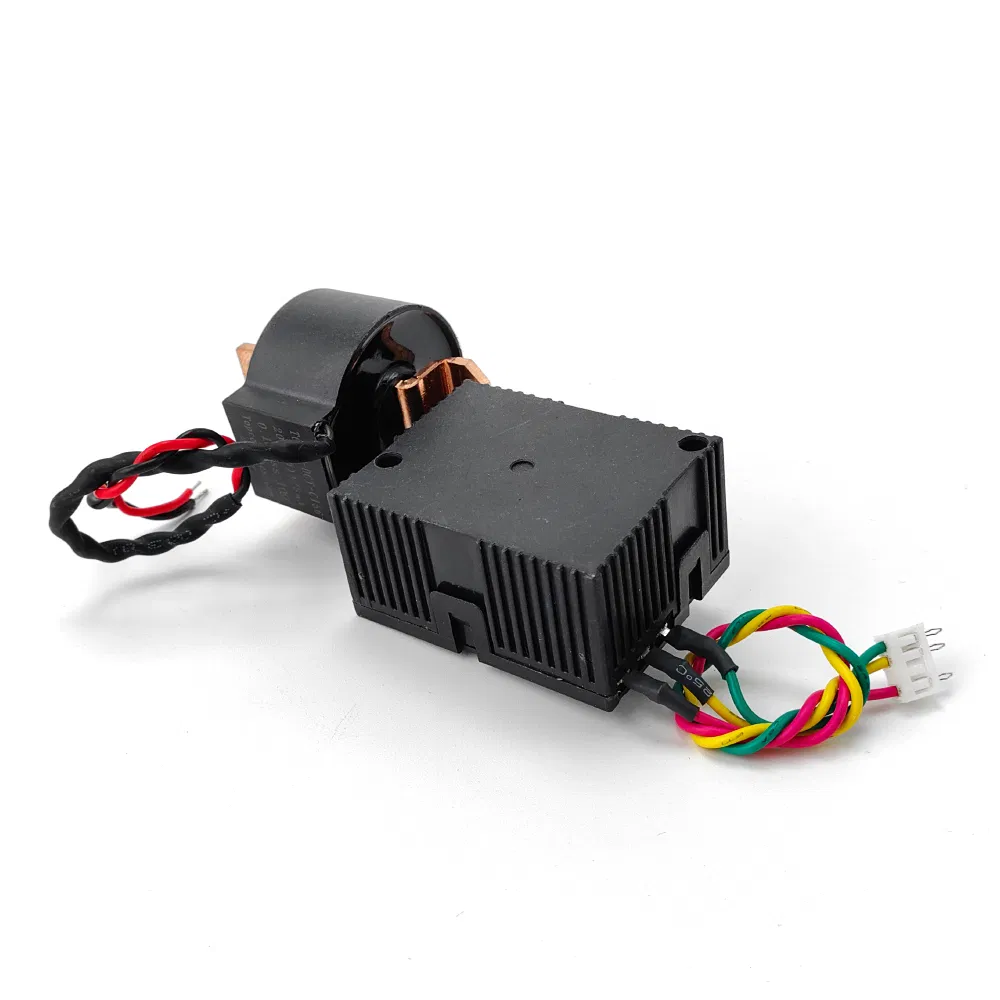

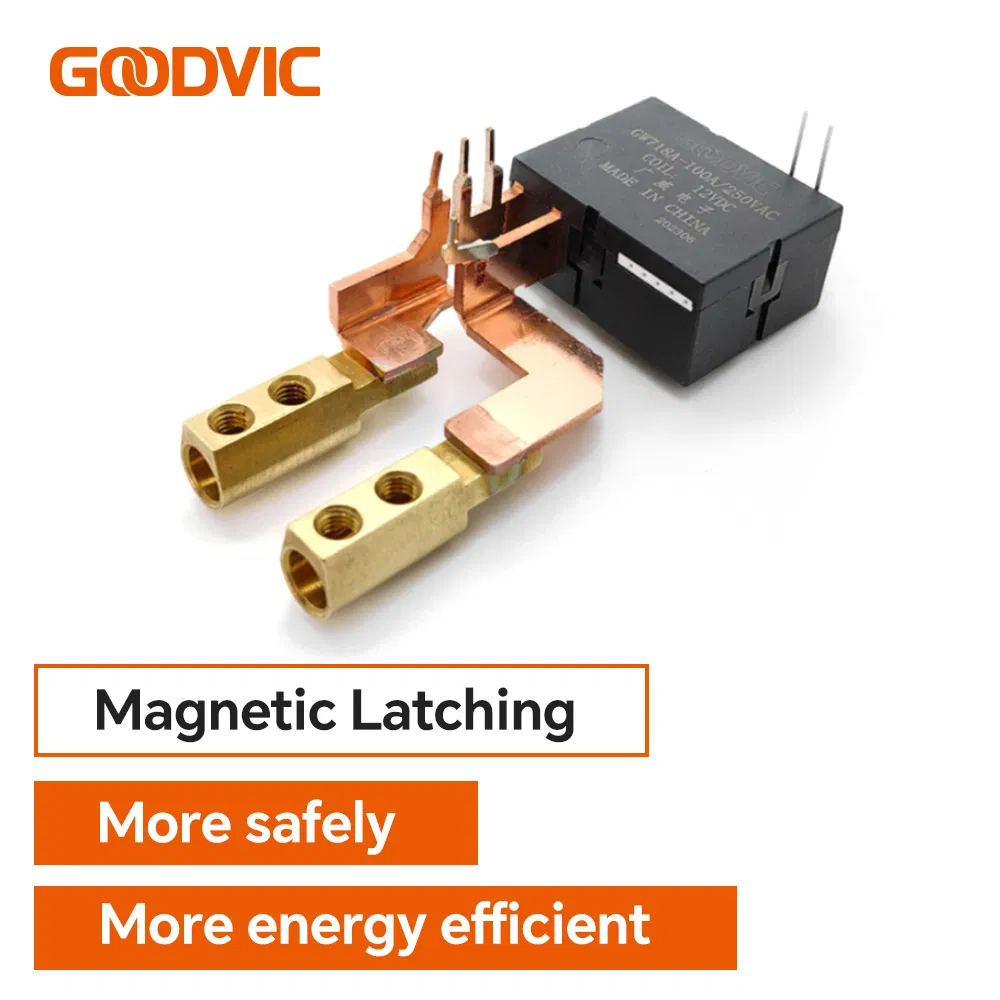

Electric Latching Relay with CT for Connected Smart Grids

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GW718B-120A

Phase

Suitable for Single Phase, Double Phase and Three

Electricity Type

Number of Pole

Load

High Power Relay

Protective Characteristics

Enclosed Relay

Action Principle

Electromagnetic Type

Size

Miniature

Type

Electric Parameter Relay

Contact Form

1A/1b

Contact Material

Silver Alloy

Wight

75g

Rated Coil Voltage

9/12/24/48V

Product Description

Application Notes:
1. Please reset the Relay when you use it. Because the relay may change status during delivery.
2. Ensure rated voltage for disconnect/connect; do not apply both simultaneously; duration should not exceed one minute.
3. GW-718B Series (100/120A Max Switching Current). Coil and maximum current can be adjusted according to requirements.

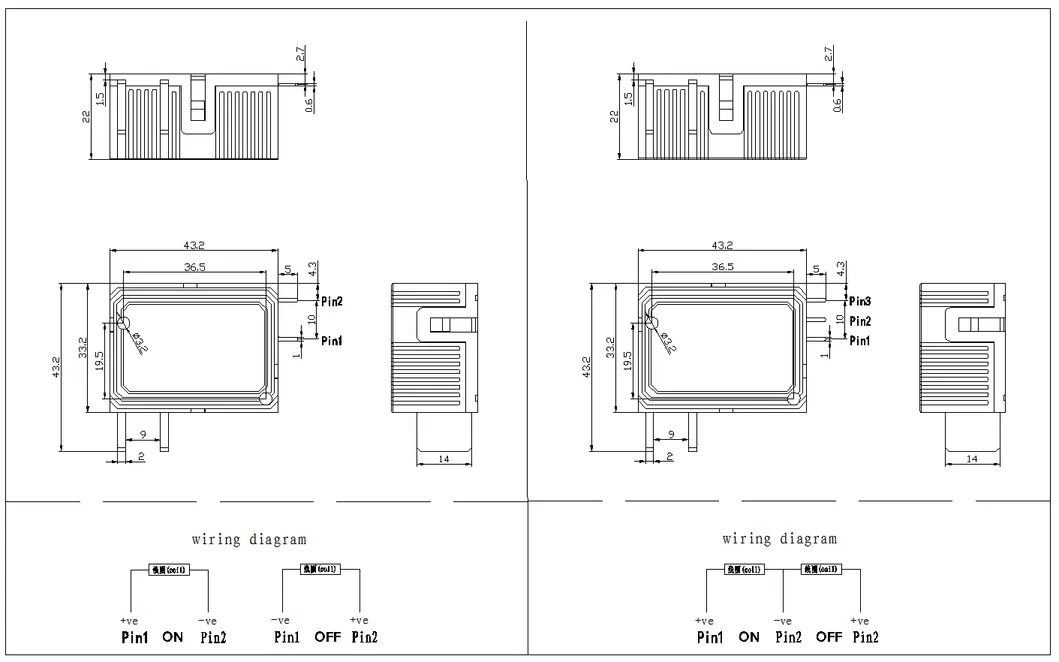

Contact Specification
Dimensions(mm)	43×33.2×22
Contact Form	1A/1B
Max Switching Current	100/120A
Max Switching Voltage	28VDC/250VAC

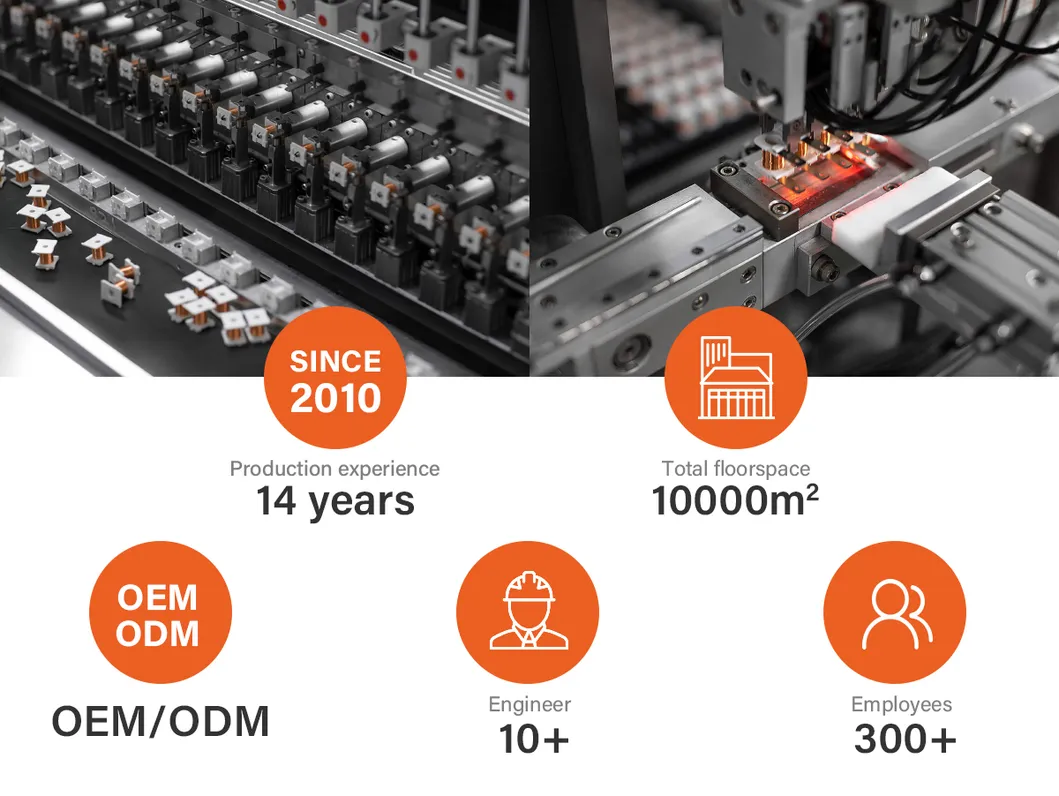

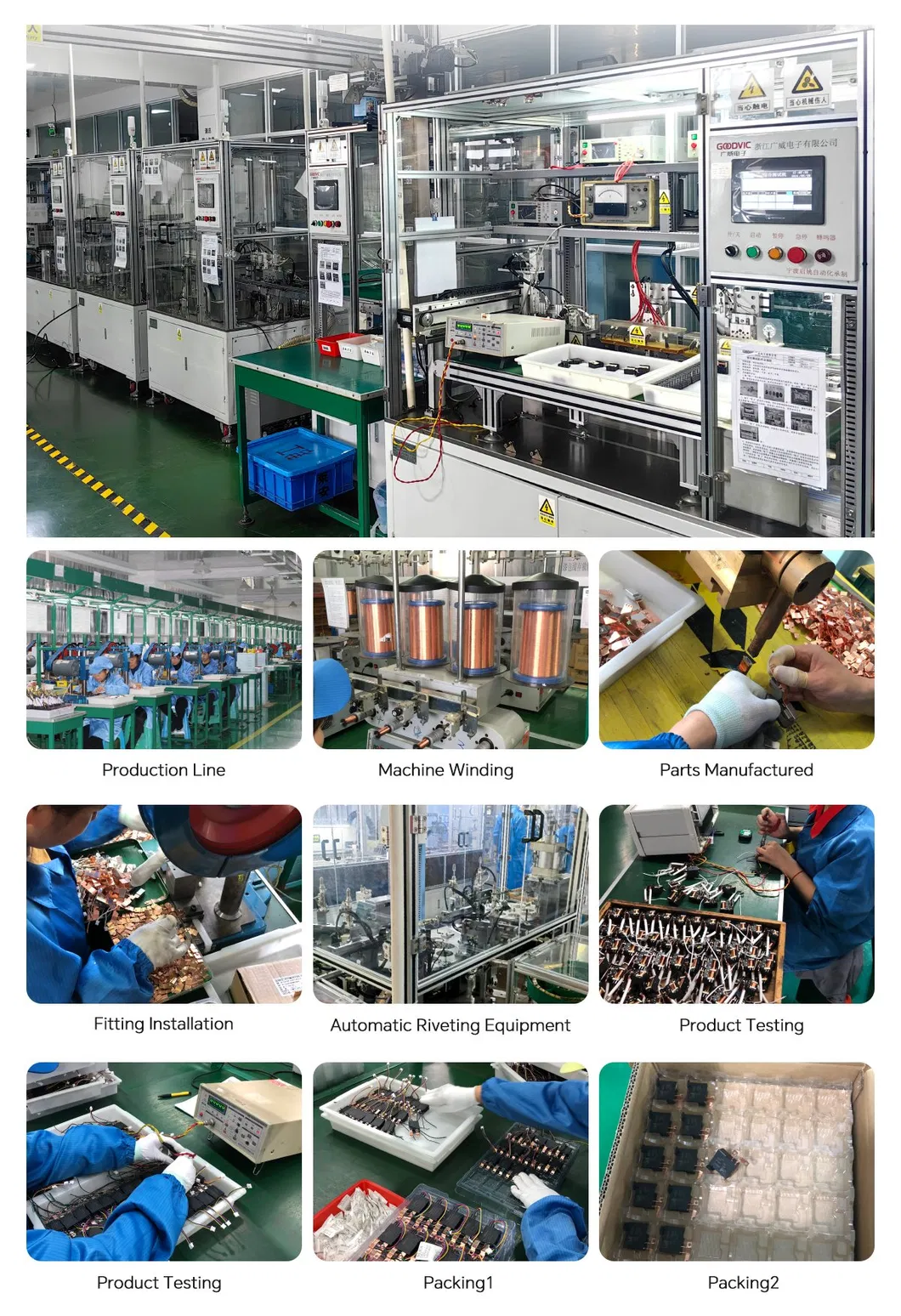

Production Process

Certifications

Our Advantages

Expertise in magnetic latching relays and manganin shunts with dedicated R&D. Certified by ISO9001:2008 and ISO14001:2004 systems. Products conform to VDE, CQC, IEC62055-31, UC3, and RoHS standards.

Packaging & Shipping

Frequently Asked Questions

1. What are the standard payment terms?

Normally 30% deposit in advance. Terms can be discussed based on long-term cooperation.

2. What is the typical delivery lead time?

With a capacity of 50,000 pcs per month, the standard delivery time is approximately 15 days.

3. Are product samples available?

Yes, we provide free samples for quality verification and technical testing.

4. How is your product pricing structured?

We offer competitive and reasonable pricing based on high-quality standards and order volume.

5. What certifications do the relays hold?

Our products are CQC and VDE certified, conforming to IEC62055-31 and RoHS standards.

6. Can the relays be customized?

Yes, coil voltage, maximum current, and physical attachments can be adjusted per customer requirements.
