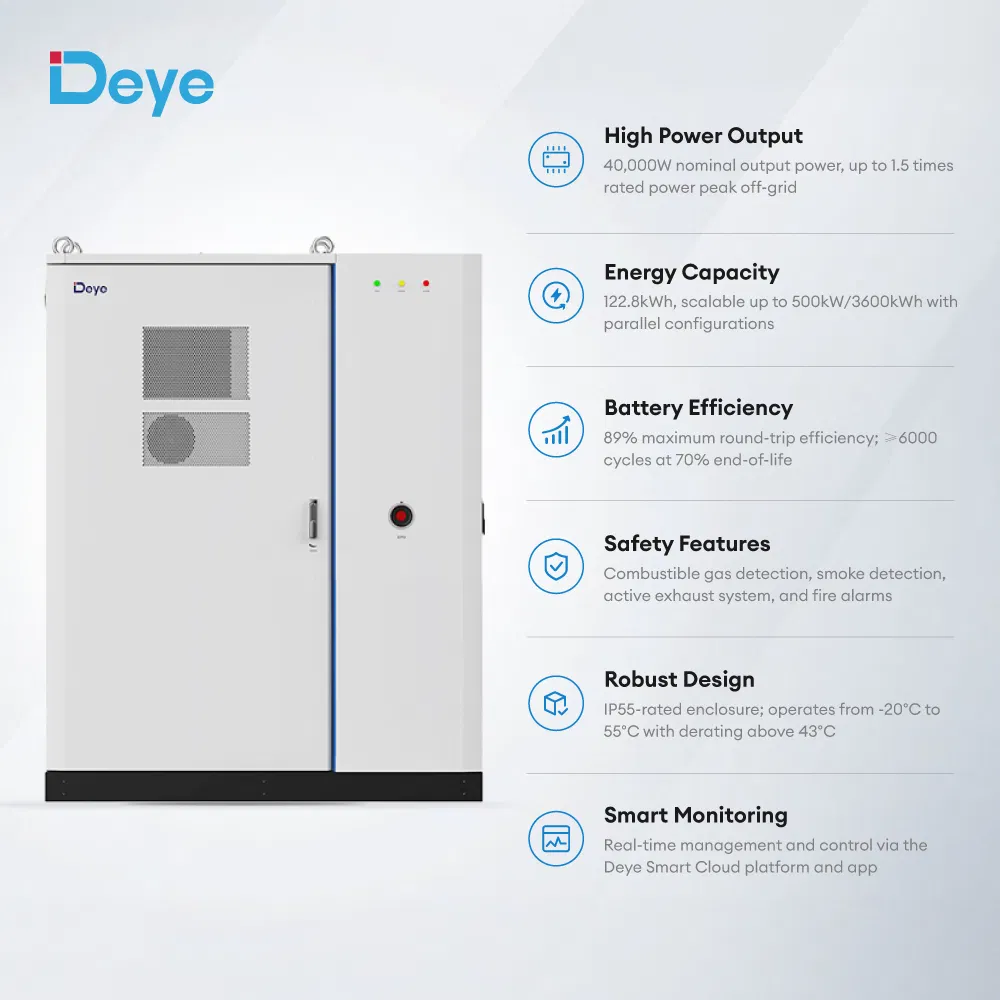

Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
1 / 5
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet
Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet

Deye Wholesale Price Ge-F120 Ess Solar Lithium Battery 51.2V 120kwh 600kwh 1200kwh High Voltage Energy Storage System Cabinet

Customization: Available
Container Size: 1780*1056*2235
Weight: 2090kg
Send Inquiry

Product Description

Basic Information
Model NO.
GE-F120
Nominal Voltage
1228V
Warranty
10 Year
Nominal Capacity
100ah
Cycle Life
>6000 Cycle Life
Cell Chemistry
LiFePO4
Module Energy
5.12 Kwh
System Energy
122.8 Kwh
Communication
Can2.0/ RS485
Certification
CE, IEC62619, UN38.3
Product Description

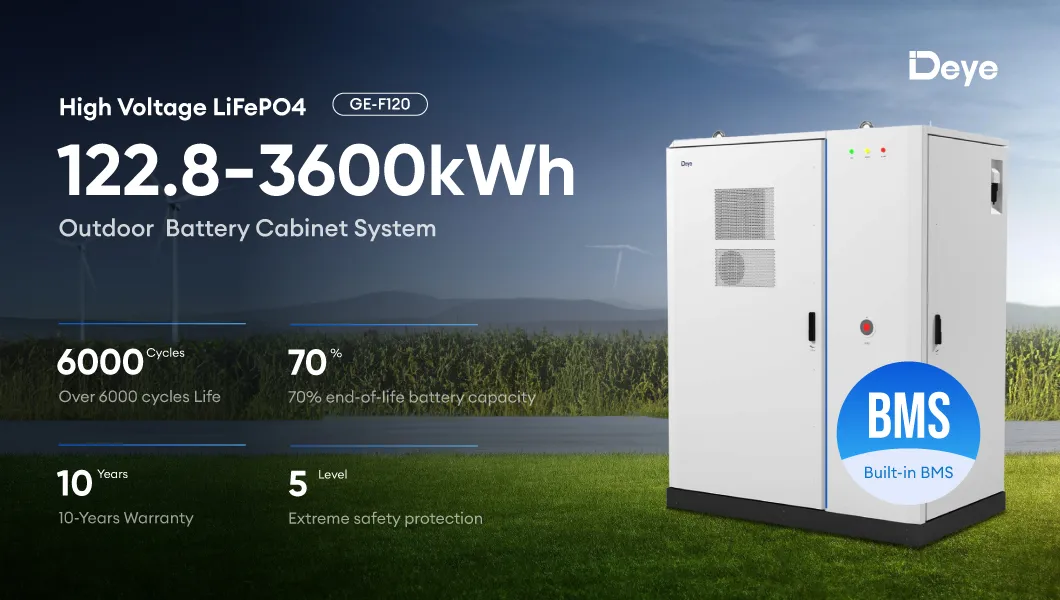

Energy Storage System Cabinet
System Specification
Model GE-F120-4H2 GE-F120-3H2 GE-F120-2H2
Nominal Power (W) 30000 40000 50000
AC Frequency/Voltage 50/60Hz; 220/380, 230/400Vac
Energy Config (kWh) 122.8
Weight (kg) 2090KG
Inverter Technical Specification
Max. PV Input (KW) 39000 52000 65000
MPPT Range (Vdc) 150V-850V

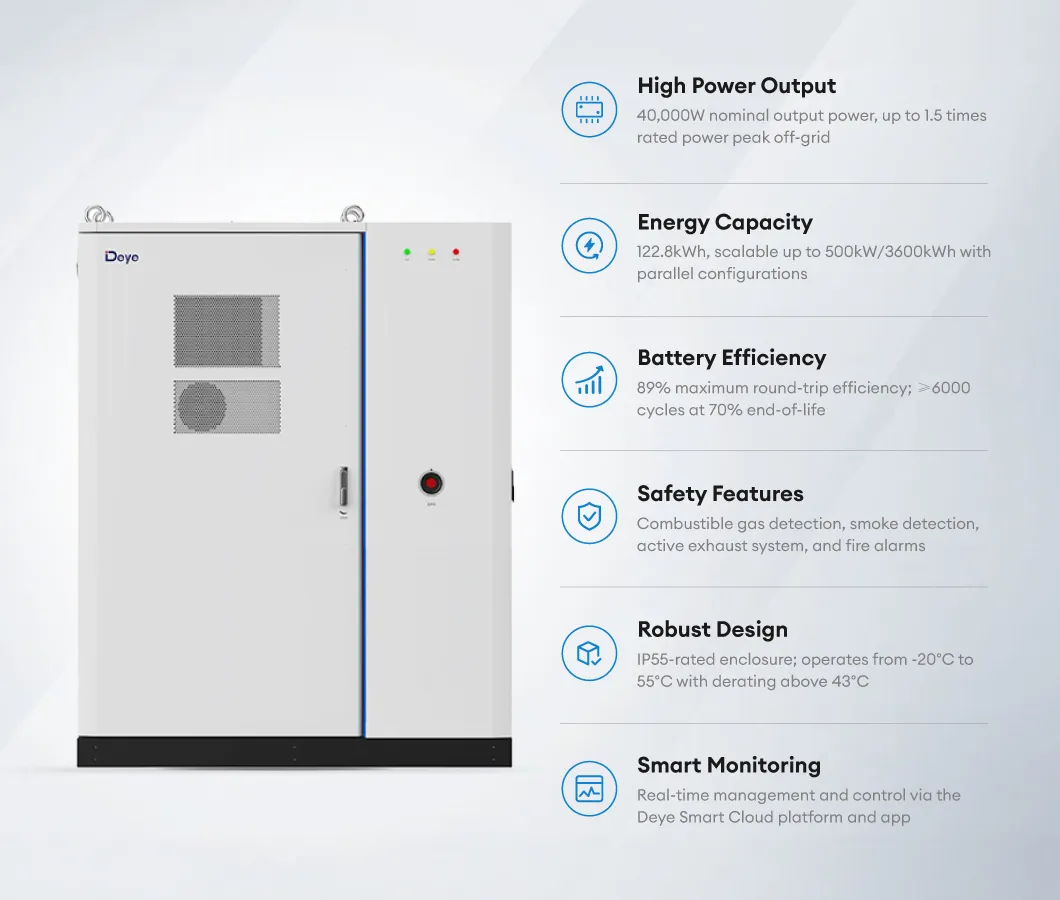

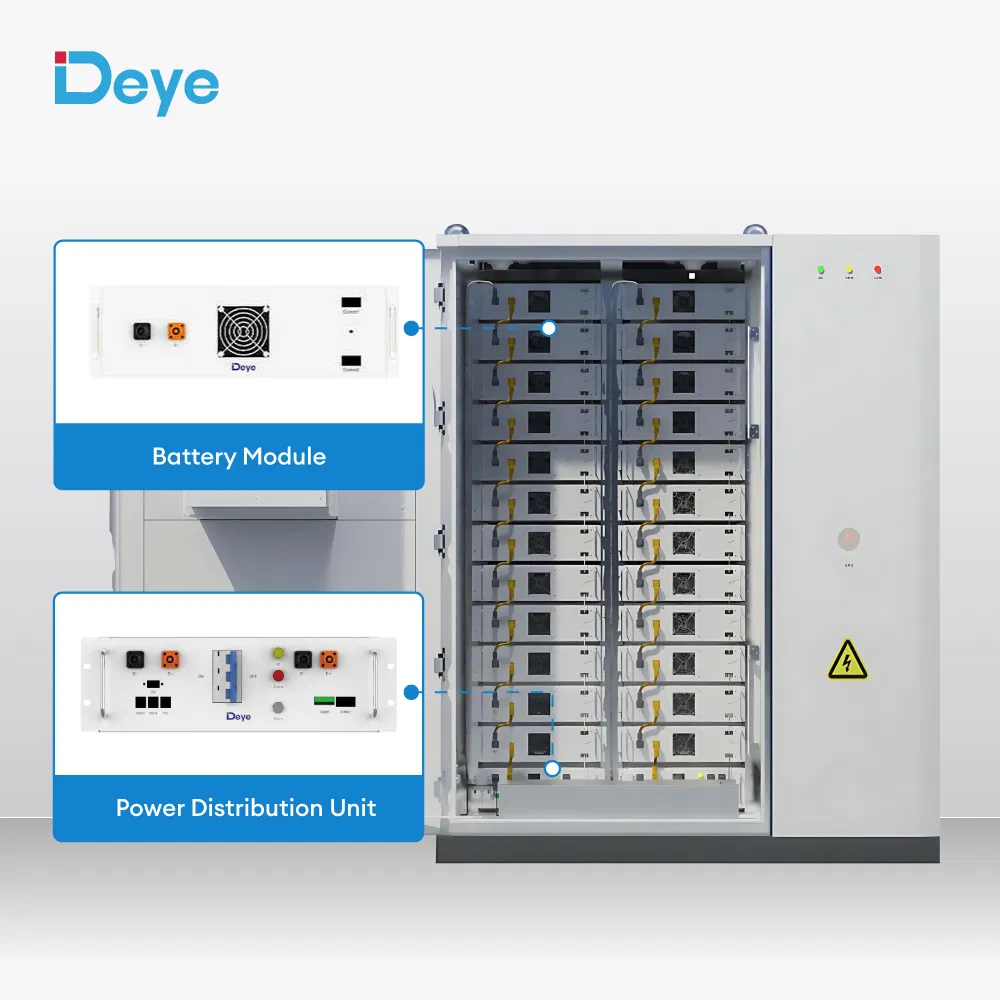

Product Layout

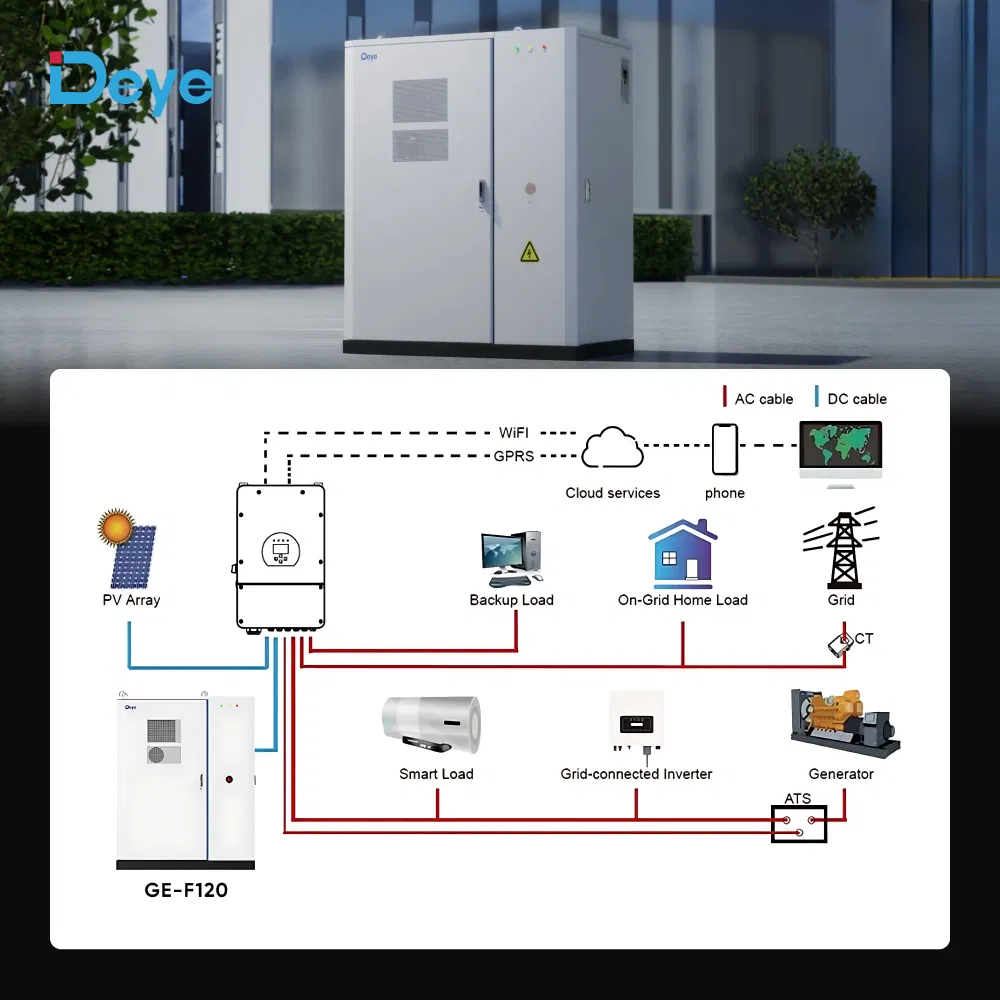

System Diagram
Product Detail & Certifications

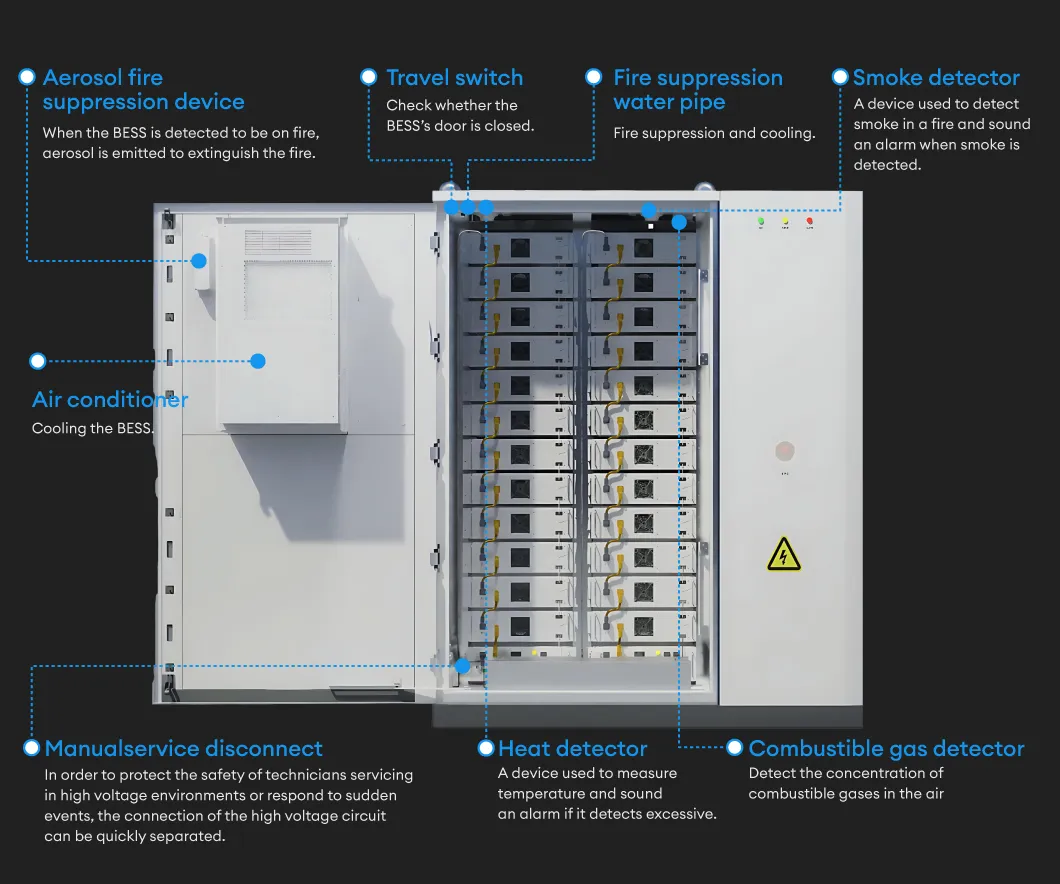

Detail 1

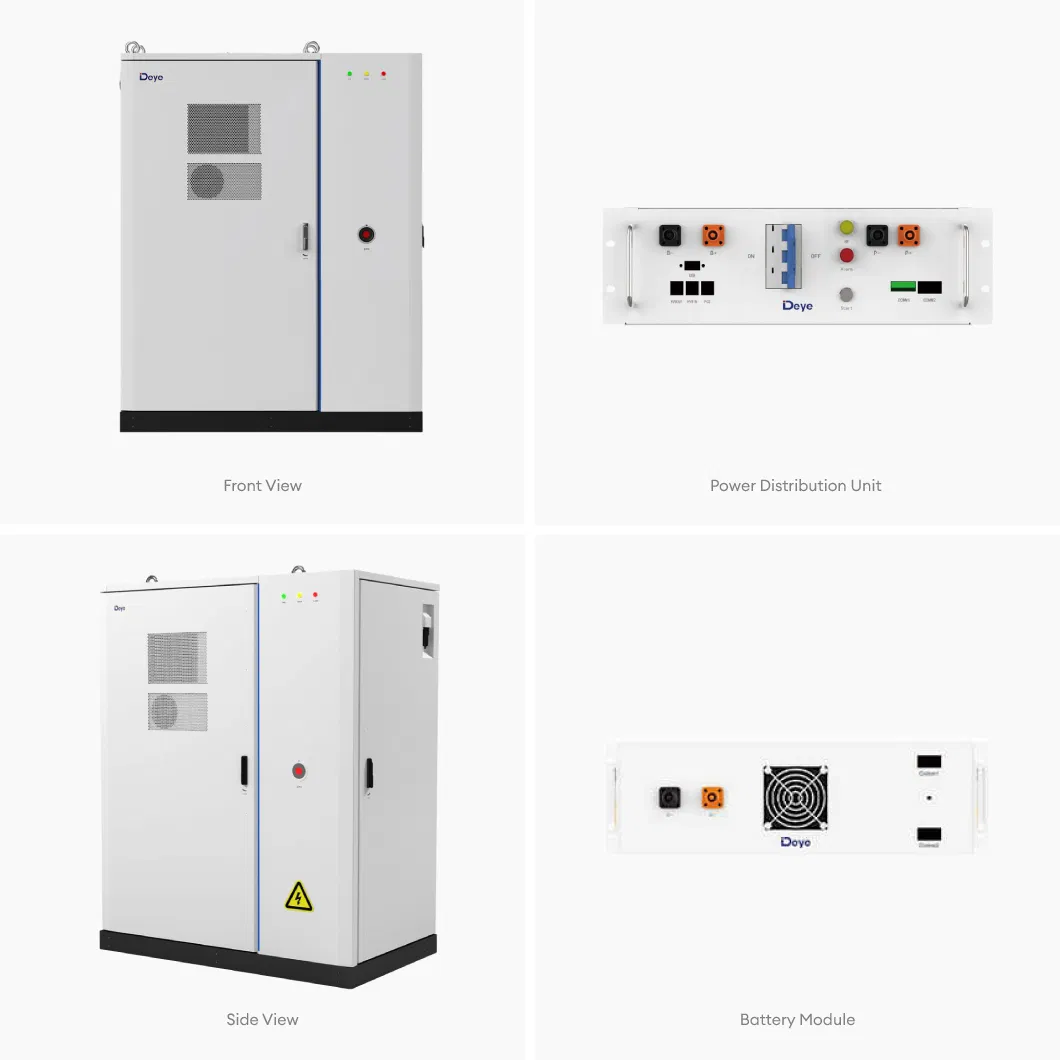

Detail 2

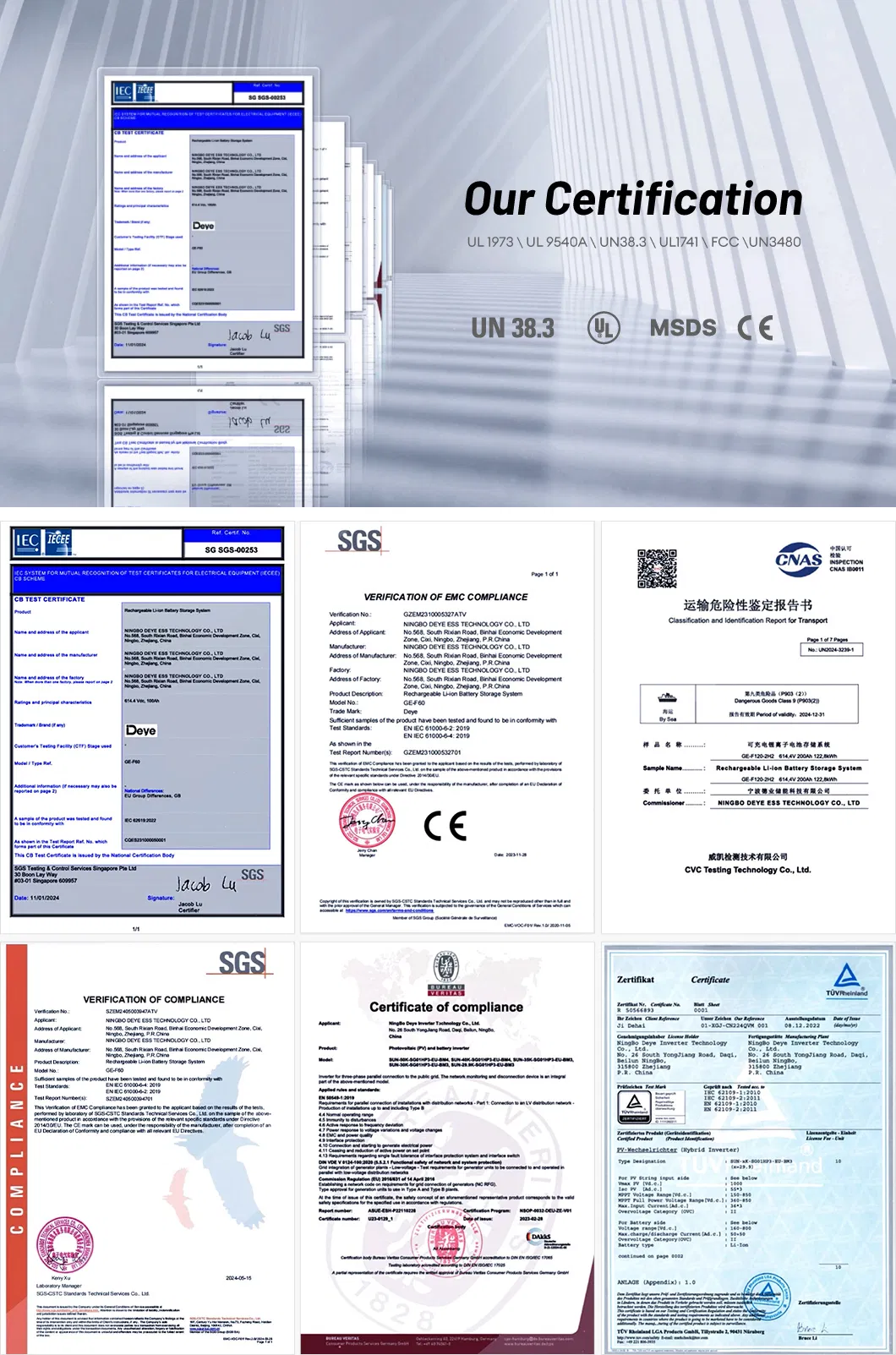

Certifications
About Product & Project Cases

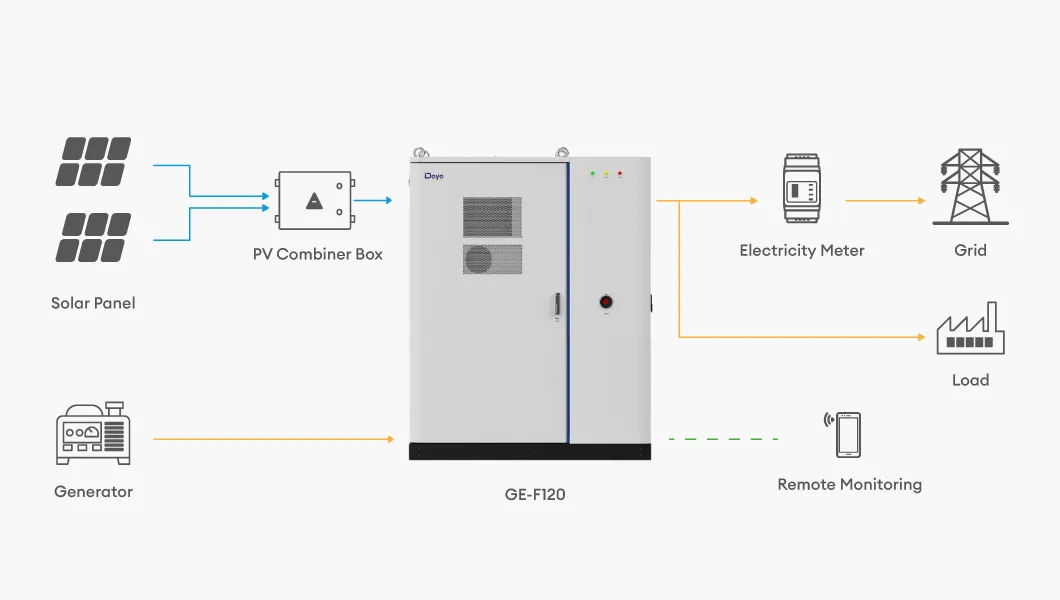

Technical Info

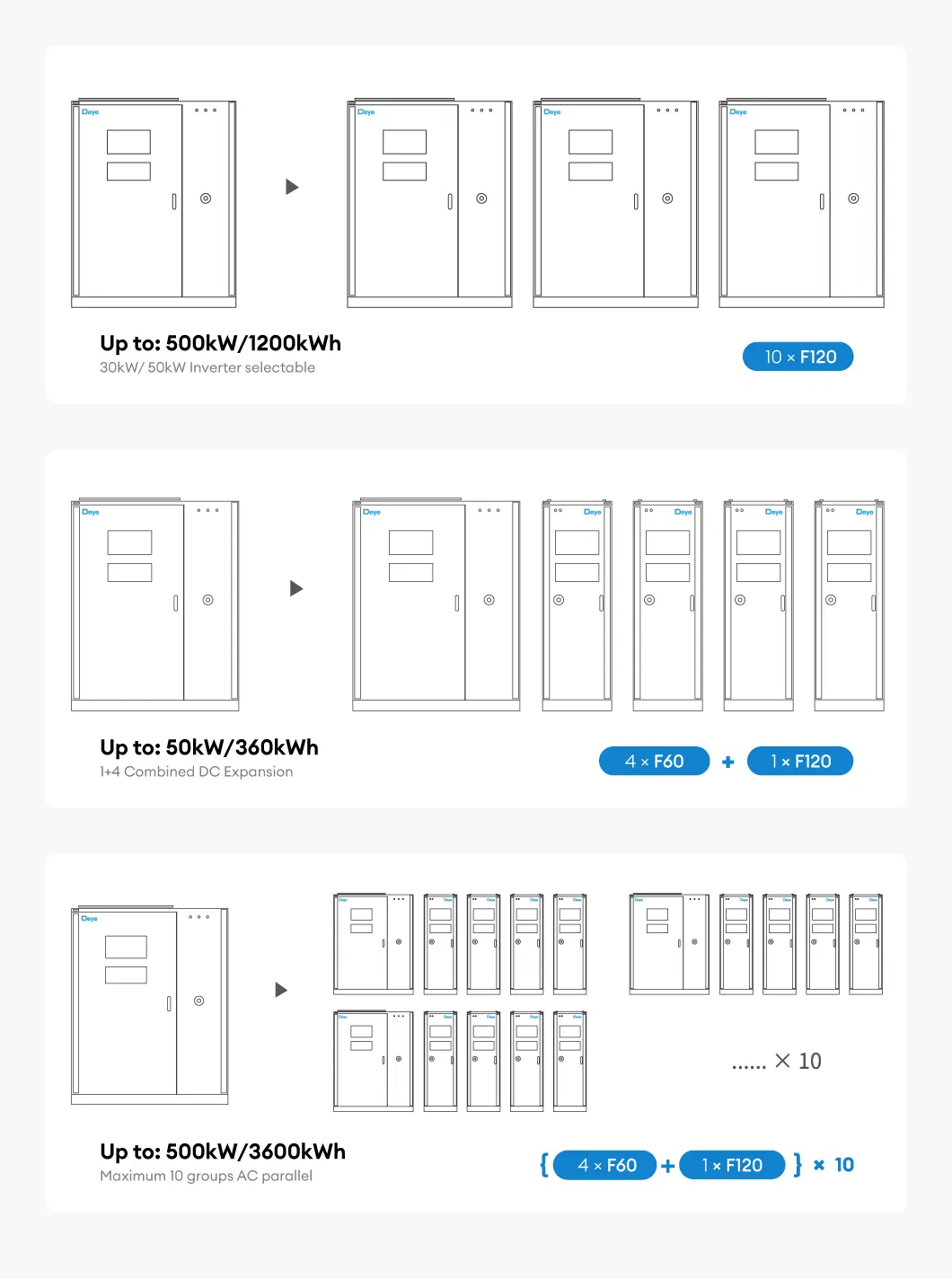

Module Info

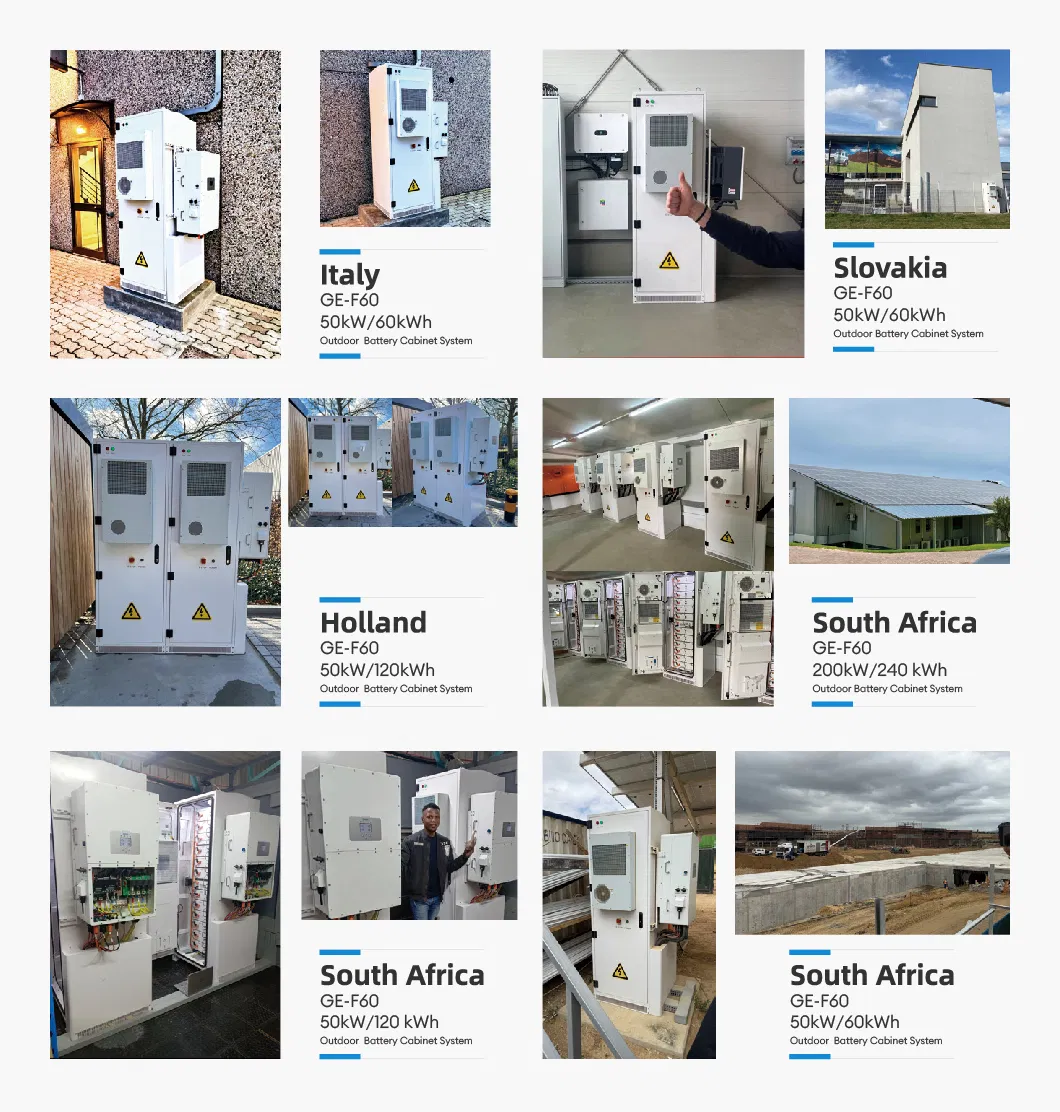

Project Case

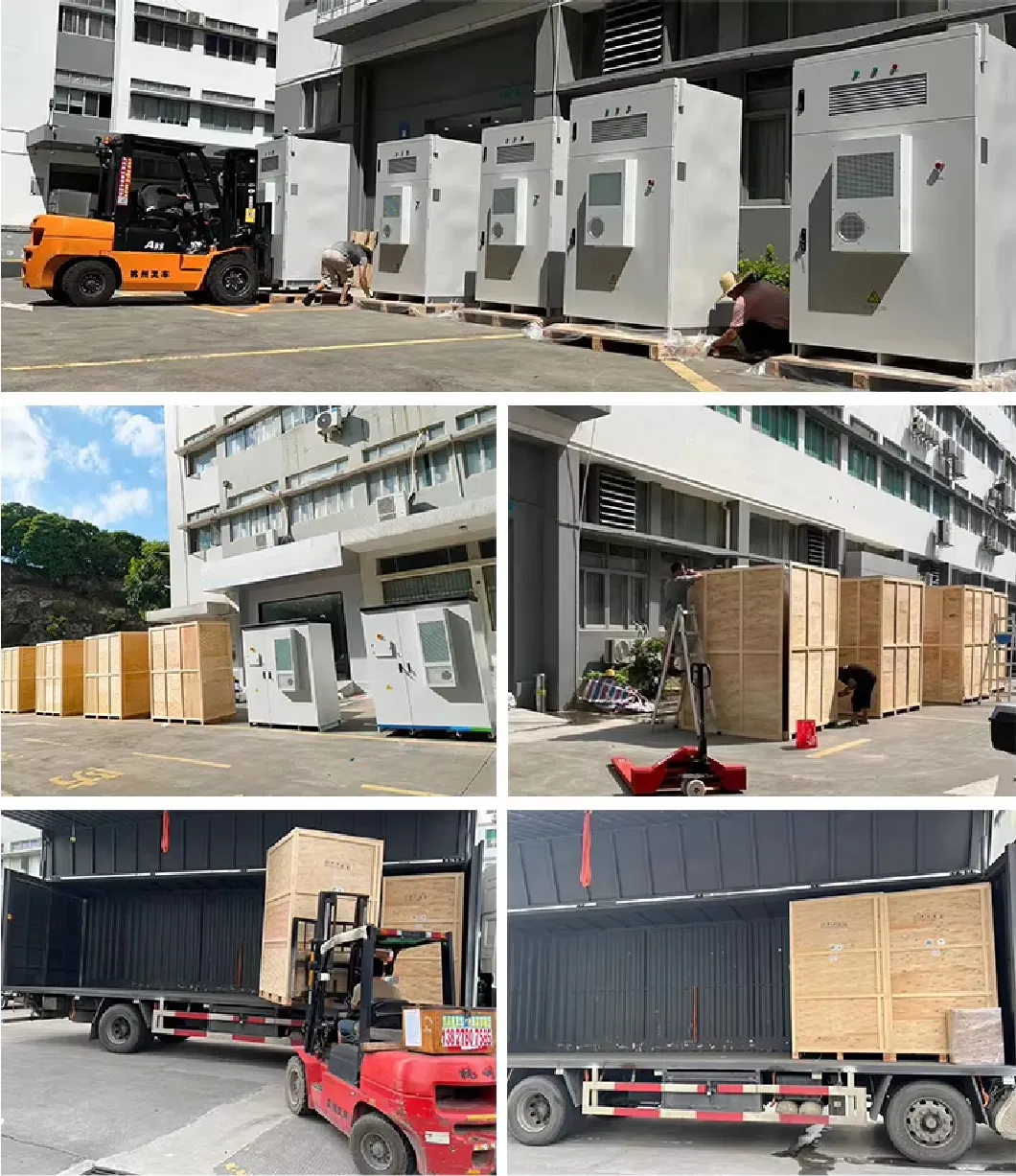

Packaging
Frequently Asked Questions
What is the cycle life of the LiFePO4 battery system?
The system offers a cycle life of ≥6000 cycles at 25°C, ensuring over 10 years of reliable performance.
Which certifications does this energy storage system hold?
The product is fully certified with CE, UN38.3, IEC 62619, and IEC 61000 standards for global safety compliance.
Can multiple units be connected in parallel?
Yes, the system supports parallel connection of up to 10 units to expand capacity and power output.
What communication protocols are supported?
The system supports CAN, RS485, WIFI, and Ethernet (ETH) for seamless monitoring and integration.
What is the warranty period for this system?
We provide a 10-year warranty, reflecting our confidence in the product's durability and high-quality cells.
What is the operating voltage range for the battery?
The high-voltage battery system operates efficiently within a range of 500V to 700V.
