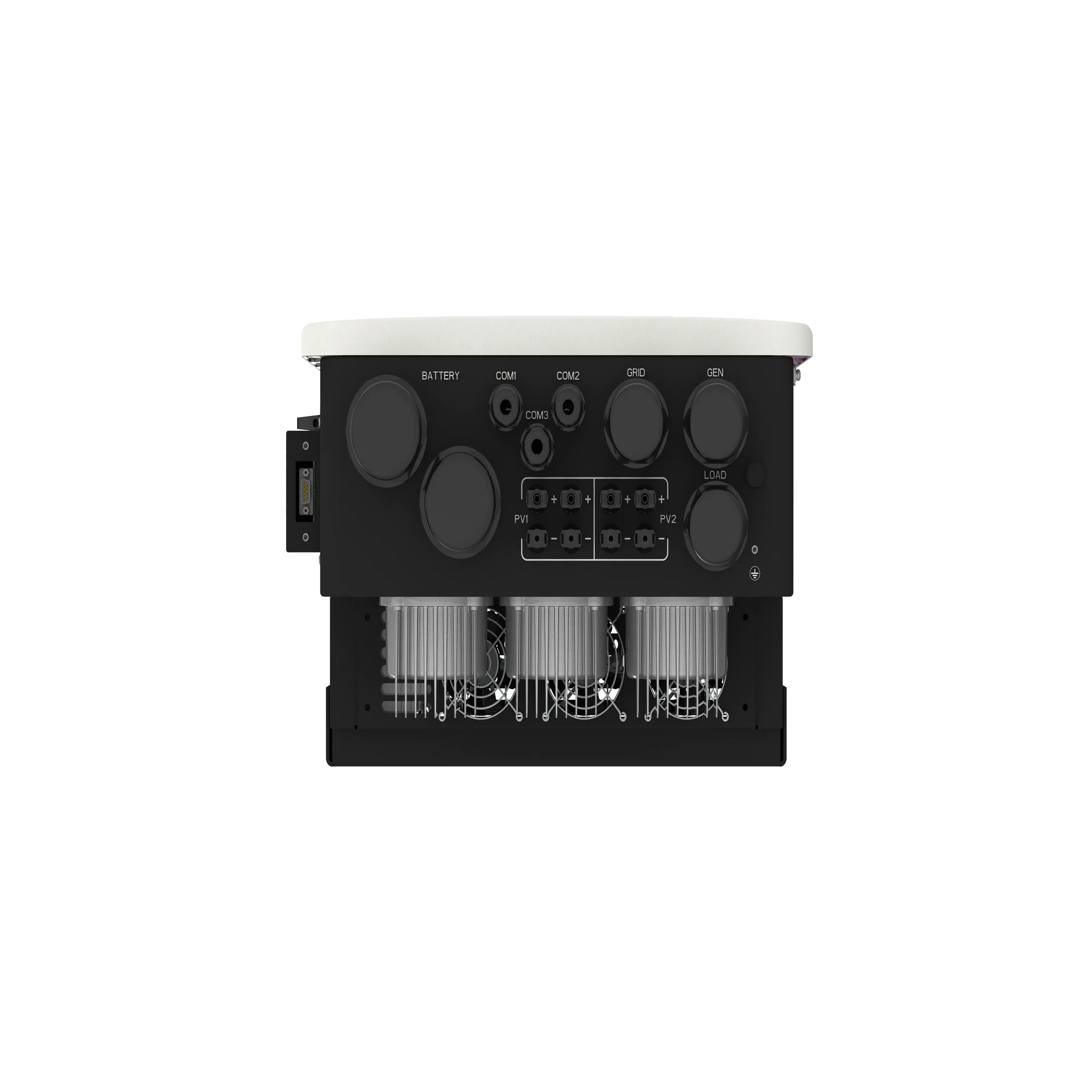

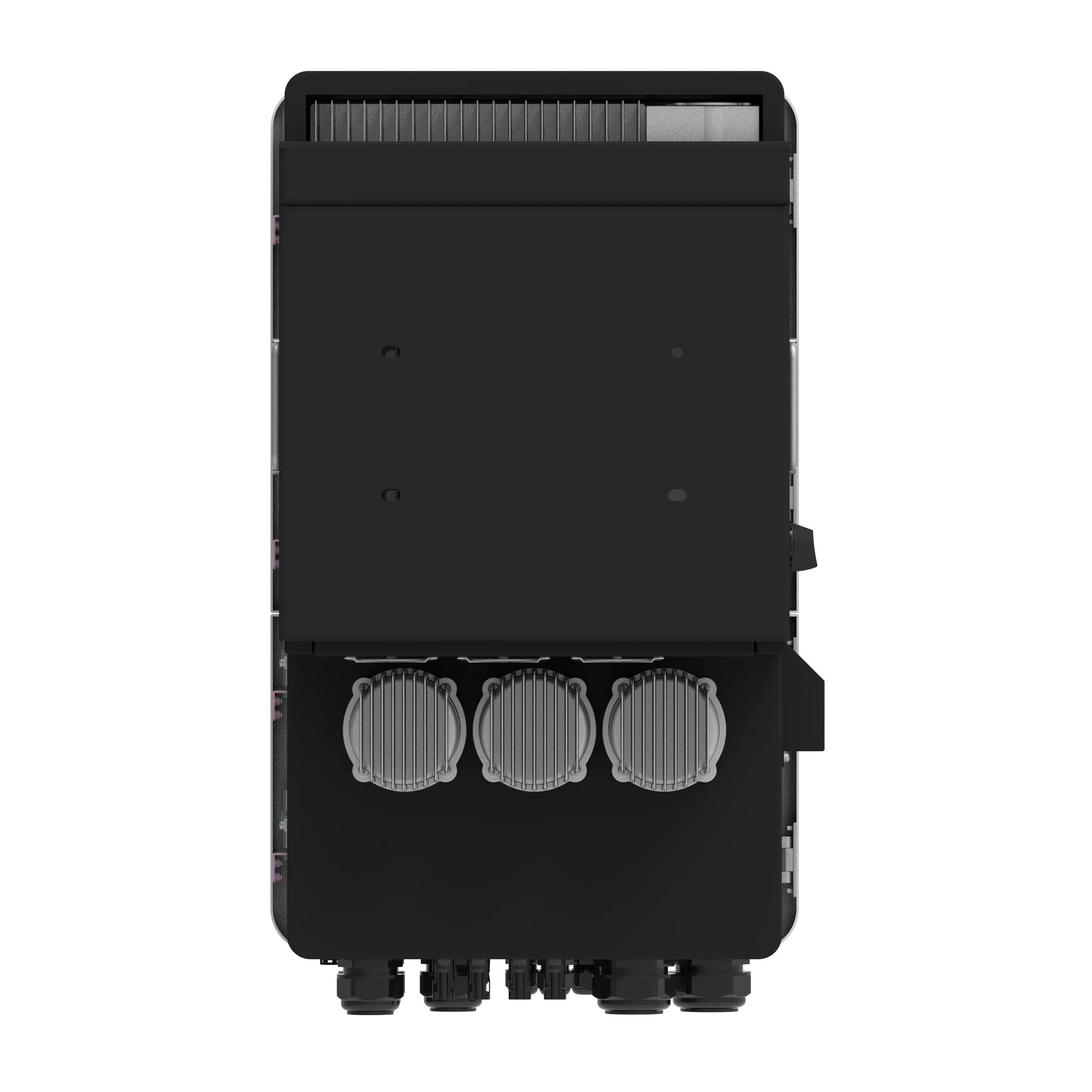

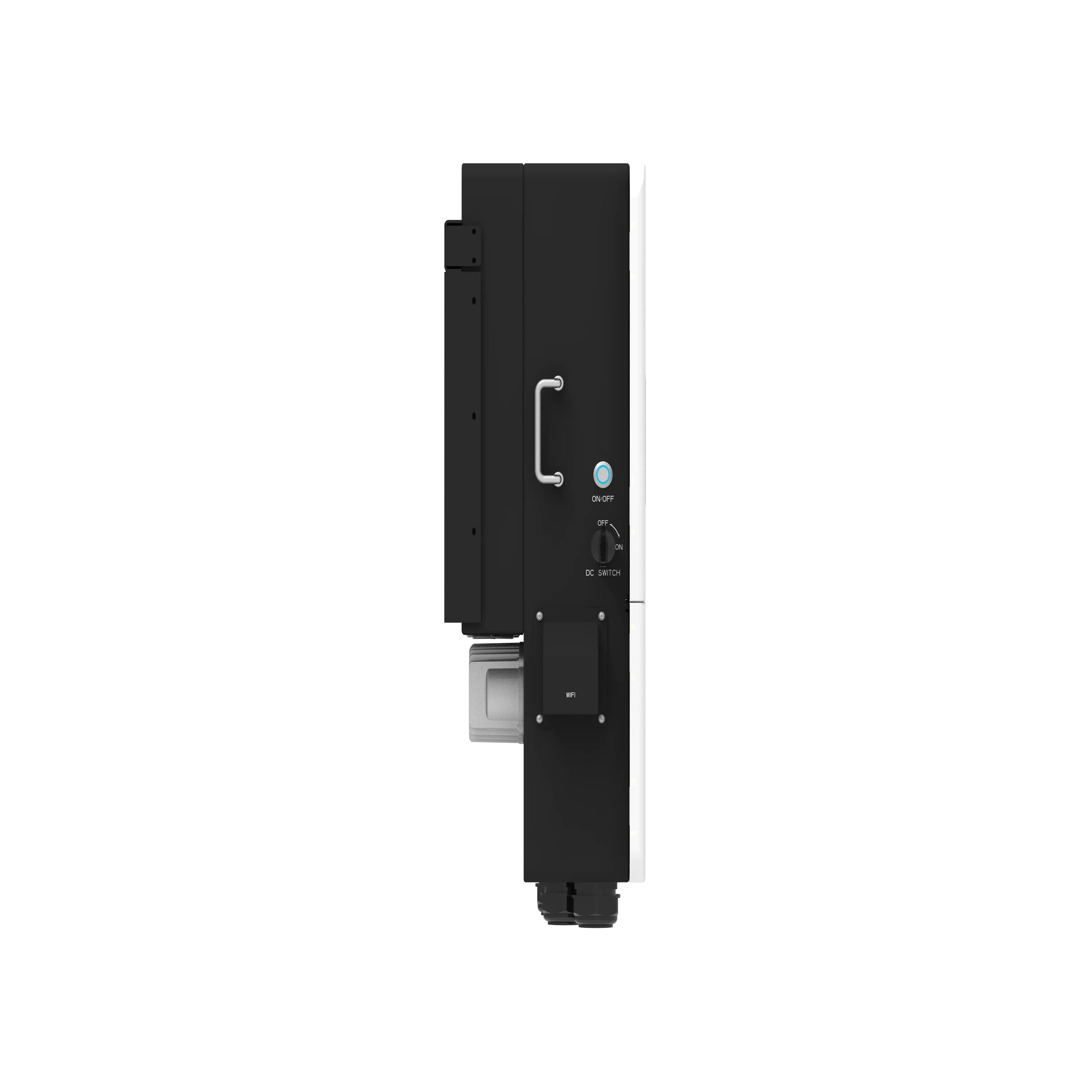

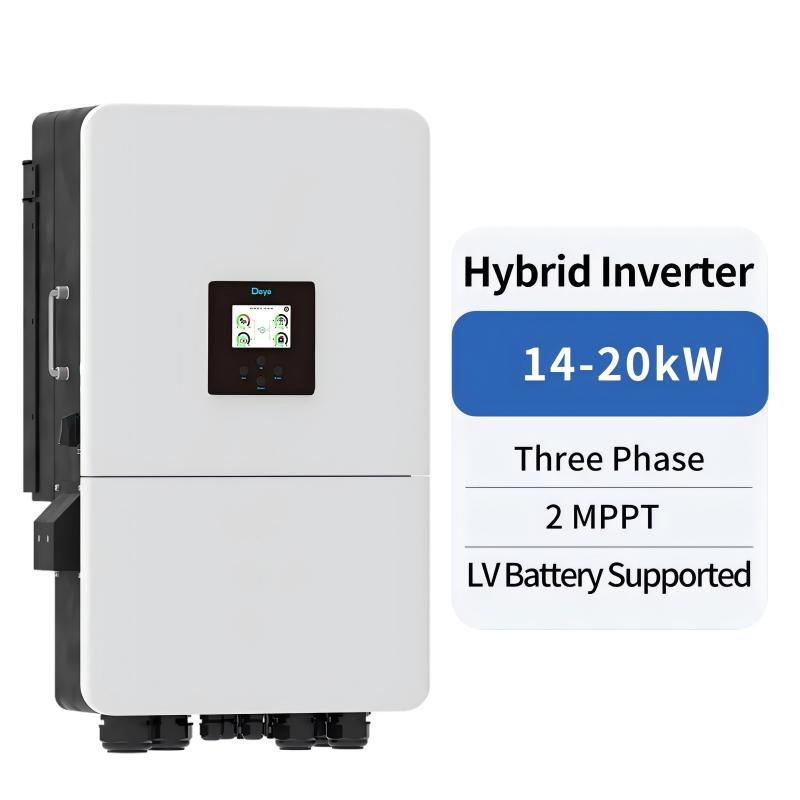

Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
1 / 5
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw
Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw

Original New Deye Sg05 Version Hybrid Inverter Sun-16K-Sg05lp3-EU-Sm2 Low Voltage 3 Phase 14kw 15kw 16kw 18kw 20kw

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Phase
Three
Output Power
14-20kw
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Wave Form
Sine Wave Inverter
Weight
51.9kg
Battery Type
Li-ion / Lead-acid
MPPT Range
160-650V
Protection
IP65
Product Overview
Hybrid Inverter Overview

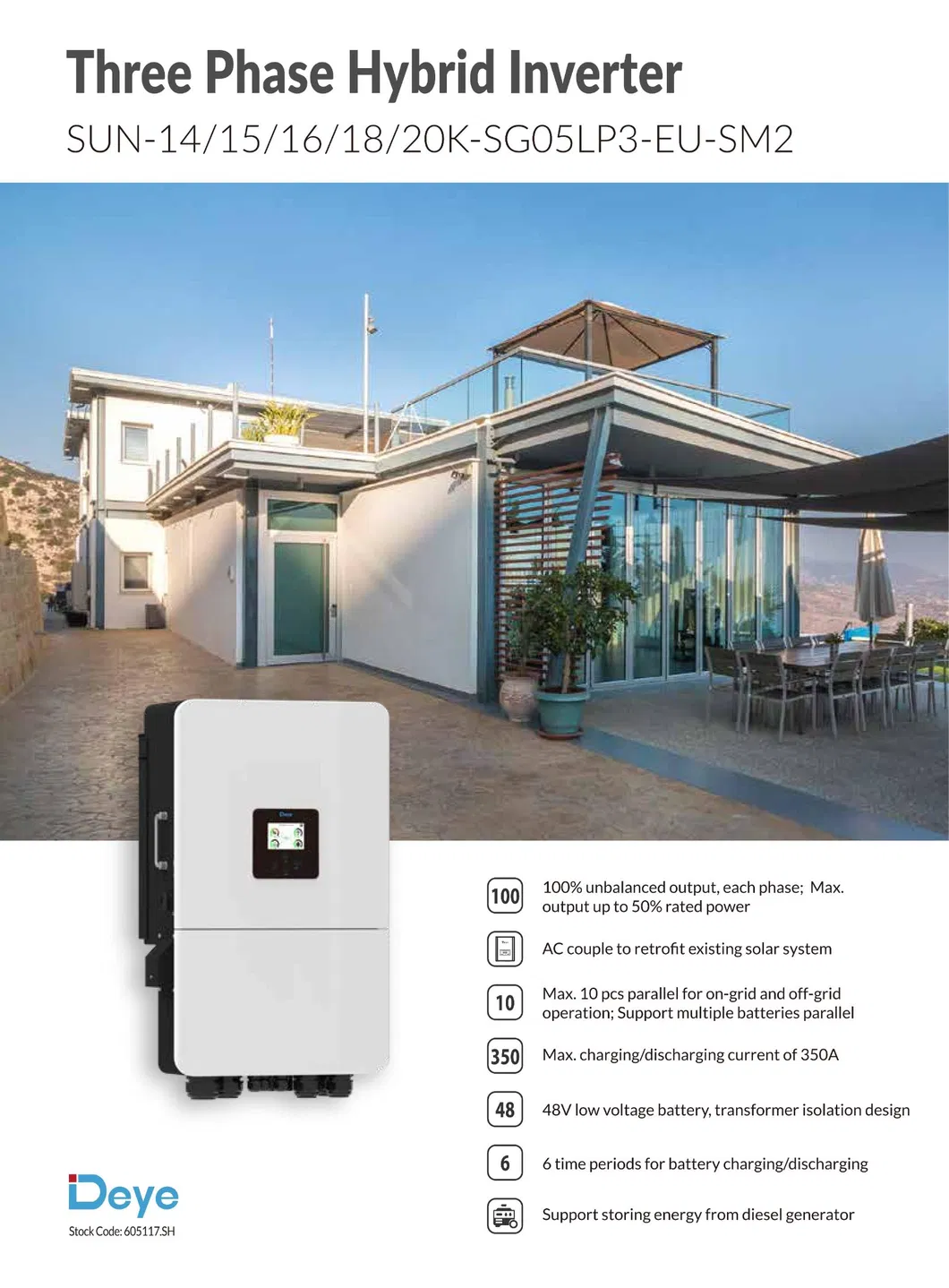

Inverter Technical View
Technical Models Comparison
Model SUN-14K-SG05LP3 SUN-15K-SG05LP3 SUN-16K-SG05LP3 SUN-18K-SG05LP3 SUN-20K-SG05LP3
Max PV Input (W) 22400 24000 25600 28800 32000
Max Charge (A) 260 280 300 330 350
Battery Voltage 40-60V (Low Voltage)
💡

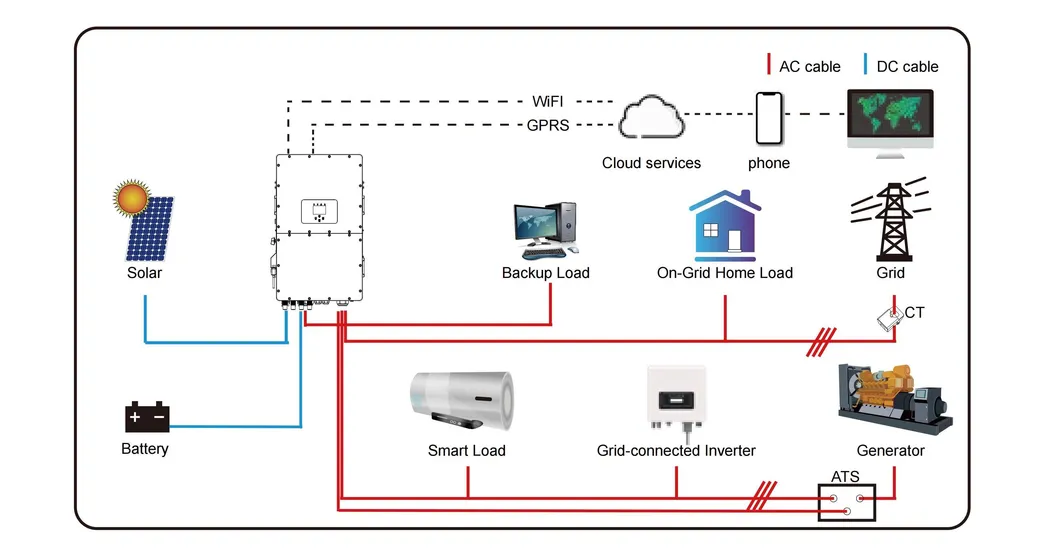

Basic System Architecture: This hybrid inverter is designed to integrate PV modules, batteries, and the utility grid or generators. It can power a wide range of appliances including high-motor demand devices like refrigerators and air conditioners.
System Architecture

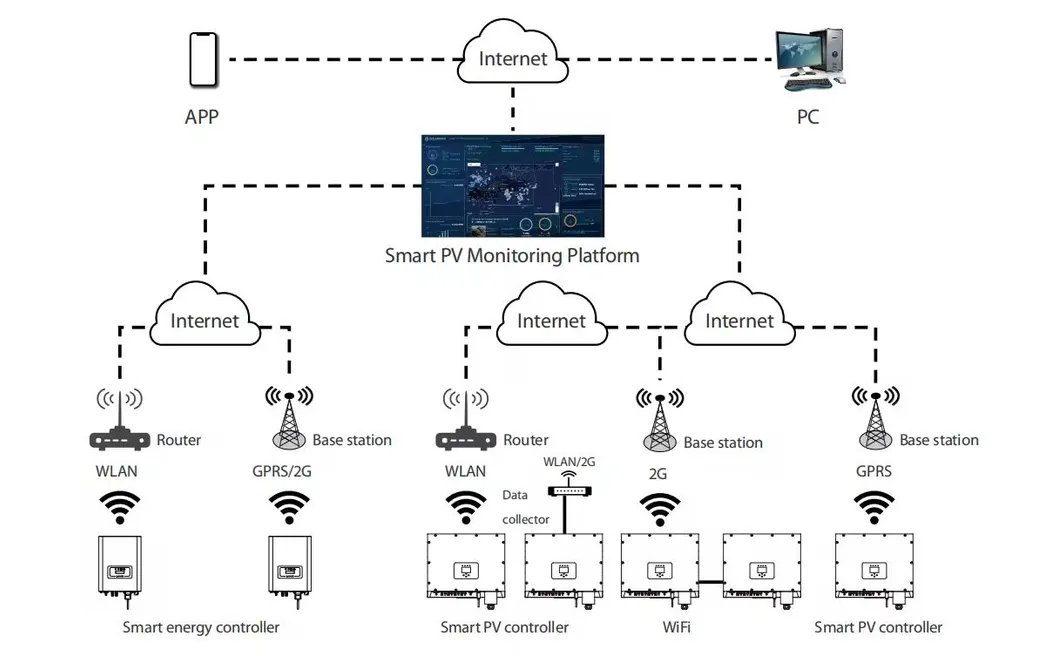

Solar Monitoring Solution
Intelligent Monitoring

The residential monitoring solution ensures your PV system operates efficiently throughout its life-cycle. It provides detailed data on daily, monthly, and yearly energy generation via wireless communication. Users can access the platform via PC web or mobile applications.

Monitoring Interface
Product Details
Detailed Component View
Product Dimensions
Frequently Asked Questions
What types of batteries are compatible with this hybrid inverter?
The system is designed for 40-60V low-voltage battery banks and is compatible with both Lead-acid and Lithium-ion batteries with self-adaptation to BMS.
What is the maximum PV input power supported?
Depending on the specific model, the maximum PV input power ranges from 22,400W for the 14kW model up to 32,000W for the 20kW model.
Can this inverter work in harsh outdoor environments?
Yes, the inverter features an IP65 protection degree, making it suitable for various installation environments with resistance to dust and water.
How can I monitor the system performance?
The system supports RS485, RS232, and CAN communication. You can monitor performance via a smart WiFi plug through a PC web browser or a dedicated mobile app.
Does the inverter support parallel operation for higher loads?
The unit is a 3-phase hybrid inverter designed for residential and light commercial use, supporting motor-type appliances such as air conditioners.
What is the operating temperature range?
The inverter operates between -40°C to +60°C, with derating occurring when temperatures exceed 45°C.
