Product Description

Overview & Basic Info

ModelSUN-10K-SG02LP1-EU-AM3
PhaseSingle Phase
Output Power10kW
Battery TypeLead-Acid or Lithium-Ion
ProtectionIP65
CoolingIntelligent Air Cooling
Weight35.6 Kg
Efficiency97.60% (Max)
Deye Solution

Product Description

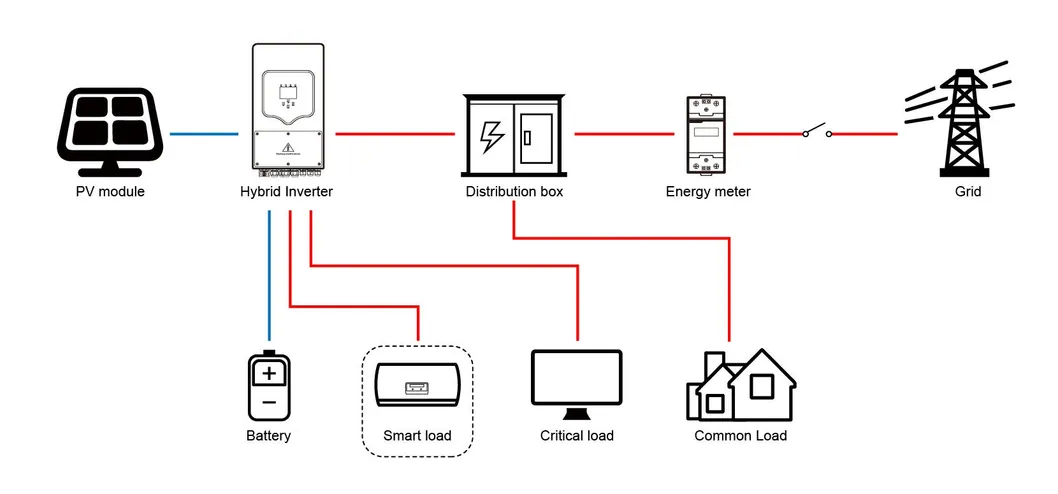

Hybrid Inverter Solution

Maximizing solar self-consumption. During the day, the PV system generates electricity provided to the loads initially. Excess energy charges the battery for later release.

  • Colorful touch LCD, IP65 protection degree
  • AC couple to retrofit existing solar systems
  • Max. charging/discharging current of 250A
  • 6 time periods for battery charging/discharging
  • Support storing energy from diesel generators
  • Up to 16 pcs parallel for on-grid and off-grid operation
Module 1
Module 2
Module 3

Product Parameters

Model SUN-7.6K-SG02LP1 SUN-8K-SG02LP1 SUN-10K-SG02LP1 SUN-12K-SG02LP1
Max PV Access Power (W)15200160002000024000
Max Charging Current (A)190190220250
MPPT Voltage Range (V)150-425
Rated Output Power (W)760080001000012000
Max Efficiency97.60%
Cabinet Size (mm)420 × 670 × 233
Technical Drawing

Portfolio

Portfolio 1
Portfolio 2
Portfolio 3

Frequently Asked Questions

What is the lifespan of a photovoltaic power generation system?
The lifespan of photovoltaic panels is generally 25-30 years, while the lifespan of inverters is about 10-15 years. However, the actual lifespan depends on usage and maintenance conditions.
How much maintenance do these systems require?
Maintenance is relatively simple. Regularly clean the photovoltaic panels and check the system's operating status to ensure peak performance.
What types of buildings are suitable for these systems?
They are suitable for various building types, including residential, commercial, and industrial structures. The key requirement is sufficient sunlight exposure at the installation site.
Can these systems be combined with energy storage?
Yes, photovoltaic systems can be combined with energy storage (batteries) to improve energy utilization and achieve a more stable power supply during non-sunny periods.
Are these systems environmentally friendly?
Absolutely. These systems use clean, renewable solar energy, which significantly reduces greenhouse gas emissions compared to traditional power sources.
How can I monitor system performance?
We provide an online monitoring platform where you can view real-time data and historical records of your power generation via WiFi, GPRS, or LAN options.
